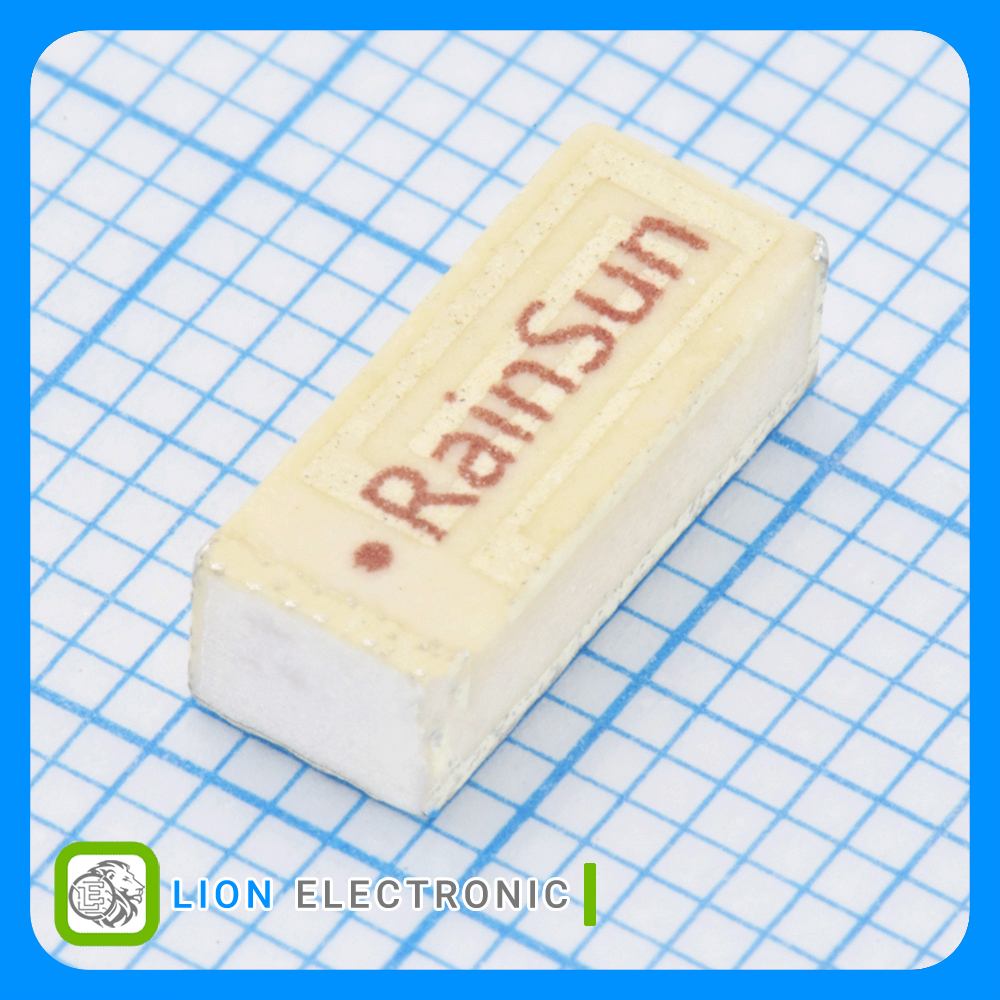

PF1004
PF1004
Part Number
4982
Lion Part
Datasheet
Rainsun microwave Tech Manufacture
آنتن چیپ برای کاربرد بیسیم 2.45 گیگاهرتز و 5 گیگاهرتز تا 6 گیگاهرتز با بهره 3dBi امپدانس 50 اهم کانکتور لحیمی

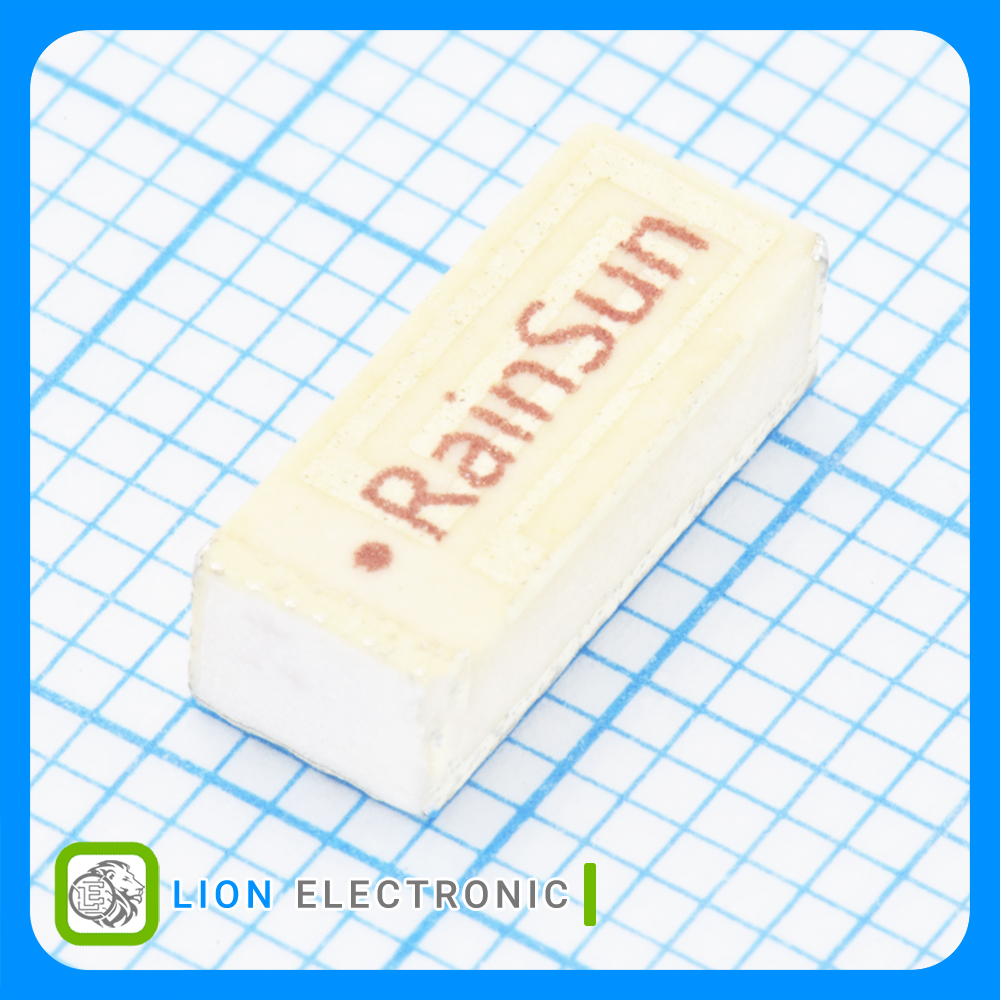

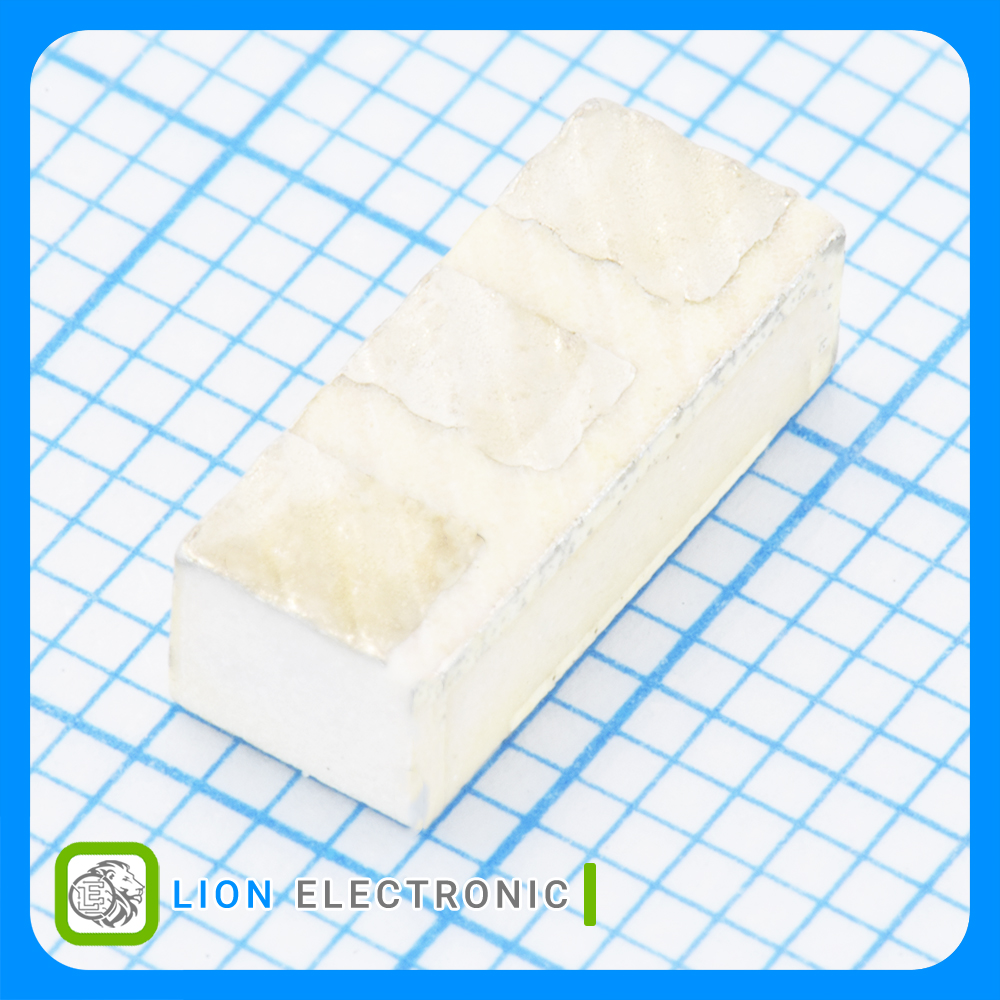

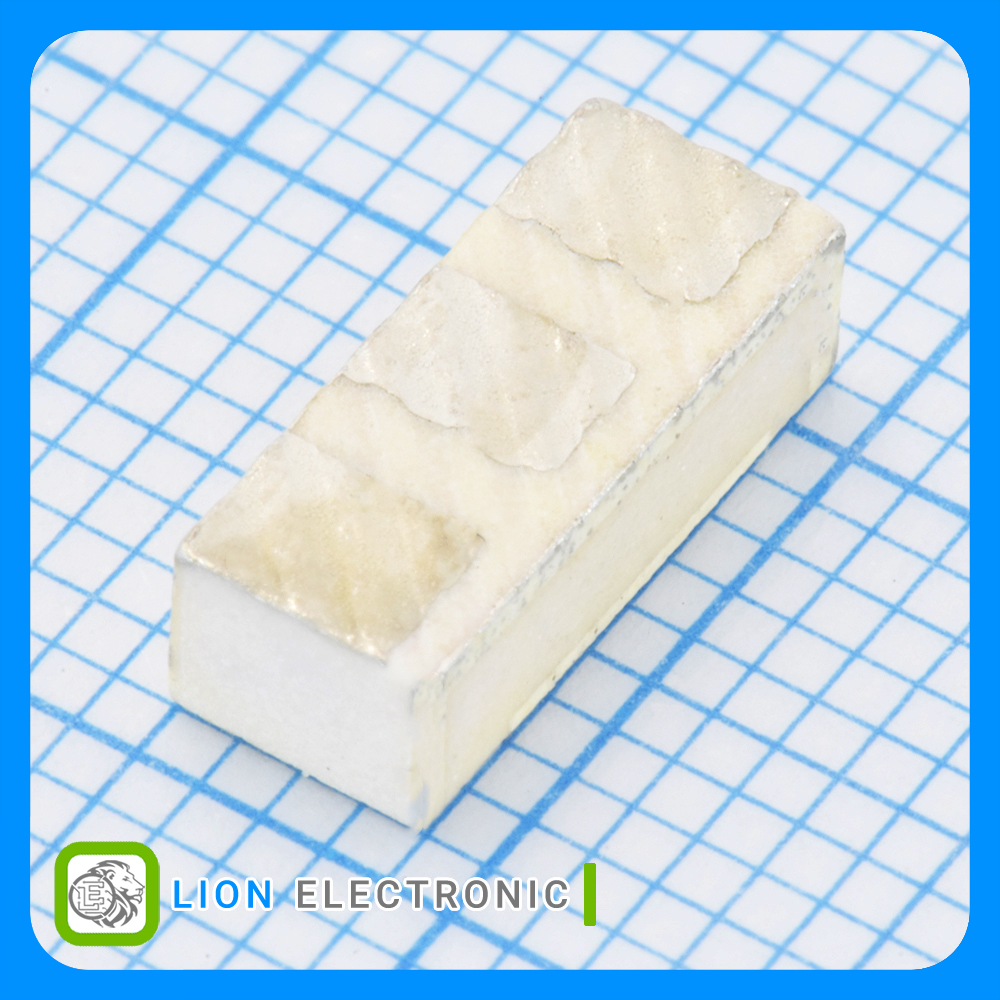

Chip Antenna for Wireless Application, 2.45GHz & 5GHz to 6GHz, 3dBi with 50Ω and Installation by soldering Connector
معرفی
آنتن چیپ برای کاربرد بیسیم 2.45 گیگاهرتز و 5 گیگاهرتز تا 6 گیگاهرتز با بهره 3dBi امپدانس 50 اهم کانکتور لحیمی
Chip Antenna for Wireless Application, 2.45GHz & 5GHz to 6GHz, 3dBi with 50Ω and Installation by soldering Connector
Specifications
- Antenna Connector Type: Installation by soldering
- Application: 2.4GHz
- Frequency Range: 2.45GHz & 5GHz to 6GHz
- Gain: 3dBi
- Impedance: 50Ω
- Cable Length: None
- Dimensions: 10mm x 4mm x 3mm
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات PF1004
PF1004
Part Number
Installation by soldering
Antenna Connector Type
50Ω
Impedance
2.4GHz
Application
10mm x 4mm x 3mm
Dimensions
-40C
Minimum Operating Temperature
3dBi
Gain
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
None
Cable Length
2.45GHz & 5GHz to 6GHz
Frequency Range
