SW433-TH32
SW433-TH32
Part Number
5180
Lion Part
Datasheet
G-NiceRF Manufacture
آنتن فنری مسی SW433-TH32، با فرکانس 428 تا 438 مگاهرتز با بهره 2.15dBi امپدانس 50 اهم کانکتور لحیمی، مخصوص ارتباط بیسیم 433 مگاهرتز

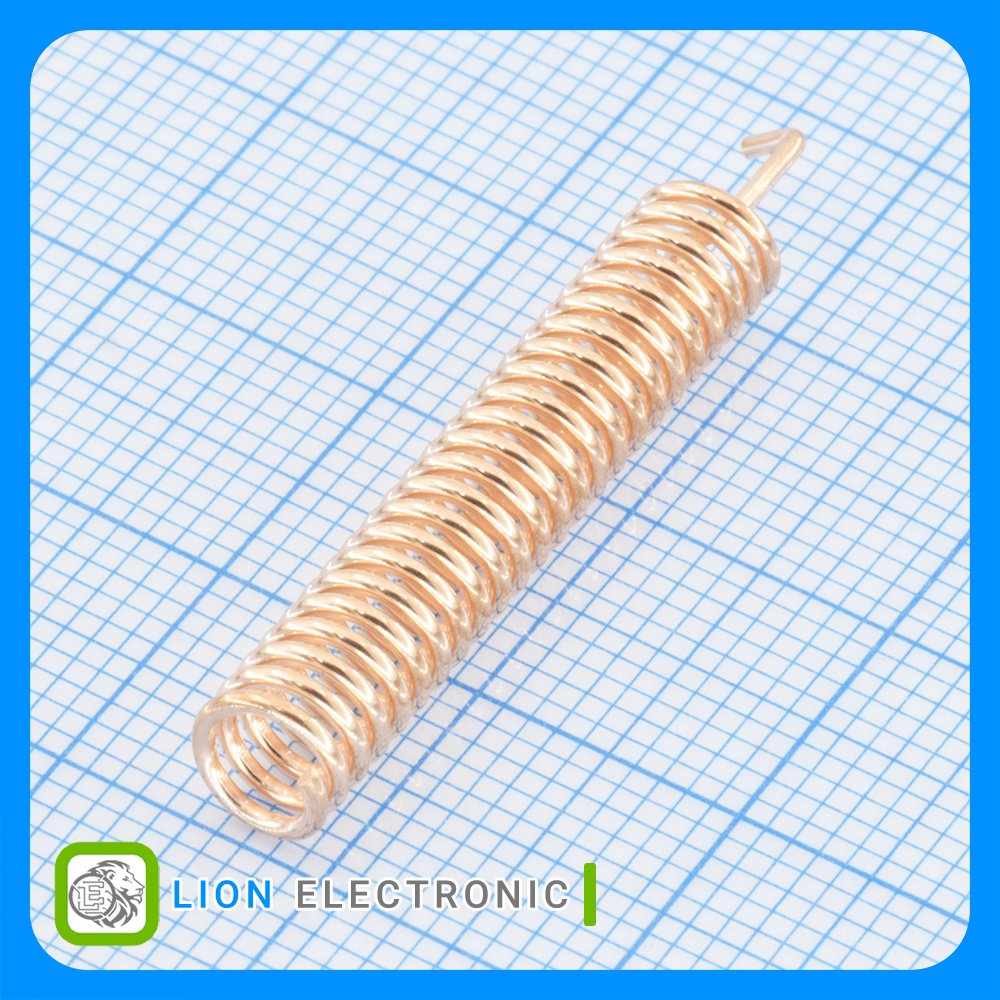

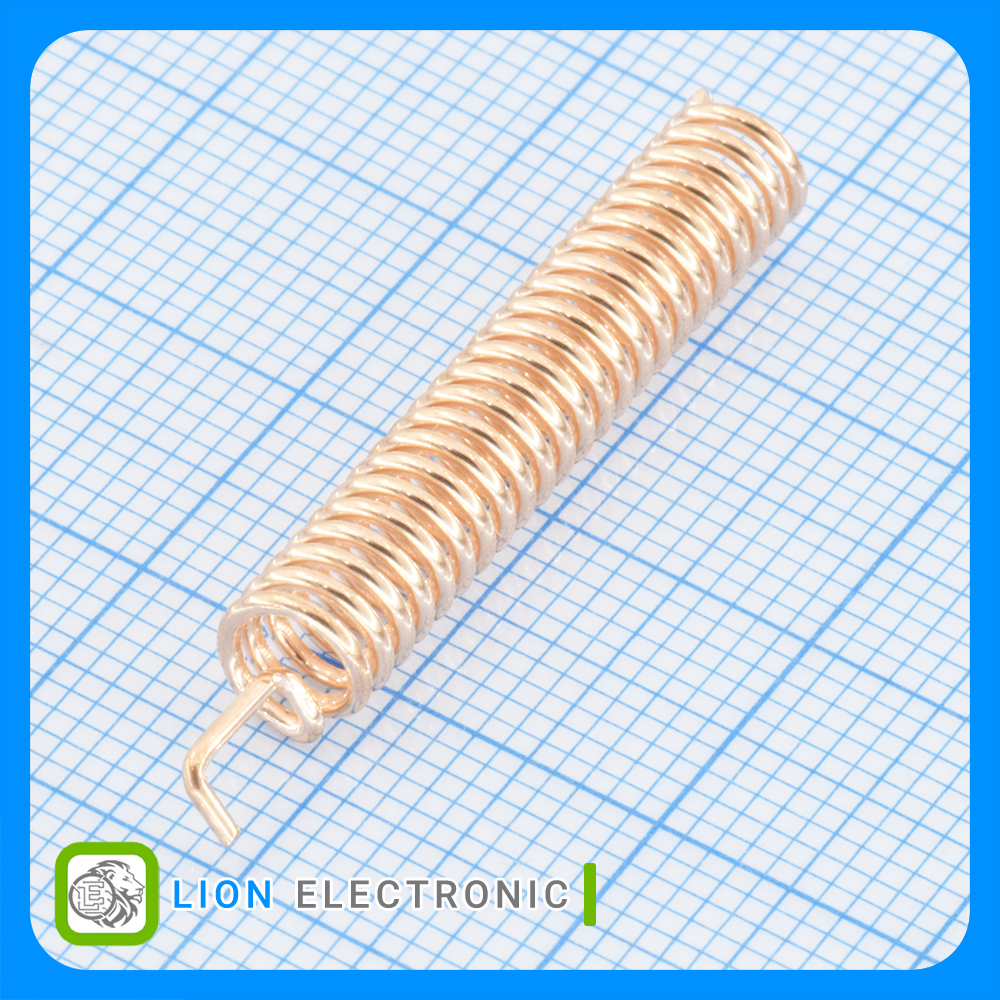

SW433-TH32 Copper Spring Antenna, 428 - 438MHz, 2.15dBi with 50Ω and Installation by soldering Connector, Designed Specially for 433MHz Wireless Communication
معرفی
آنتن فنری مسی SW433-TH32، با فرکانس 428 تا 438 مگاهرتز با بهره 2.15dBi امپدانس 50 اهم کانکتور لحیمی، مخصوص ارتباط بیسیم 433 مگاهرتز
SW433-TH32 Copper Spring Antenna, 428 - 438MHz, 2.15dBi with 50Ω and Installation by soldering Connector, Designed Specially for 433MHz Wireless Communication
Specifications
- Antenna Connector Type: Installation by soldering
- Application: 433MHz
- Frequency Range: 428 - 438MHz
- Gain: 2.15dBi
- Impedance: 50Ω
- Cable Length: None
- Dimensions: 32x5.5mm
- Mounting Style: PCB Mount
مشخصات آنتن SW433-TH32
آنتن SW433-TH32
Part Number
Installation by soldering
Antenna Connector Type
433MHz
Application
50Ω
Impedance
2.15dBi
Gain
PCB Mount
Mounting Style
None
Cable Length
N/A
Minimum Operating Temperature
428 - 438MHz
Frequency Range
N/A
Maximum Operating Temperature
32x5.5mm
Dimensions
