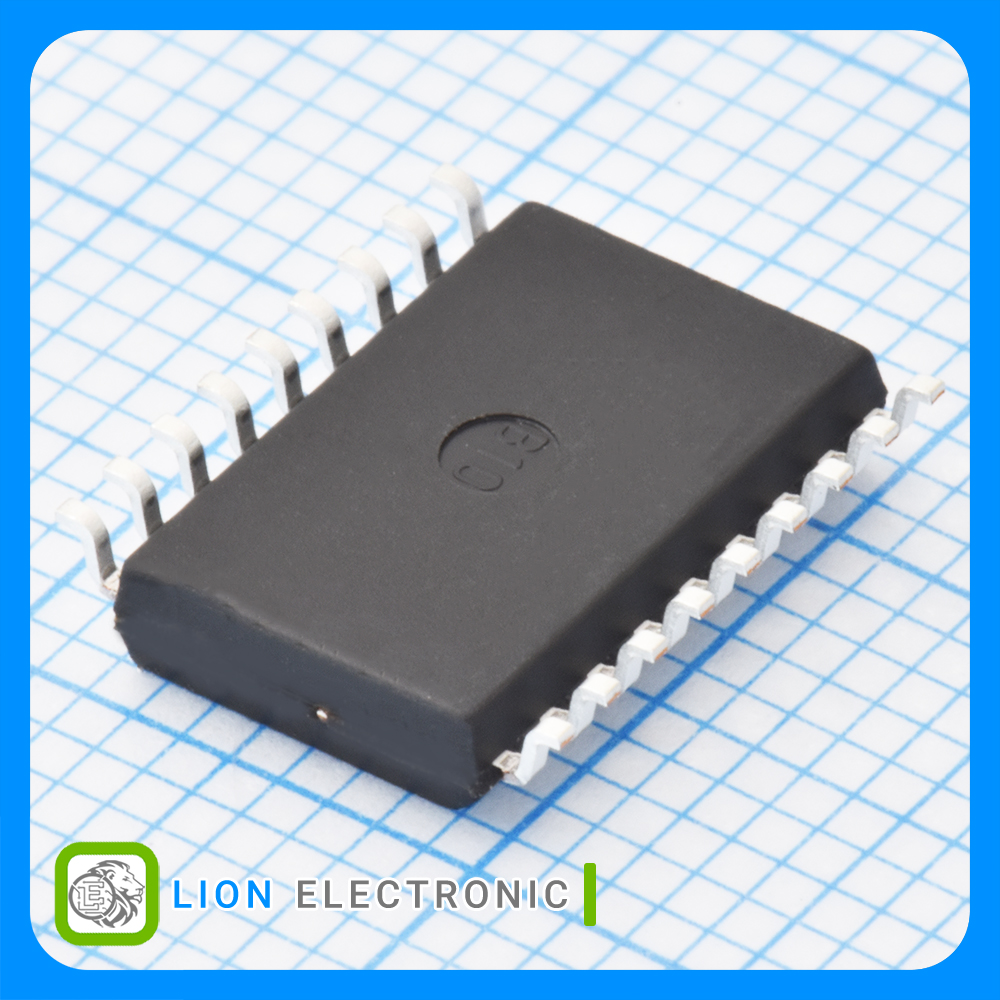

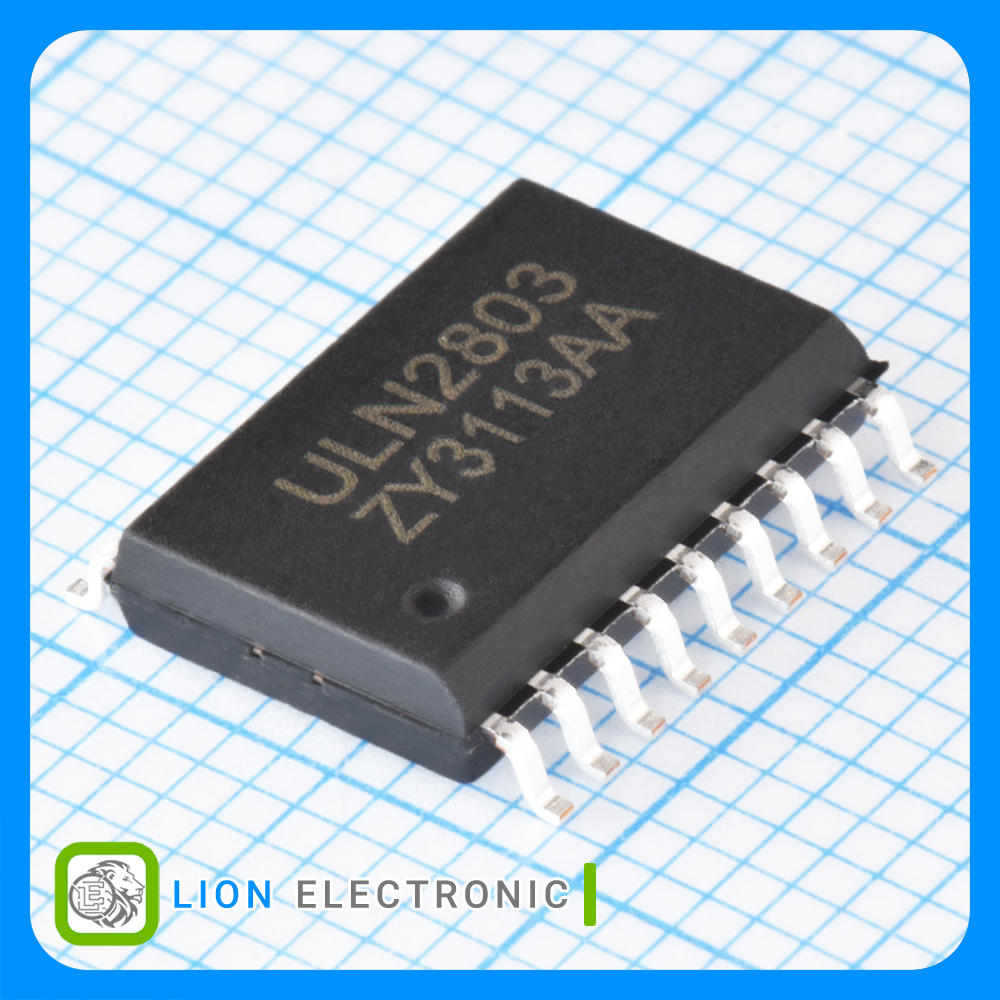

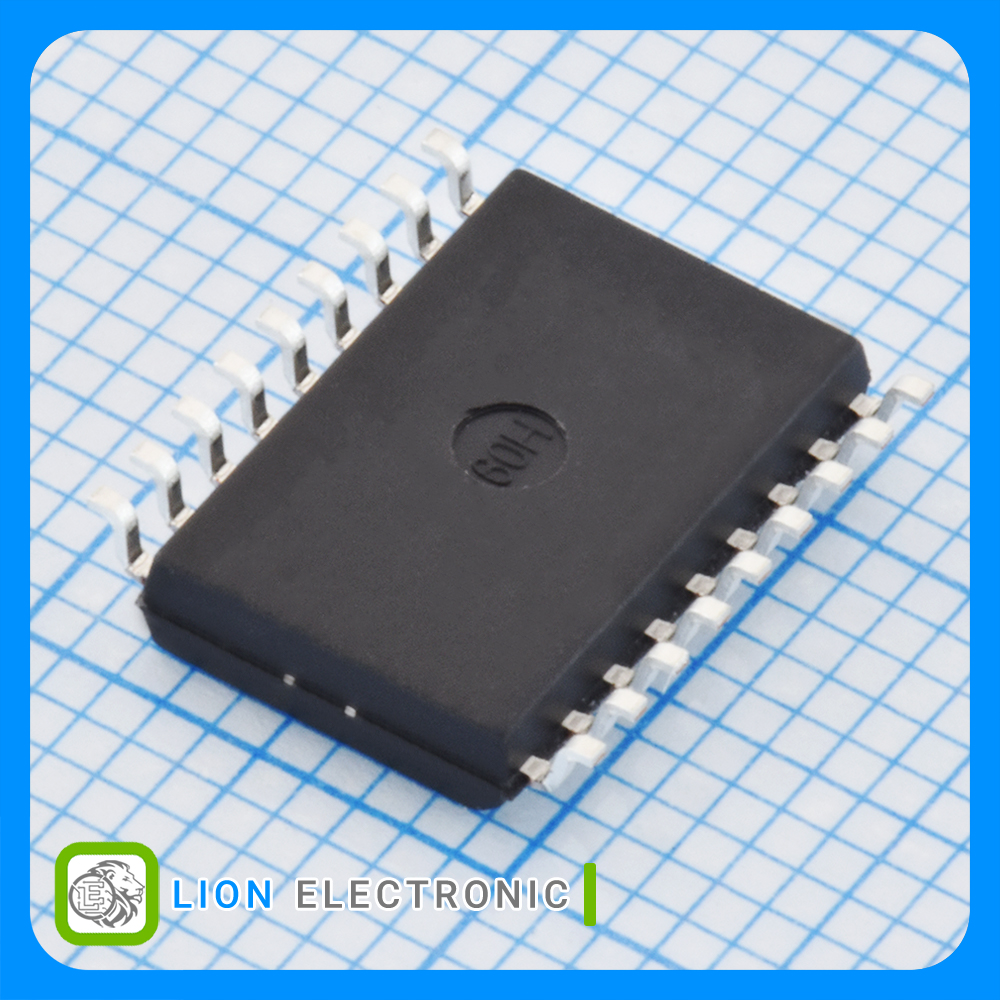

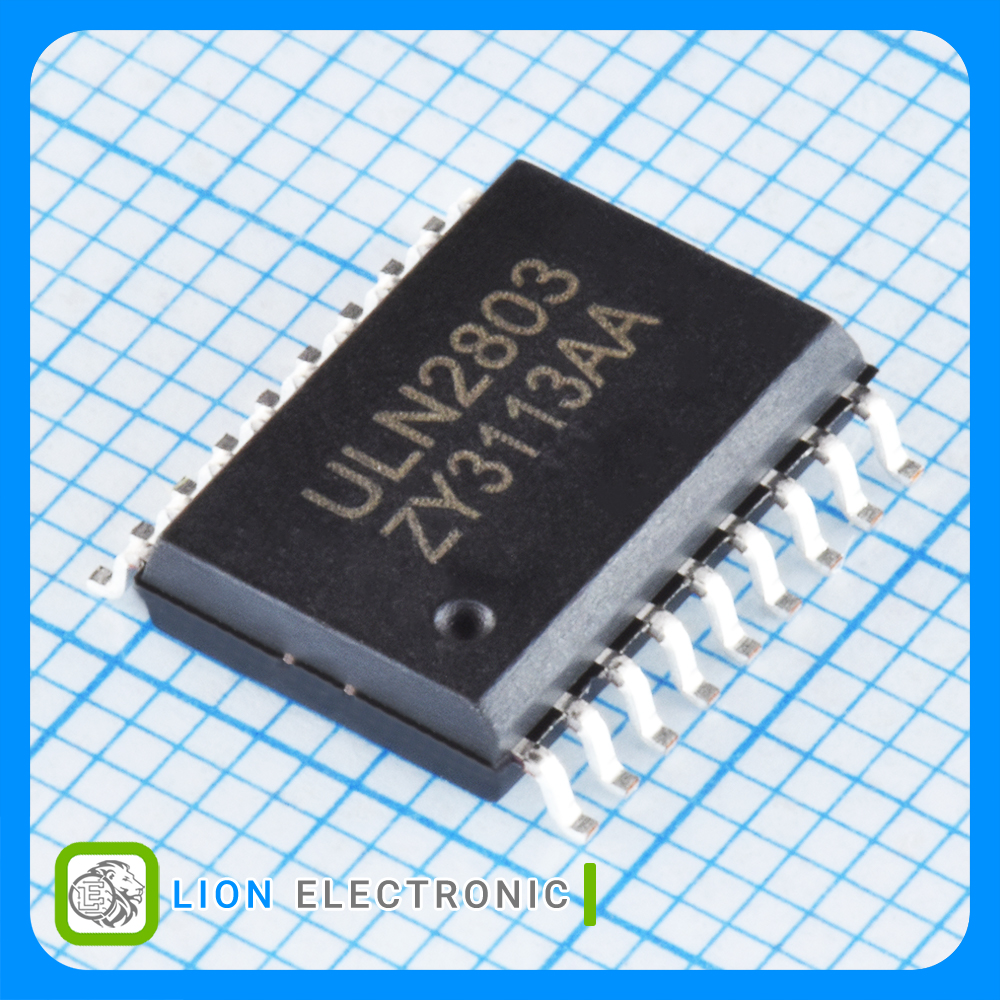

ULN2803
ULN2803
Part Number
5364
Lion Part
Datasheet
MSKSEMI Manufacture
آیسی درایور دارلینگتون ترانزیستوری NPN با 8 کانال جریان بالا 50 ولت 500 میلیآمپر با پکیج SOP-18
BJT NPN Darlington Driver Array 8, High-Voltage High-Current comprised of 8 NPN Darlington pairs, 50V, 500mA with SOP-18 Package
معرفی
آیسی درایور دارلینگتون ترانزیستوری NPN با 8 کانال جریان بالا 50 ولت 500 میلیآمپر با پکیج SOP-18
BJT NPN Darlington Driver Array 8, High-Voltage High-Current comprised of 8 NPN Darlington pairs, 50V, 500mA with SOP-18 Package
Specifications
- Transistor Polarity: NPN
- Configuration: Array 8
- Collector - Emitter Voltage VCEO Max: 50V
- Maximum DC Collector Current: 500mA
- Pd - Power Dissipation: 2.25W
- Mounting Style: SMD/SMT
- Package/Case: SOP-18
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ULN2803
ULN2803
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Array 8
Configuration
50V
Collector - Emitter Voltage VCEO Max
500mA
Maximum DC Collector Current
N/A
Gain Bandwidth Product fT
2.25W
Pd - Power Dissipation
SOP-18
Package-Case
