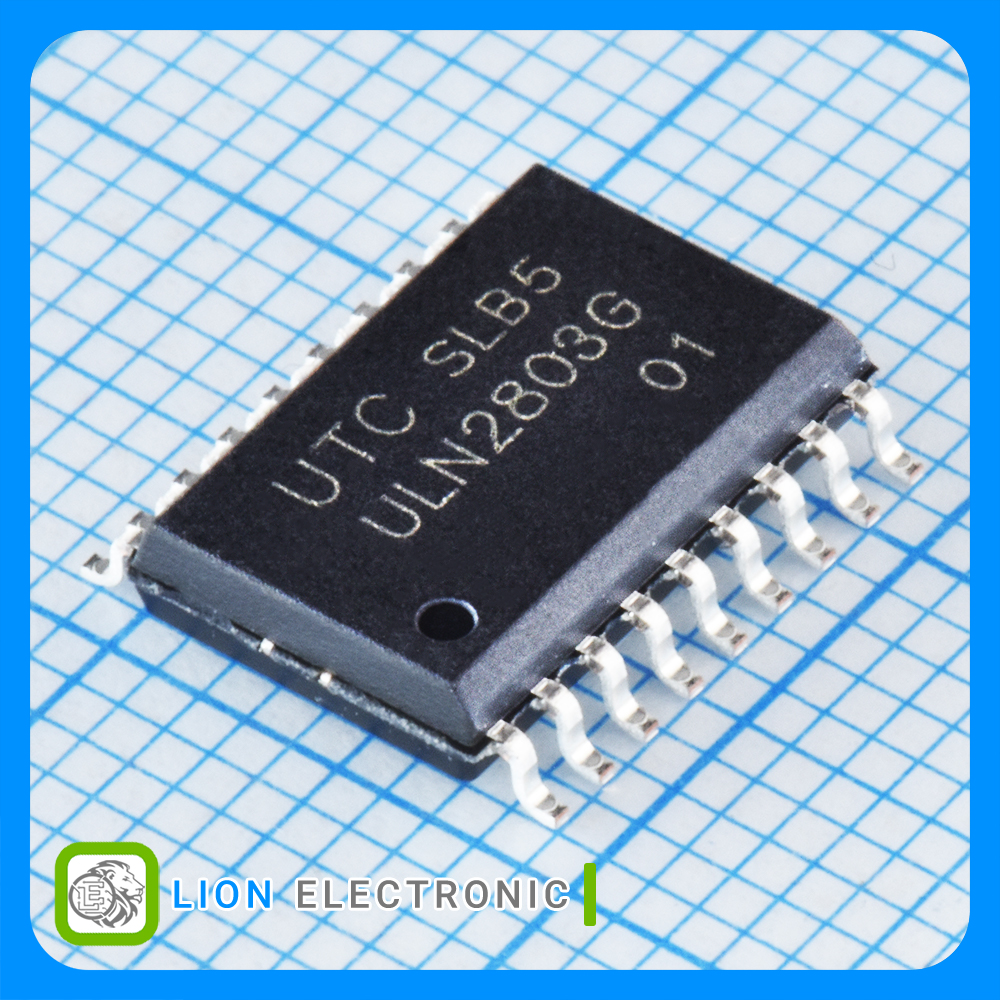

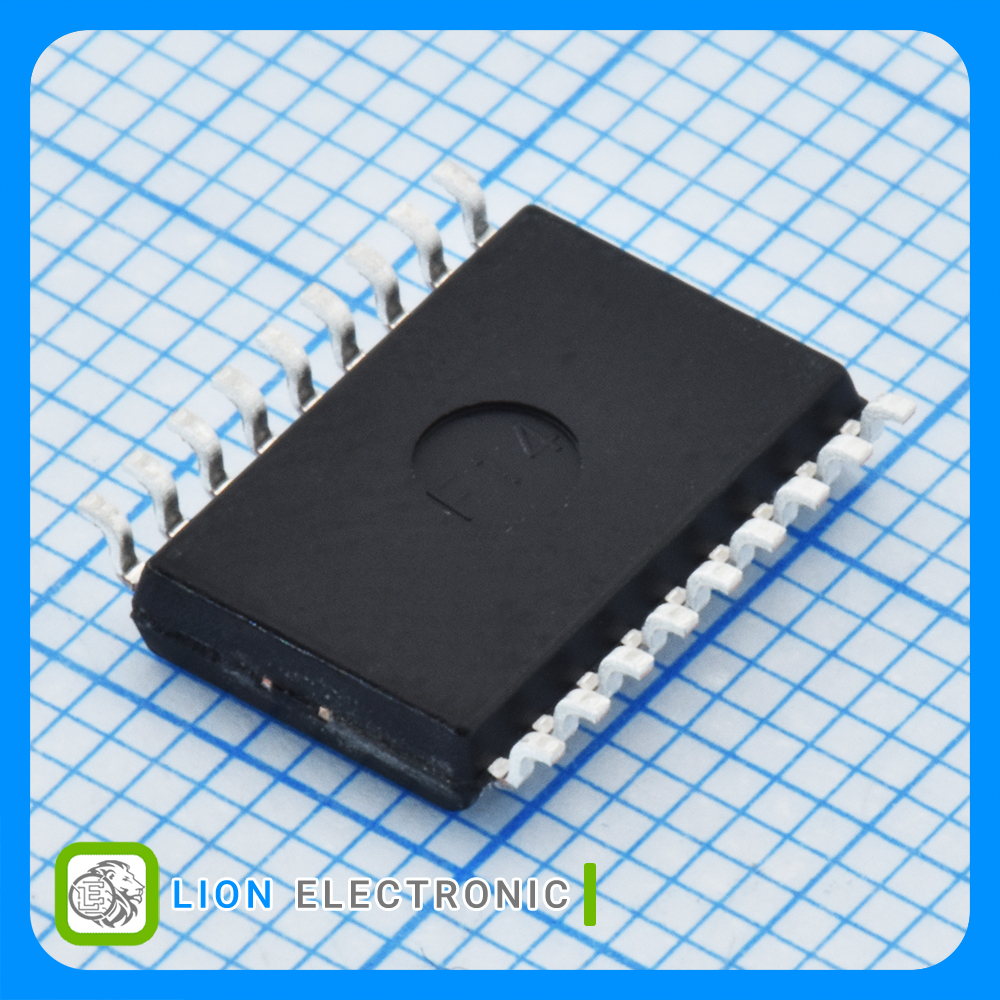

ULN2803G-S18-R
ULN2803G-S18-R
Part Number
5366
Lion Part
Datasheet
UTC Manufacture
آیسی درایور دارلینگتون UTC ULN2803 ترانزیستوری NPN با 8 کانال جریان بالا 50 ولت 500 میلیآمپر با پکیج SOP-18

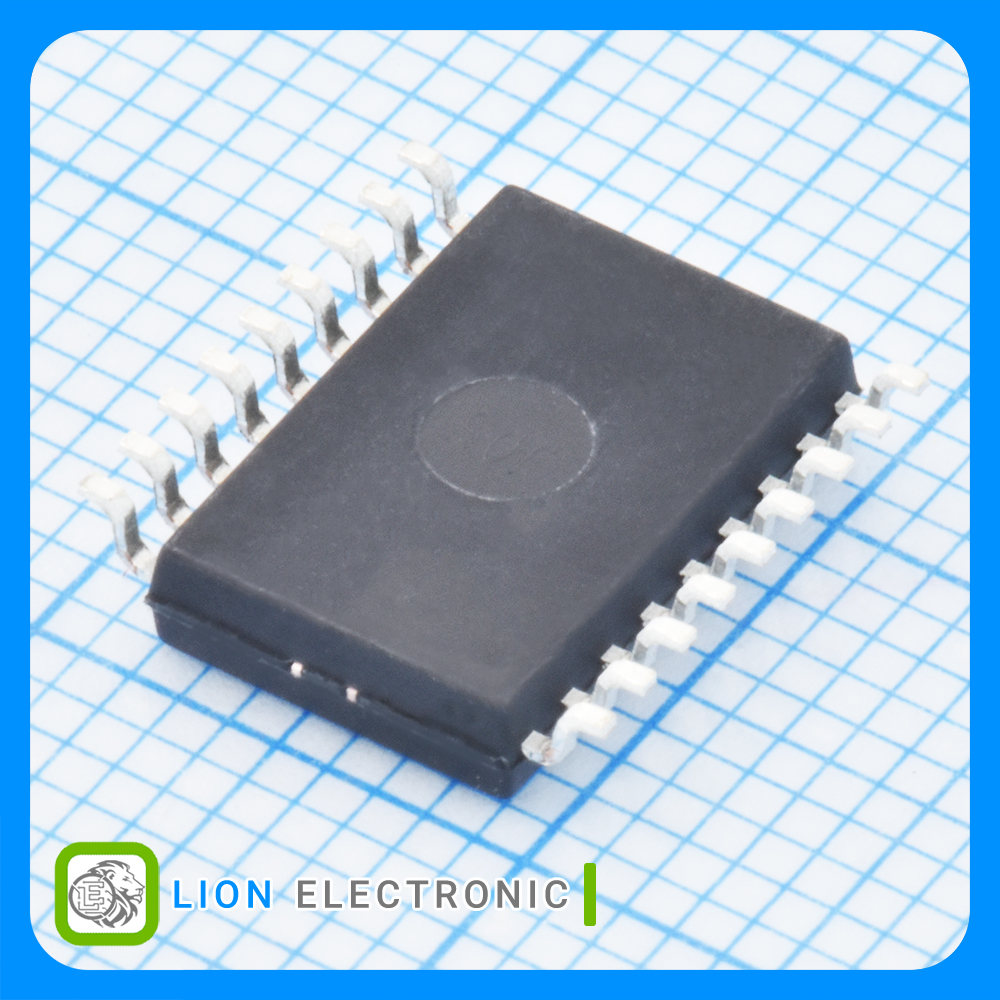

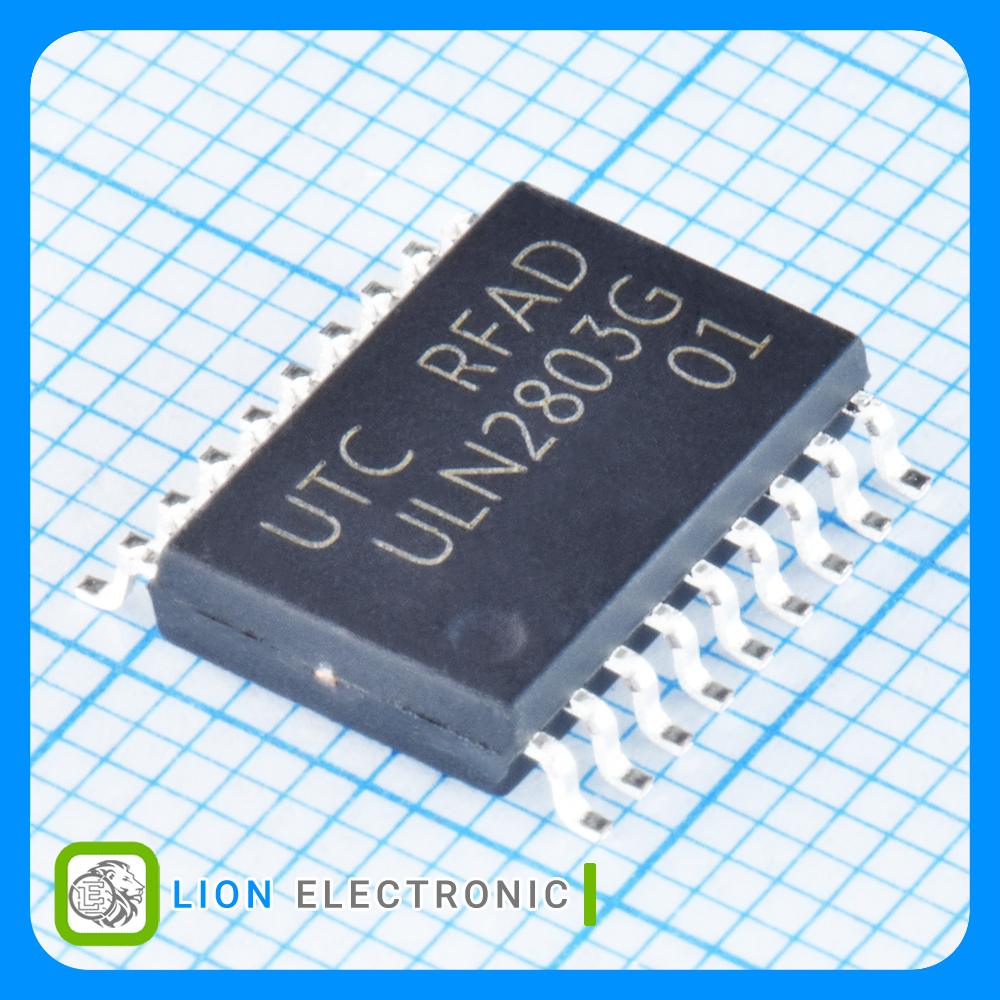

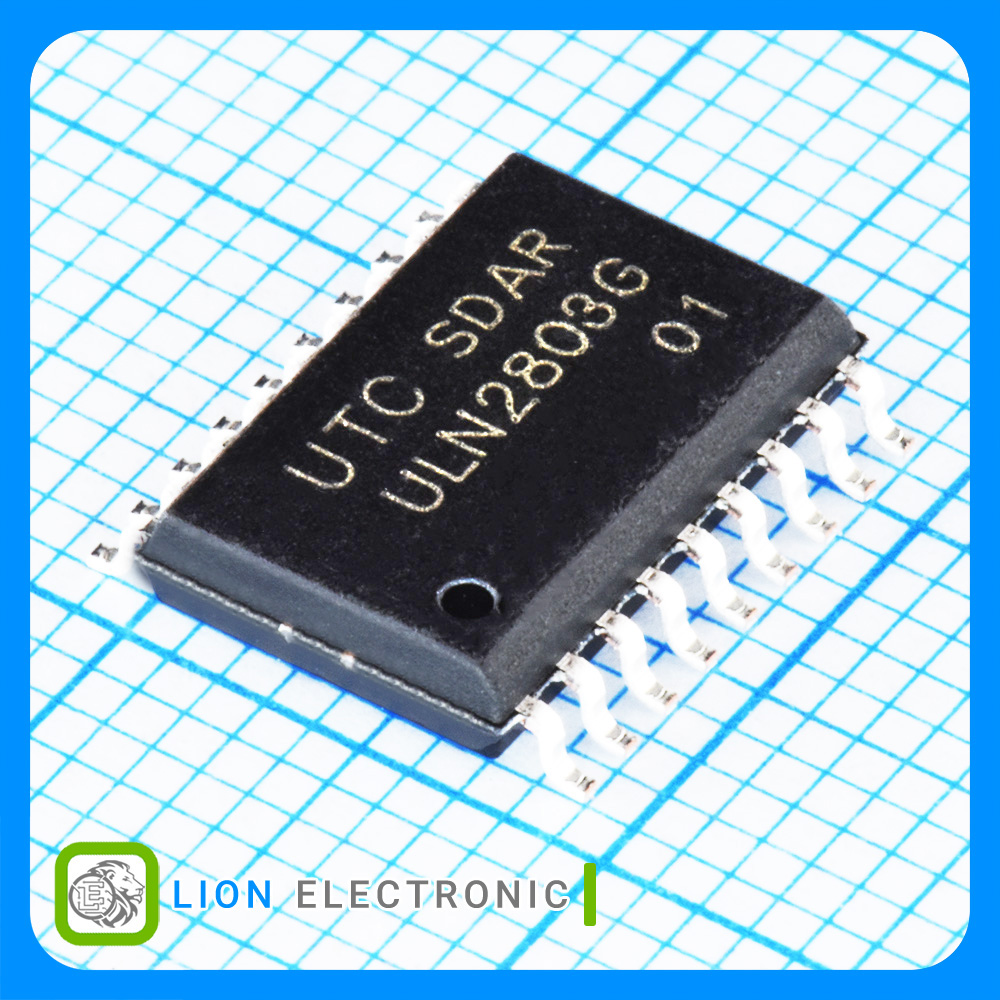

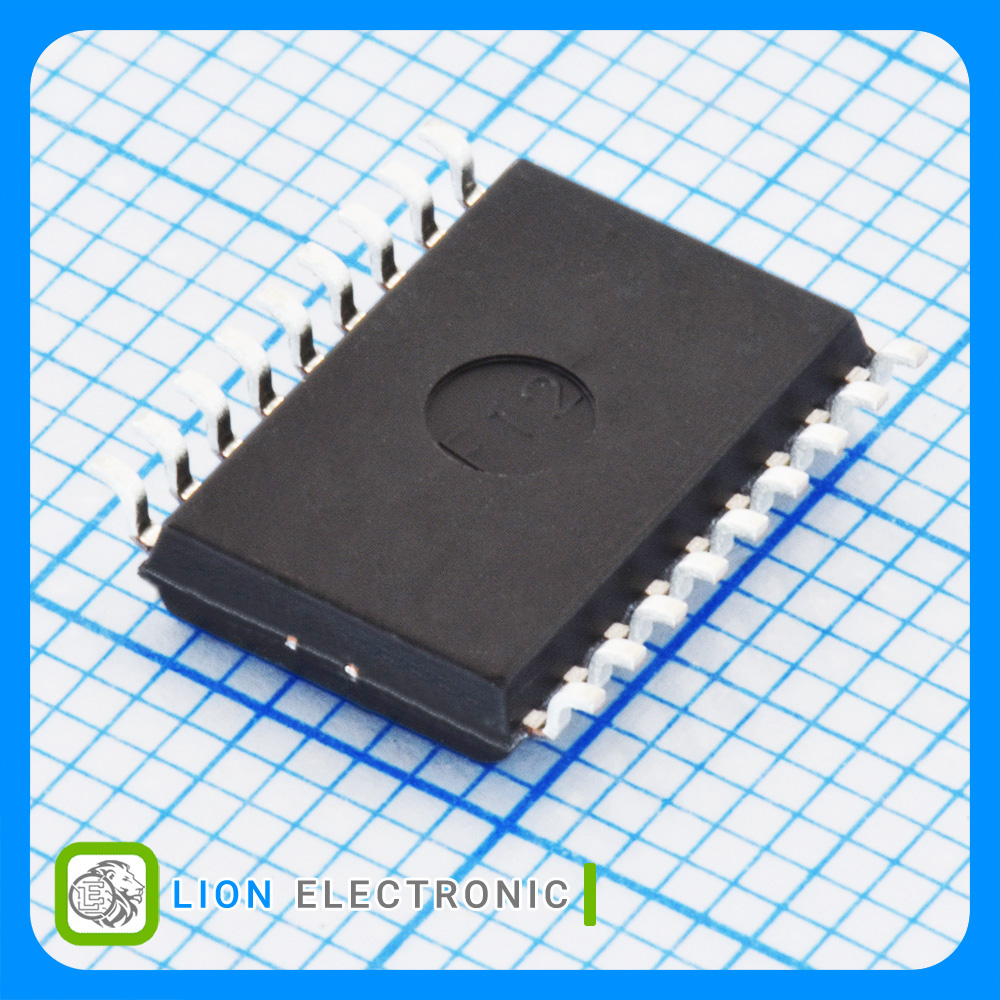

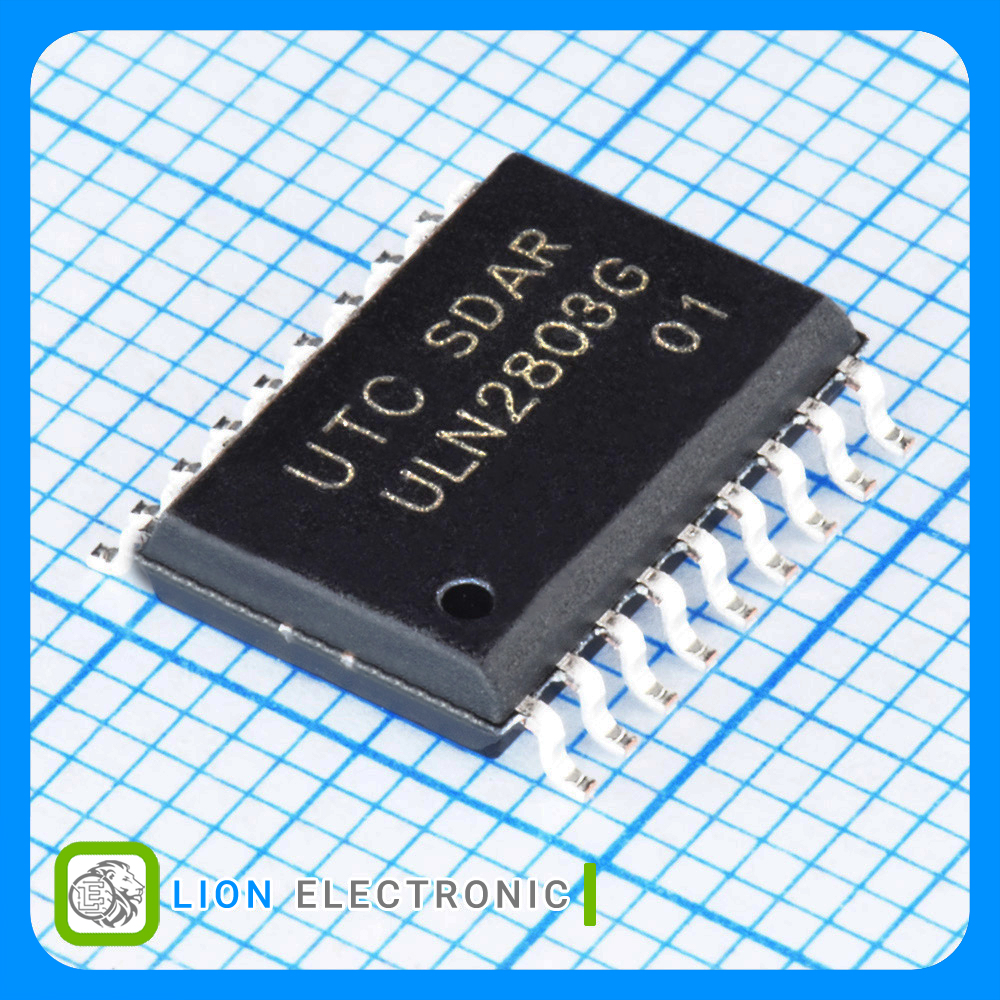

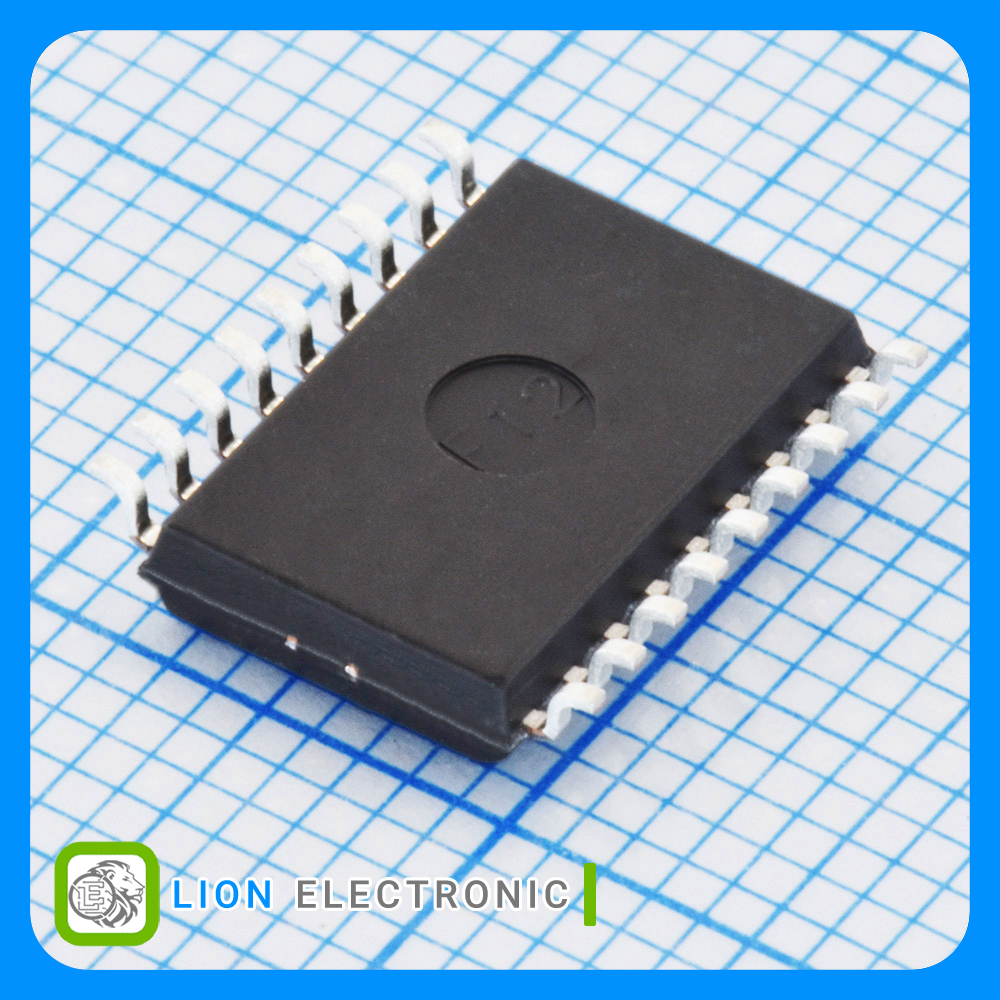

BJT NPN UTC ULN2803 Darlington Drivers comprised of Eight NPN Darlington Pairs, High-Voltage High-Current, 50V, 500mA with SOP-18 Package
معرفی
آیسی درایور دارلینگتون UTC ULN2803 ترانزیستوری NPN با 8 کانال جریان بالا 50 ولت 500 میلیآمپر با پکیج SOP-18
BJT NPN UTC ULN2803 Darlington Drivers comprised of Eight NPN Darlington Pairs, High-Voltage High-Current, 50V, 500mA with SOP-18 Package
Specifications
- Transistor Polarity: NPN
- Configuration: Array 8
- Collector - Emitter Voltage VCEO Max: 50V
- Maximum DC Collector Current: 500mA
- Pd - Power Dissipation: 520mW
- Mounting Style: SMD/SMT
- Package/Case: SOP-18
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C

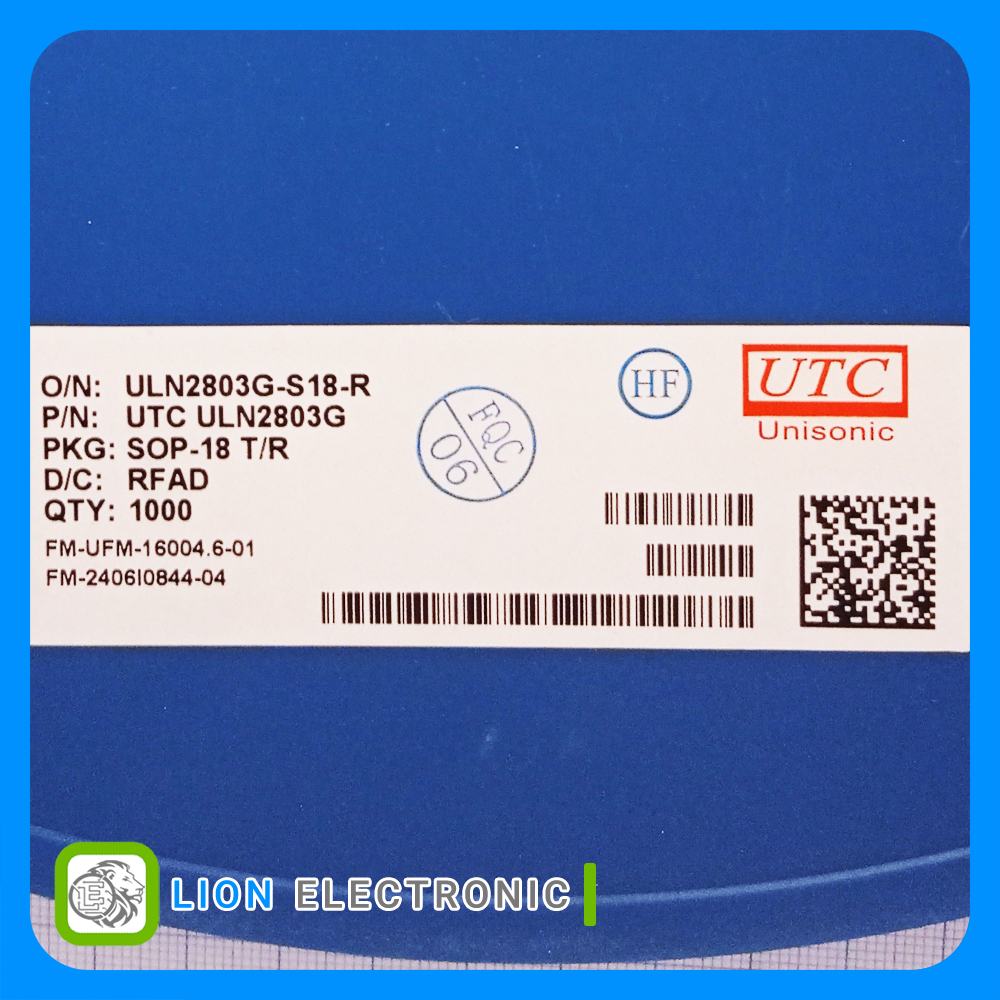

- Packaging: Reel
مشخصات ULN2803G-S18-R
ULN2803G-S18-R
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Array 8
Configuration
50V
Collector - Emitter Voltage VCEO Max
500mA
Maximum DC Collector Current
N/A
Gain Bandwidth Product fT
520mW
Pd - Power Dissipation
SOP-18
Package-Case
