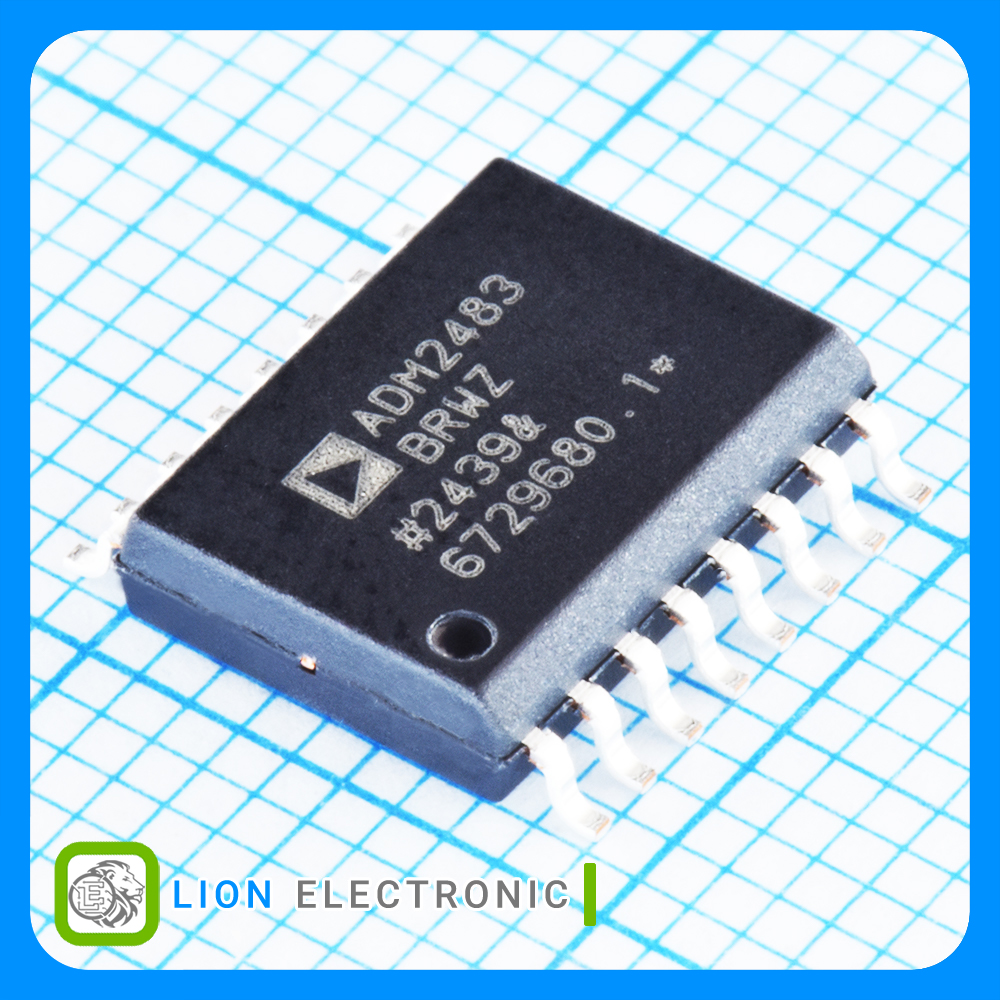

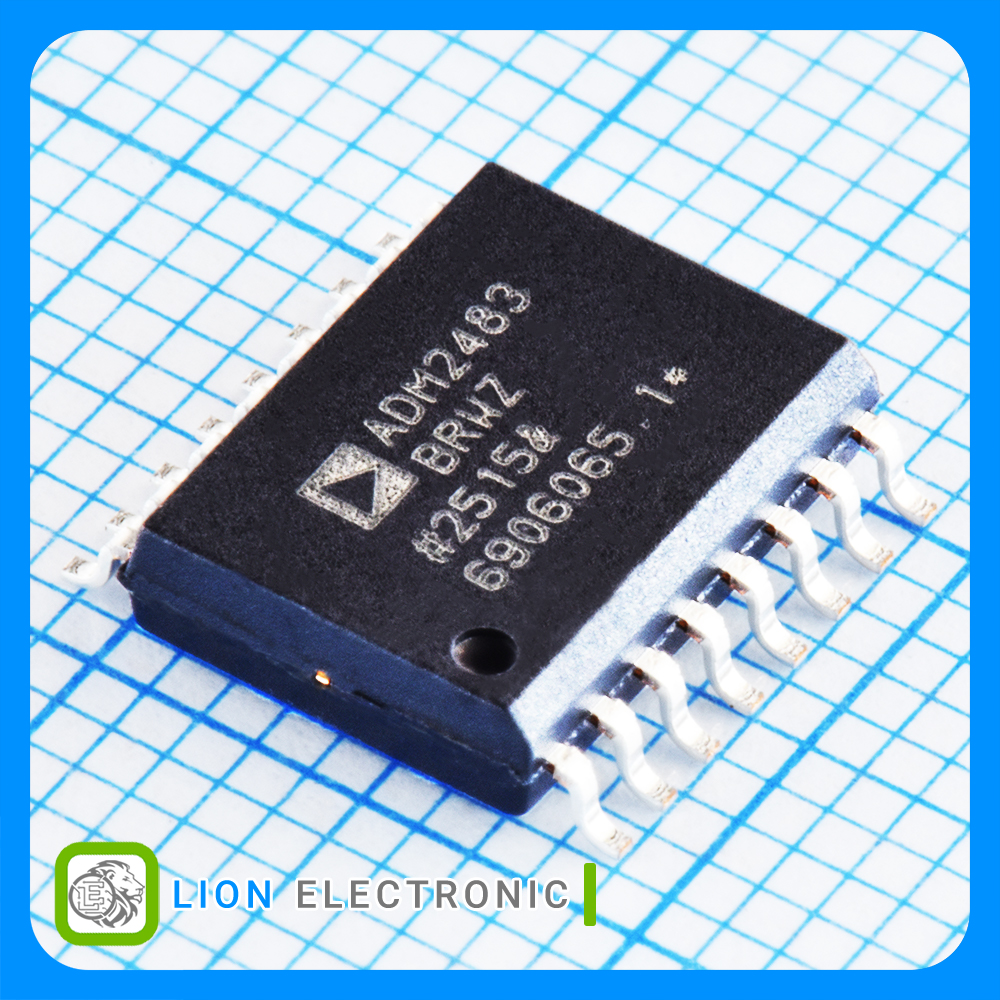

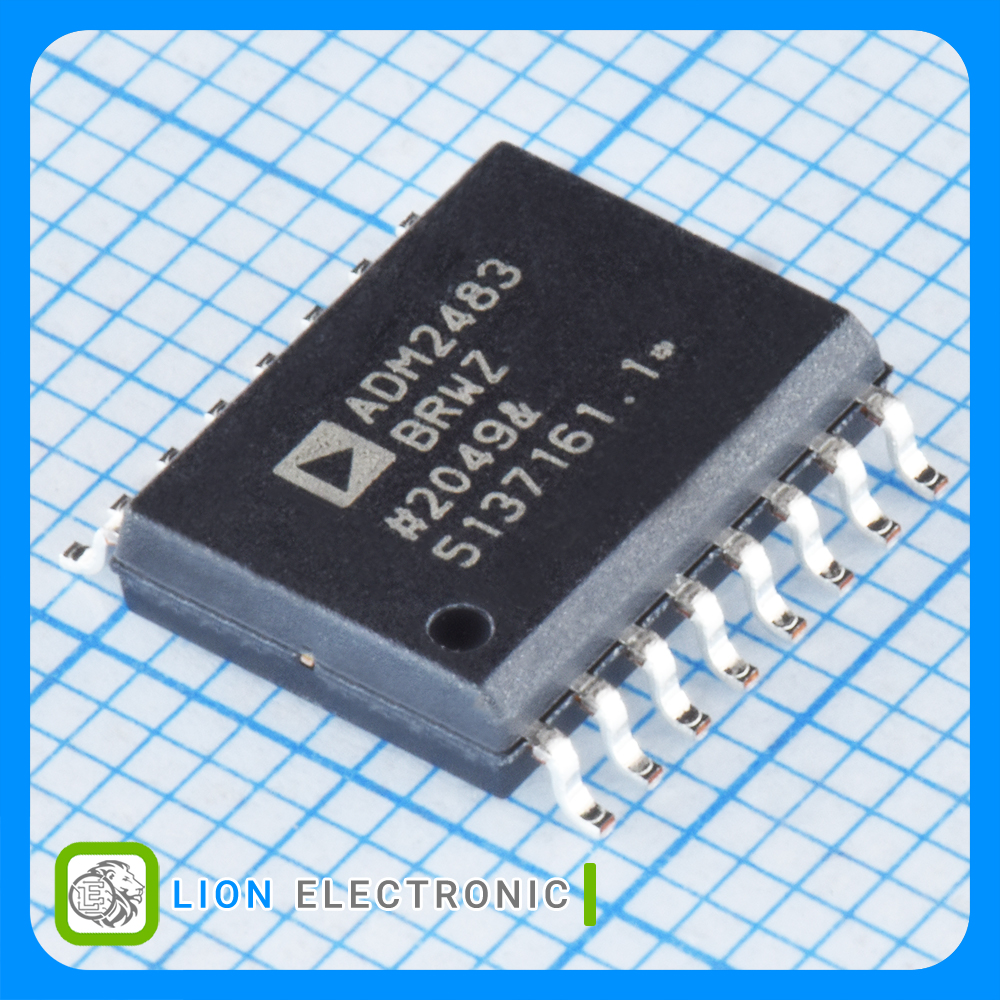

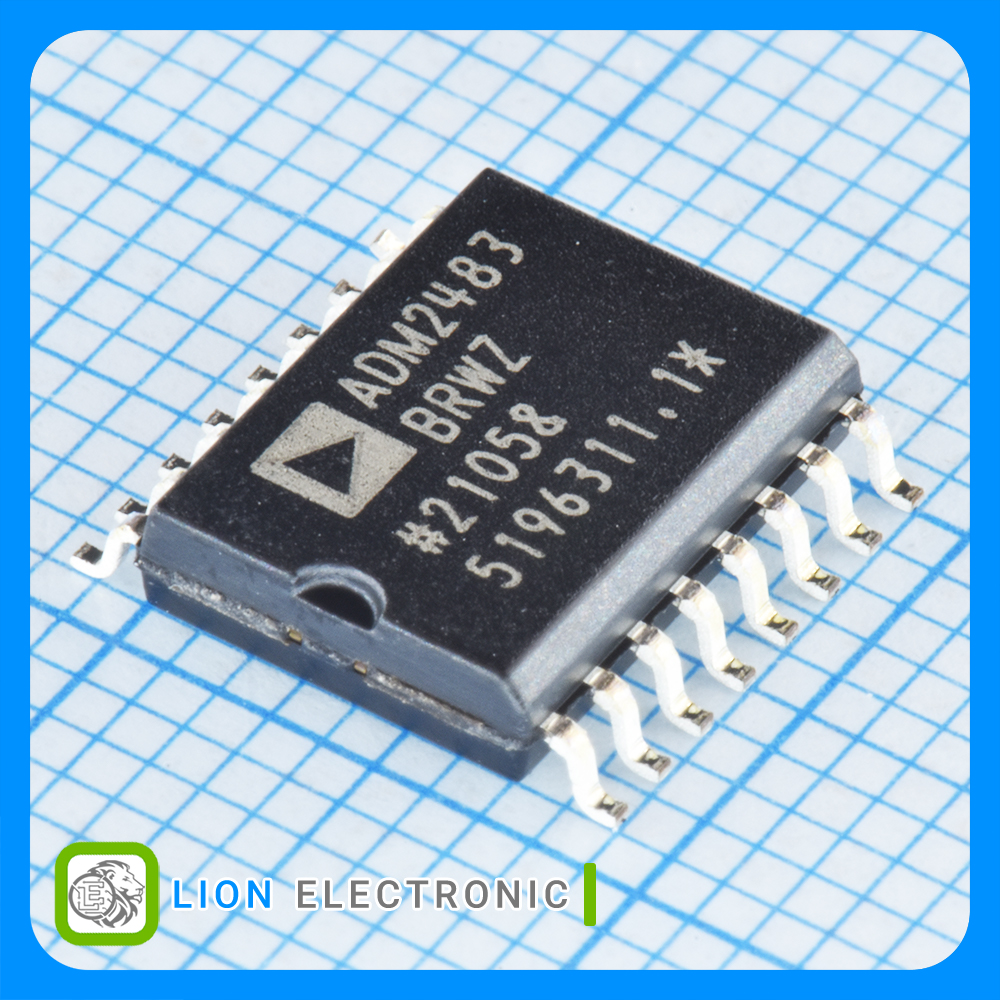

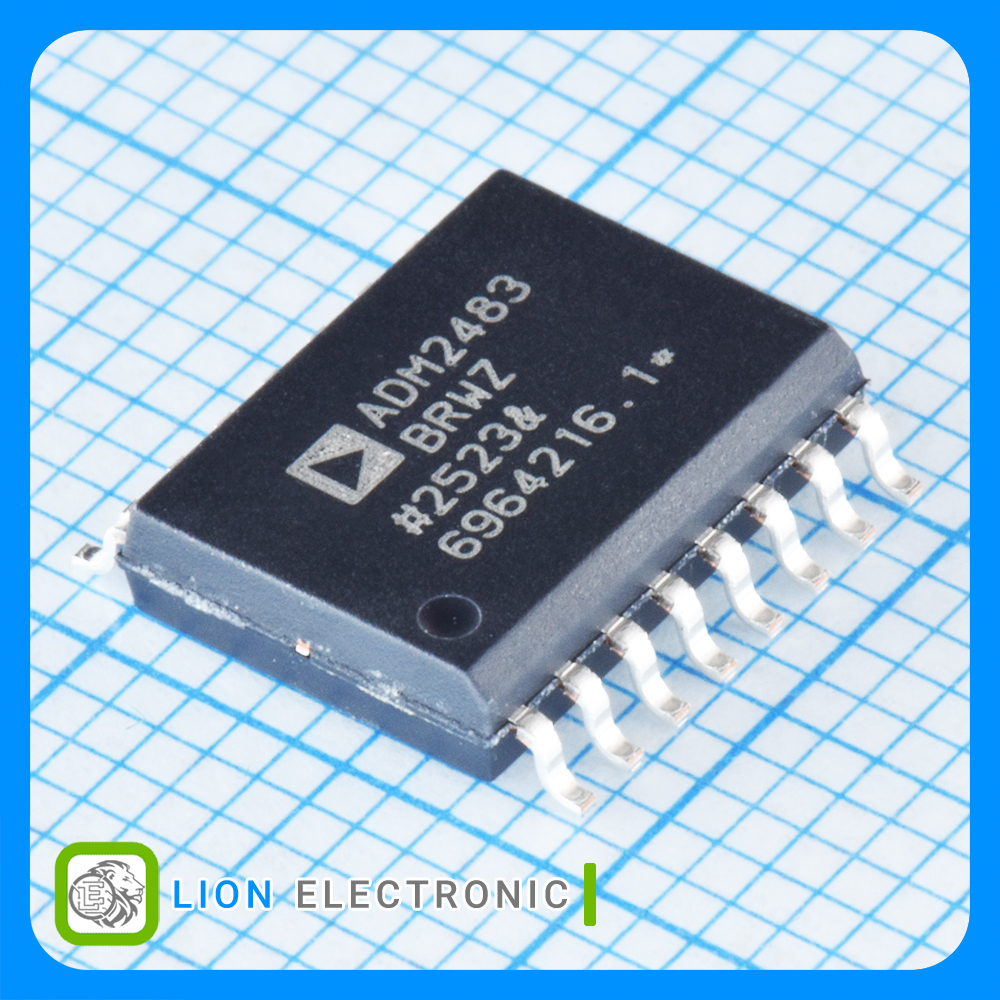

ADM2483BRWZ
ADM2483BRWZ
Part Number
628
Lion Part
Datasheet
Analog Devices Manufacture
ترنسیور RS-485 500kb/s نیمهدوطرفه با تغذیه 2.7 تا 5.5 ولت، رابط سریال ایزوله تا 2.5kVrms با ایزولاسیون الکتریکی دیتا، با پکیج SOIC-16
RS-485 Transceiver 500kb/s, Half Duplex, 2.7V to 5.5V, Isolated Serial Interface with Electrical Data Isolation up to 2.5kVrms, with SOIC-16 Package
معرفی
ترنسیور RS-485 500kb/s نیمهدوطرفه با تغذیه 2.7 تا 5.5 ولت، رابط سریال ایزوله تا 2.5kVrms با ایزولاسیون الکتریکی دیتا، با پکیج SOIC-16
RS-485 Transceiver 500kb/s, Half Duplex, 2.7V to 5.5V, Isolated Serial Interface with Electrical Data Isolation up to 2.5kVrms, with SOIC-16 Package
Specifications
- Product Type: Isolated RS-485 Interface IC
- Number of Drivers: 2
- Number of Receivers: 1
- Data Rate: 500kb/s
- Duplex: Half Duplex
- Function: Transceiver
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 2.5mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ADM2483BRWZ
ADM2483BRWZ
Part Number
1
Number of Receivers
2
Number of Drivers
2
Number of Channels
Galvanic Isolation
Isolation Type
Half Duplex
Duplex
Reel
Packaging
2.5kVrms
Isolation Voltage
-40C
Minimum Operating Temperature
Unidirectional
Polarity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Transceiver
Function
500kb/s
Data Rate
5.5V
Supply Voltage - Max
620ns
Propagation Delay Time
2.7V
Supply Voltage - Min
Isolated RS-485 Interface IC
Product Type
2.5mA
Operating Supply Current
SOIC-16
Package-Case
