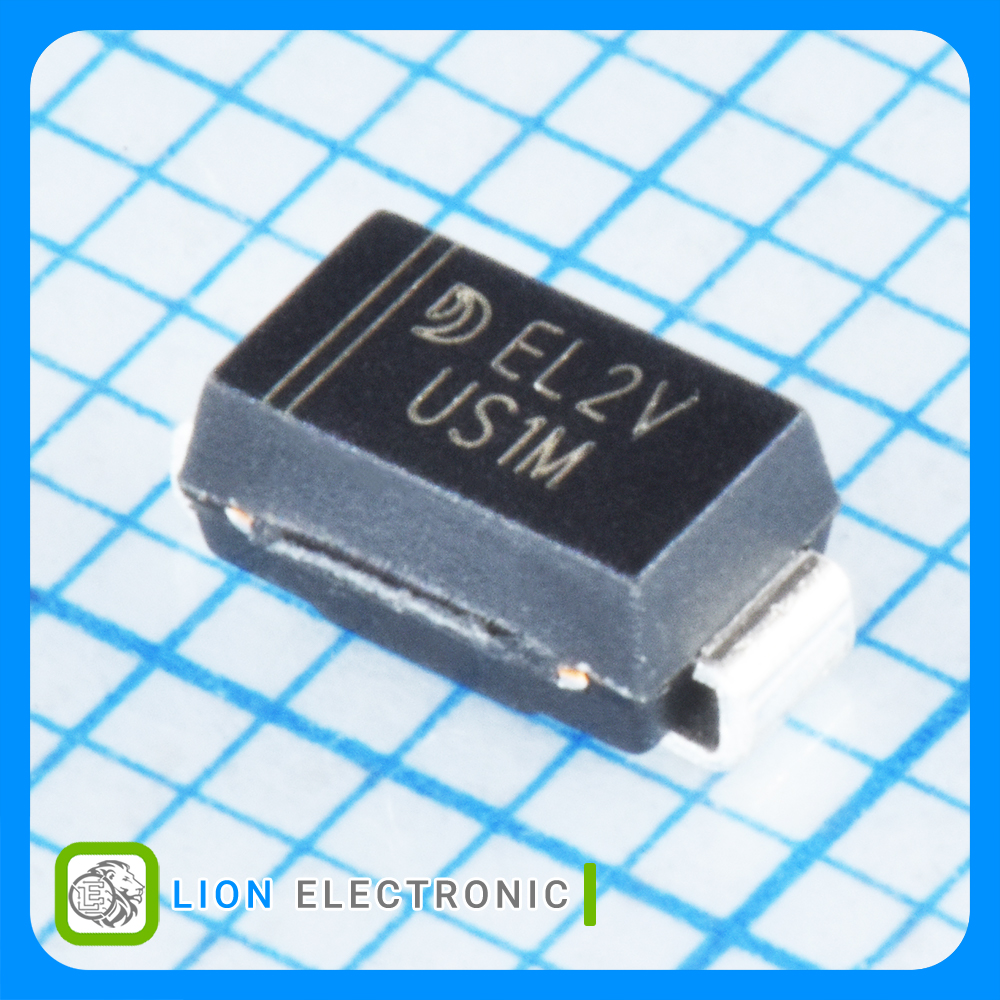

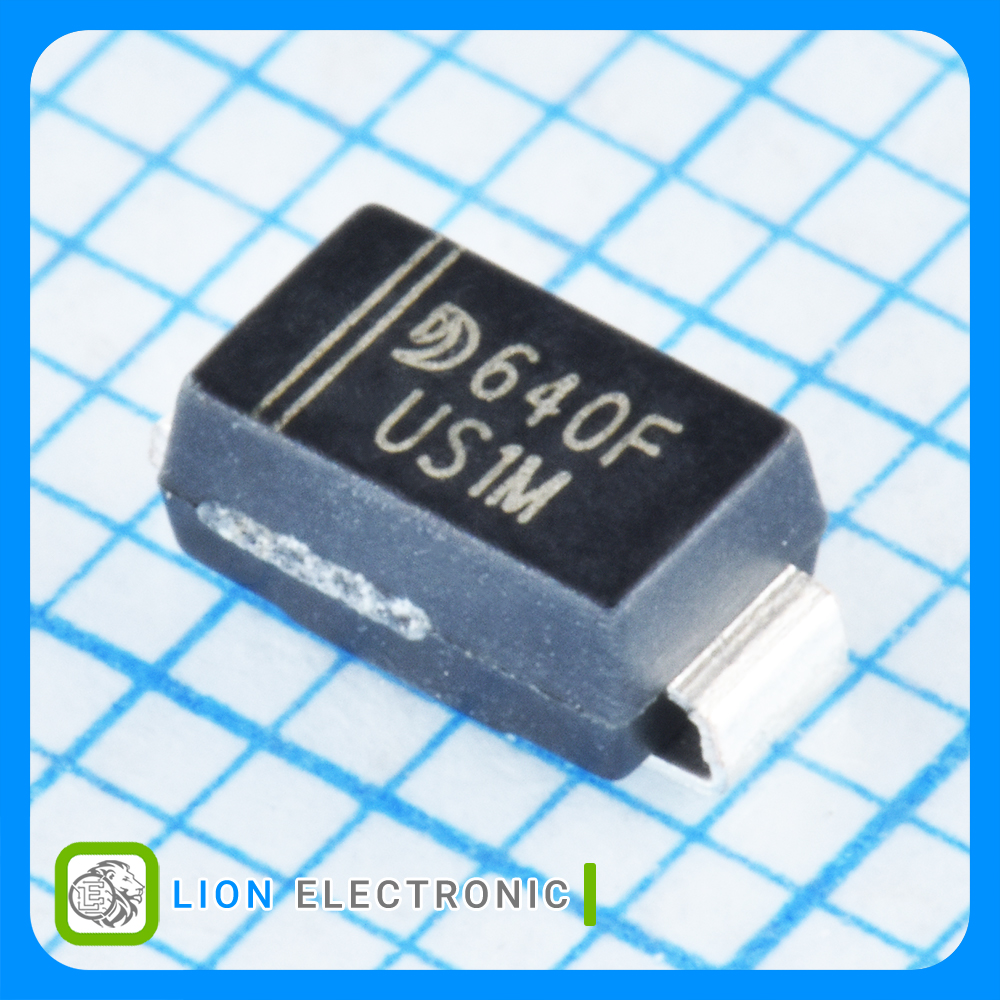

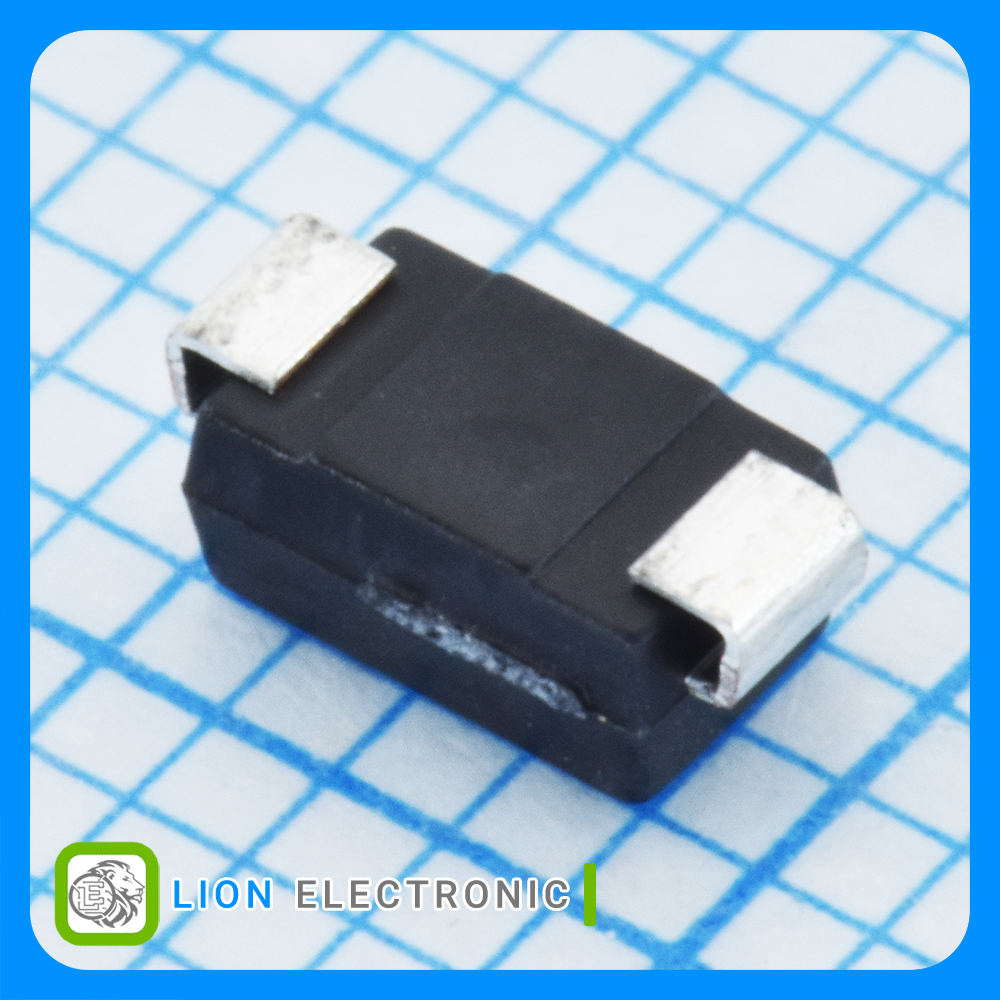

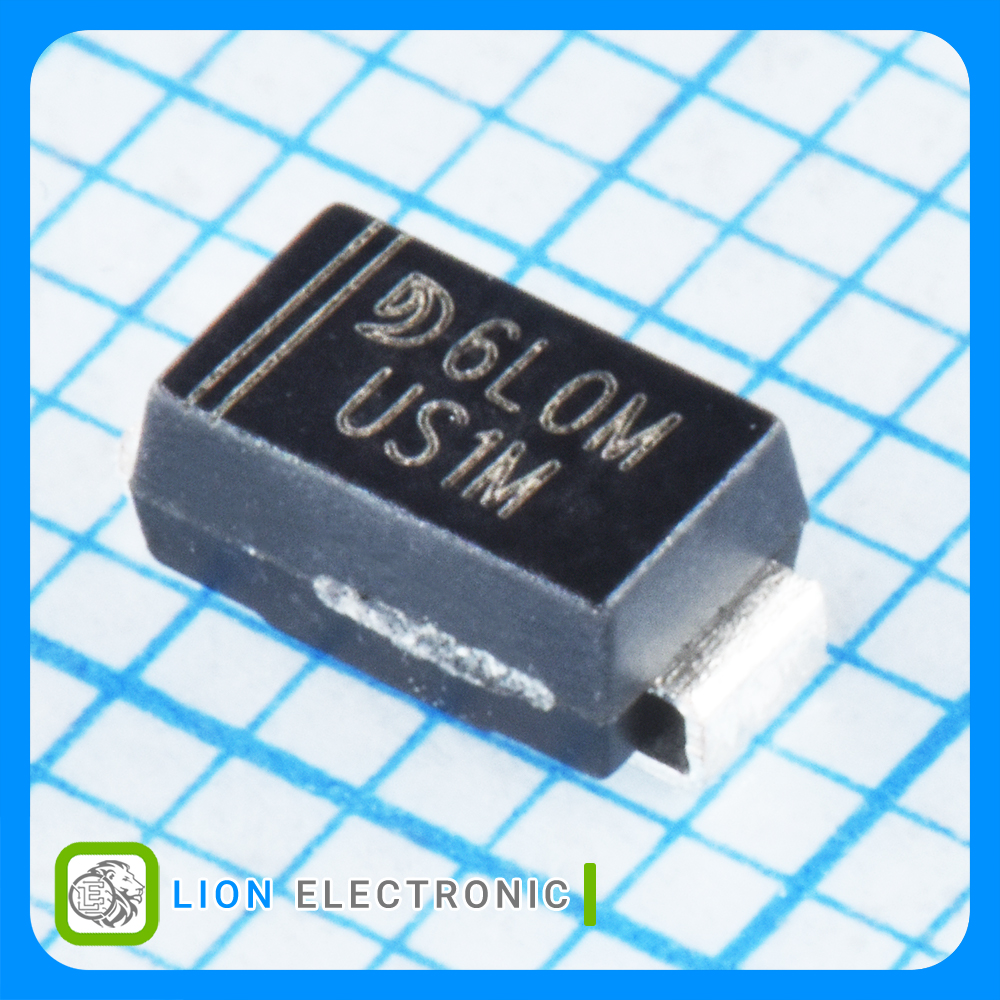

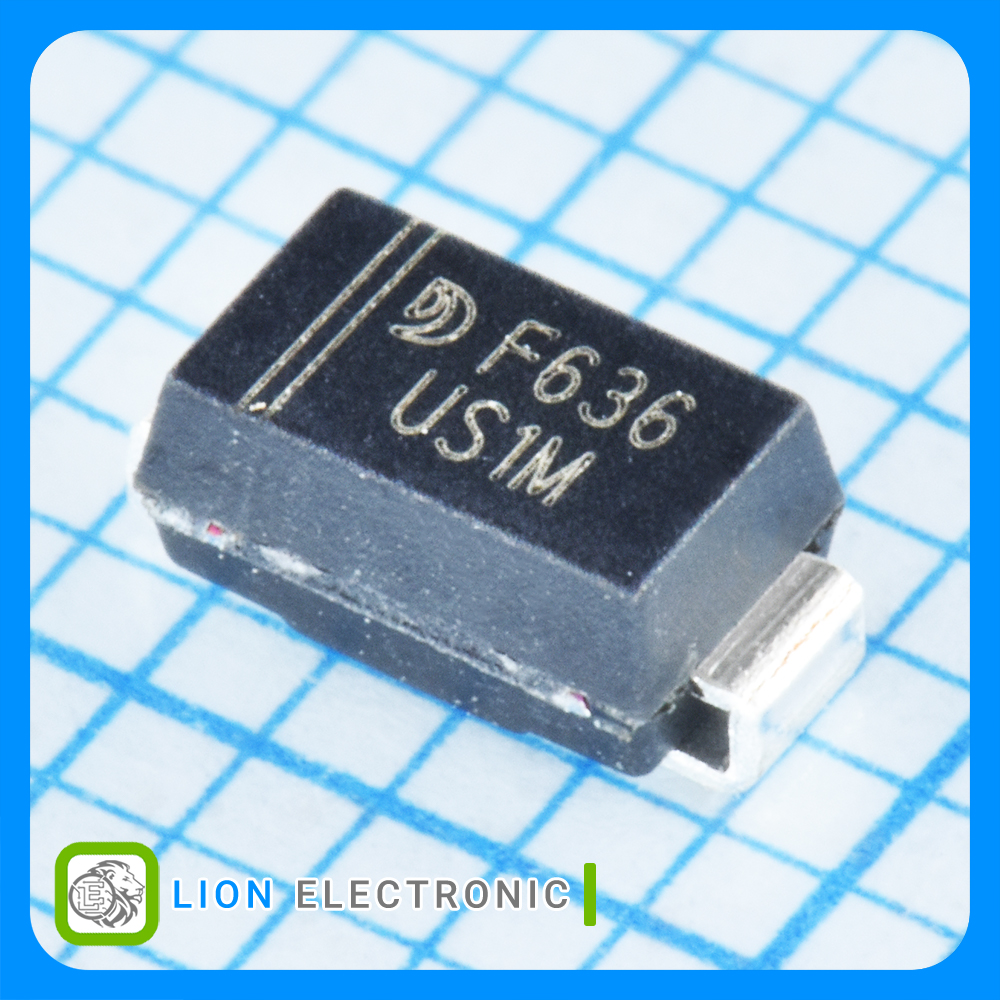

US1M
US1M
Part Number
6351
Lion Part
Datasheet
Jingdao Microelectronics Manufacture
دیود فست 1000 ولت 1 آمپر زمان بازیابی 75 نانوثانیه با پکیج DO-214AC (SMA)

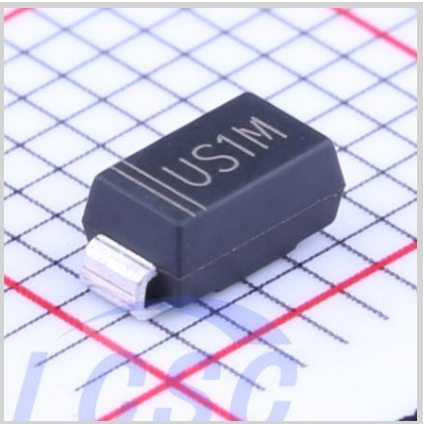

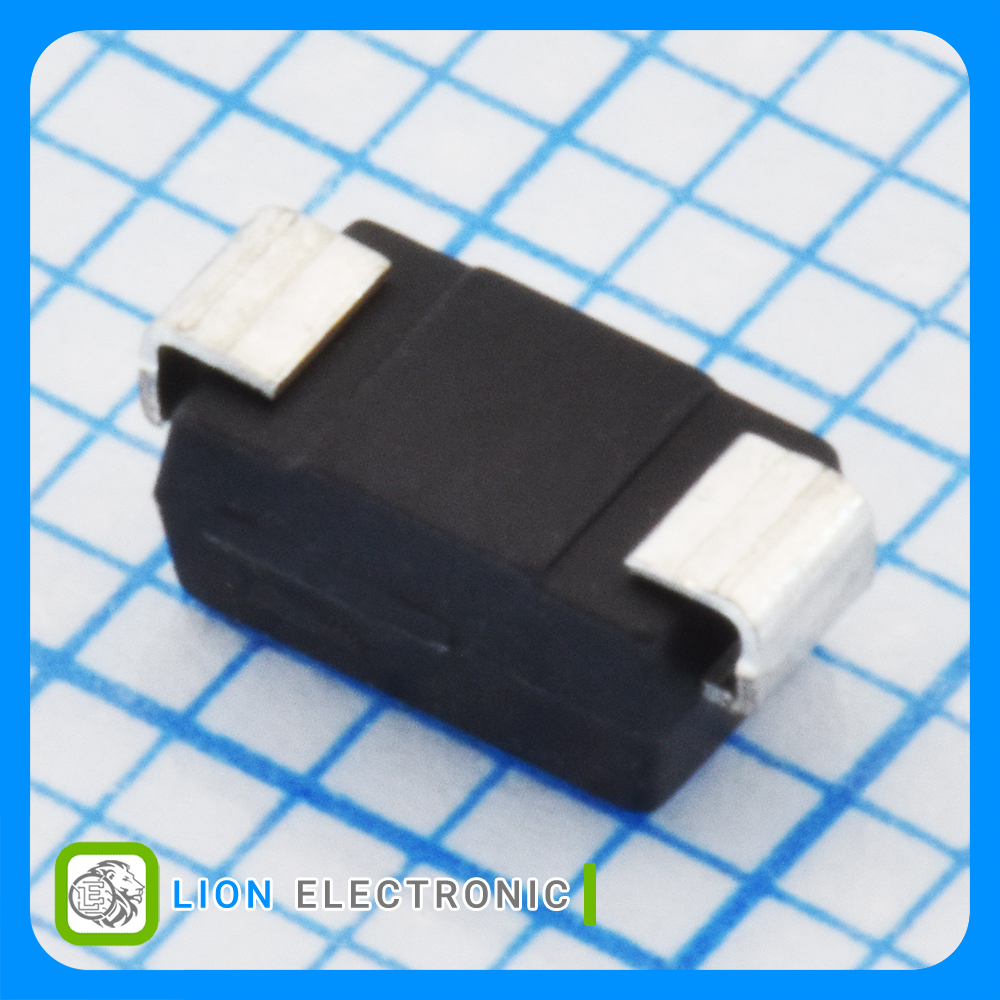

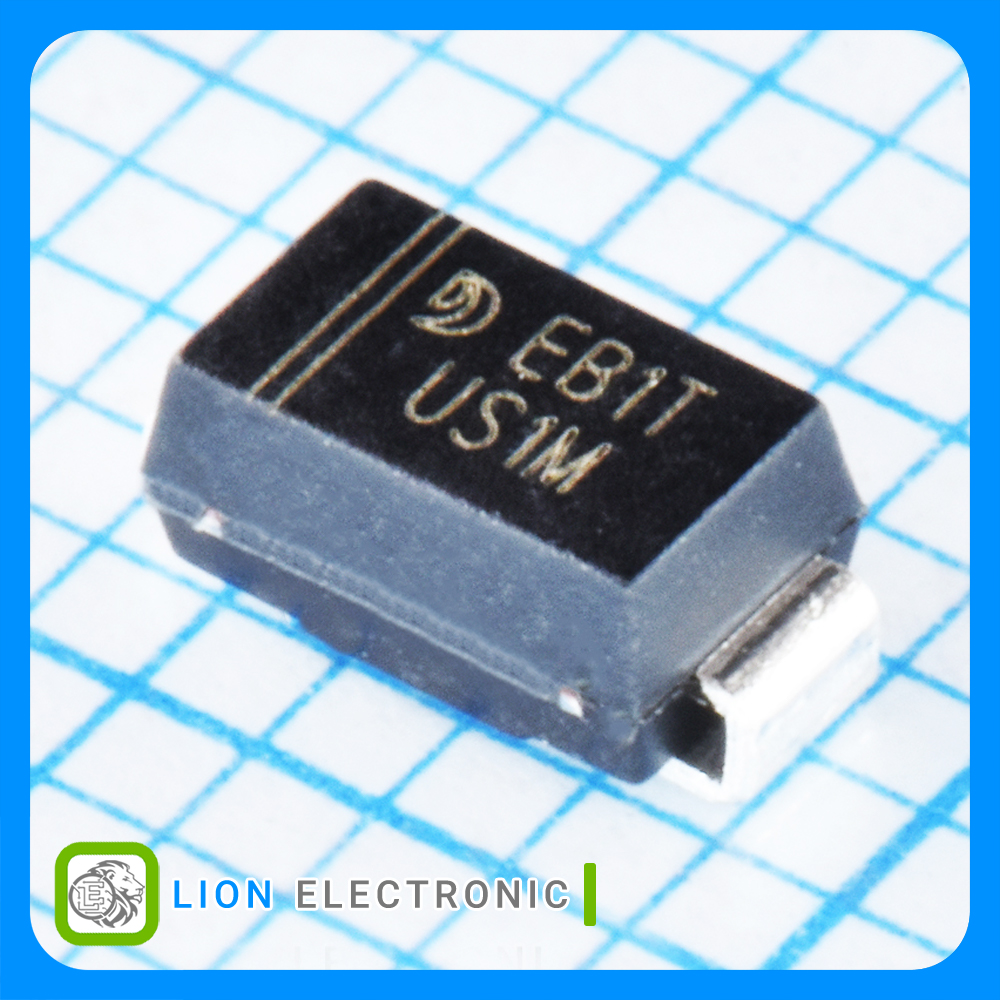

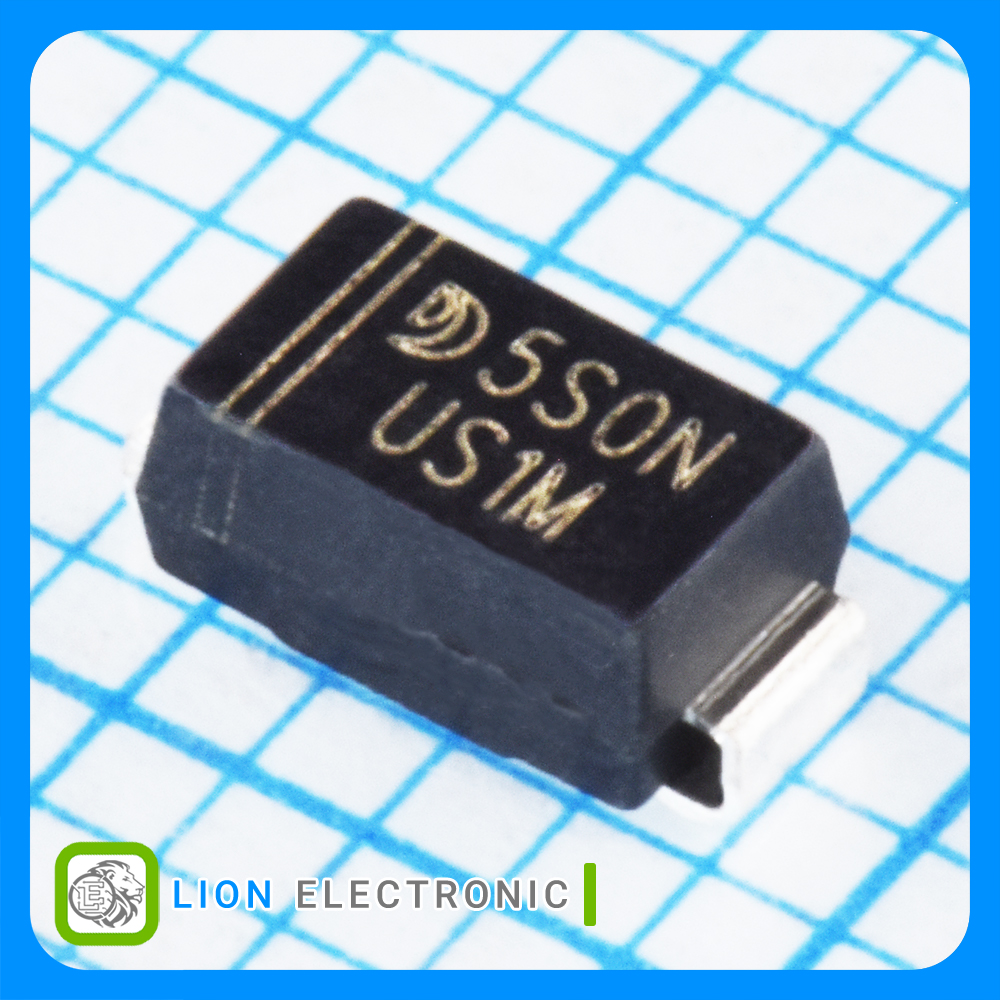

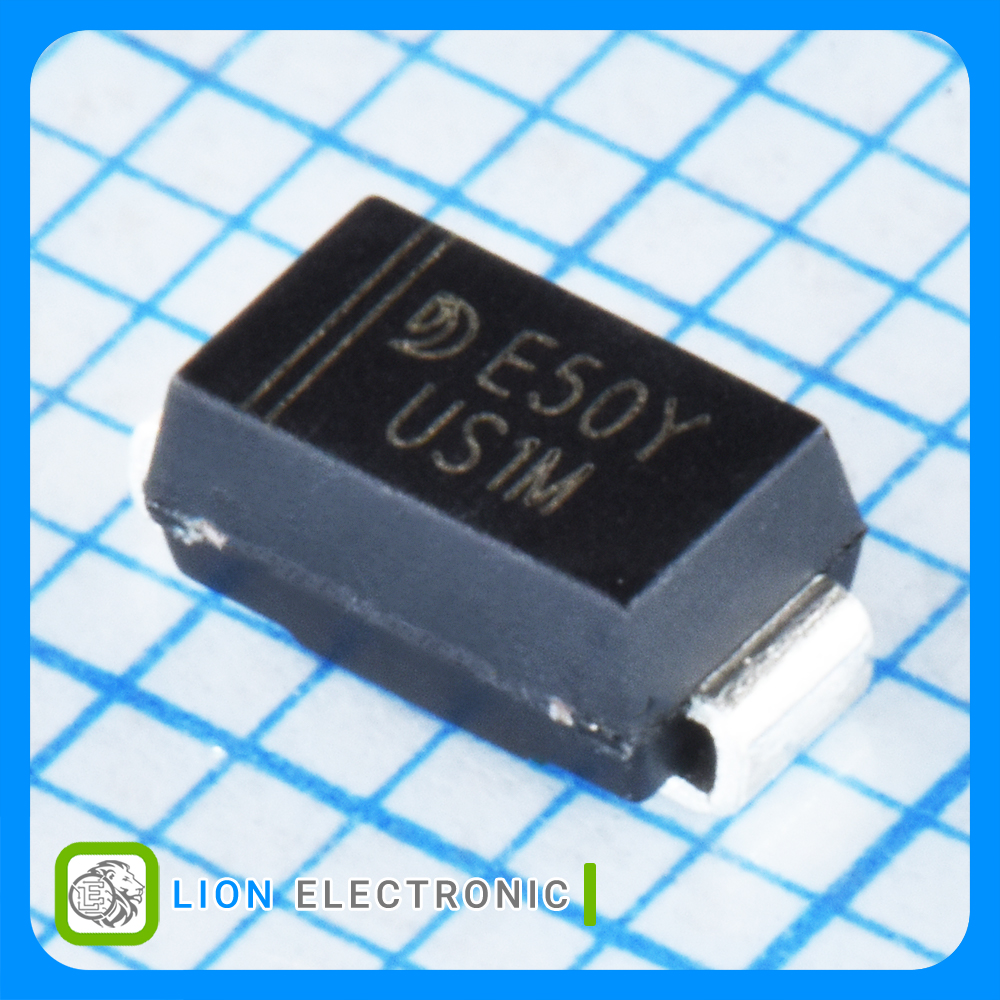

Fast Diode 1000V, 1A with 75ns Recovery Time and DO-214AC (SMA) Package
معرفی
دیود فست 1000 ولت 1 آمپر زمان بازیابی 75 نانوثانیه با پکیج DO-214AC (SMA)
Fast Diode 1000V, 1A with 75ns Recovery Time and DO-214AC (SMA) Package
Specifications
- Configuration: Single
- Recovery Time: 75ns
- Vr - Reverse Voltage: 1kV
- If - Forward Current: 1A
- Max Surge Current: 30A
- Vf - Forward Voltage: 1.65V
- Ir - Reverse Current: 5uA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود فست US1M

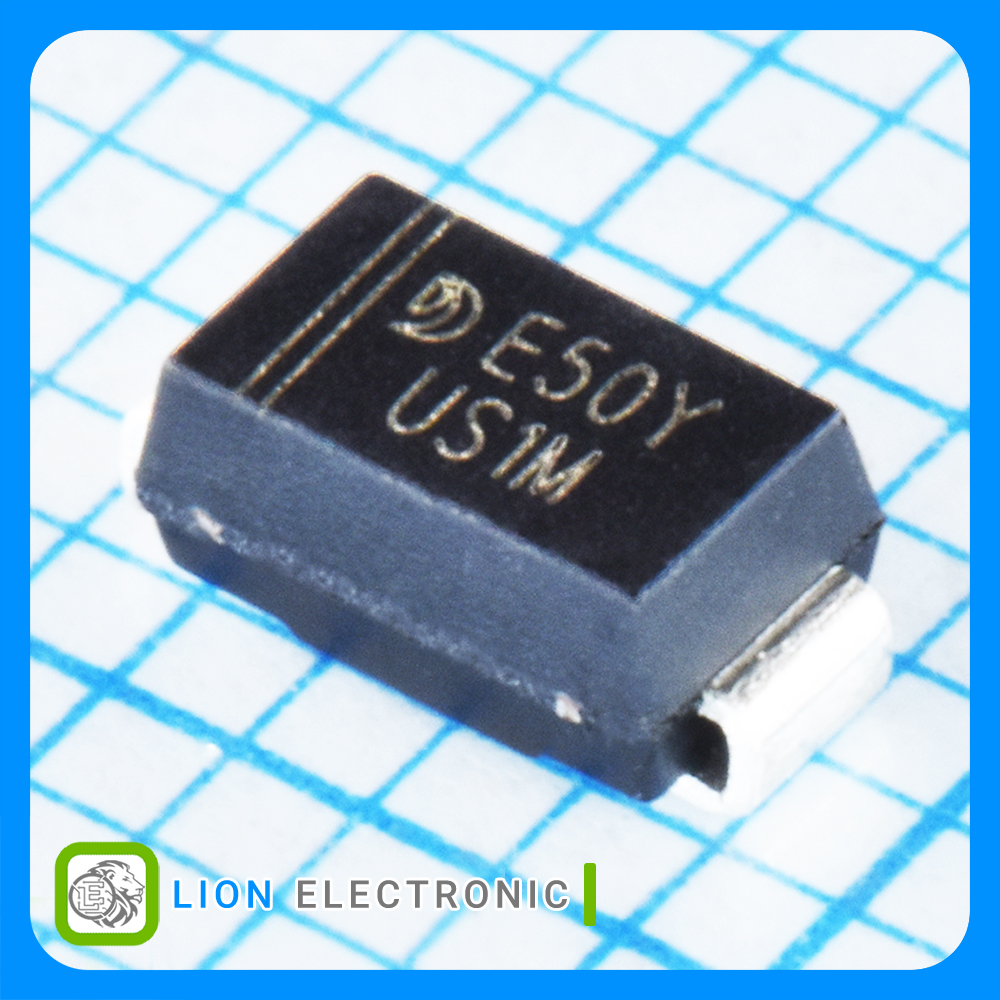

دیود فست US1M
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
5uA
Ir - Reverse Current
30A
Max Surge Current
SMD/SMT
Mounting Style
75ns
Recovery Time
1kV
Vr - Reverse Voltage
+150C
Maximum Operating Temperature
Single
Configuration
1A
If - Forward Current
1.65V
Vf - Forward Voltage
DO-214AC (SMA)
Package-Case
