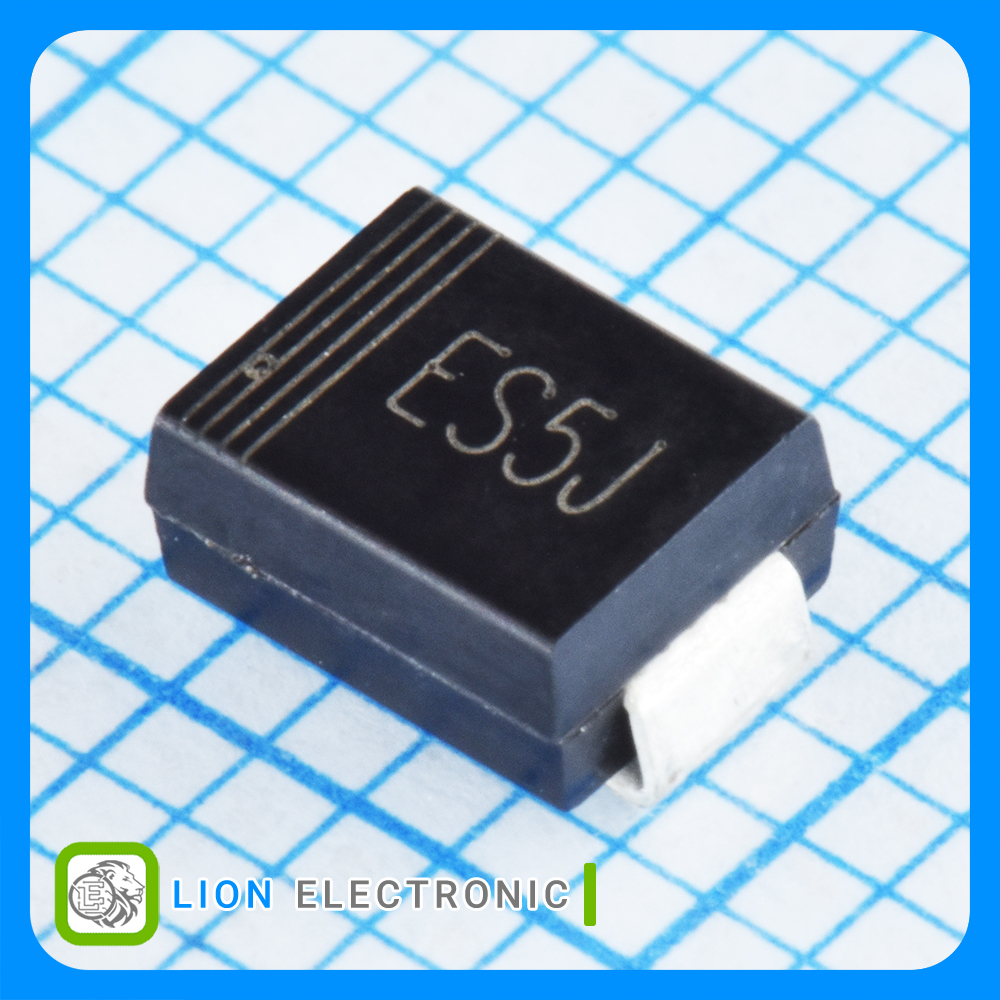

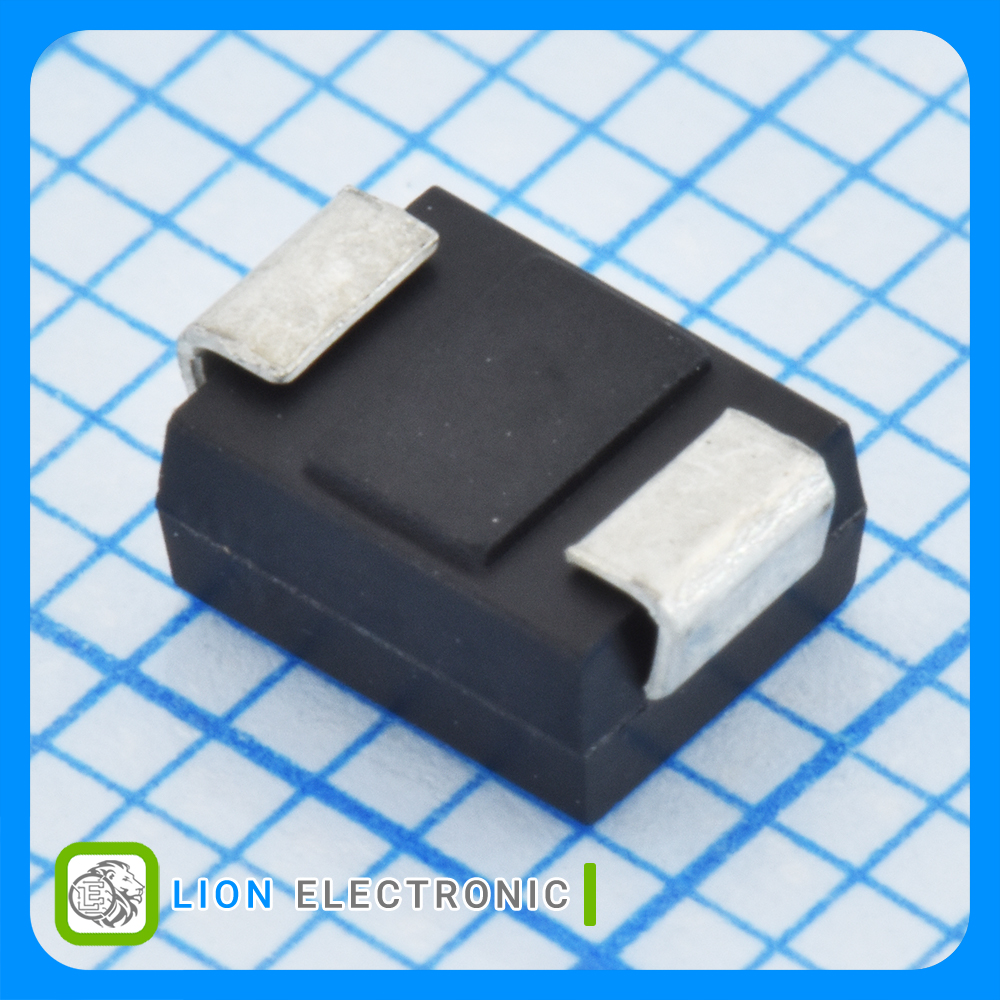

دیود فست 600 ولت 5 آمپر زمان بازیابی 35 نانوثانیه با پکیج DO-214AA (SMB)
Fast Diode 600V, 5A with 35ns Recovery Time and DO-214AA (SMB) Package
Specifications
- Configuration: Single
- Recovery Time: 35ns
- Vr - Reverse Voltage: 600V
- If - Forward Current: 5A
- Max Surge Current: 150A
- Vf - Forward Voltage: 1.7V
- Ir - Reverse Current: 2uA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ES5JB

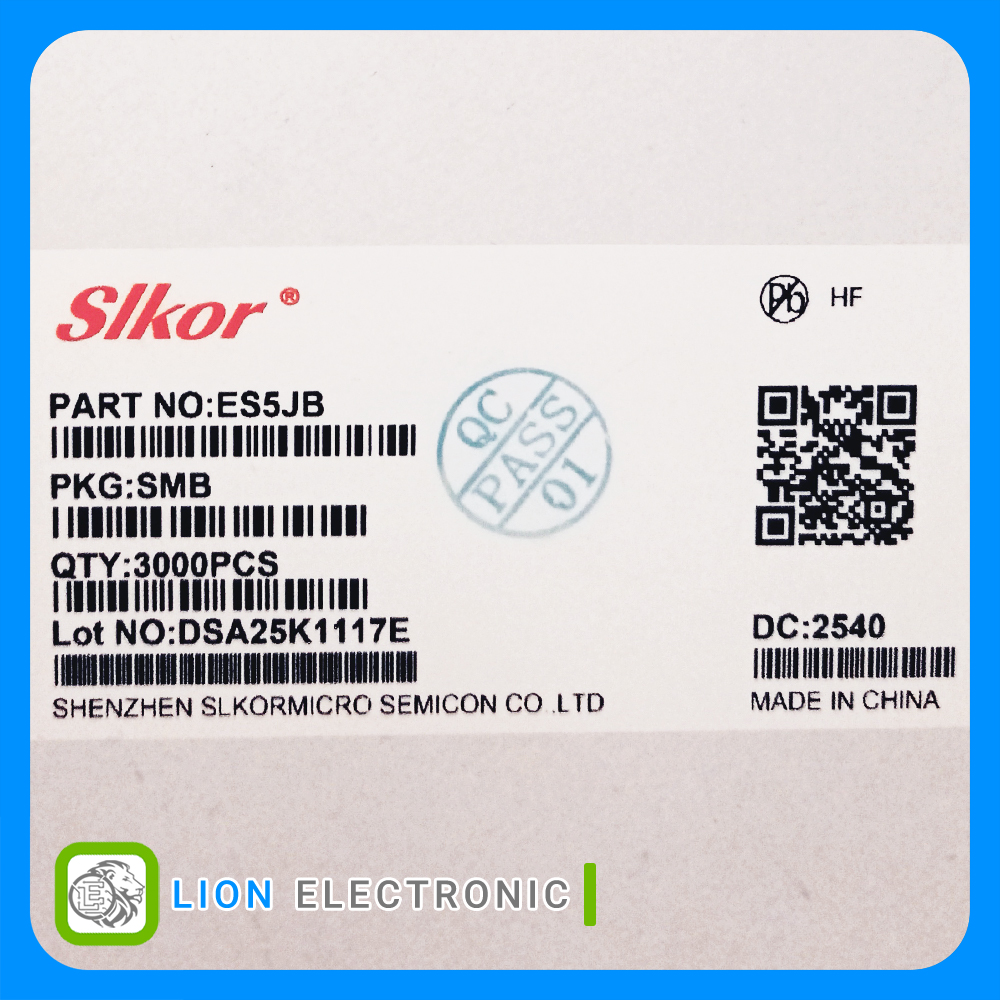

ES5JB
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
2uA
Ir - Reverse Current
35ns
Recovery Time
SMD/SMT
Mounting Style
600V
Vr - Reverse Voltage
+150C
Maximum Operating Temperature
150A
Max Surge Current
Single
Configuration
5A
If - Forward Current
1.7V
Vf - Forward Voltage
DO-214AA (SMB)
Package-Case
