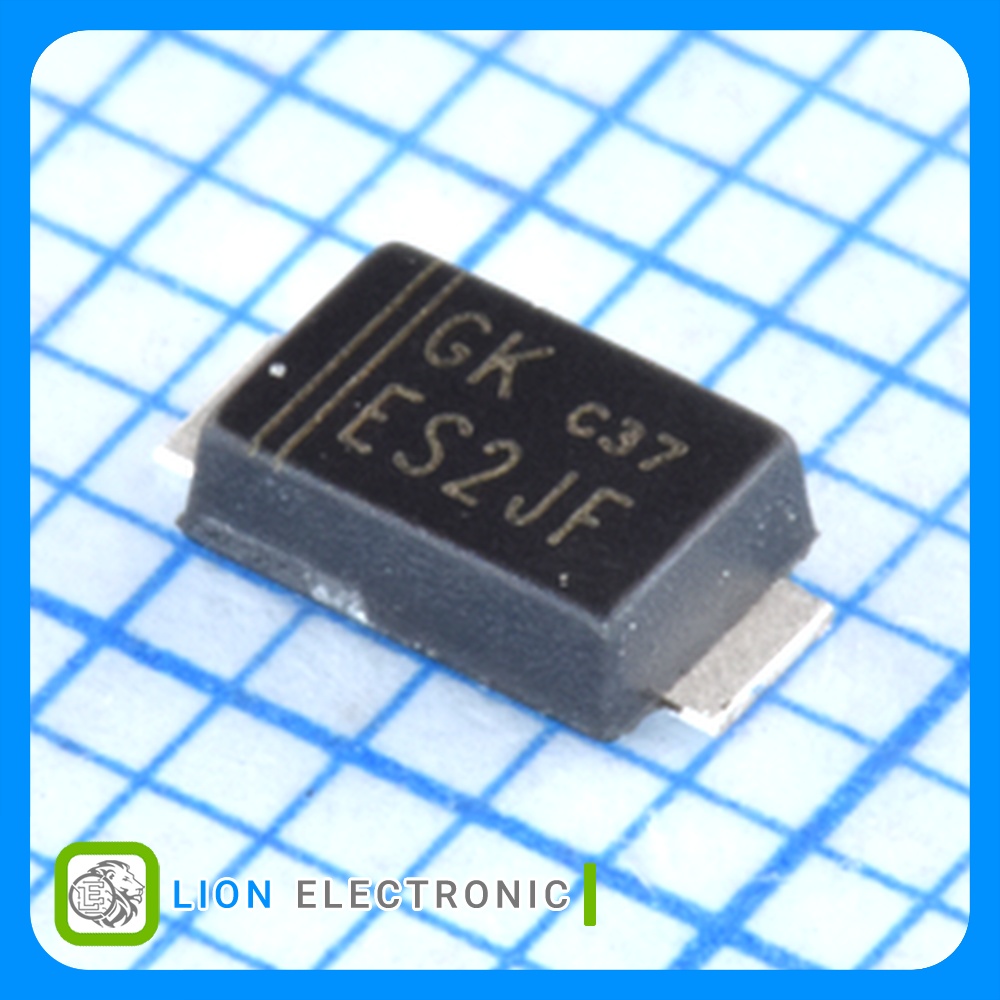

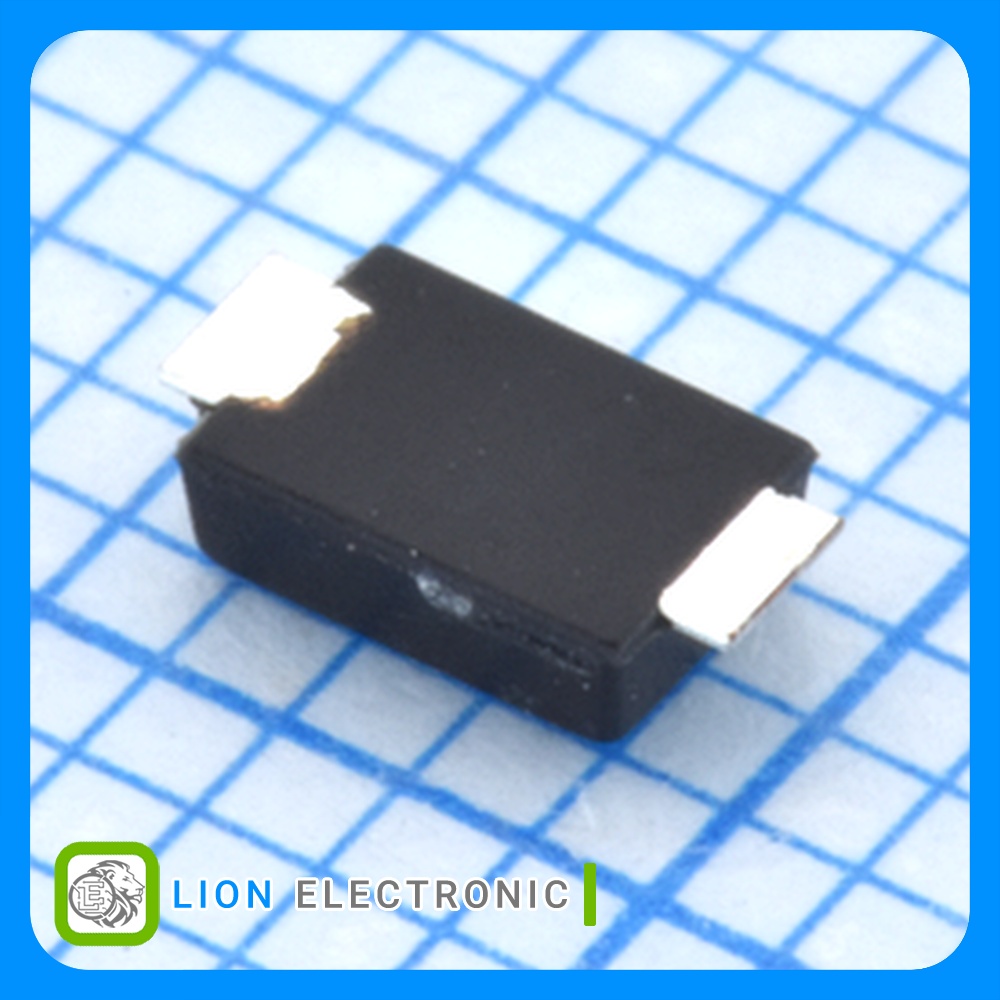

دیود فست 600 ولت 2 آمپر زمان بازیابی 35 نانوثانیه با پکیج SMAF
Fast Diode 600V, 2A with 35ns Recovery Time and SMAF Package
Specifications
- Configuration: Single
- Recovery Time: 35ns
- Vr - Reverse Voltage: 600V
- If - Forward Current: 2A
- Max Surge Current: 50A
- Vf - Forward Voltage: 1.7V
- Ir - Reverse Current: 5uA
- Mounting Style: SMD/SMT
- Package/Case: SMAF
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ES2JF
ES2JF
Part Number
-65C
Minimum Operating Temperature
Reel
Packaging
35ns
Recovery Time
5uA
Ir - Reverse Current
SMD/SMT
Mounting Style
50A
Max Surge Current
600V
Vr - Reverse Voltage
+150C
Maximum Operating Temperature
Single
Configuration
2A
If - Forward Current
1.7V
Vf - Forward Voltage
SMAF
Package-Case
