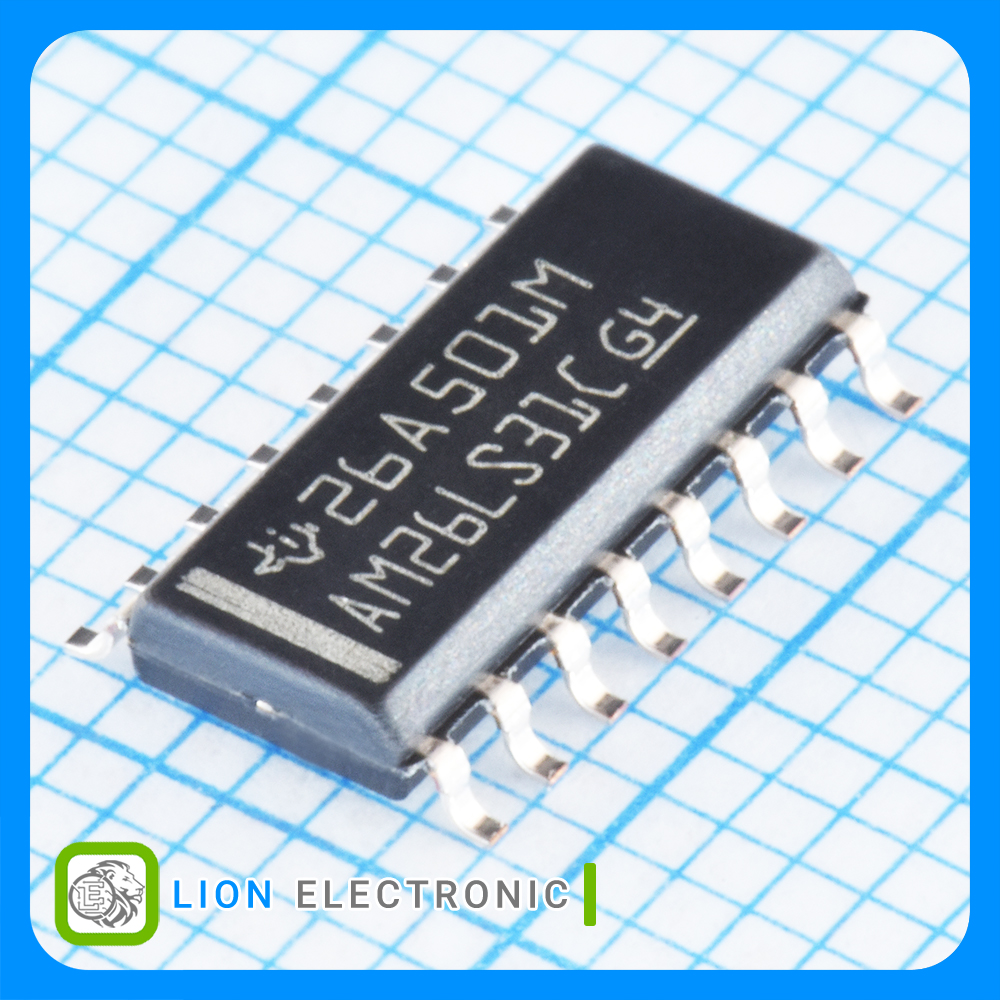

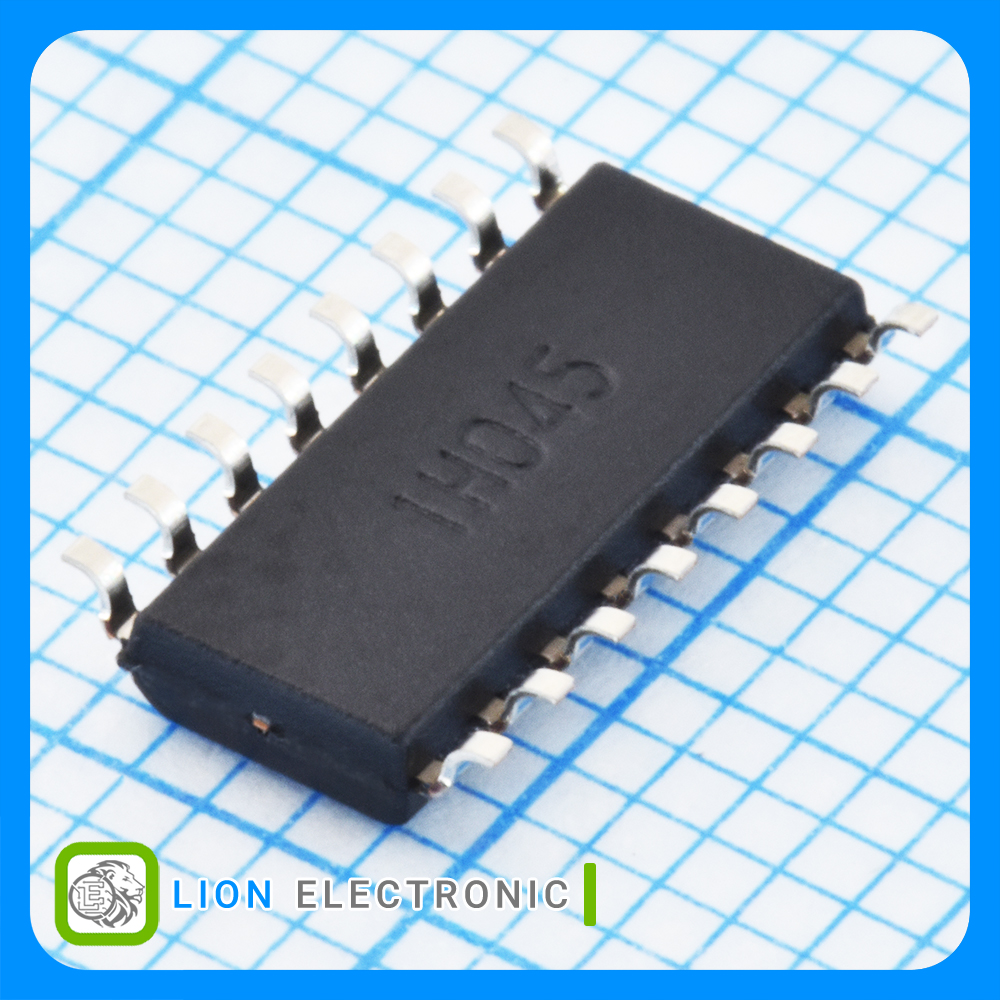

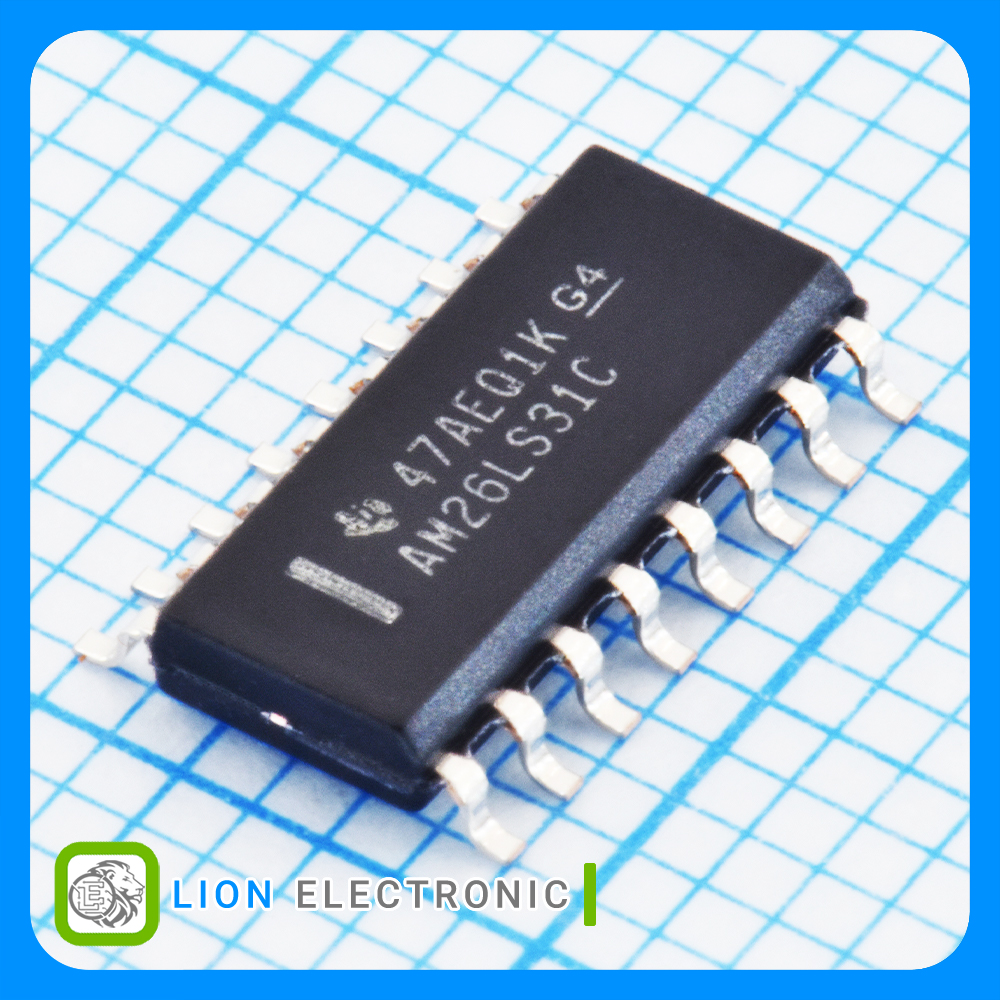

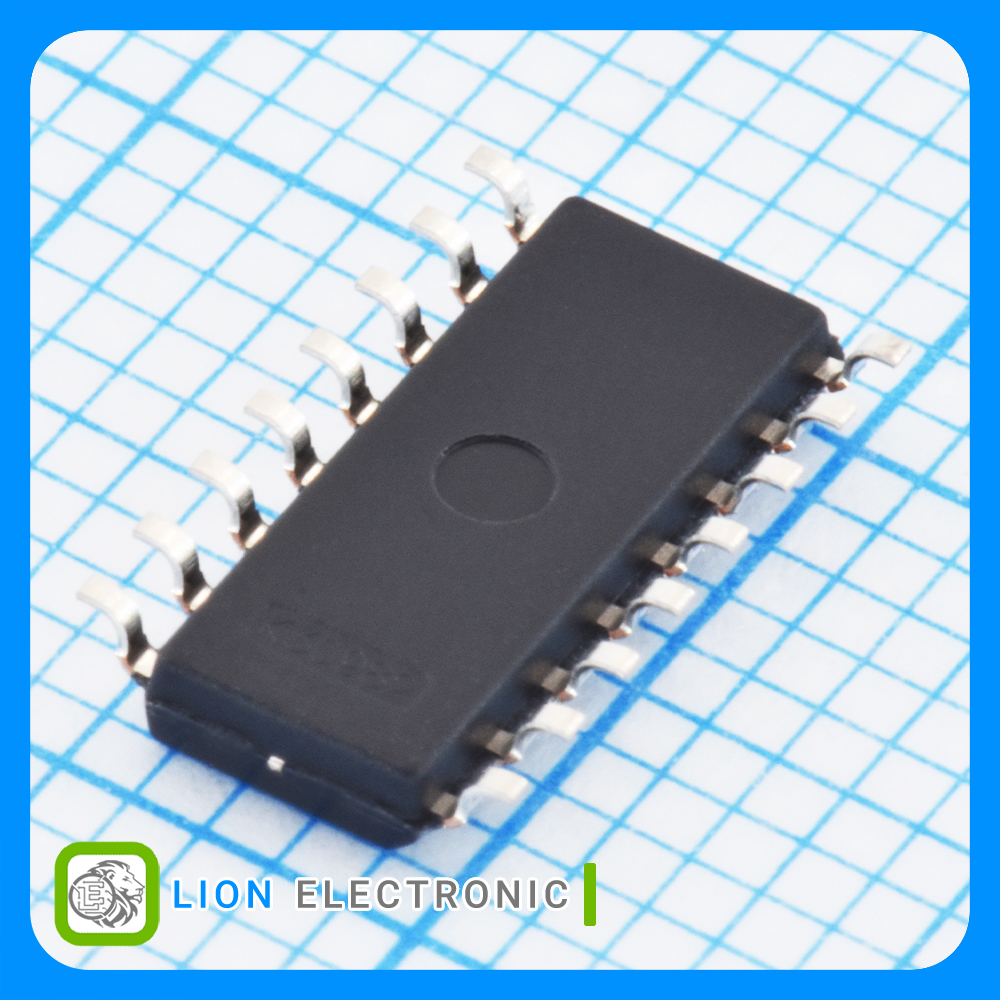

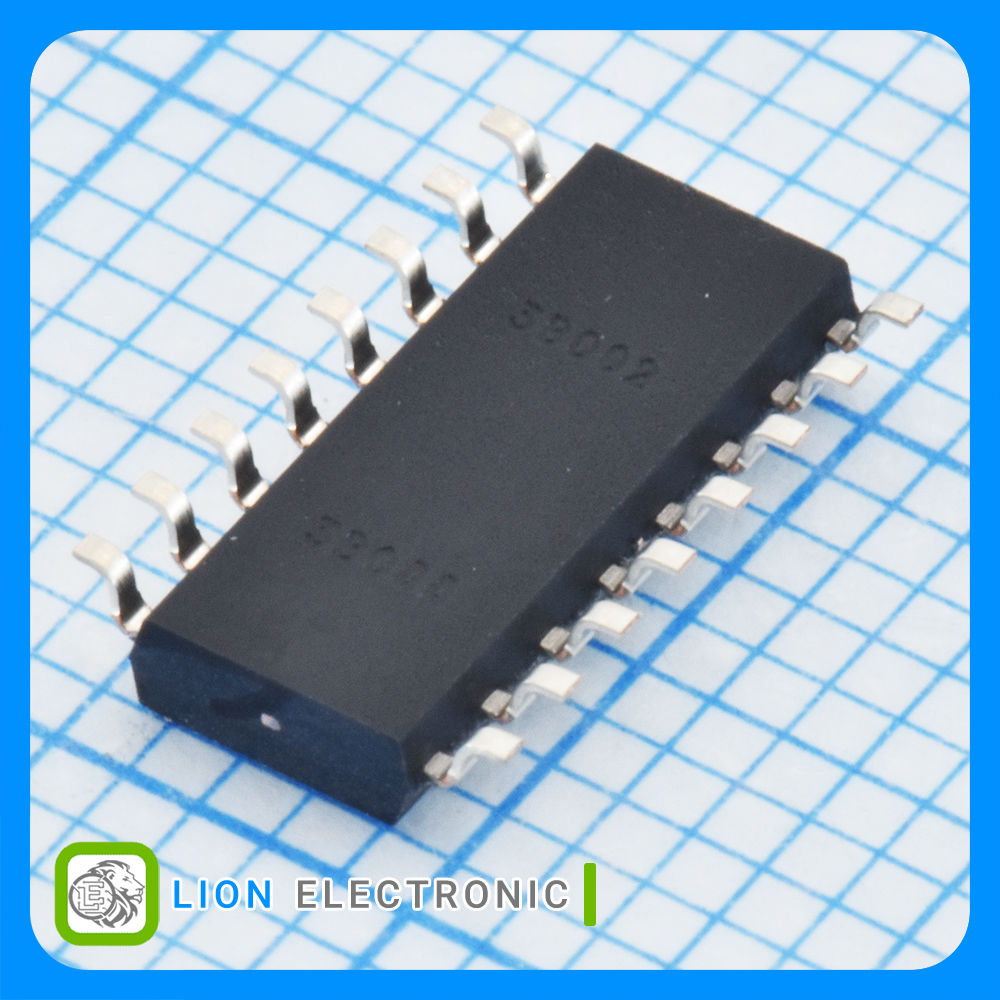

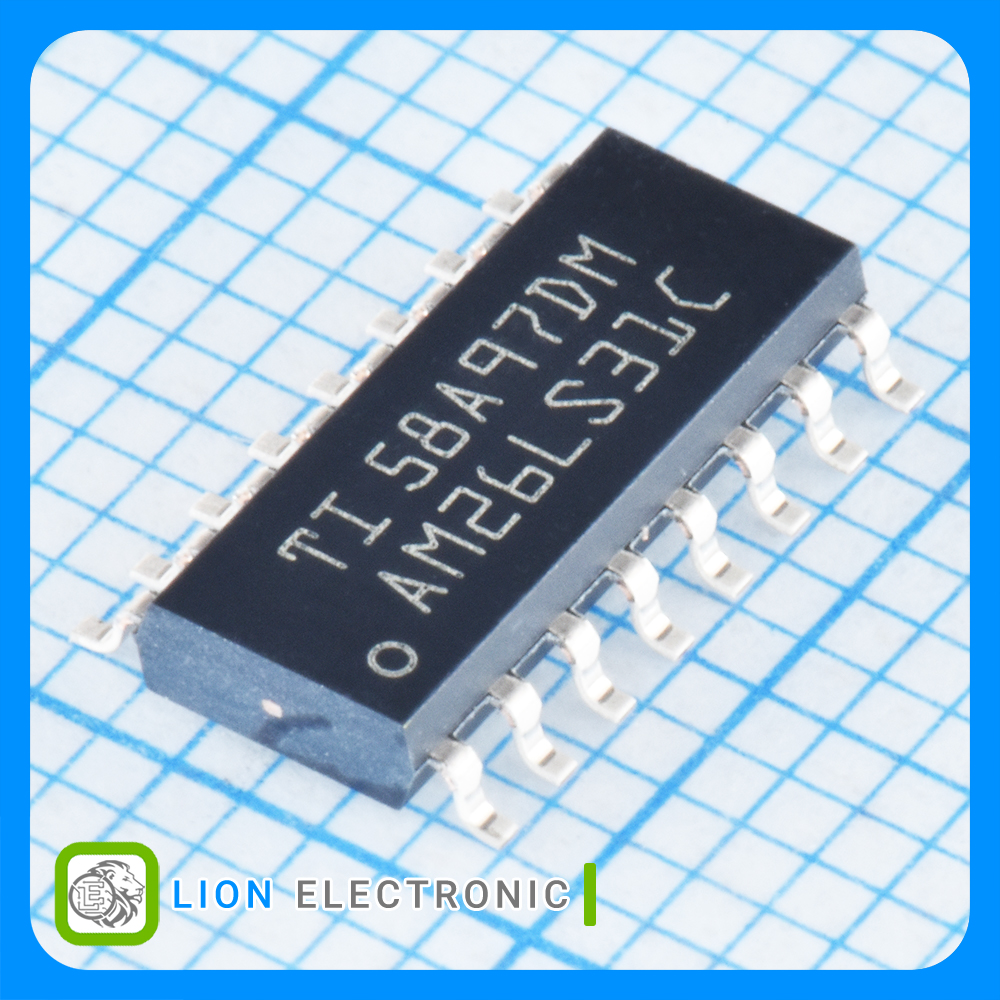

AM26LS31CDR
AM26LS31CDR
Part Number
646
Lion Part
Datasheet
Texas Instruments Manufacture
درایور خط دیفرانسیل چهارتایی RS-422 تمامدوطرفه با نرخ 10Mb/s و تغذیه 4.75 تا 5.25 ولت، با خروجیهای مکمل و سازگار با TTL، پکیج SOP-16
RS-422 Quadruple Differential Line Driver, 10Mb/s, Full Duplex, 4.75V to 5.25V, with Complementary Outputs and TTL Compatible, SOP-16 Package
معرفی
درایور خط دیفرانسیل چهارتایی RS-422 تمامدوطرفه با نرخ 10Mb/s و تغذیه 4.75 تا 5.25 ولت، با خروجیهای مکمل و سازگار با TTL، پکیج SOP-16
RS-422 Quadruple Differential Line Driver, 10Mb/s, Full Duplex, 4.75V to 5.25V, with Complementary Outputs and TTL Compatible, SOP-16 Package
Specifications
- Product Type: RS-422 Interface IC
- Number of Drivers: 4
- Number of Receivers: 4
- Data Rate: 10Mb/s
- Duplex: Full Duplex
- Function: Transmitter
- Supply Voltage - Min: 4.75V
- Supply Voltage - Max: 5.25V
- Operating Supply Current: 80mA
- Mounting Style: SMD/SMT
- Package/Case: SOP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات AM26LS31CDR
AM26LS31CDR
Part Number
Full Duplex
Duplex
4
Number of Drivers
4
Number of Receivers
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Transmitter
Function
5.25V
Supply Voltage - Max
10Mb/s
Data Rate
4.75V
Supply Voltage - Min
RS-422 Interface IC
Product Type
80mA
Operating Supply Current
SOP-16
Package-Case
