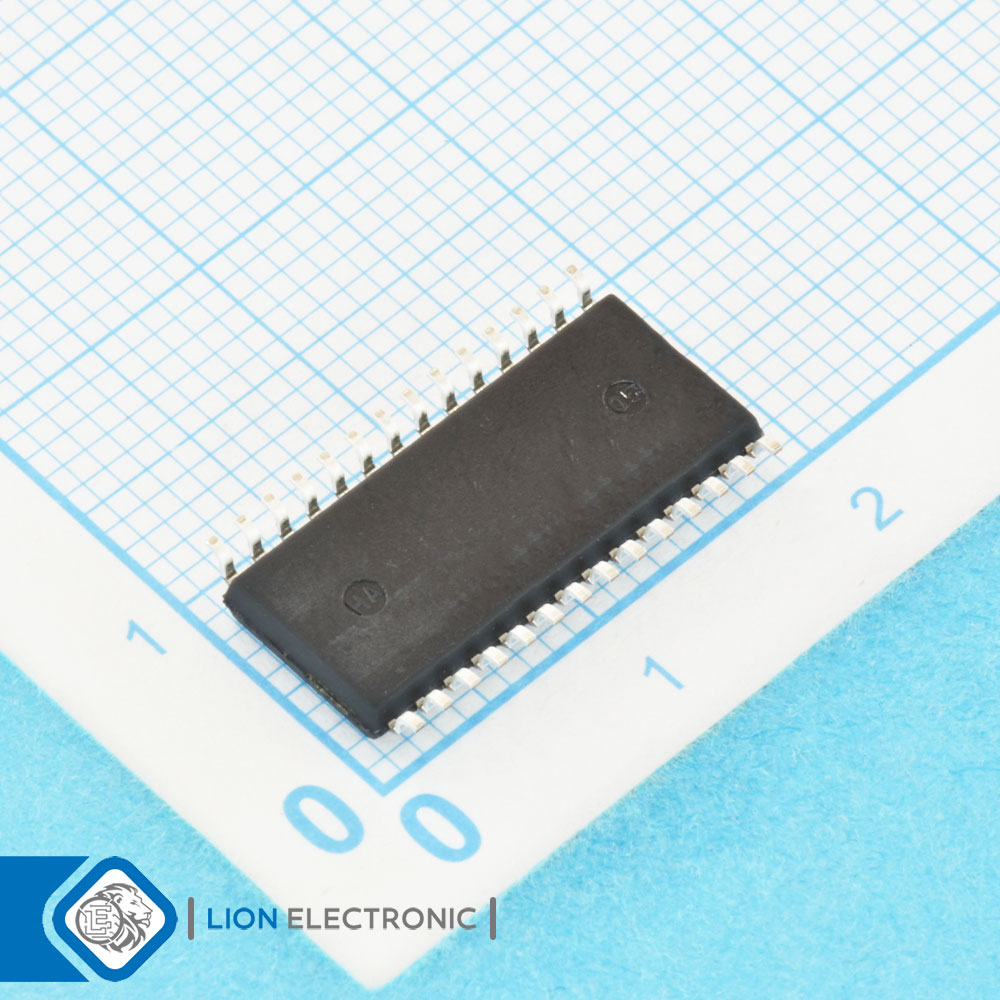

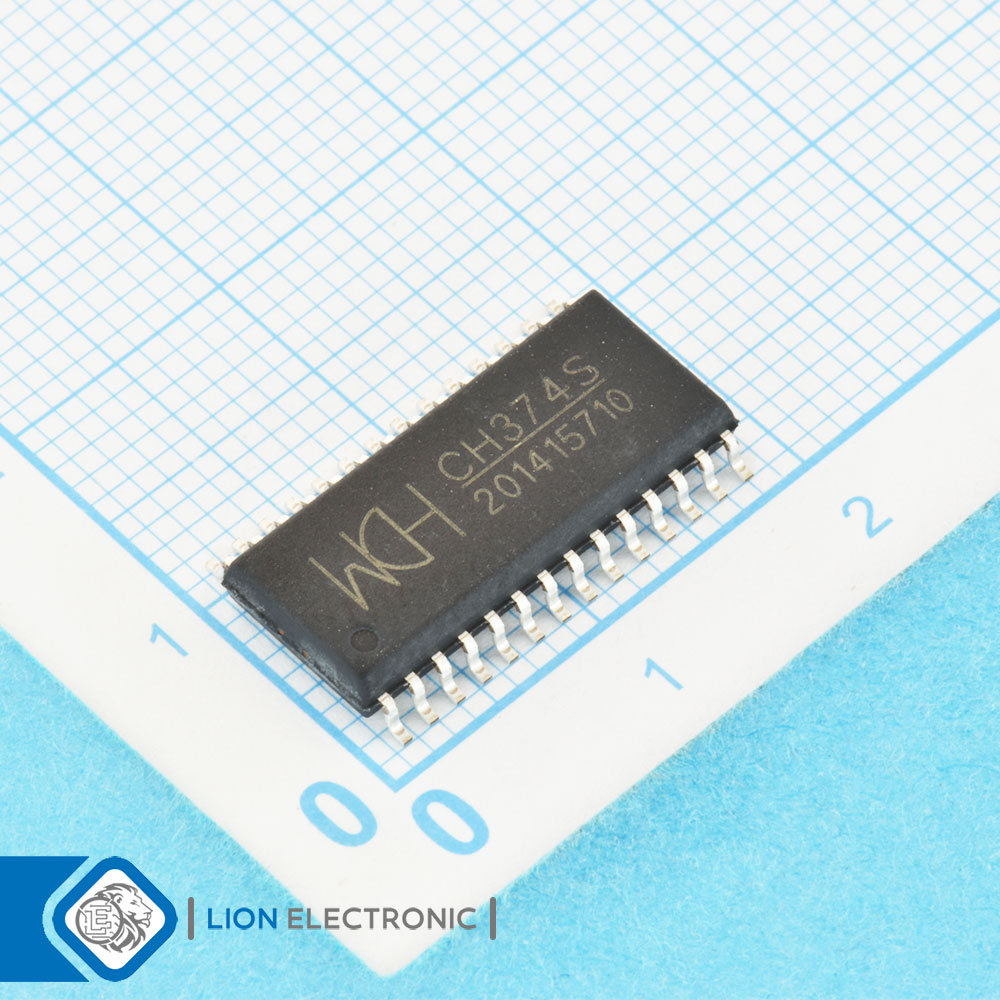

CH374S
CH374S
Part Number
665
Lion Part
Datasheet
WCH Manufacture
آیسی رابط USB میزبان / دستگاه کنترلر با نرخ 12Mb/s، پشتیبانی از حالت USB-HOST و USB-DEVICE/SLAVE، 5 ولت با پکیج SOP-28
USB Bus Universal Interface Chip, USB Host / Device Controller, 12Mb/s, Supports USB-HOST Host Mode and USB-DEVICE/SLAVE Device Mode, 5V, with SOP-28 Package
معرفی
آیسی رابط USB میزبان / دستگاه کنترلر با نرخ 12Mb/s، پشتیبانی از حالت USB-HOST و USB-DEVICE/SLAVE، 5 ولت با پکیج SOP-28
USB Bus Universal Interface Chip, USB Host / Device Controller, 12Mb/s, Supports USB-HOST Host Mode and USB-DEVICE/SLAVE Device Mode, 5V, with SOP-28 Package
Specifications
- Standard: USB 2.0
- Type: USB Host / Device Controller
- Data Rate: 12Mb/s
- Speed: Full Speed
- Supply Voltage - Max: 5V
- Supply Voltage - Min: 3.3V
- Operating Supply Current: 30mA
- Mounting Style: SMD/SMT
- Package/Case: SOP-28
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات CH374S
CH374S
Part Number
Full Speed
Speed
USB 2.0
Standard
-40C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
5V
Supply Voltage - Max
12Mb/s
Data Rate
3.3V
Supply Voltage - Min
USB Host / Device Controller
Type
30mA
Operating Supply Current
SOP-28
Package-Case
