LXWCONN
معرفی
کانکتور برد به برد 0.4 میلیمتر 10 پین دوتایی ردیف 2 با نصب سطحی عمودی

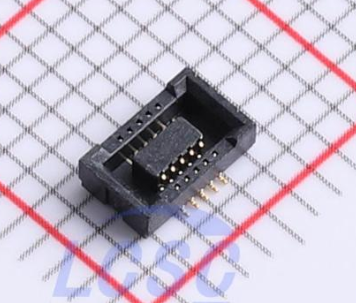

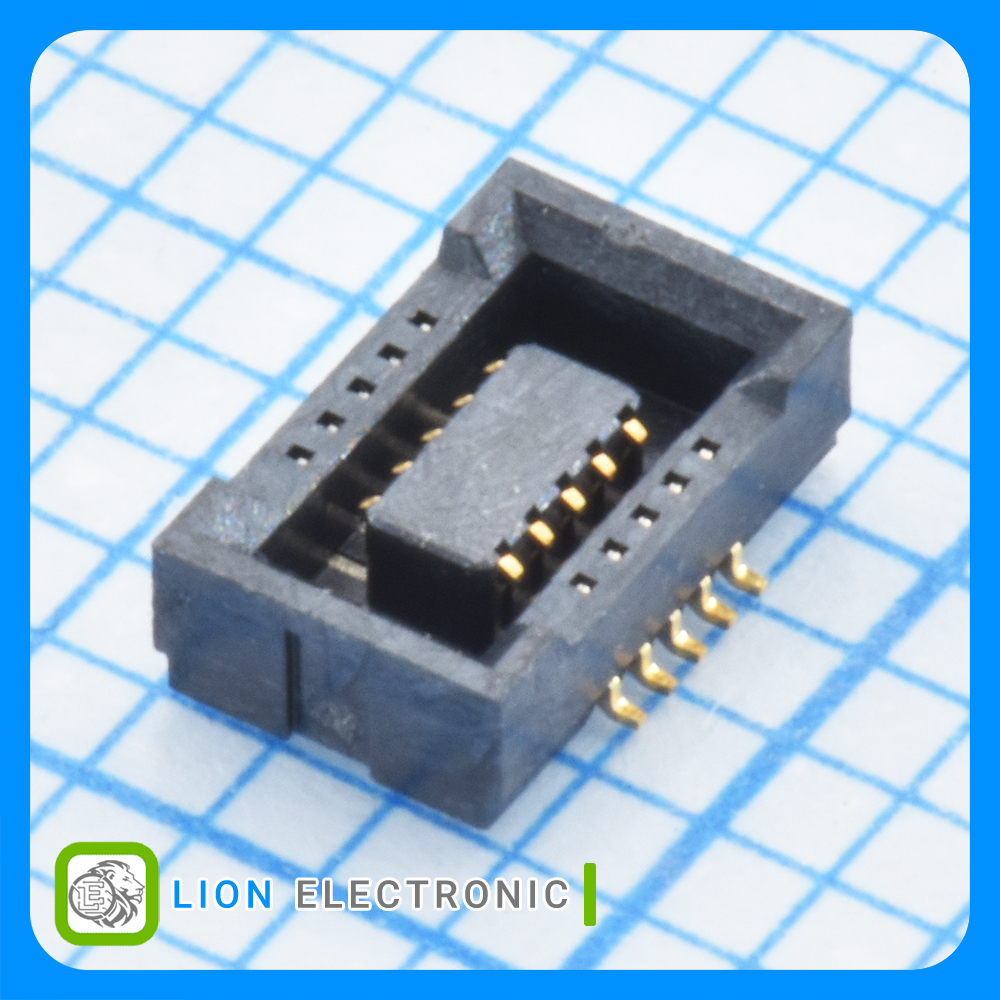

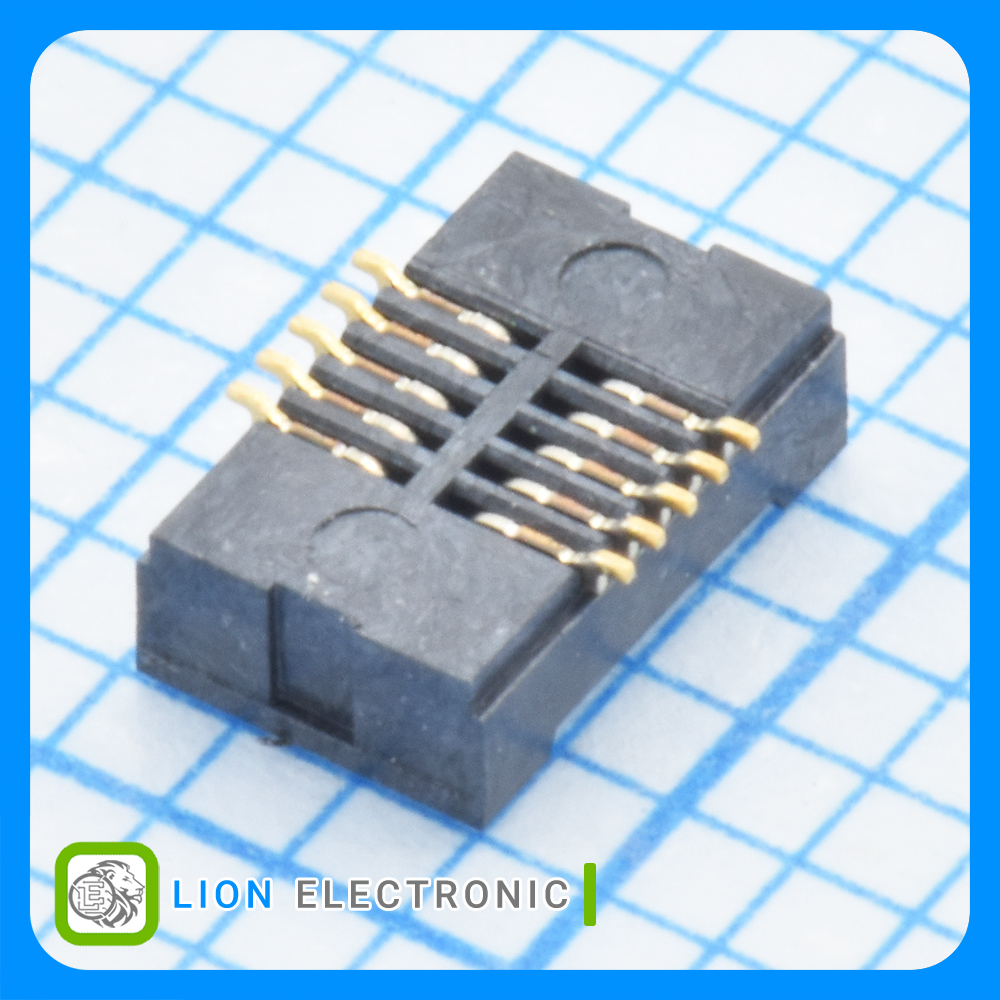

Board to Board Mezzanine Connector 30V, 300mA 2 Row, 10P, Pitch 0.4mm, Vertical SMD
Specifications
- Number of Rows: 2 Row
- Number of Positions: 10 Position
- Pitch: 0.4mm
- Voltage Rating: 30V
- Current Rating: 300mA
- Termination style: SMD/SMT
- Mounting Angle: Straight
- Minimum Operating Temperature: -35C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات LBF15-G10S-B0R02
LBF15-G10S-B0R02
Part Number
---
Height
2 Row
Number of Rows
Straight
Mounting Angle
0.4mm
Pitch
30V
Voltage Rating
SMD/SMT
Termination style
Reel
Packaging
-35C
Minimum Operating Temperature
300mA
Current Rating
+85C
Maximum Operating Temperature
10 Position
Number of Positions
