LXWCONN
معرفی
کانکتور برد به برد 20 پین 2 ردیفه با فاصله پایه 0.4 میلیمتر زاویه صاف

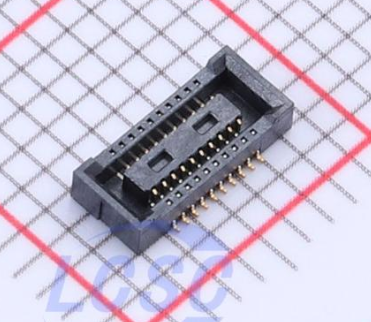

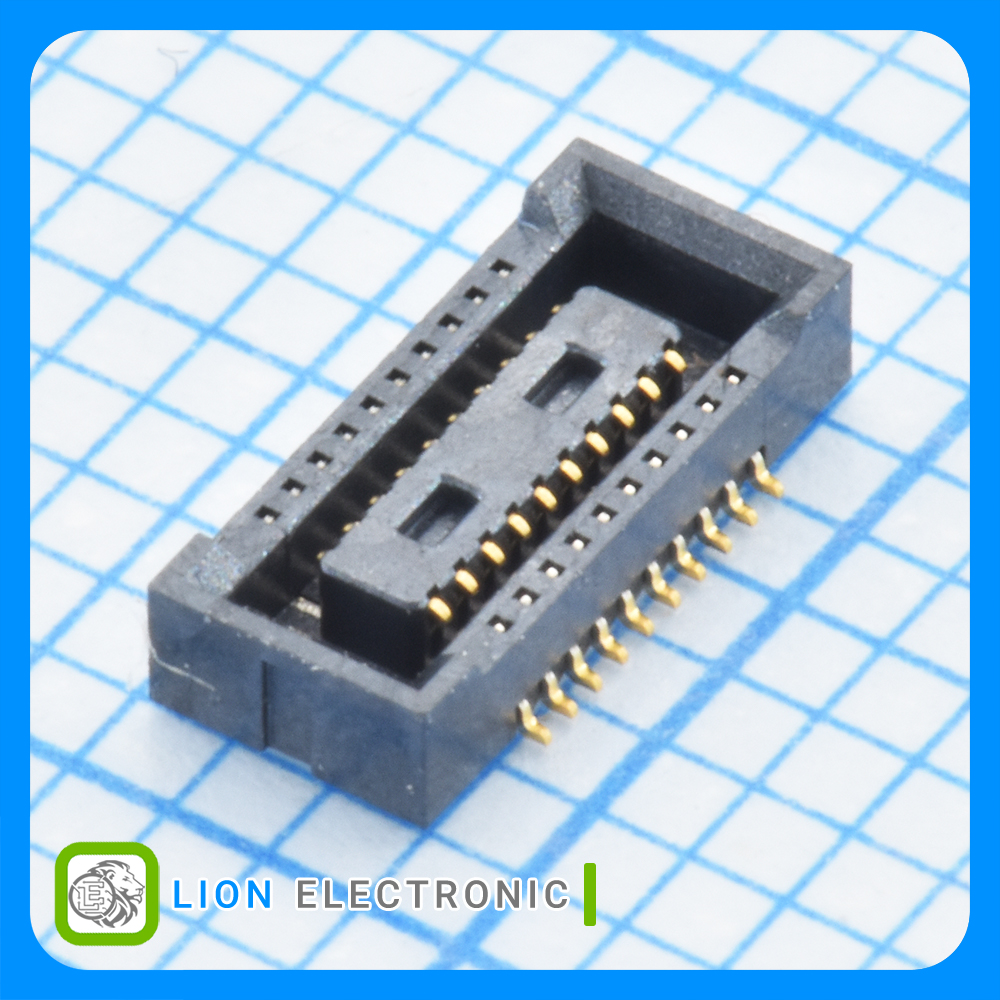

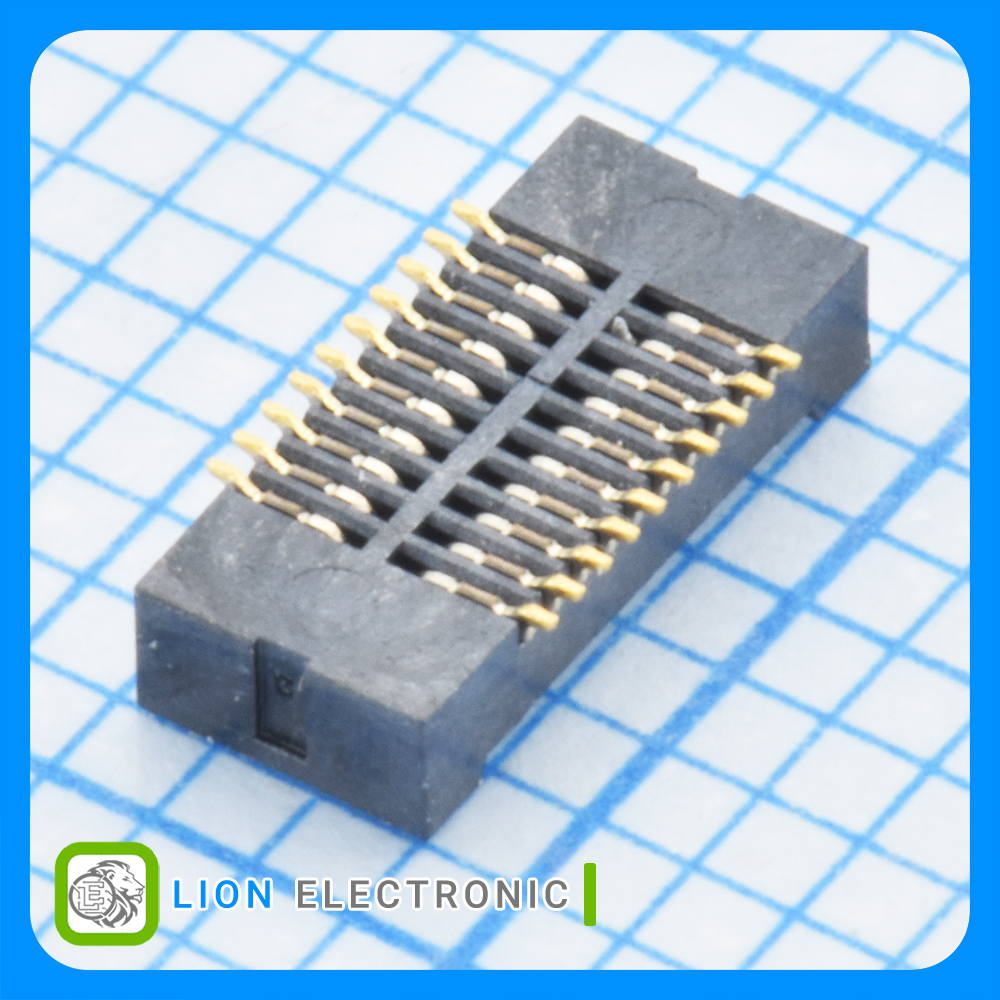

Board to Board Connector 20 Position, 2 Row with 0.4mm Pitch Straight
Specifications
- Number of Rows: 2 Row
- Number of Positions: 20 Position
- Pitch: 0.4mm
- Voltage Rating: 30V
- Current Rating: 300mA
- Termination style: SMD/SMT
- Mounting Angle: Straight
- Minimum Operating Temperature: -35C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات LBF15-G20S-B0R02
LBF15-G20S-B0R02
Part Number
---
Height
2 Row
Number of Rows
Straight
Mounting Angle
0.4mm
Pitch
30V
Voltage Rating
Reel
Packaging
SMD/SMT
Termination style
-35C
Minimum Operating Temperature
300mA
Current Rating
+85C
Maximum Operating Temperature
20 Position
Number of Positions
