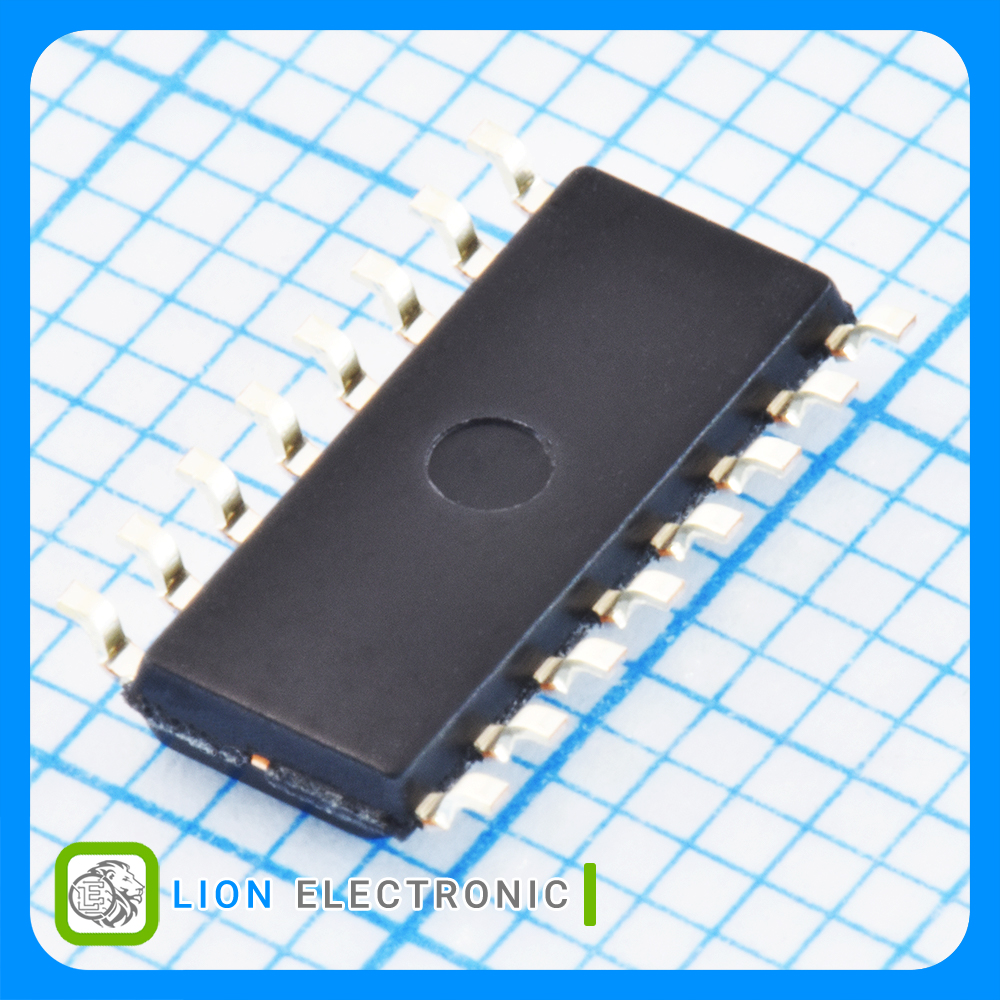

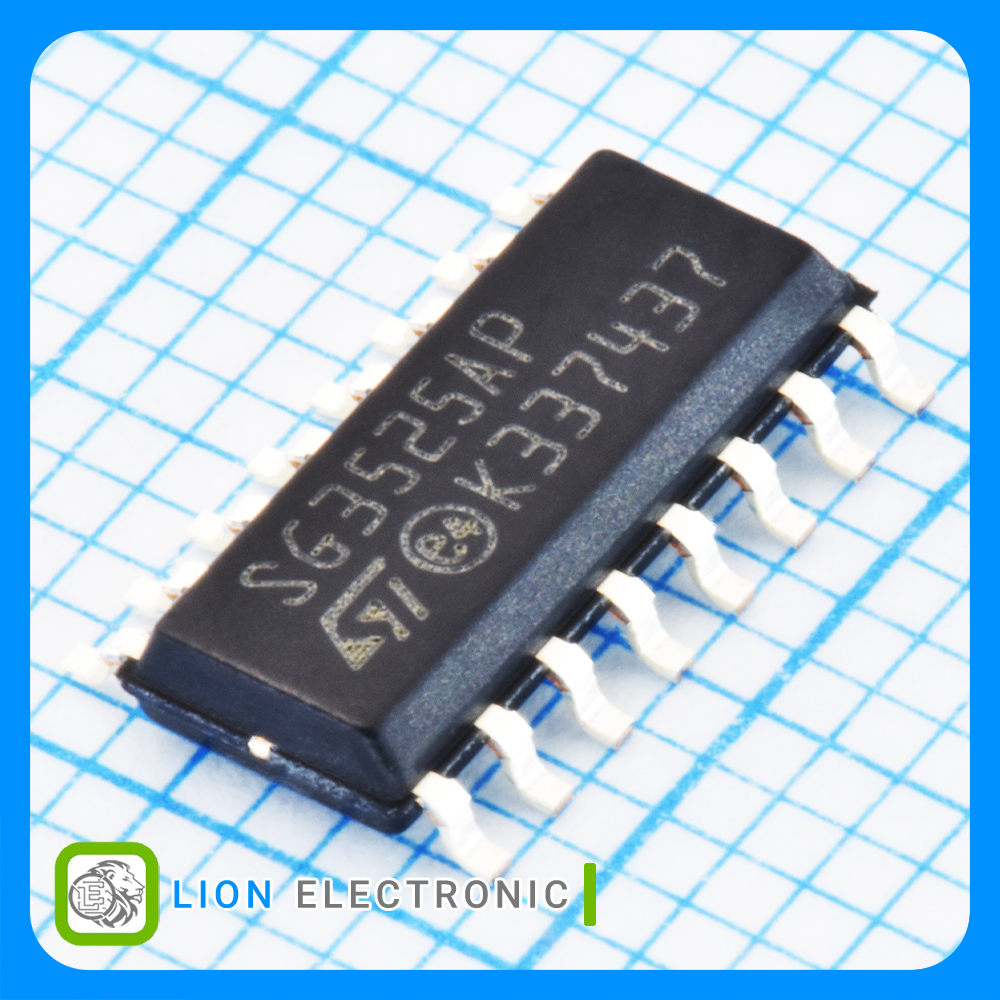

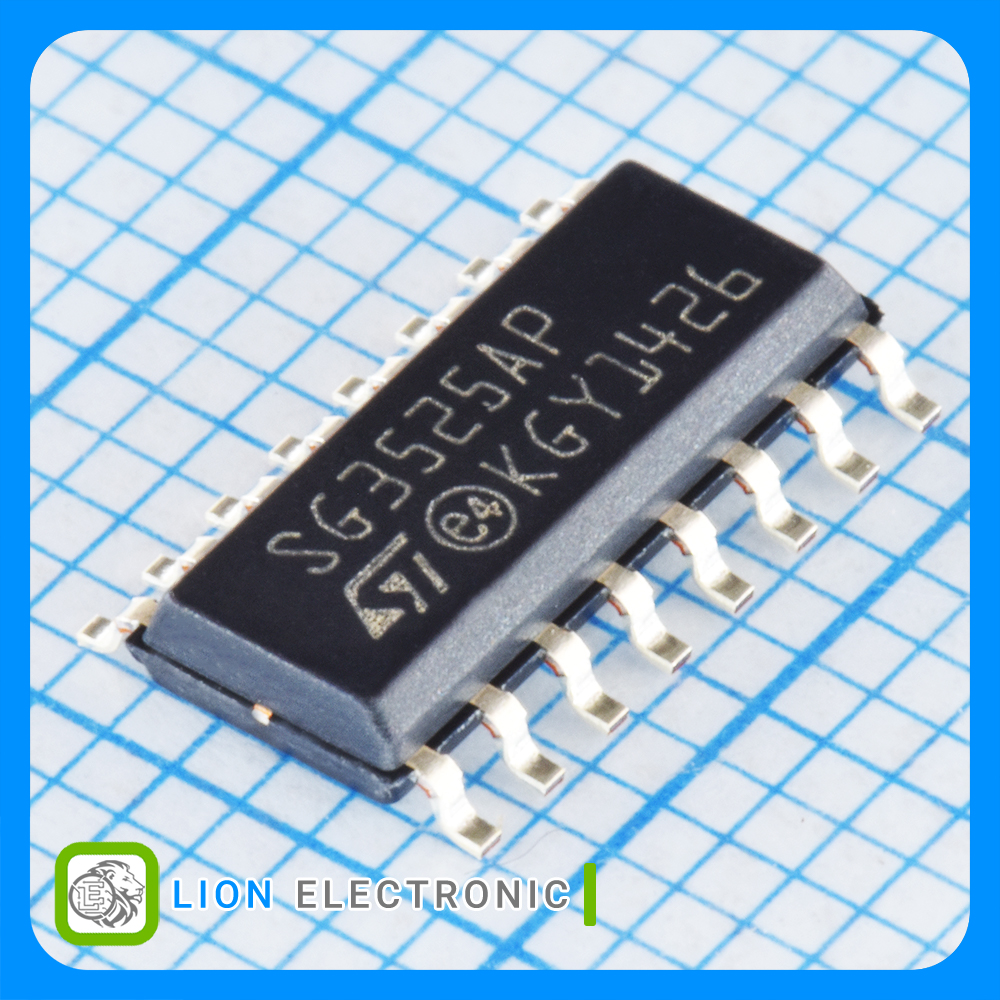

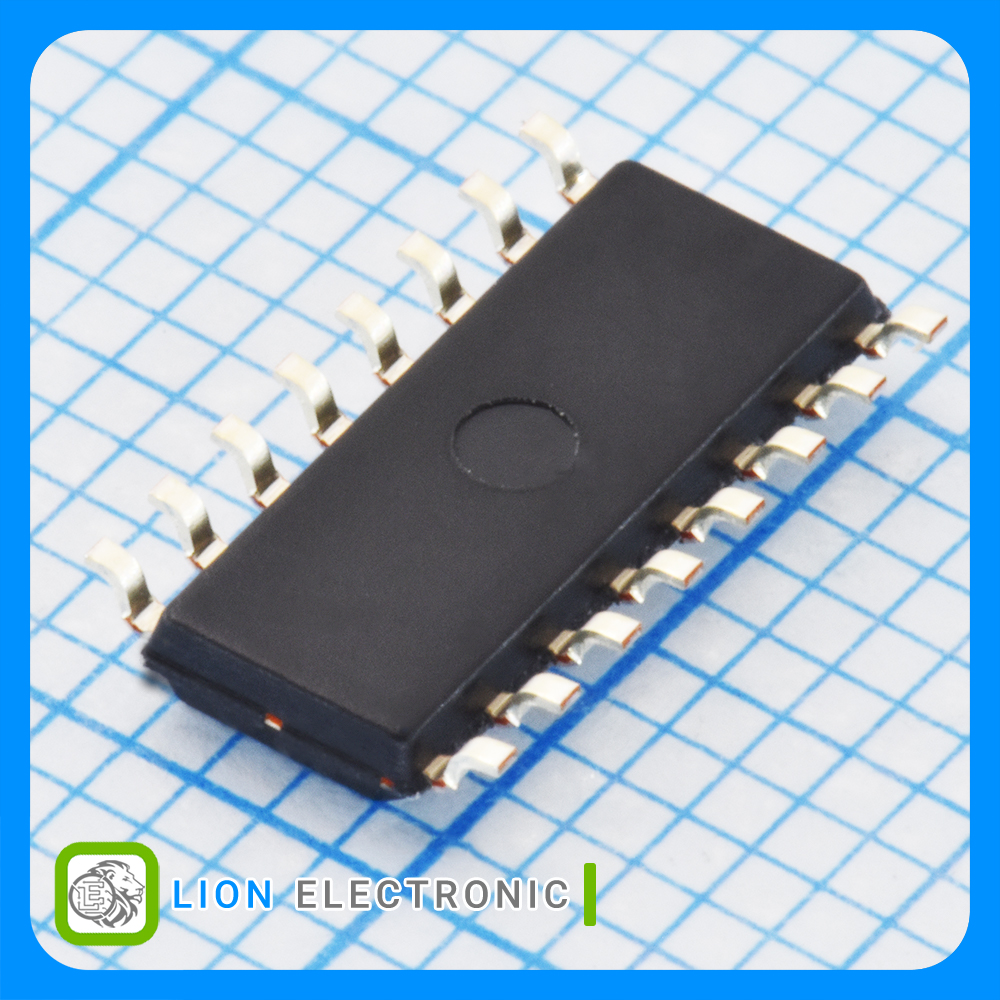

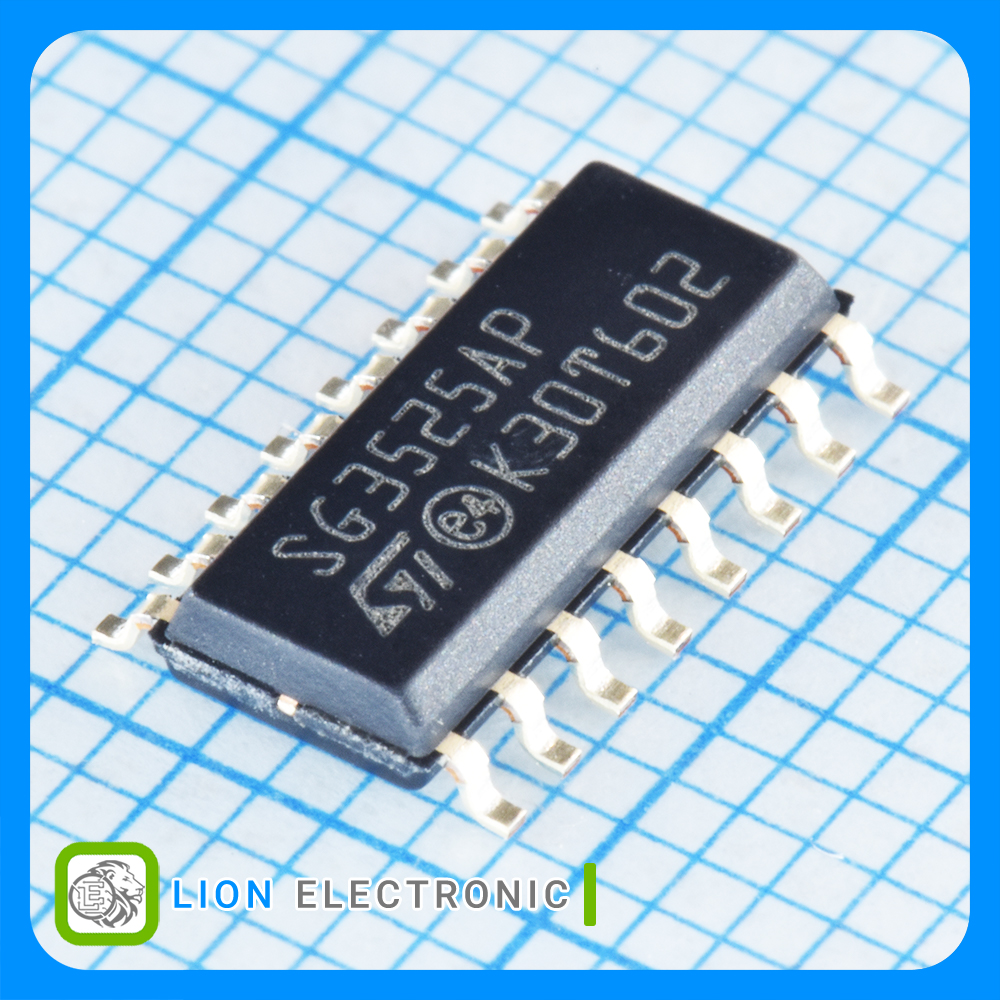

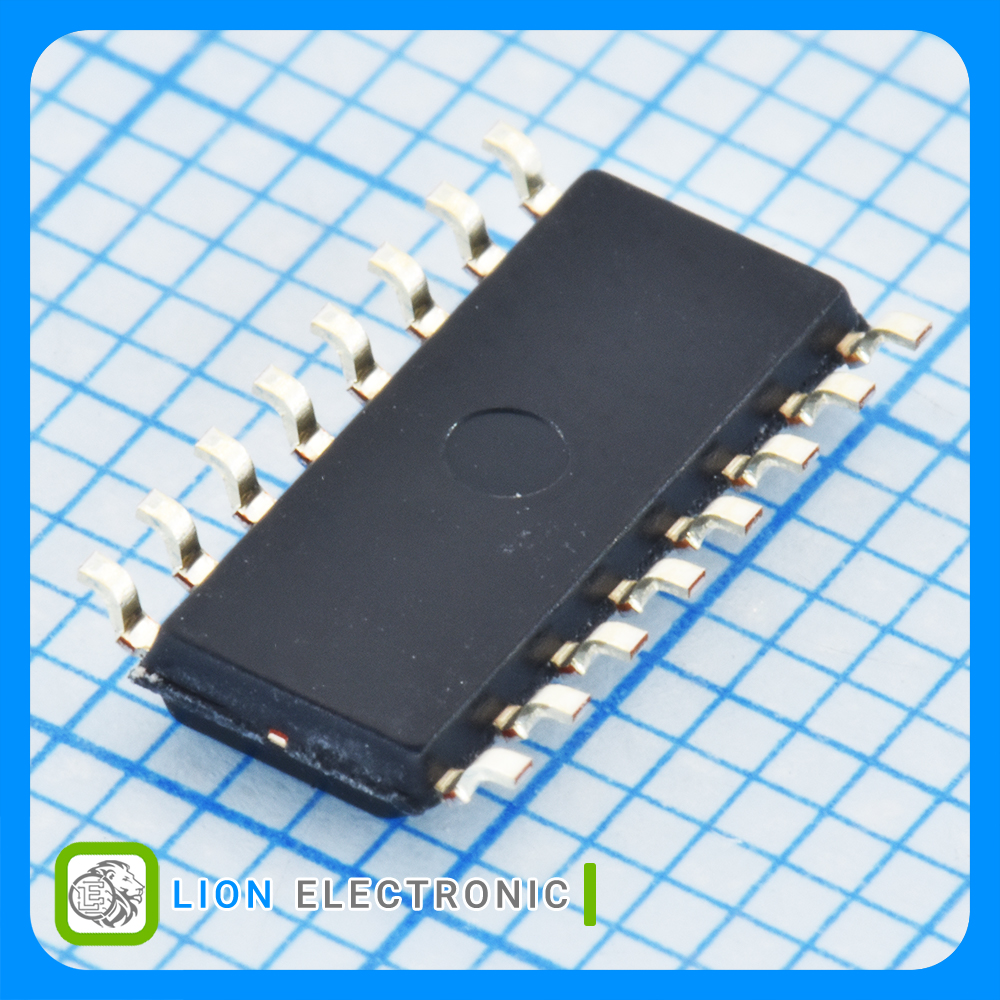

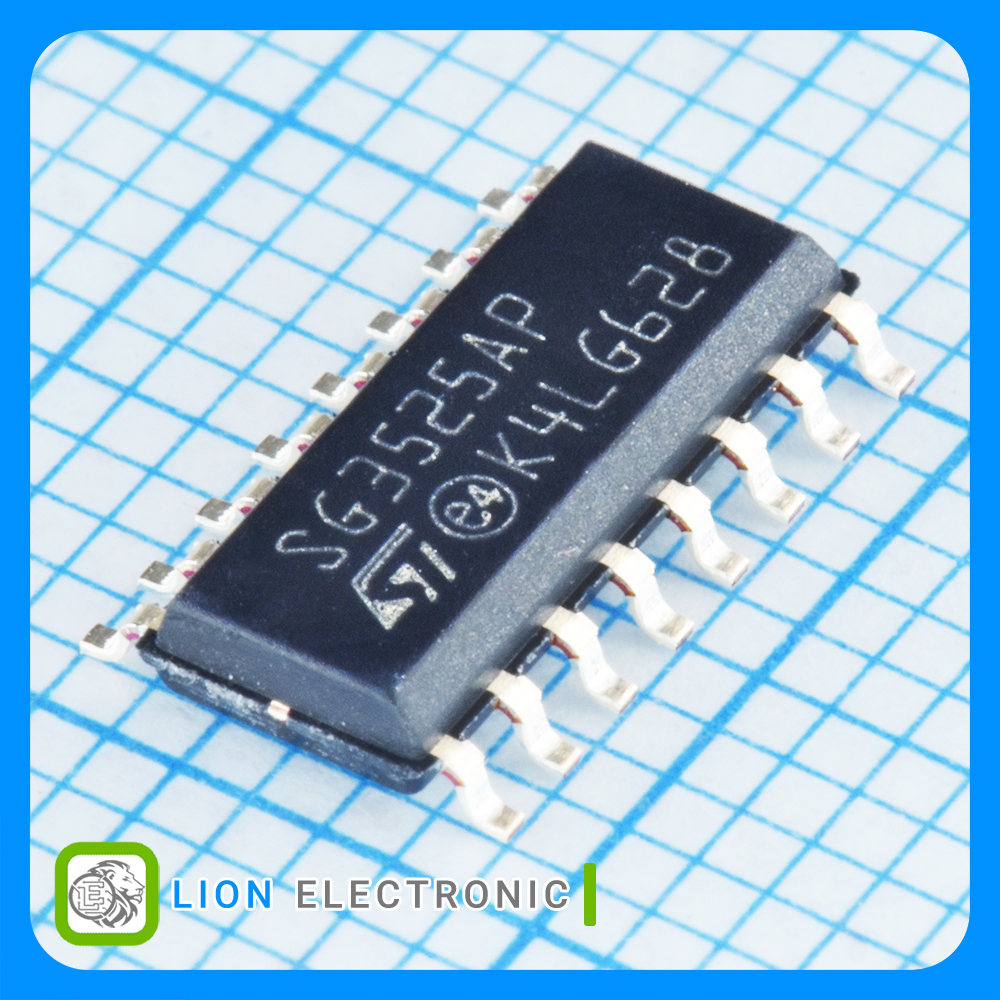

SG3525AP
SG3525AP
Part Number
816
Lion Part
Datasheet
STMicroelectronics Manufacture
کنترلر PWM سوئیچ 500 میلیآمپر 8 تا 35 ولت فرکانس 400 کیلوهرتز توپولوژی پوش-پول با پکیج SO-16 (SOIC-16)
Regulating Pulse Width Modulator PWM Controller 8 - 35V, 400kHz Push-Pull, 500mA Switch with SO-16 (SOIC-16) Package
معرفی
کنترلر PWM سوئیچ 500 میلیآمپر 8 تا 35 ولت فرکانس 400 کیلوهرتز توپولوژی پوش-پول با پکیج SO-16 (SOIC-16)
Regulating Pulse Width Modulator PWM Controller 8 - 35V, 400kHz Push-Pull, 500mA Switch with SO-16 (SOIC-16) Package
Specifications
- Topology: Push-Pull
- Input Voltage: 8 - 35V
- Number of Outputs: 2
- Output Voltage: 5.1V
- Switching Frequency: 400kHz
- Duty Cycle - Max: 49%
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات SG3525AP
SG3525AP
Part Number
2
Number of Outputs
49%
Duty Cycle - Max
+70C
Maximum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
0C
Minimum Operating Temperature
Push-Pull
Topology
8 - 35V
Input Voltage
400kHz
Switching Frequency
5.1V
Output Voltage
SOIC-16
Package-Case
