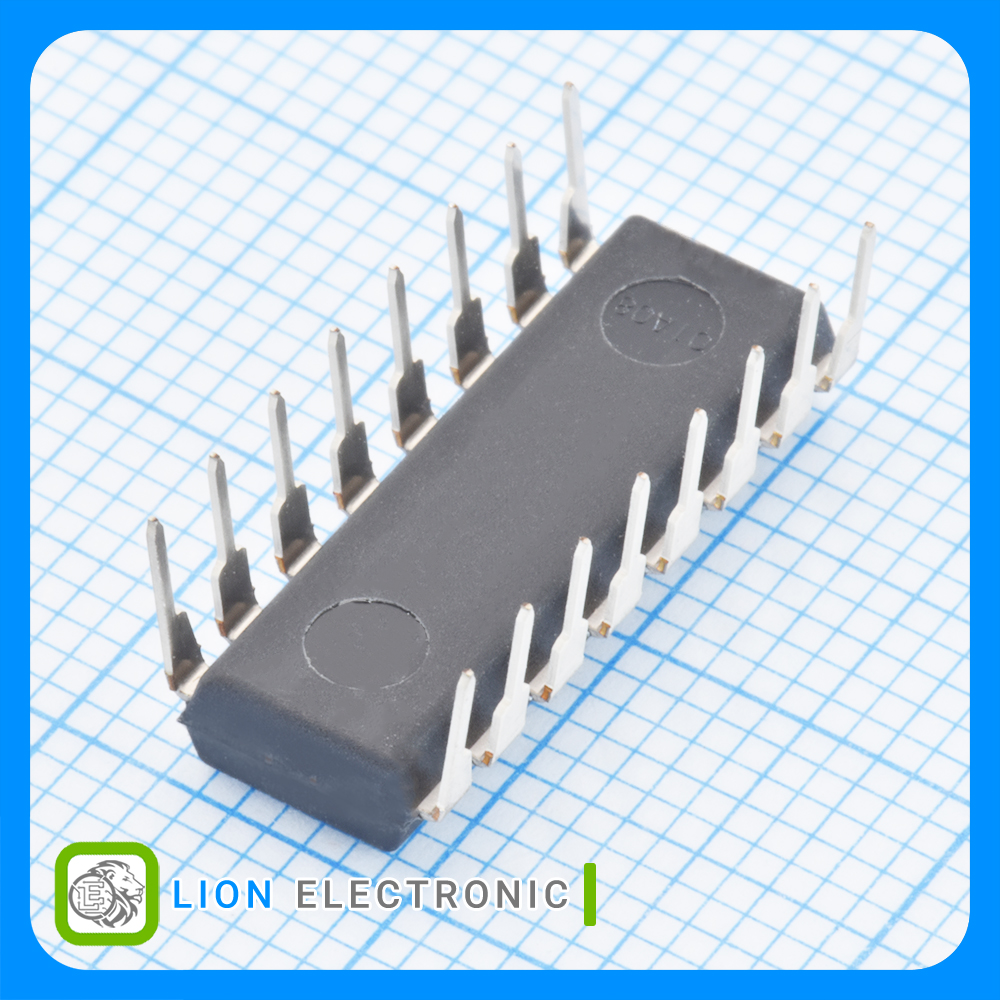

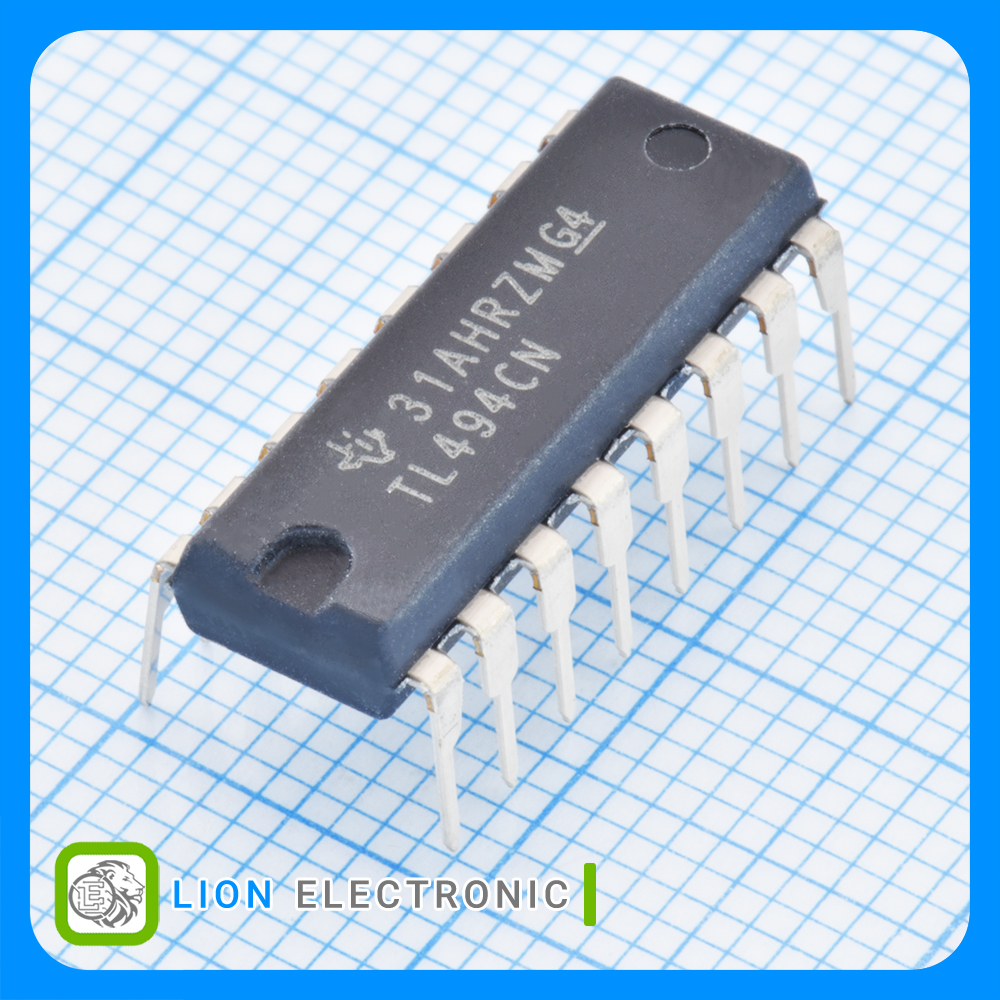

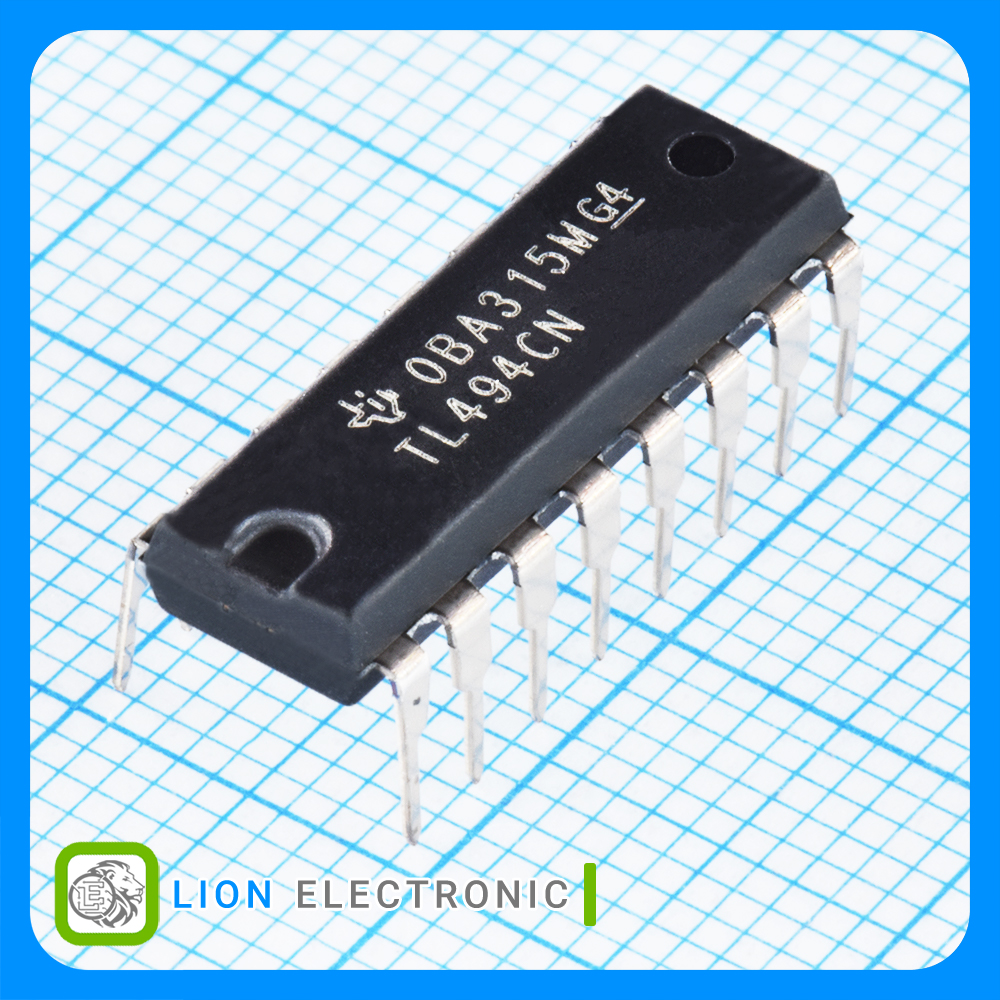

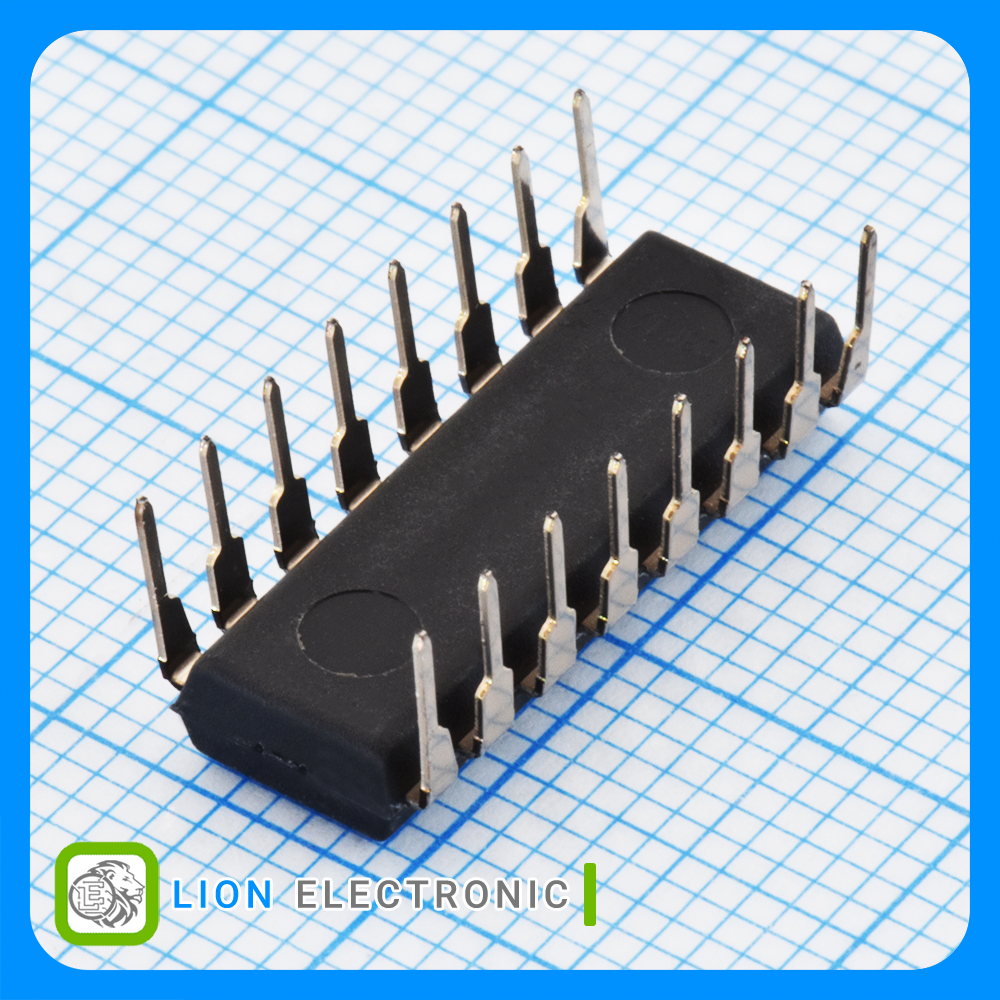

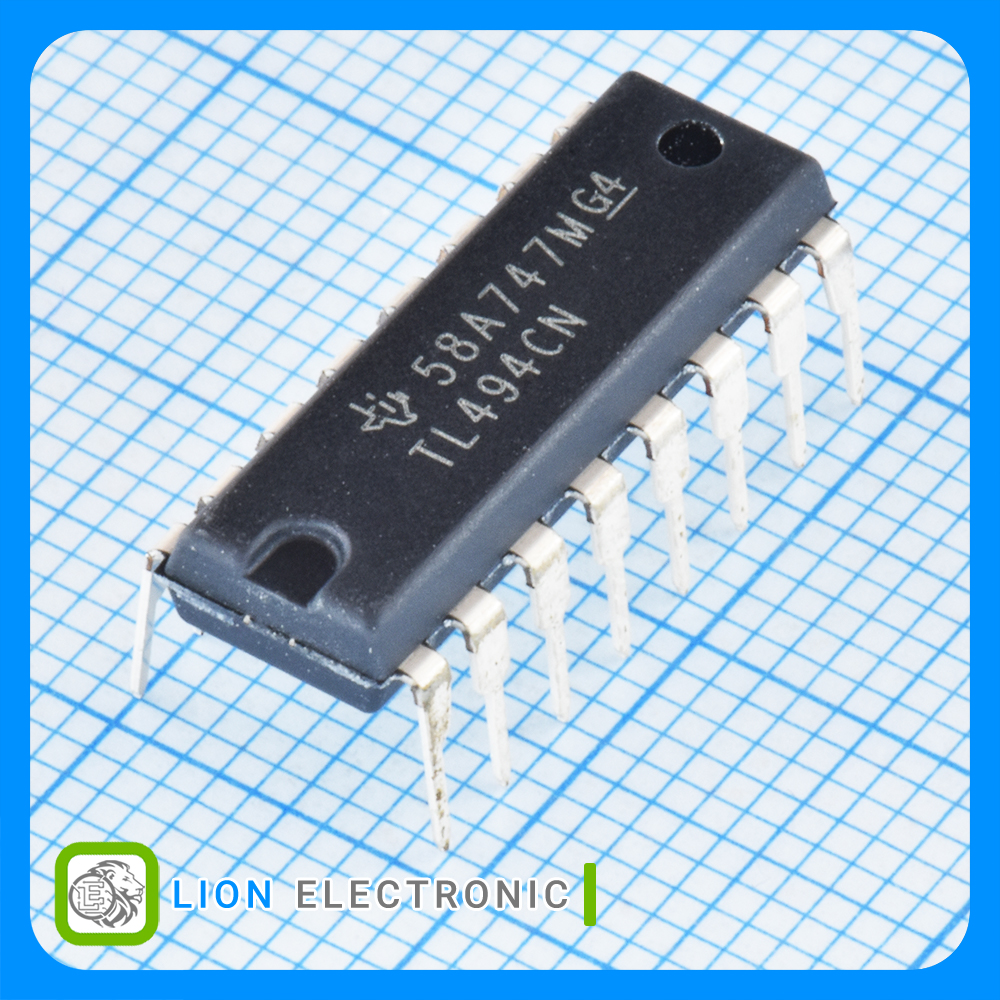

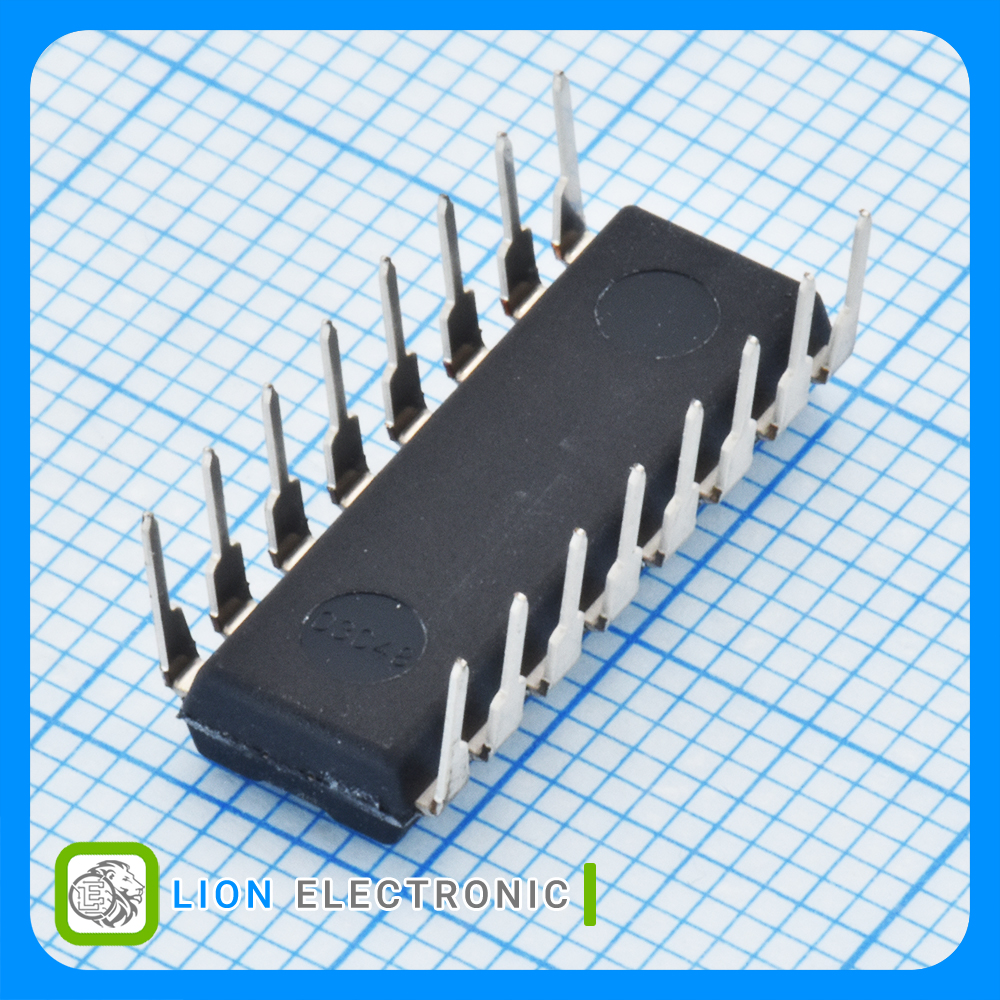

TL494CN
TL494CN
Part Number
820
Lion Part
Datasheet
Texas Instruments Manufacture
کنترلر PWM ورودی 7 تا 40 ولت فرکانس 300 کیلوهرتز جریان 200 میلیآمپر توپولوژی بوست, باک, فلایبک, فوروارد, پوشپول با پکیج PDIP-16
Pulse-Width-Modulation Control Circuit, PWM Controller 7 - 40V, 300kHz 200mA, Boost, Buck, Flyback, Forward, Push-Pull with DIP-16 Package
معرفی
کنترلر PWM ورودی 7 تا 40 ولت فرکانس 300 کیلوهرتز جریان 200 میلیآمپر توپولوژی بوست, باک, فلایبک, فوروارد, پوشپول با پکیج PDIP-16
Pulse-Width-Modulation Control Circuit, PWM Controller 7 - 40V, 300kHz 200mA, Boost, Buck, Flyback, Forward, Push-Pull with DIP-16 Package
Specifications
- Topology: Boost, Buck, Flyback, Forward, Push-Pull
- Input Voltage: 7 - 40V
- Number of Outputs: 2
- Output Voltage: 40V
- Switching Frequency: 300kHz
- Duty Cycle - Max: 45%
- Mounting Style: Through Hole
- Package/Case: DIP-16
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات TL494CN
TL494CN
Part Number
2
Number of Outputs
45%
Duty Cycle - Max
Boost, Buck, Flyback, Forward, Push-Pull
Topology
+70C
Maximum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
7 - 40V
Input Voltage
300kHz
Switching Frequency
DIP-16
Package-Case
40V
Output Voltage
