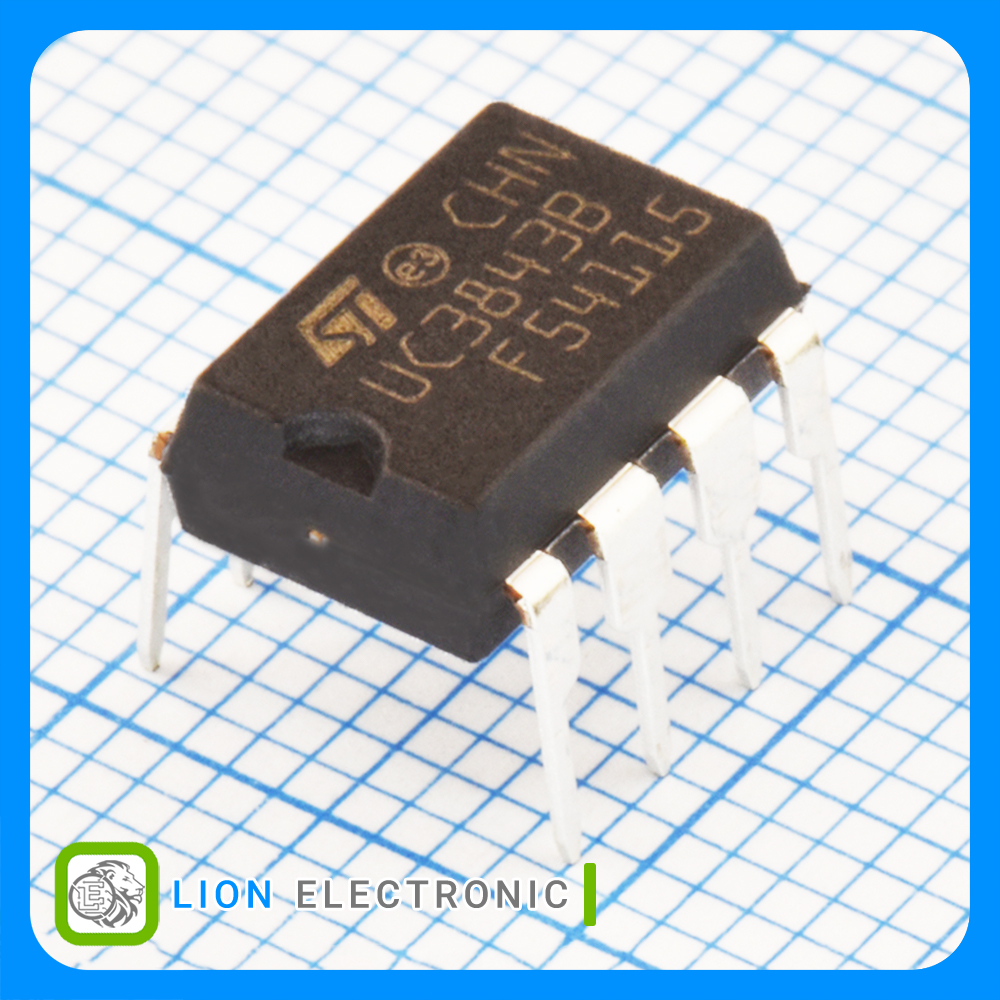

UC3843BN
UC3843BN
Part Number
827
Lion Part
Datasheet
STMicroelectronics Manufacture
کنترلر PWM جریانی ورودی 30 ولت فرکانس 500 کیلوهرتز توپولوژی بوست, فلایبک, فوروارد با پکیج PDIP-8
Boost/Flyback Switching Controller, PWM Controller 30V, 500kHz Boost, Flyback, Forward with DIP-8 Package
معرفی
کنترلر PWM جریانی ورودی 30 ولت فرکانس 500 کیلوهرتز توپولوژی بوست, فلایبک, فوروارد با پکیج PDIP-8
Boost/Flyback Switching Controller, PWM Controller 30V, 500kHz Boost, Flyback, Forward with DIP-8 Package
Specifications
- Topology: Boost, Flyback, Forward
- Input Voltage: 30V
- Number of Outputs: 1
- Output Voltage: 0.1 - 13.5V
- Switching Frequency: 500kHz
- Duty Cycle - Max: 100%
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات UC3843BN
UC3843BN
Part Number
1
Number of Outputs
-40C
Minimum Operating Temperature
Boost, Flyback, Forward
Topology
Tube
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
0.1 - 13.5V
Output Voltage
100%
Duty Cycle - Max
500kHz
Switching Frequency
30V
Input Voltage
DIP-8
Package-Case
