ZXMS6004FFQTA
ZXMS6004FFQTA
Part Number
1060
Lion Part
Datasheet
Diodes Incorporated Manufacture
پاور سوئیچ هوشمند سمت پایین (ماسفت حفاظت شده) 1 کاناله 60 ولت 1.3 آمپر با مقاومت Rds On 500 میلیاهم و پکیج SOT-23F

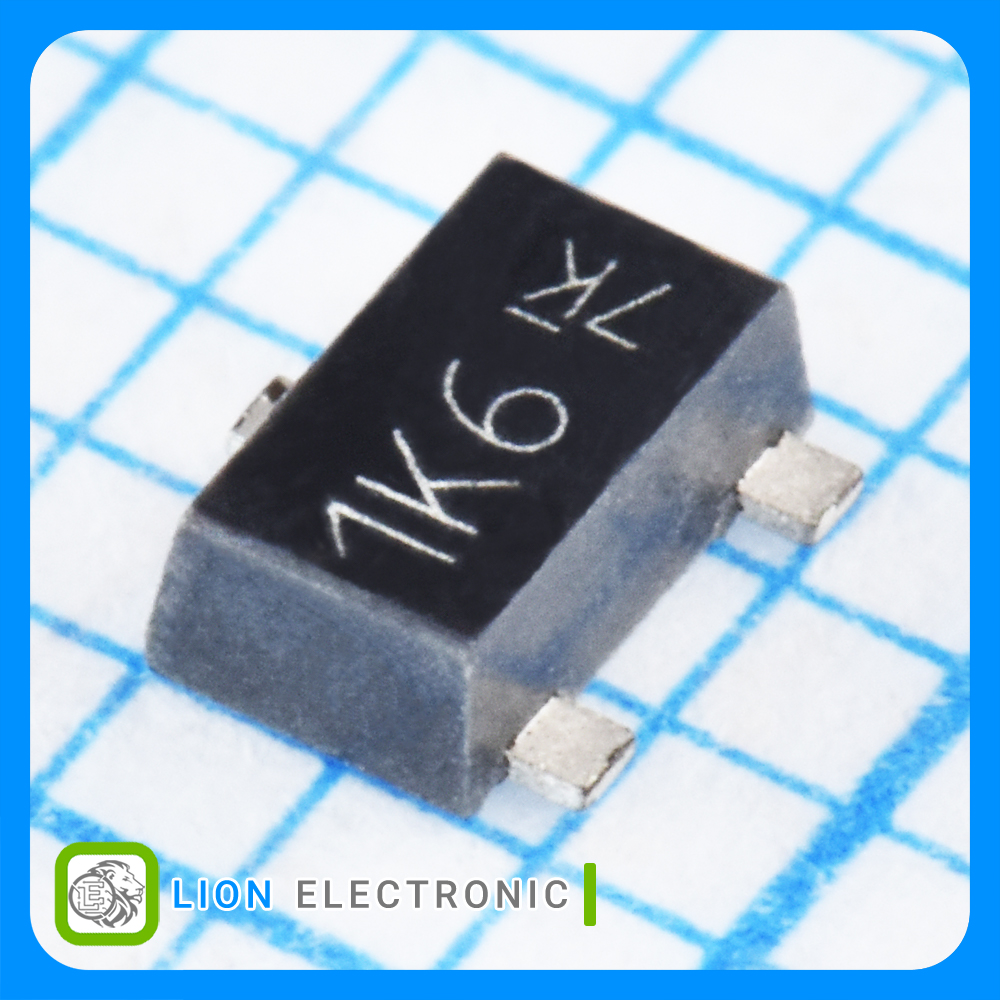

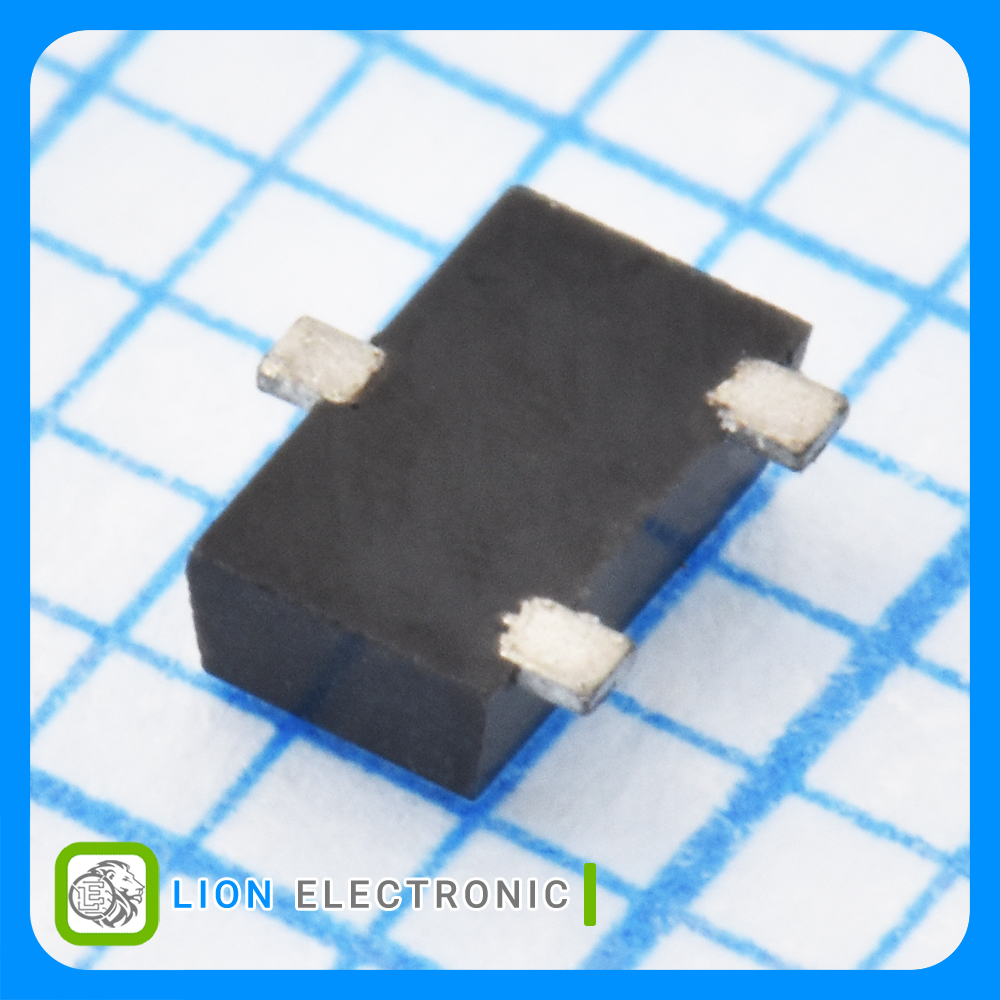

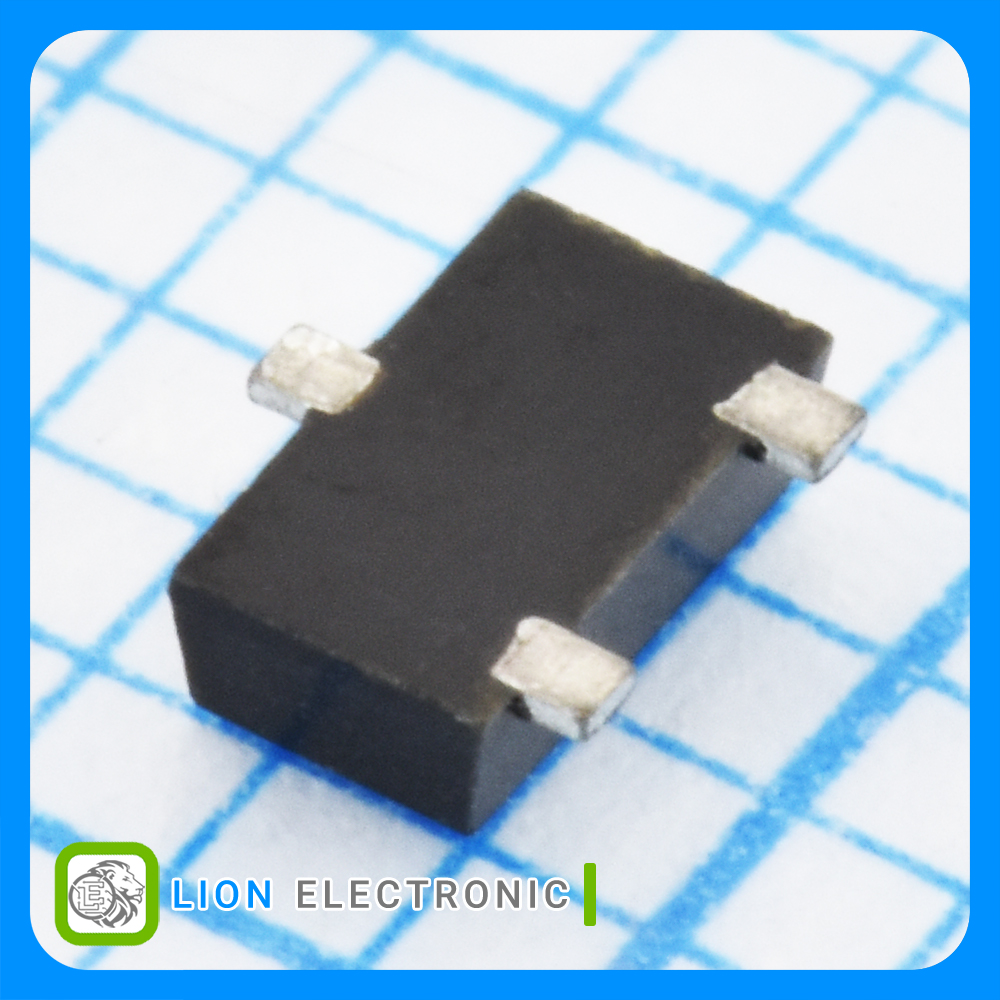

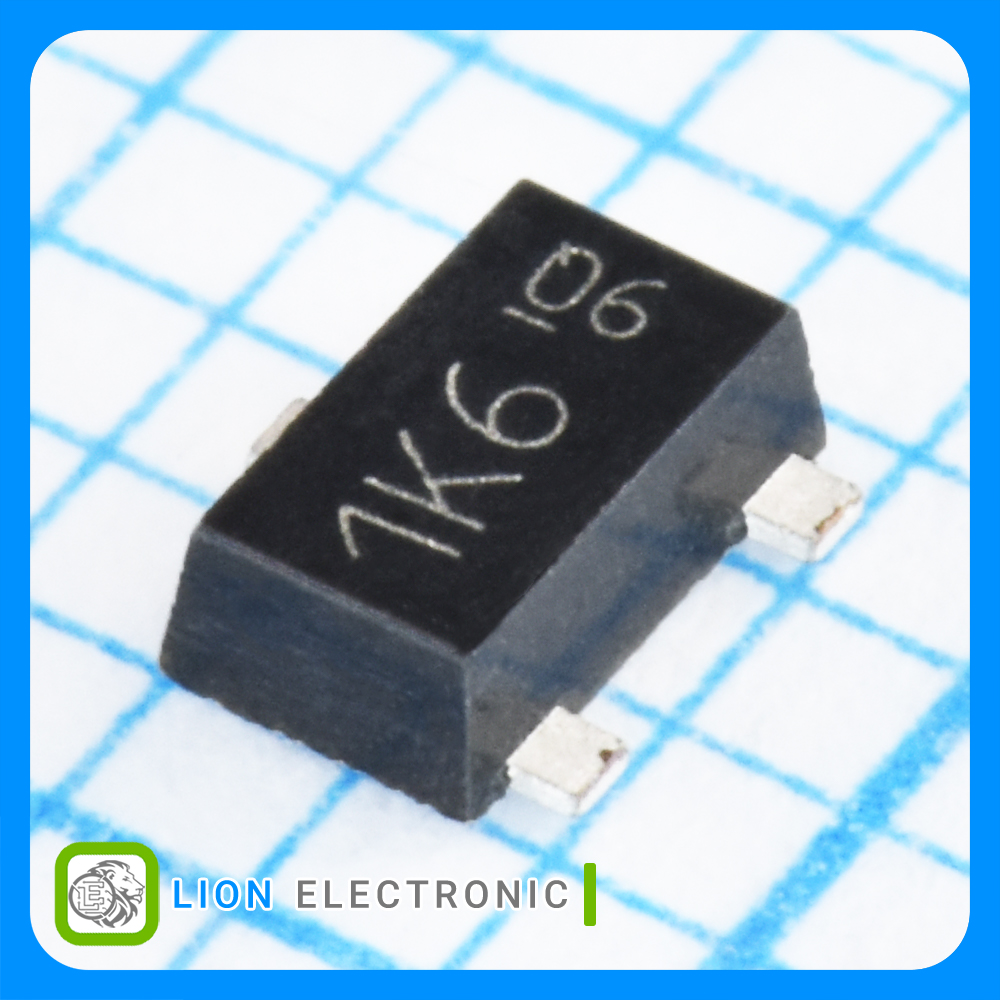

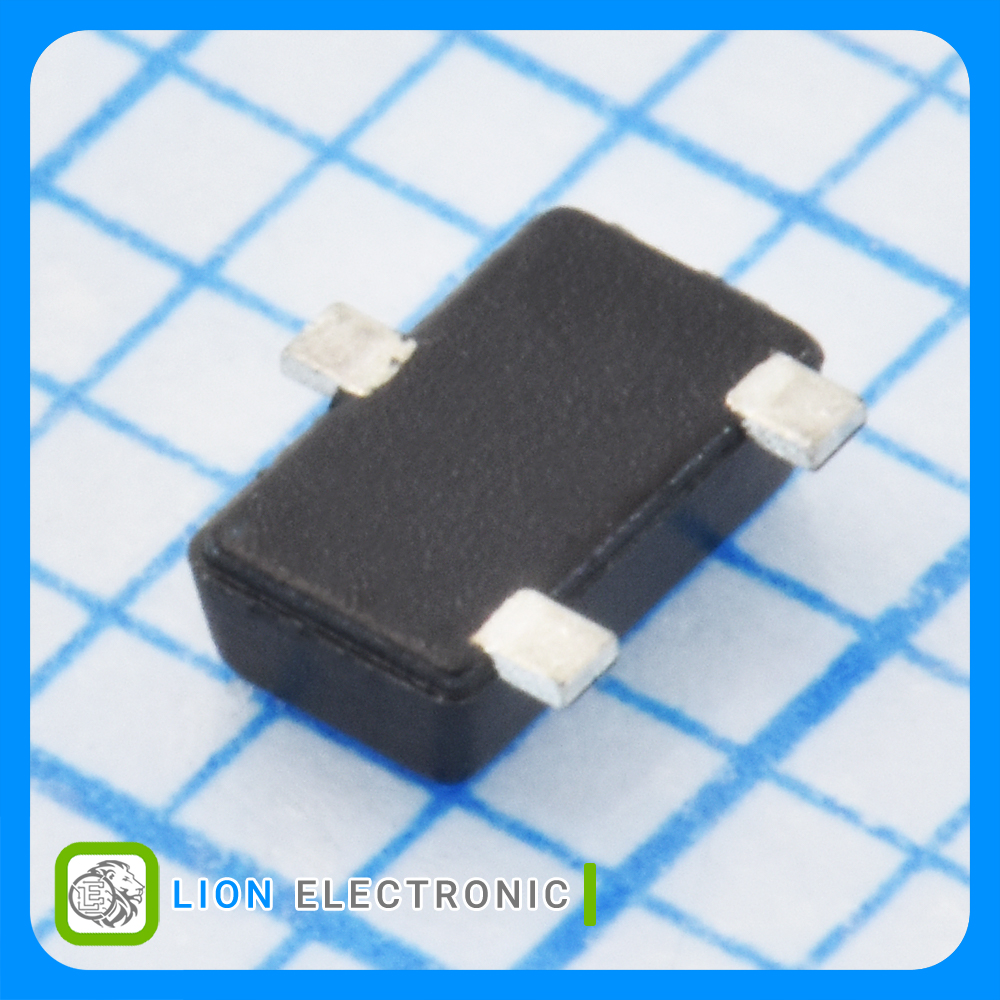

Smart Power Switch Low Side (Protected MOSFET N-Channel) 1-Channel 60V, 1.3A, 500mΩ Rds On, with SOT-23F Package
معرفی
پاور سوئیچ هوشمند سمت پایین (ماسفت حفاظت شده) 1 کاناله 60 ولت 1.3 آمپر با مقاومت Rds On 500 میلیاهم و پکیج SOT-23F
Smart Power Switch Low Side (Protected MOSFET N-Channel) 1-Channel 60V, 1.3A, 500mΩ Rds On, with SOT-23F Package
Specifications
- Type: Low Side
- Interface Type: Parallel
- Number of Channels: 1
- Output Voltage: 60V
- Output Current: 1.3A
- Current Limit: 2.2A
- Rds On - Drain - Source Resistance: 500mΩ
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 60V
- Package/Case: SOT-23F
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات پاور سوییچ ZXMS6004FFQTA

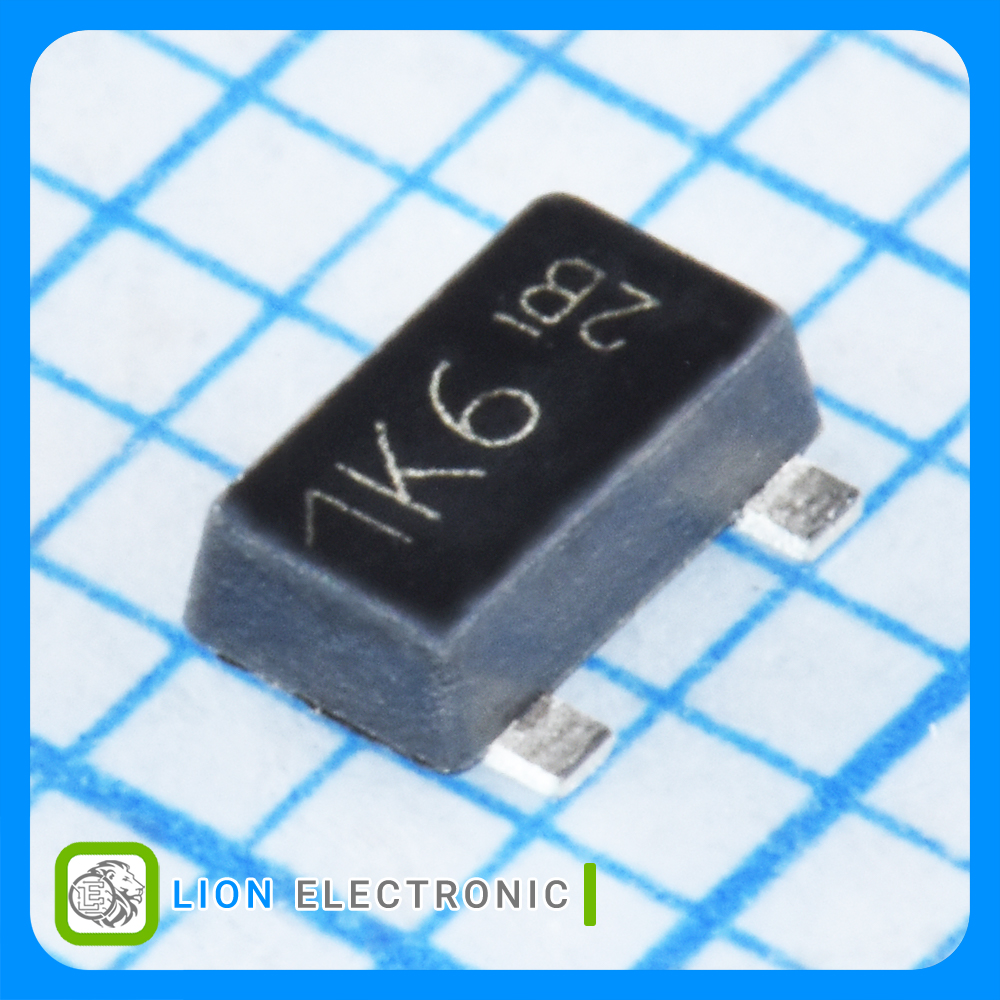

پاور سوییچ ZXMS6004FFQTA
Part Number
--- 2.2A
Current Limit
--- 1.3A
Output Current
--- SOT-23F
Package-Case
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
Si
Technology
Reel
Packaging
-40C
Minimum Operating Temperature
IntelliFET
Tradename
±5V
Vgs - Gate - Source Voltage
SMD/SMT
Mounting Style
5us
On Time - Max
+125C
Maximum Operating Temperature
3V3 , 5V
Input Voltage
45us
Off Time - Max
60V
Vds - Drain - Source Breakdown Voltage
700mV
Vgs th - Gate - Source Threshold Voltage
Single
Configuration
10us
Rise Time
1.3A
Id - Continuous Drain Current
15us
Fall Time
Low Side
Type
1.5W
Pd - Power Dissipation
Parallel
Interface Type
500mΩ
Rds On - Drain - Source Resistance
60V
Output Voltage
60V
Operating Supply Voltage
