TPS2HB50AQPWPRQ1
TPS2HB50AQPWPRQ1
Part Number
4566
Lion Part
Datasheet
Texas Instruments Manufacture
پاور سوئیچ هوشمند سمت بالا دو کاناله 40 ولت 4.5 آمپر با مقاومت Rds On برابر 50 میلیاهم و پکیج HTSSOP-16
Smart Power Switch High Side Dual-Channel 40V, 4.5A, 50mΩ Rds On, HTSSOP-16 Package
معرفی
پاور سوئیچ هوشمند سمت بالا دو کاناله 40 ولت 4.5 آمپر با مقاومت Rds On برابر 50 میلیاهم و پکیج HTSSOP-16
Smart Power Switch High Side Dual-Channel 40V, 4.5A, 50mΩ Rds On, HTSSOP-16 Package
Specifications
- Type: High Side
- Interface Type: Digital
- Number of Channels: 2
- Output Voltage: 40V
- Output Current: 4.5A
- Current Limit: 2 - 10A
- Rds On - Drain - Source Resistance: 50mΩ
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 6 - 18V
- Package/Case: HTSSOP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات آیسی پاور سوئیچ TPS2HB50AQPWPRQ1

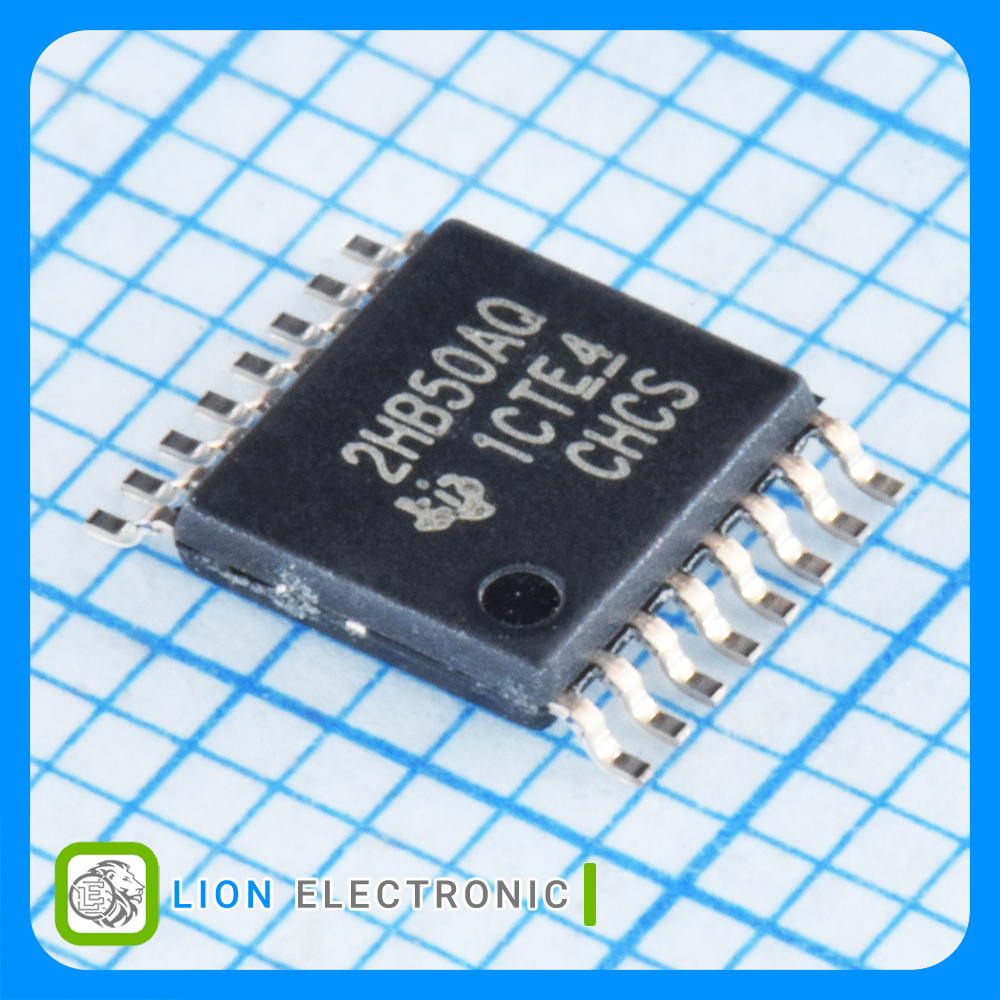

آیسی پاور سوئیچ TPS2HB50AQPWPRQ1
Part Number
--- 2 - 10A
Current Limit
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
145us
On Time - Max
3V3 , 5V
Input Voltage
147us
Off Time - Max
High Side
Type
Digital
Interface Type
4.5A
Output Current
50mΩ
Rds On - Drain - Source Resistance
HTSSOP-16
Package-Case
40V
Output Voltage
6 - 18V
Operating Supply Voltage
