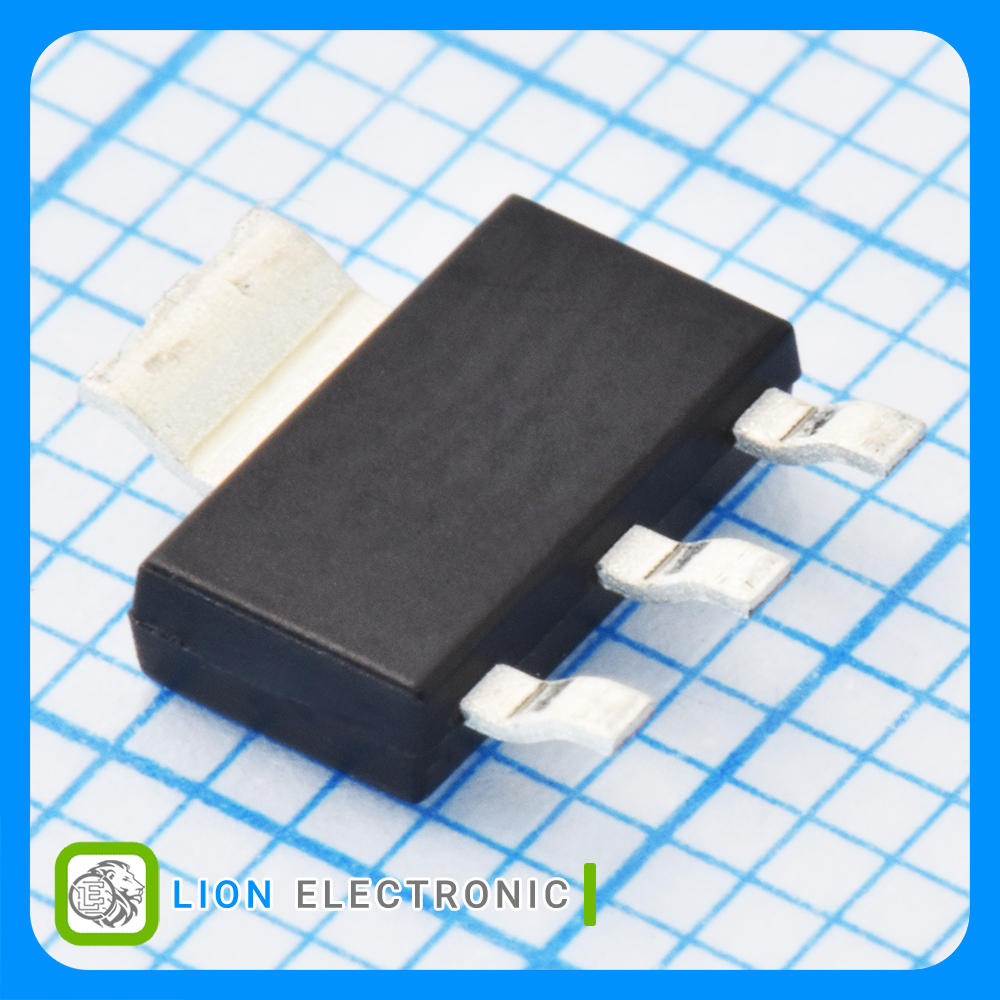

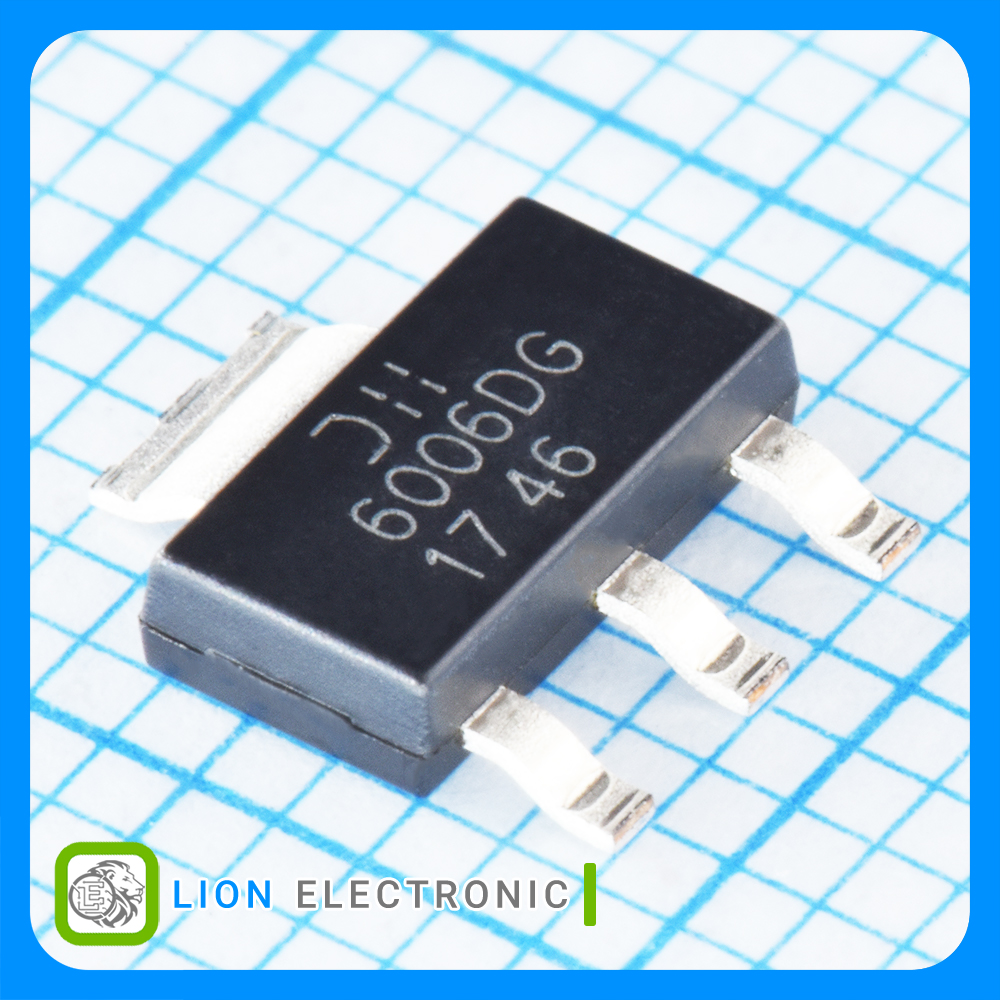

ZXMS6006DGTA
ZXMS6006DGTA
Part Number
5807
Lion Part
Datasheet
Diodes Incorporated Manufacture
پاور سوئیچ هوشمند سمت پایین 1 کاناله ماسفت حفاظت شده نوع N با ولتاژ 60 ولت و جریان 2.8 آمپر با پکیج SOT-223-4
Smart Power Switch Low Side 1-Channel Protected N-CH MOS 60V, 2.8A with SOT-223-4 Package
معرفی
پاور سوئیچ هوشمند سمت پایین 1 کاناله ماسفت حفاظت شده نوع N با ولتاژ 60 ولت و جریان 2.8 آمپر با پکیج SOT-223-4
Smart Power Switch Low Side 1-Channel Protected N-CH MOS 60V, 2.8A with SOT-223-4 Package
Specifications
- Type: Low Side
- Interface Type: Parallel
- Number of Channels: 1
- Output Voltage: 60V
- Output Current: 2.8A
- Current Limit: 4 - 13A
- Rds On - Drain - Source Resistance: 75mΩ
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 60V
- Package/Case: SOT-223-4
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات ZXMS6006DGTA
ZXMS6006DGTA
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
3V3 , 5V
Input Voltage
60V
Vds - Drain - Source Breakdown Voltage
700mV
Vgs th - Gate - Source Threshold Voltage
Single
Configuration
4 - 13A
Current Limit
2.8A
Id - Continuous Drain Current
Low Side
Type
2.8A
Output Current
3W
Pd - Power Dissipation
75mΩ
Rds On - Drain - Source Resistance
Parallel
Interface Type
60V
Output Voltage
60V
Operating Supply Voltage
SOT-223
Package-Case
