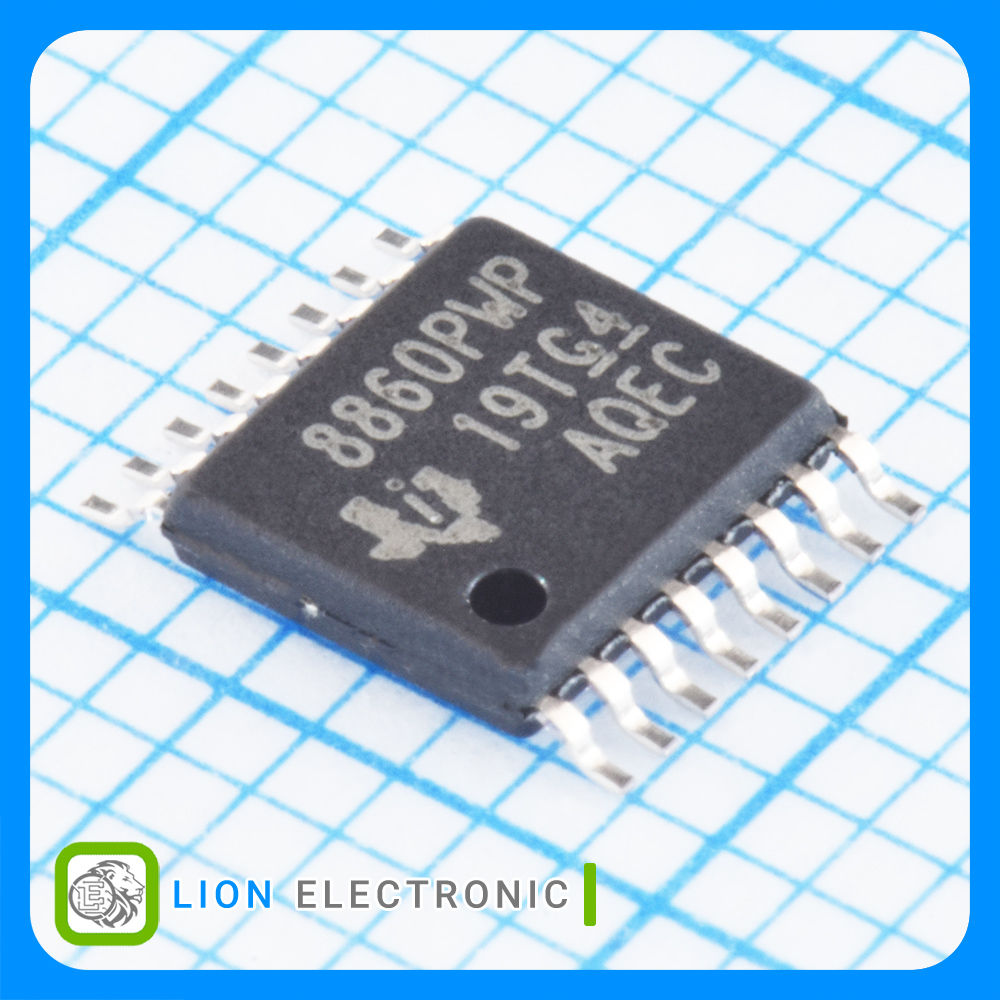

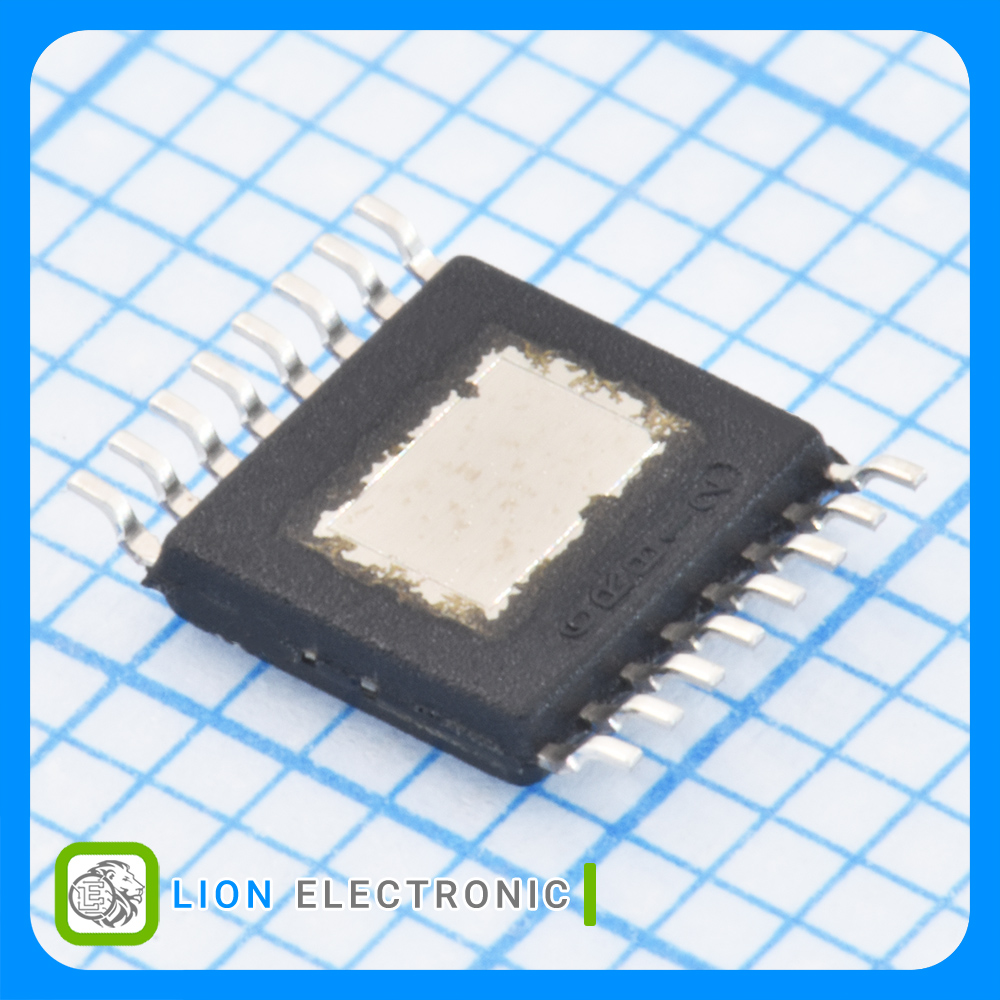

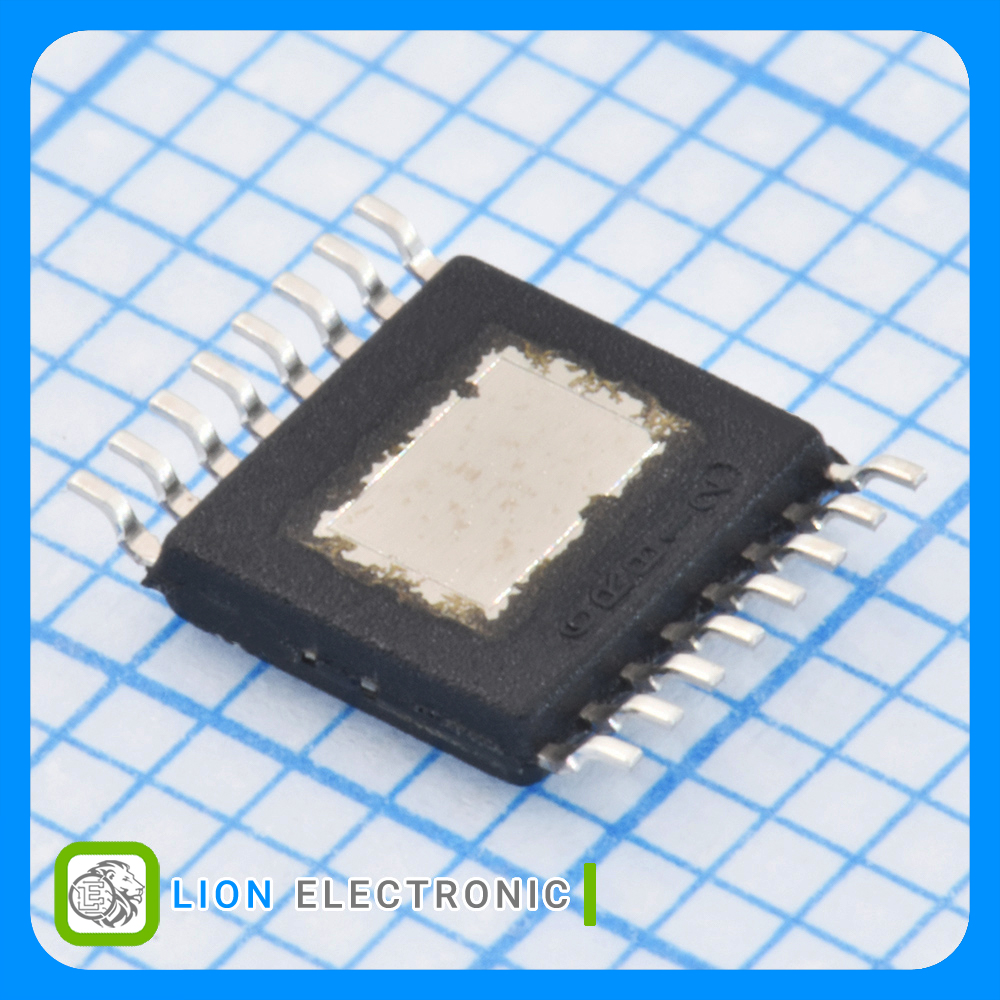

DRV8860PWPR
DRV8860PWPR
Part Number
4873
Lion Part
Datasheet
Texas Instruments Manufacture
پاور سوئیچ هوشمند درایور سمت پایین 8 کاناله 38 ولت 560 میلی‌آمپر مناسب درایو رله با امکان تنظیم ولتاژ با پکیج HTSSOP-16
Smart Power Switch Low Side Driver 8-Channel 38V, 560mA Serial Interface, for Relay Drive with Adjustable Voltage with HTSSOP-16 Package
معرفی
پاور سوئیچ هوشمند درایور سمت پایین 8 کاناله 38 ولت 560 میلی‌آمپر مناسب درایو رله با امکان تنظیم ولتاژ با پکیج HTSSOP-16
Smart Power Switch Low Side Driver 8-Channel 38V, 560mA Serial Interface, for Relay Drive with Adjustable Voltage with HTSSOP-16 Package
Specifications
- Type: Low Side
- Interface Type: SPI
- Number of Channels: 8
- Output Voltage: 38V
- Output Current: 560mA
- Current Limit: 620mA
- Rds On - Drain - Source Resistance: 1.8Ω
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 8 - 38V
- Package/Case: HTSSOP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات آیسی درایور 8 کانال DRV8860PWPR

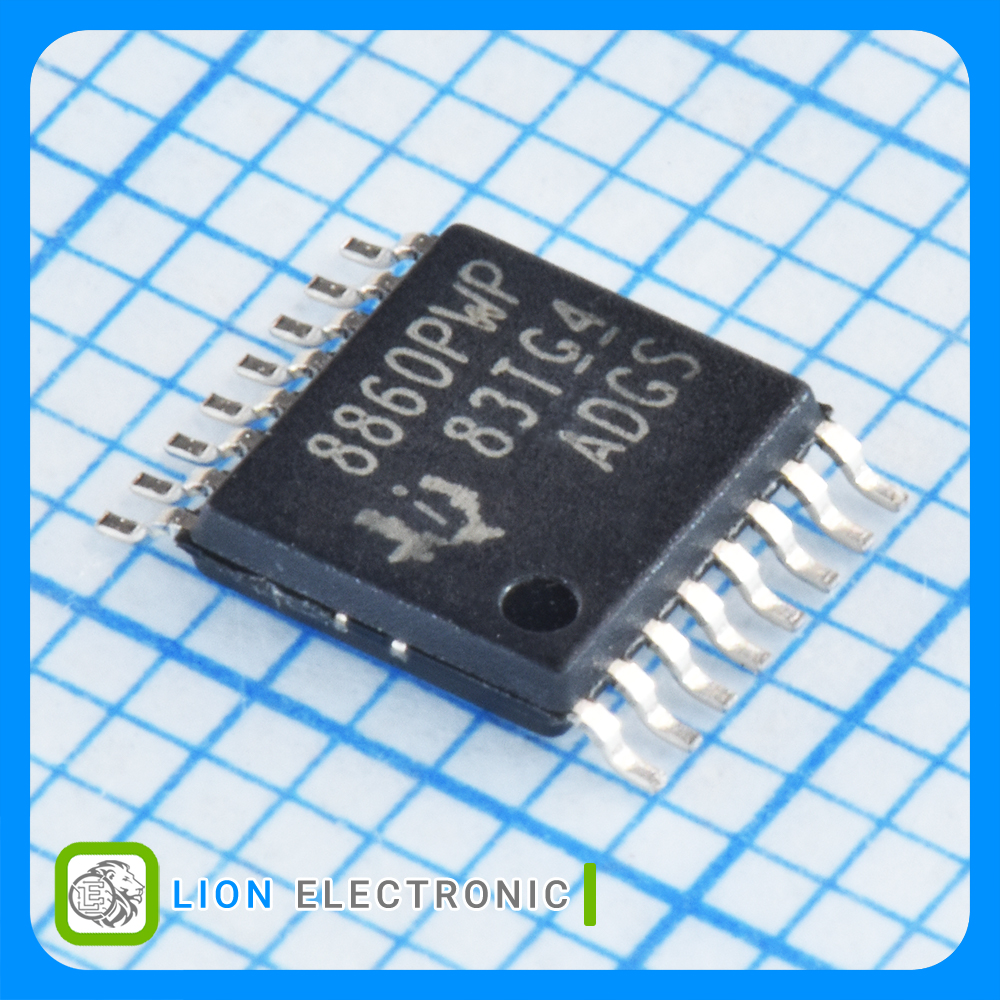

آیسی درایور 8 کانال DRV8860PWPR
Part Number
--- 620mA
Current Limit
Reel
Packaging
300ns
Off Time - Max
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
8
Number of Channels
3V3 , 5V
Input Voltage
N/A
On Time - Max
560mA
Output Current
Low Side
Type
Stepper Motor Controllers / Drivers
Product
3mA
Operating Supply Current
HTSSOP-16
Package-Case
SPI
Interface Type
1.8Ω
Rds On - Drain - Source Resistance
38V
Output Voltage
8 - 38V
Operating Supply Voltage
