UMW
معرفی

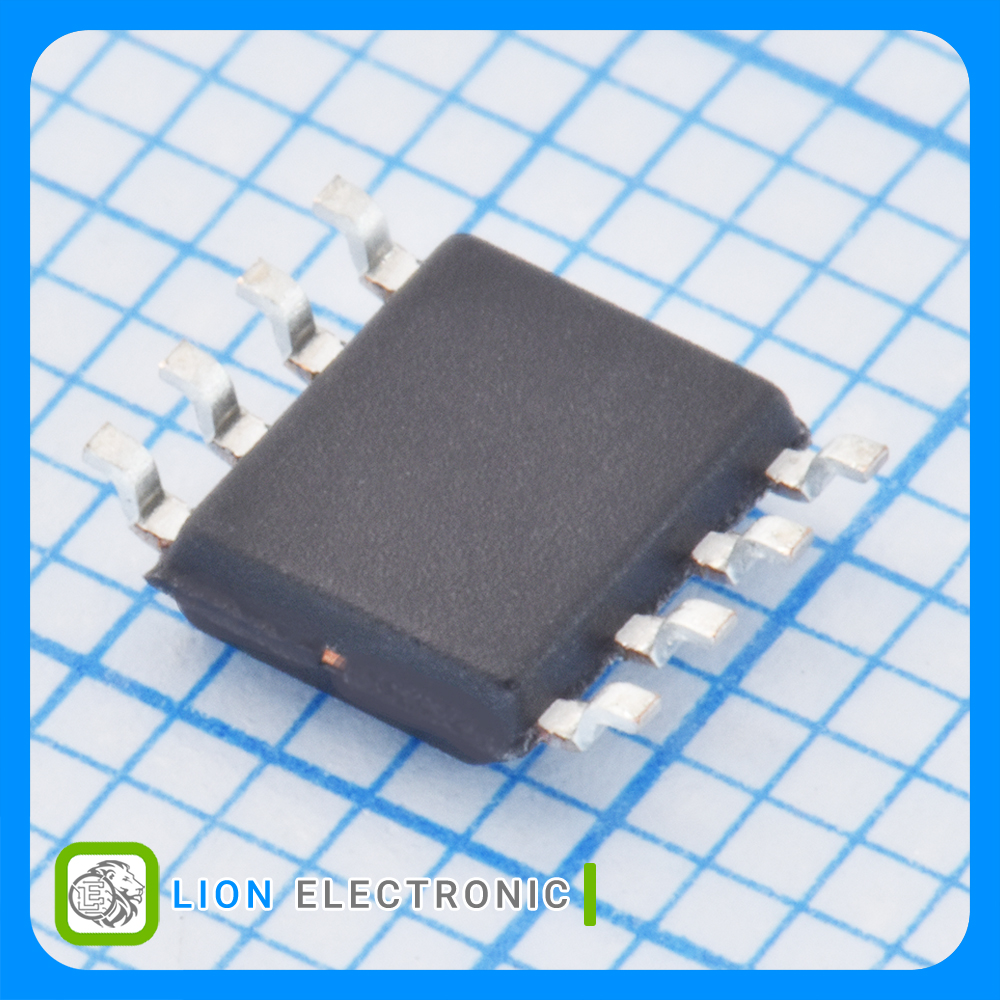

ماسفت جفت 20 ولت 5.2 و 4.3 آمپر نوع N و P با پکیج SOIC-8
Dual N/P-CH MOSFET 20V, 5.2A, -4.3A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 5.2A, -4.3A
- Transistor Polarity: N-Channel, P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 700mV, -700mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 53mΩ, 100mΩ
- Pd - Power Dissipation: 2W
- Qg - Gate Charge: 20nC, 22nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRF7307TR(UMW)
ماسفت IRF7307TR(UMW)
Part Number
Enhancement
Channel Mode
2
Number of Channels
-55C
Minimum Operating Temperature
N-Channel, P-Channel
Transistor Polarity
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
42ns, 26ns
Rise Time
700mV, -700mV
Vgs th - Gate - Source Threshold Voltage
51ns, 33ns
Fall Time
20nC, 22nC
Qg - Gate Charge
2W
Pd - Power Dissipation
5.2A, -4.3A
Id - Continuous Drain Current
53mΩ, 100mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
