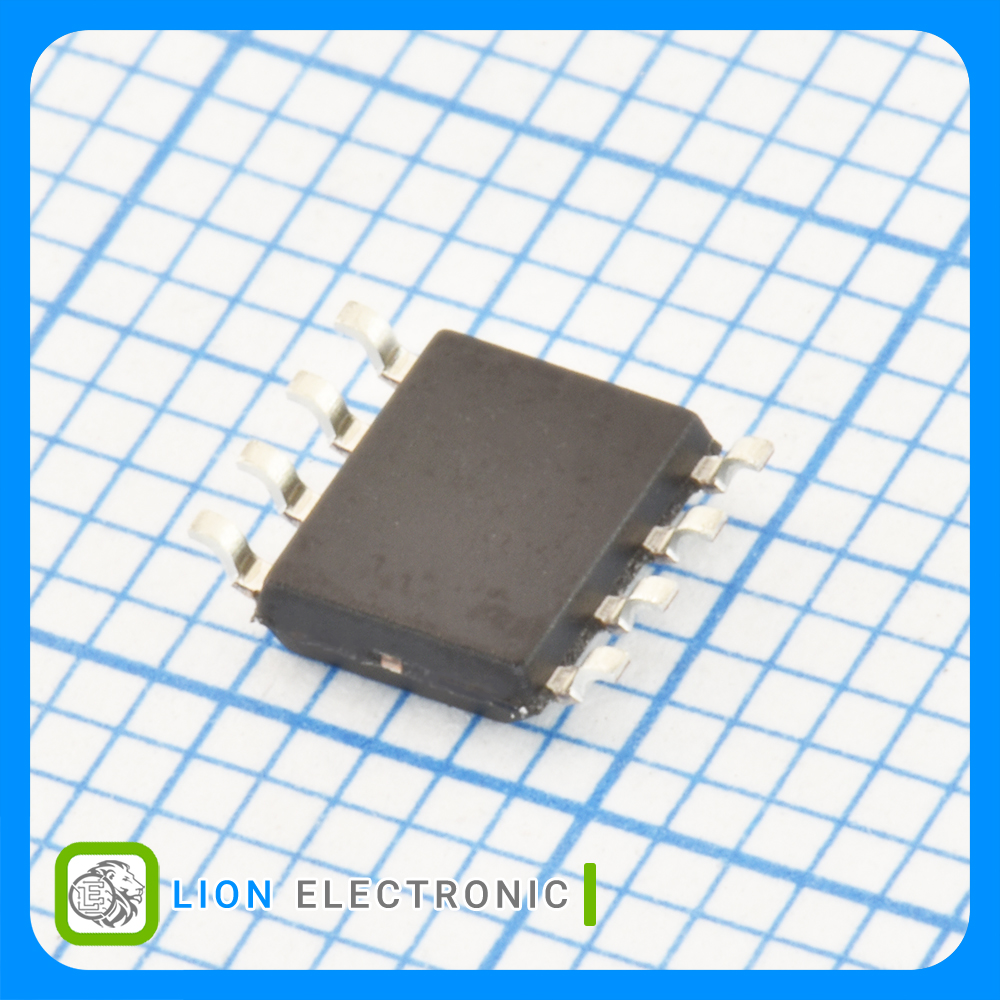

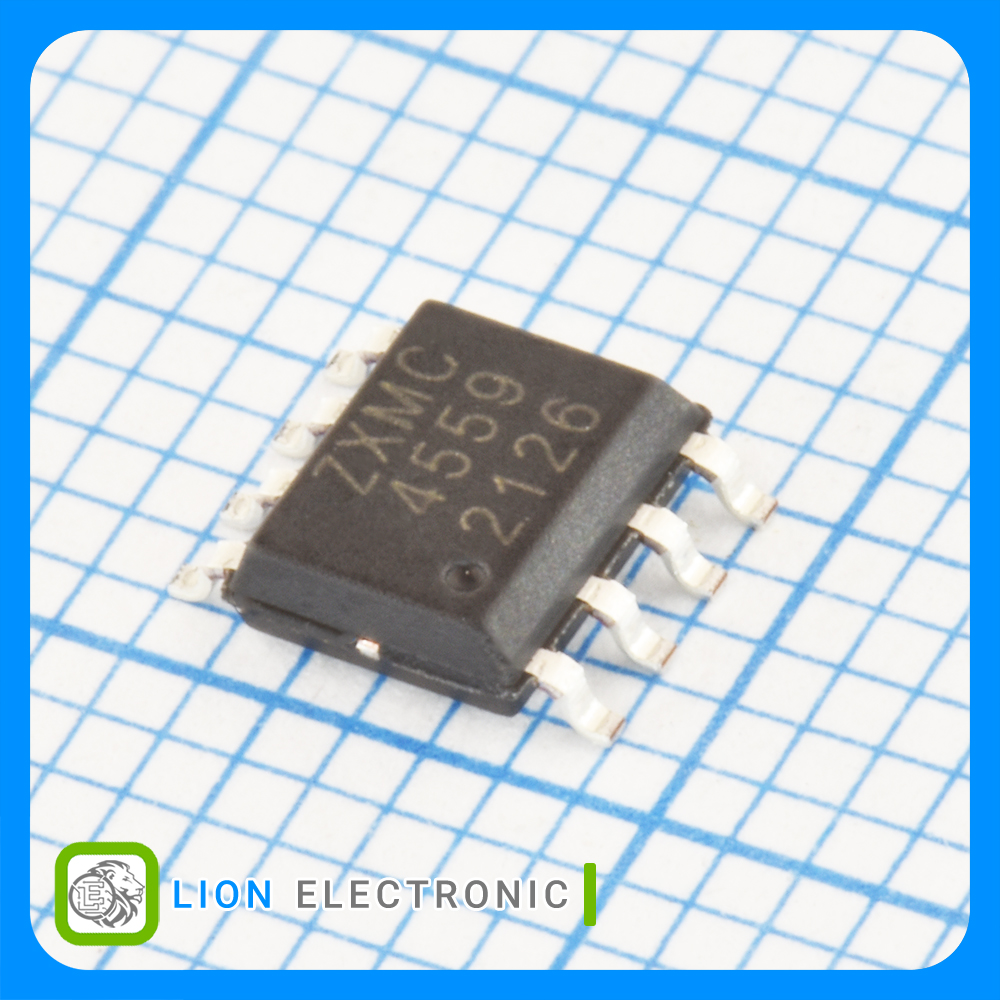

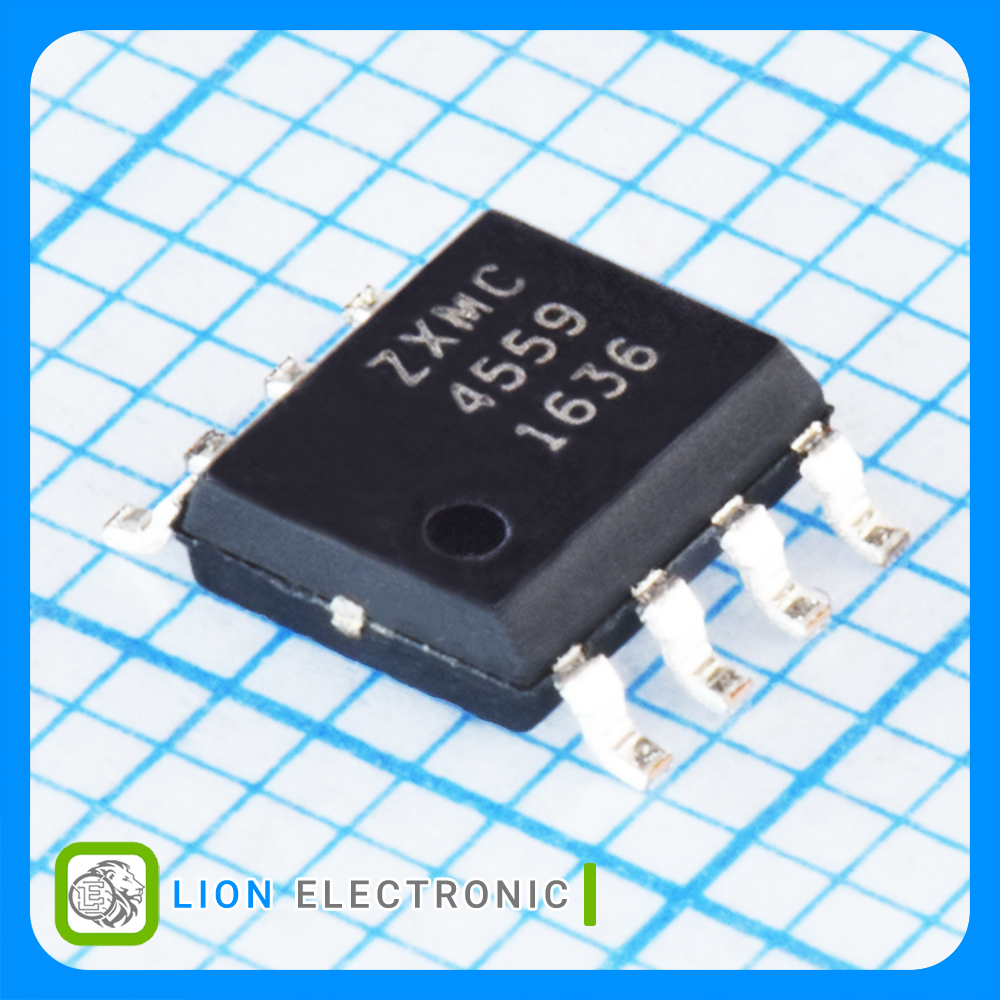

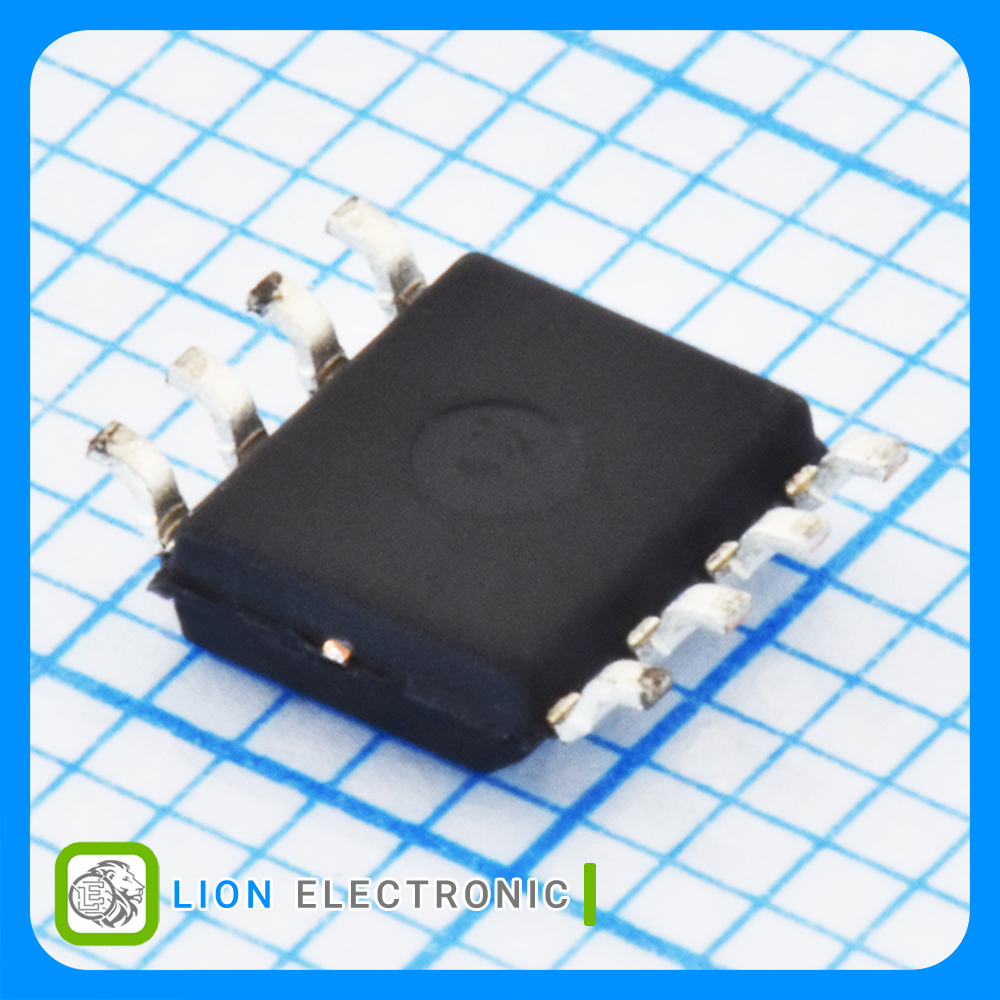

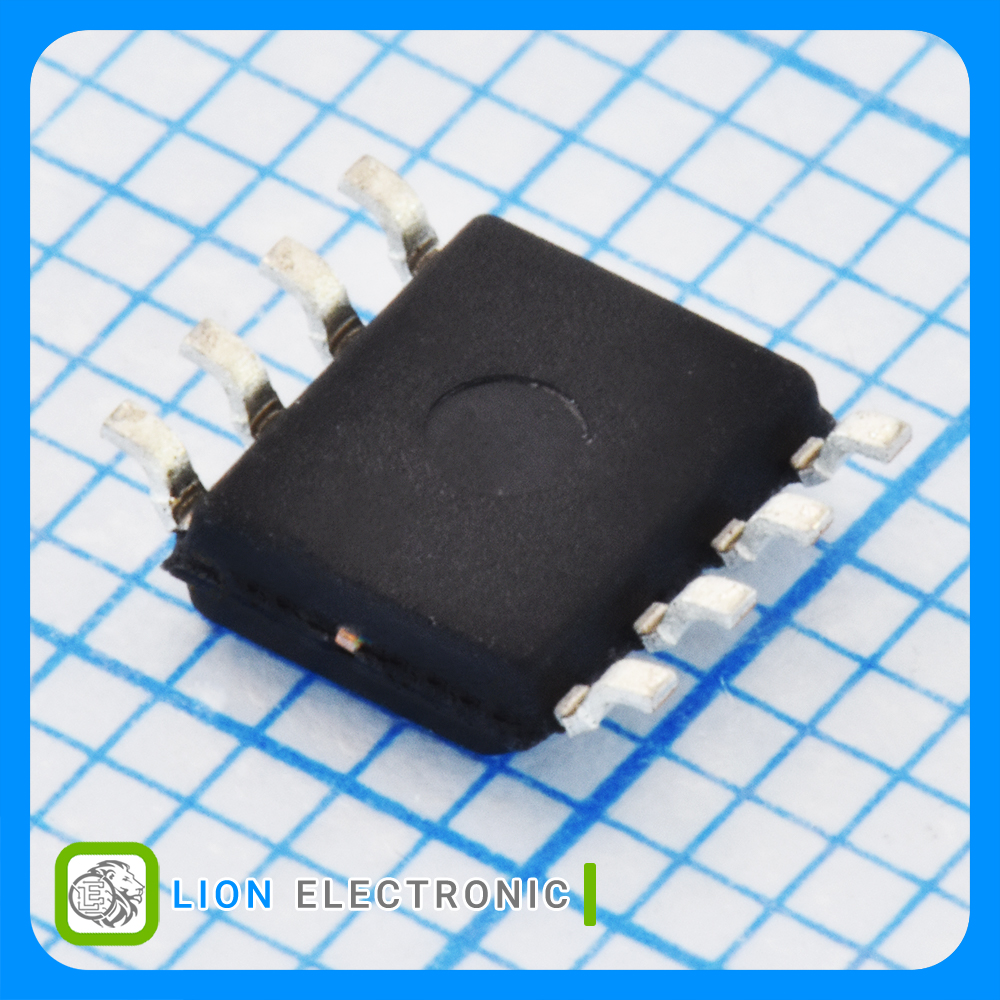

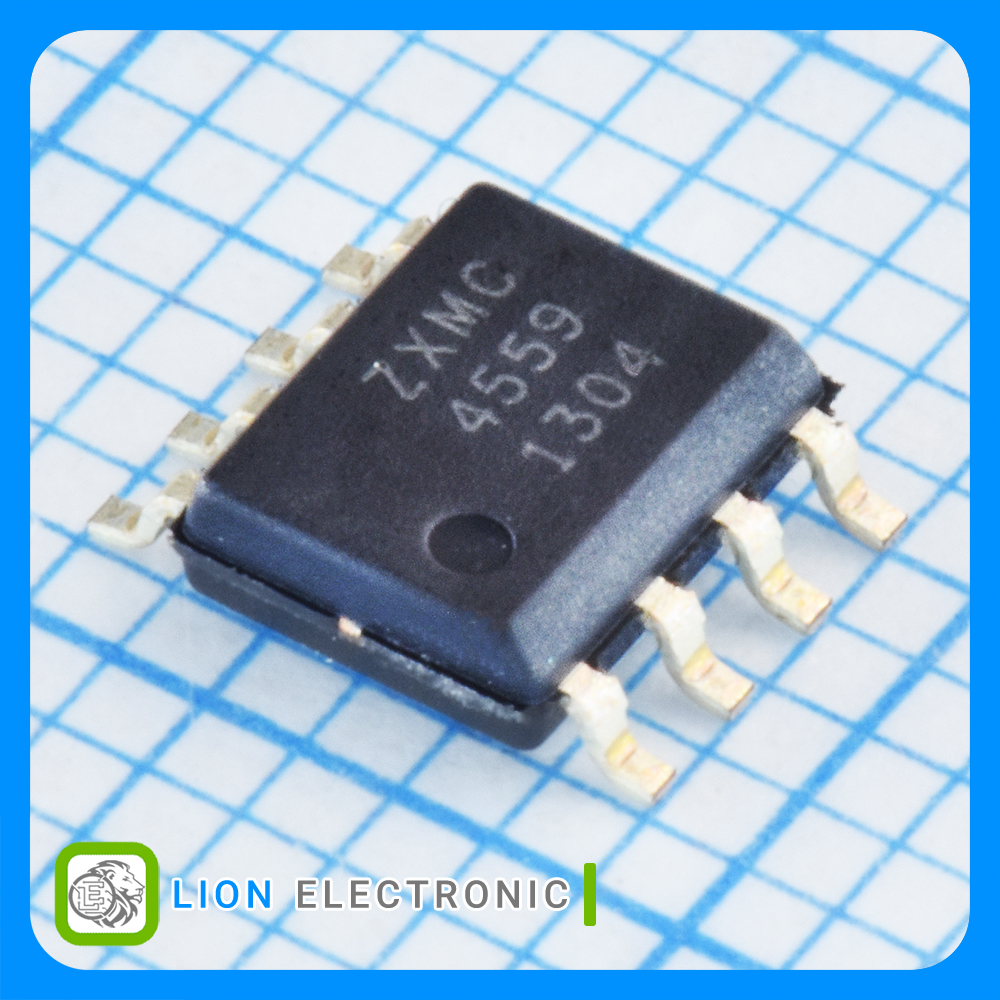

ZXMC4559DN8TA
ZXMC4559DN8TA
Part Number
3293
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت جفت 60 ولت 4.7 و 3.9 آمپر نوع N و P با پکیج SOIC-8
DUAL N/P-CH MOS 60V 4.7/3.9A SOIC-8
معرفی
ماسفت جفت 60 ولت 4.7 و 3.9 آمپر نوع N و P با پکیج SOIC-8
DUAL N/P-CH MOS 60V 4.7/3.9A SOIC-8
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 4.7A, 3.9A
- Transistor Polarity: N-Channel, P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 55mΩ, 105mΩ
- Pd - Power Dissipation: 2.1W
- Qg - Gate Charge: 20.4nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت ZXMC4559DN8TA

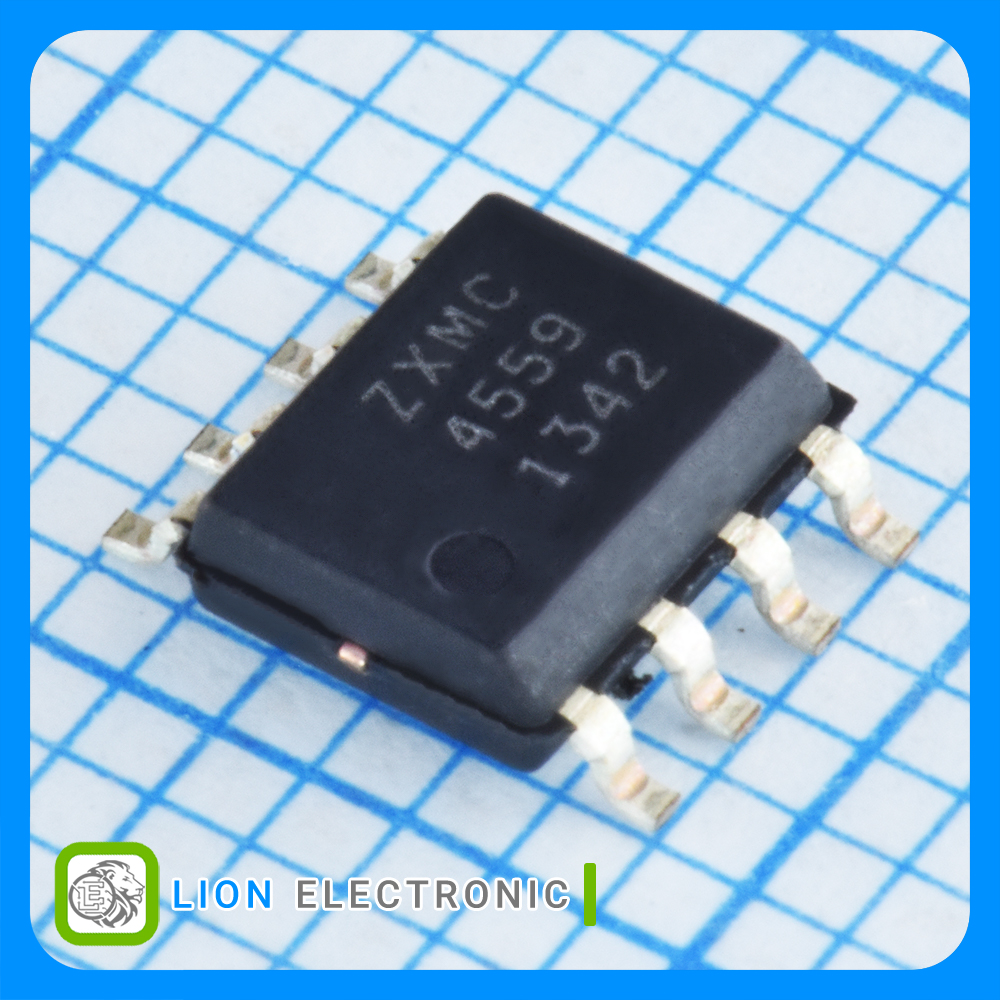

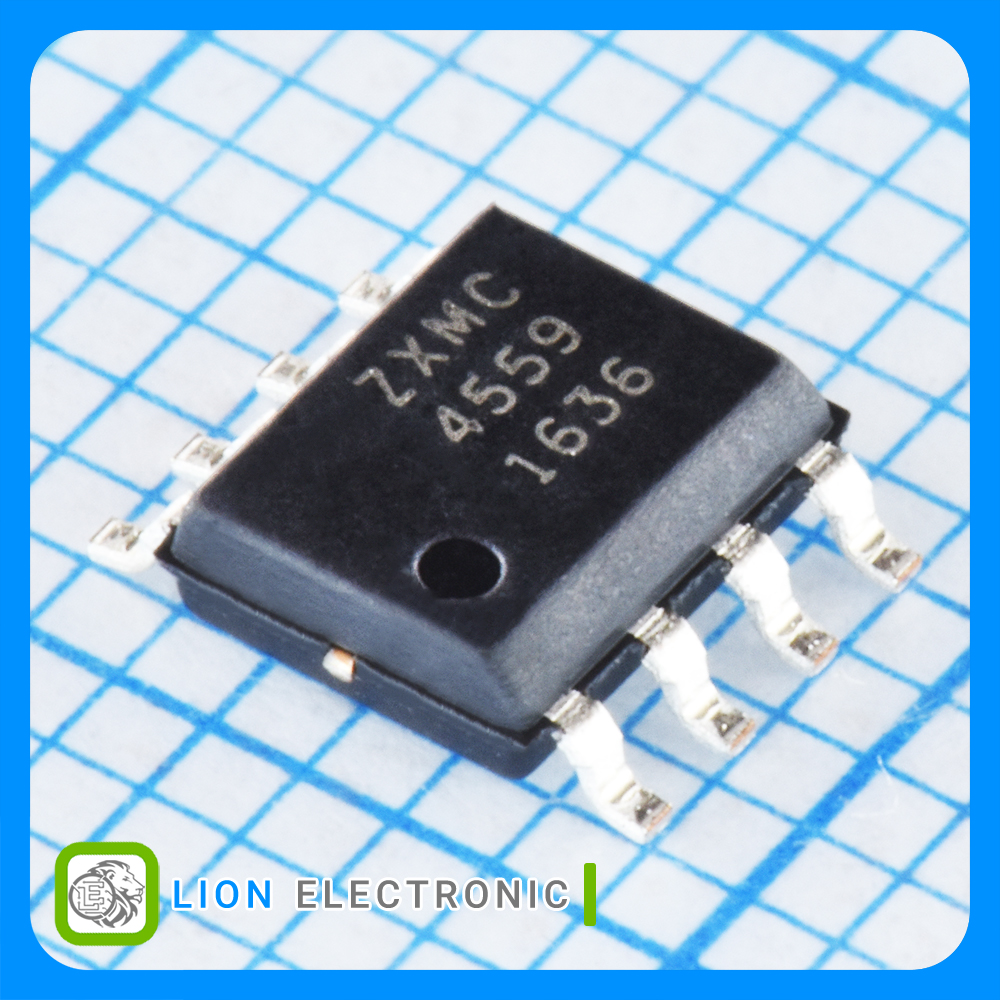

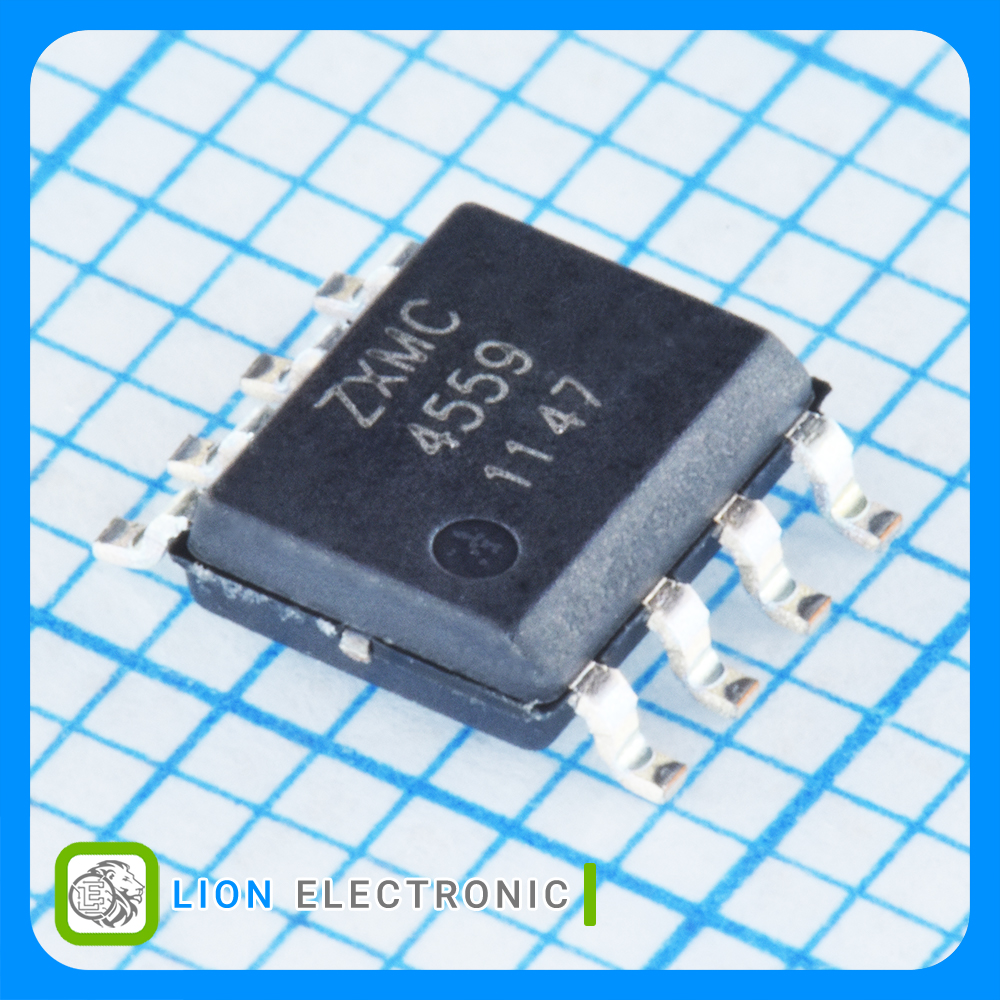

ماسفت ZXMC4559DN8TA
Part Number
Enhancement
Channel Mode
2
Number of Channels
-55C
Minimum Operating Temperature
N-Channel, P-Channel
Transistor Polarity
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
20.4nC
Qg - Gate Charge
2.1W
Pd - Power Dissipation
4.7A, 3.9A
Id - Continuous Drain Current
55mΩ, 105mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
