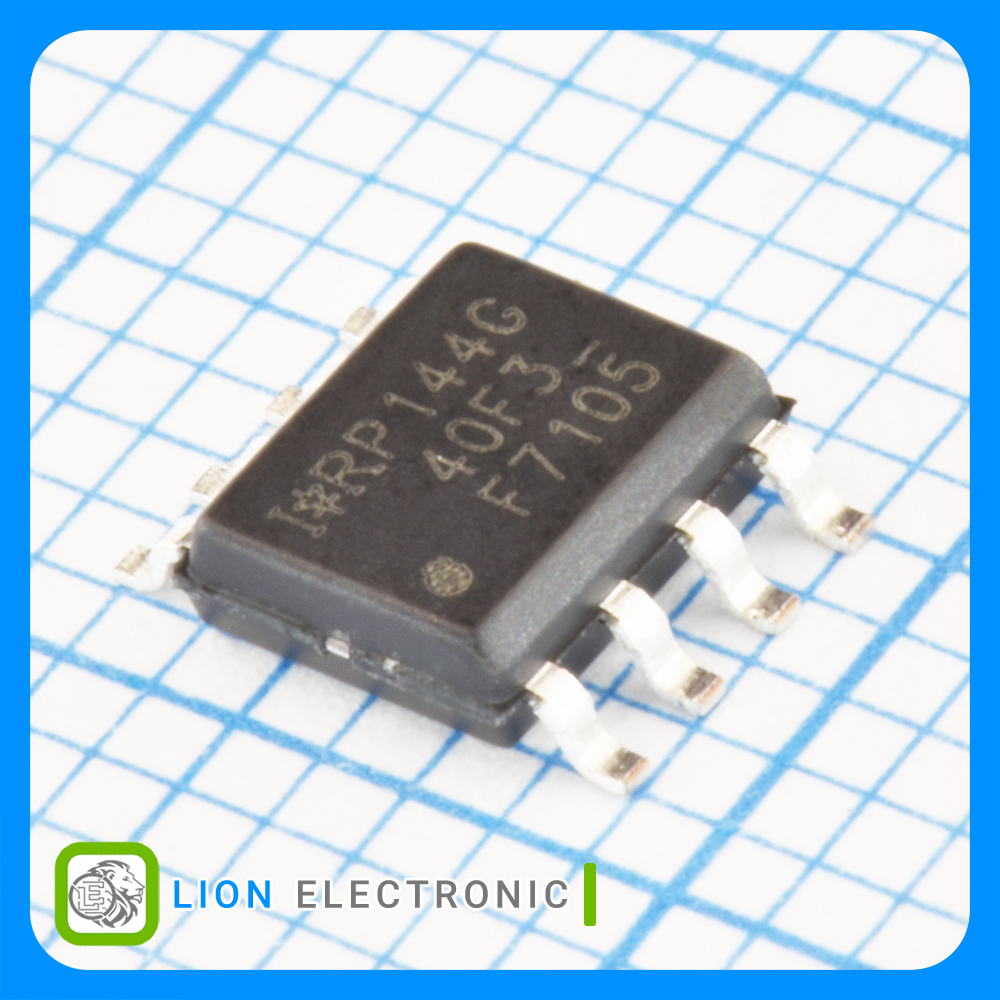

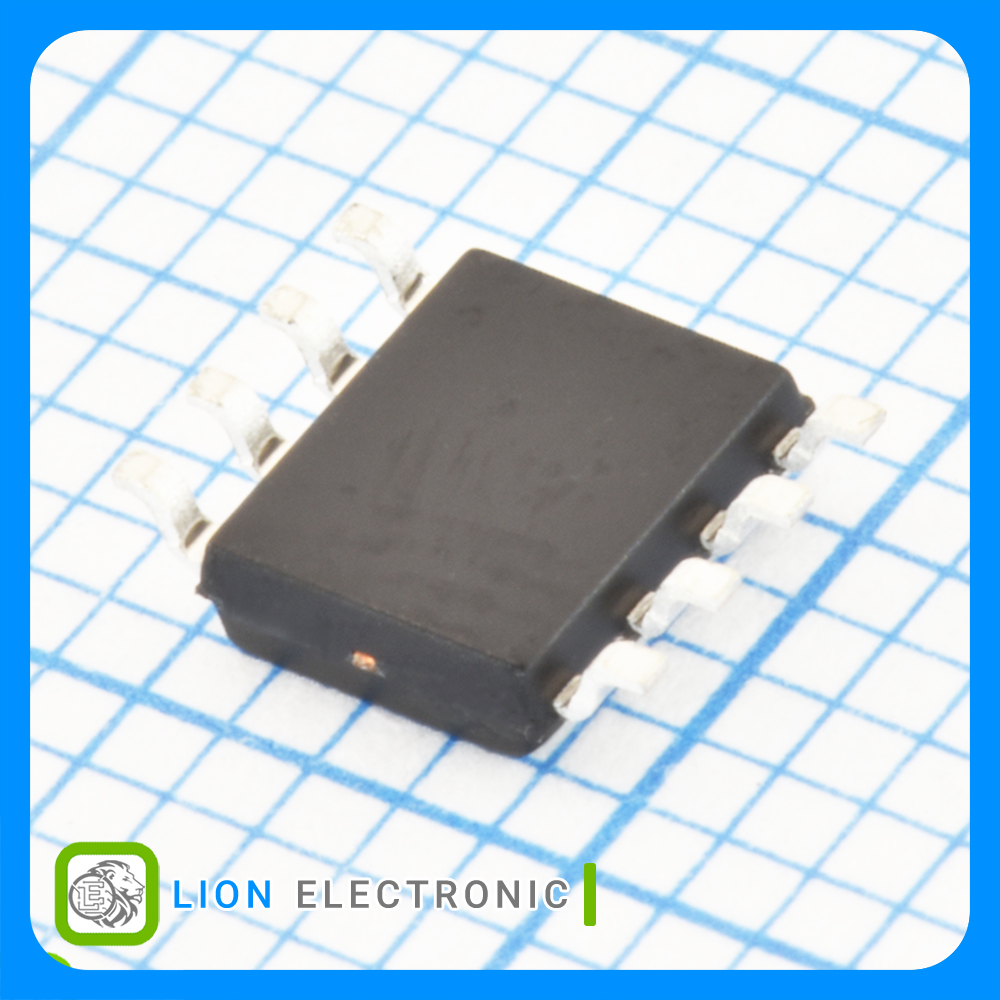

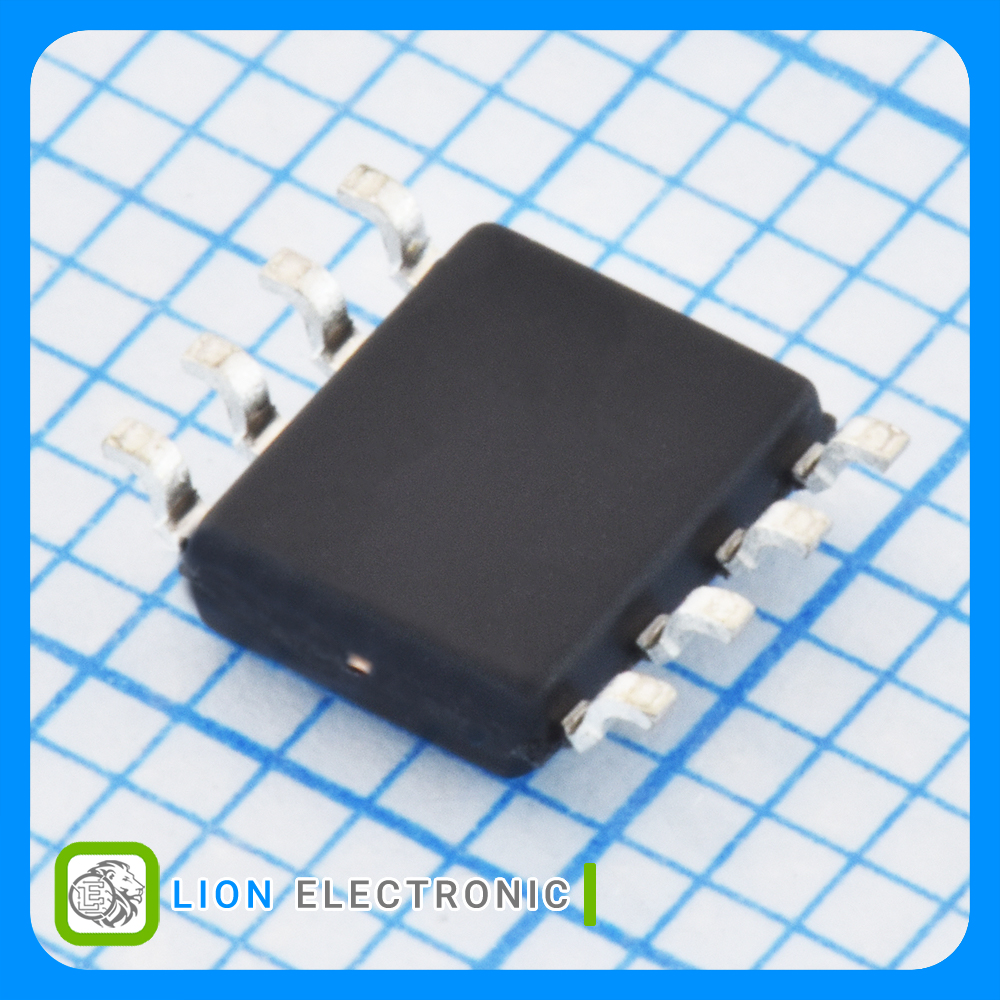

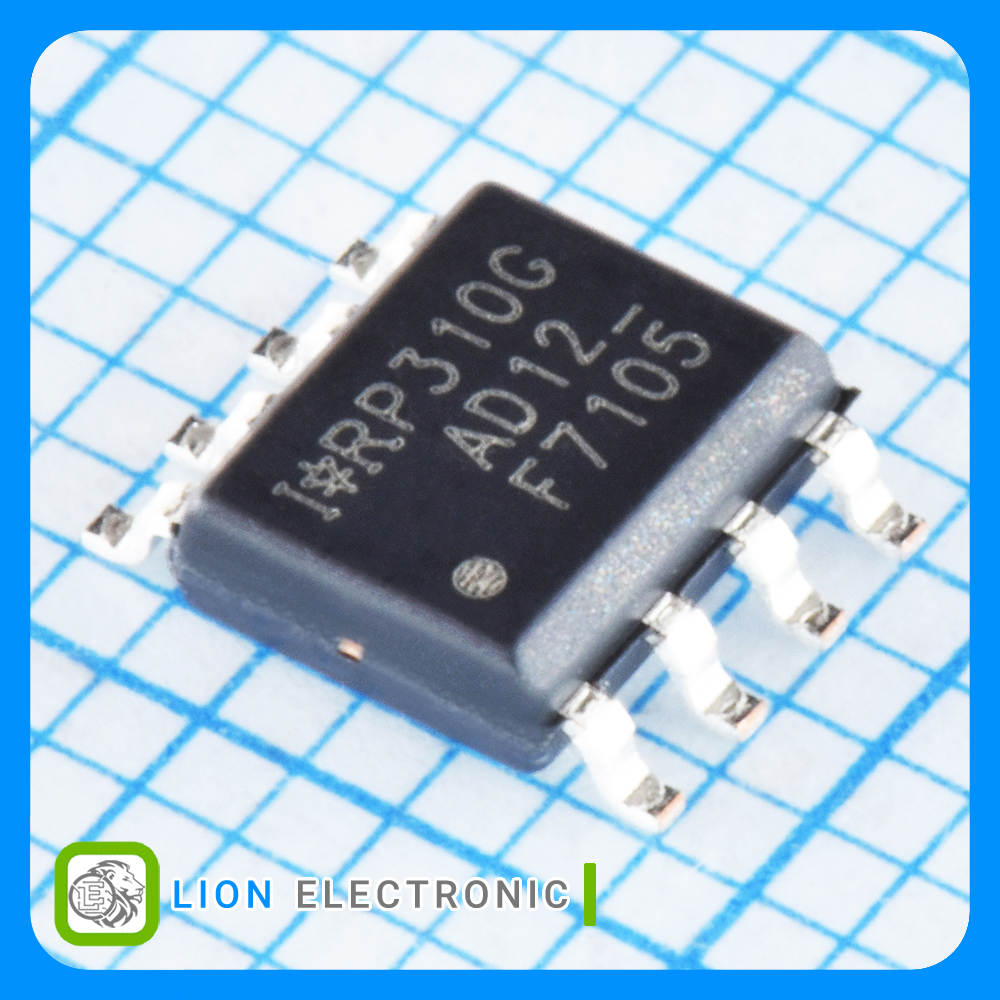

IRF7105TRPBF
IRF7105TRPBF
Part Number
3313
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت جفت 25 ولت 3.5 و 2.3 آمپر نوع N و P با پکیج SOIC-8
MOSFET Dual N/P-Channel 25V, -25V, 3.5A, -2.3A with SOIC-8 Package
معرفی
ماسفت جفت 25 ولت 3.5 و 2.3 آمپر نوع N و P با پکیج SOIC-8
MOSFET Dual N/P-Channel 25V, -25V, 3.5A, -2.3A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 25V, -25V
- Id - Continuous Drain Current: 3.5A, -2.3A
- Transistor Polarity: N-Channel, P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 1V, -1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 83mΩ, 160mΩ
- Pd - Power Dissipation: 2W
- Qg - Gate Charge: 9.4nC, 10nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRF7105TRPBF
ماسفت IRF7105TRPBF
Part Number
Enhancement
Channel Mode
2
Number of Channels
-55C
Minimum Operating Temperature
N-Channel, P-Channel
Transistor Polarity
Reel
Packaging
SMD/SMT
Mounting Style
25V, -25V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
1V, -1V
Vgs th - Gate - Source Threshold Voltage
9.4nC, 10nC
Qg - Gate Charge
3.5A, -2.3A
Id - Continuous Drain Current
2W
Pd - Power Dissipation
83mΩ, 160mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
