RS2MW
RS2MW
Part Number
2286
Lion Part
Datasheet
Jingdao Microelectronics Manufacture
دیود فست 1000 ولت 2 آمپر زمان بازیابی 500 نانوثانیه با پکیج SOD-123FL

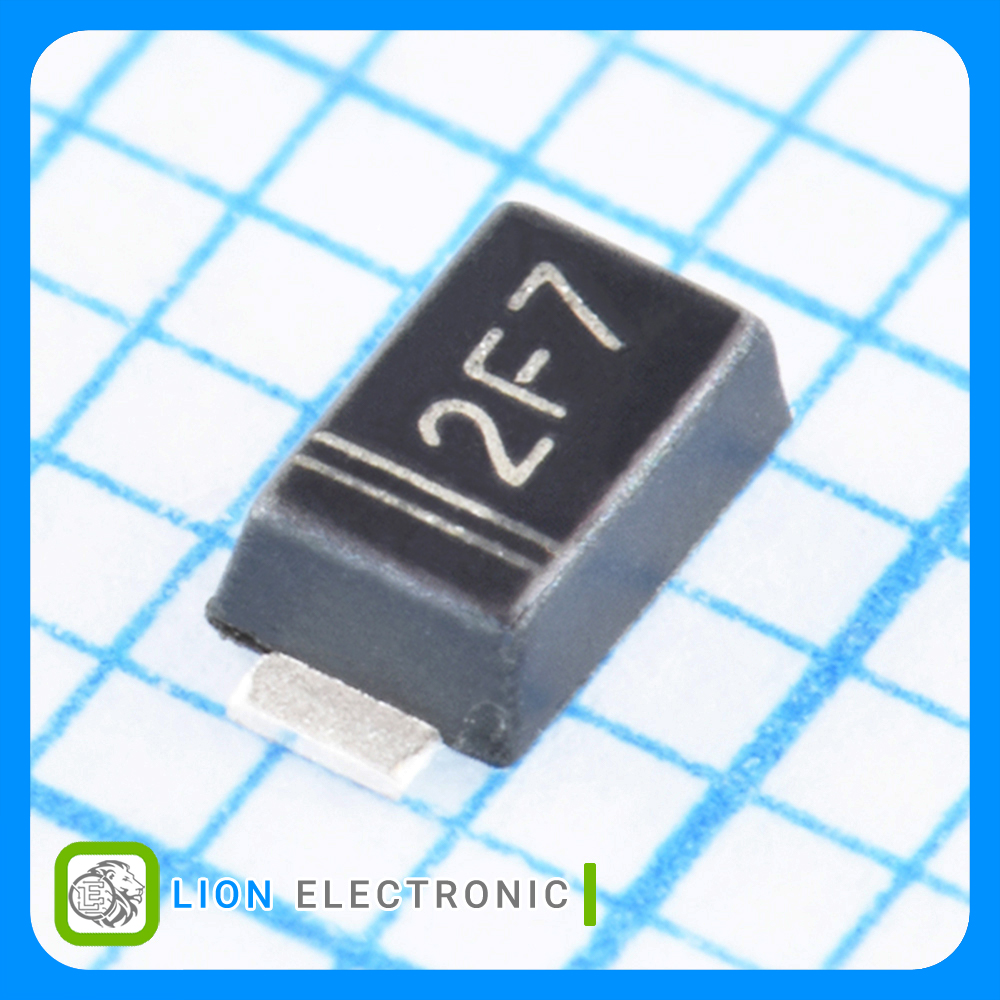

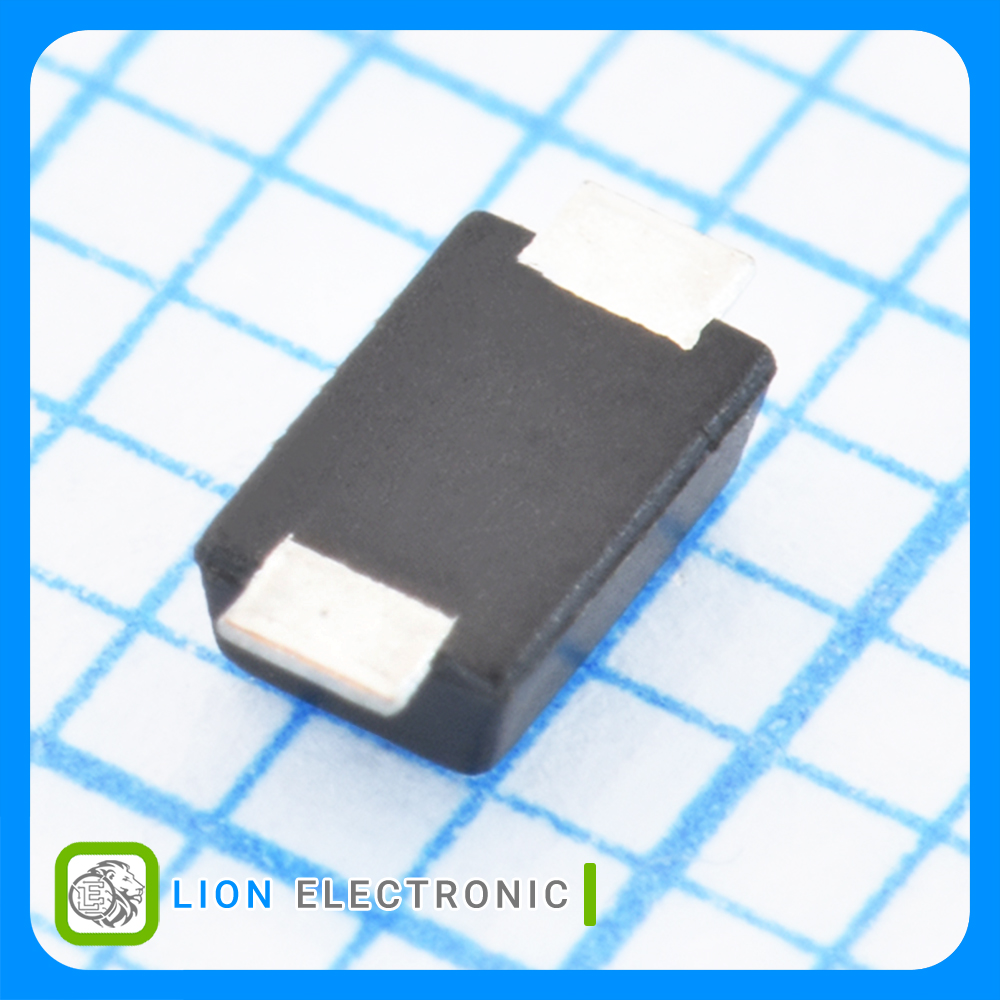

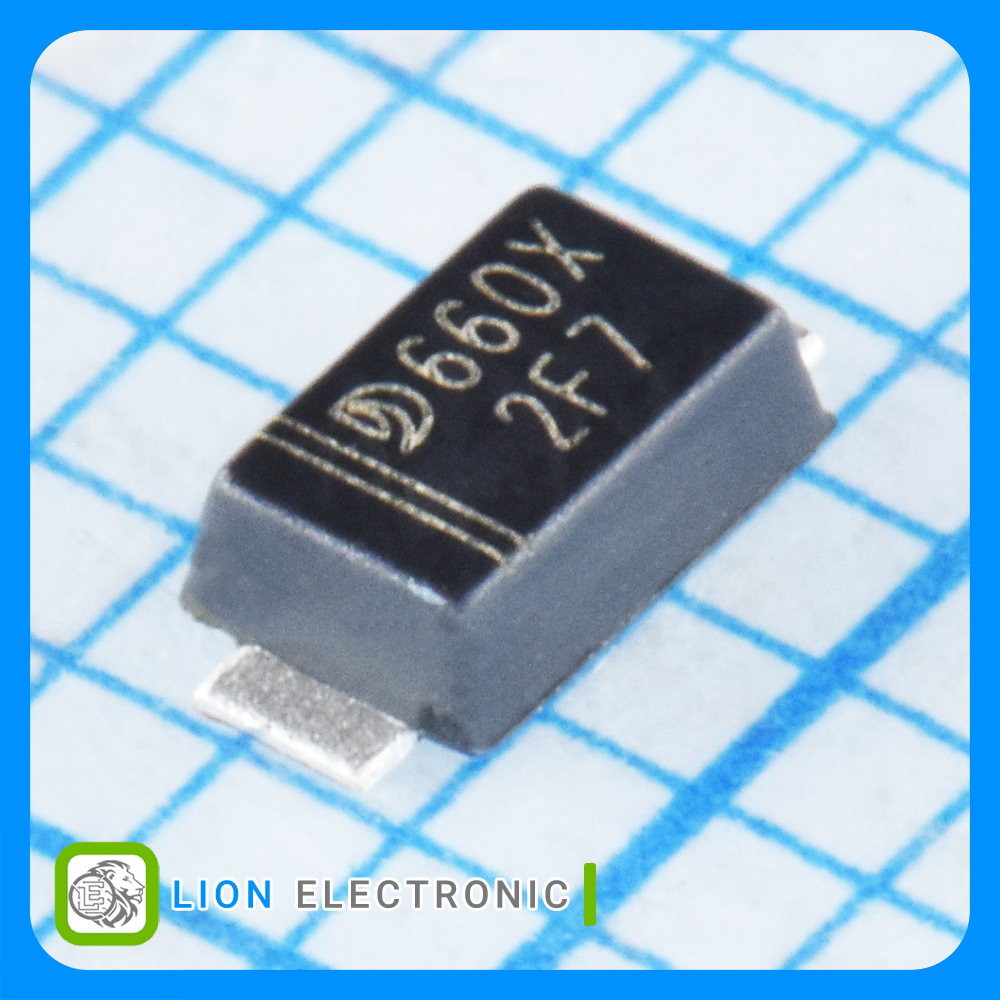

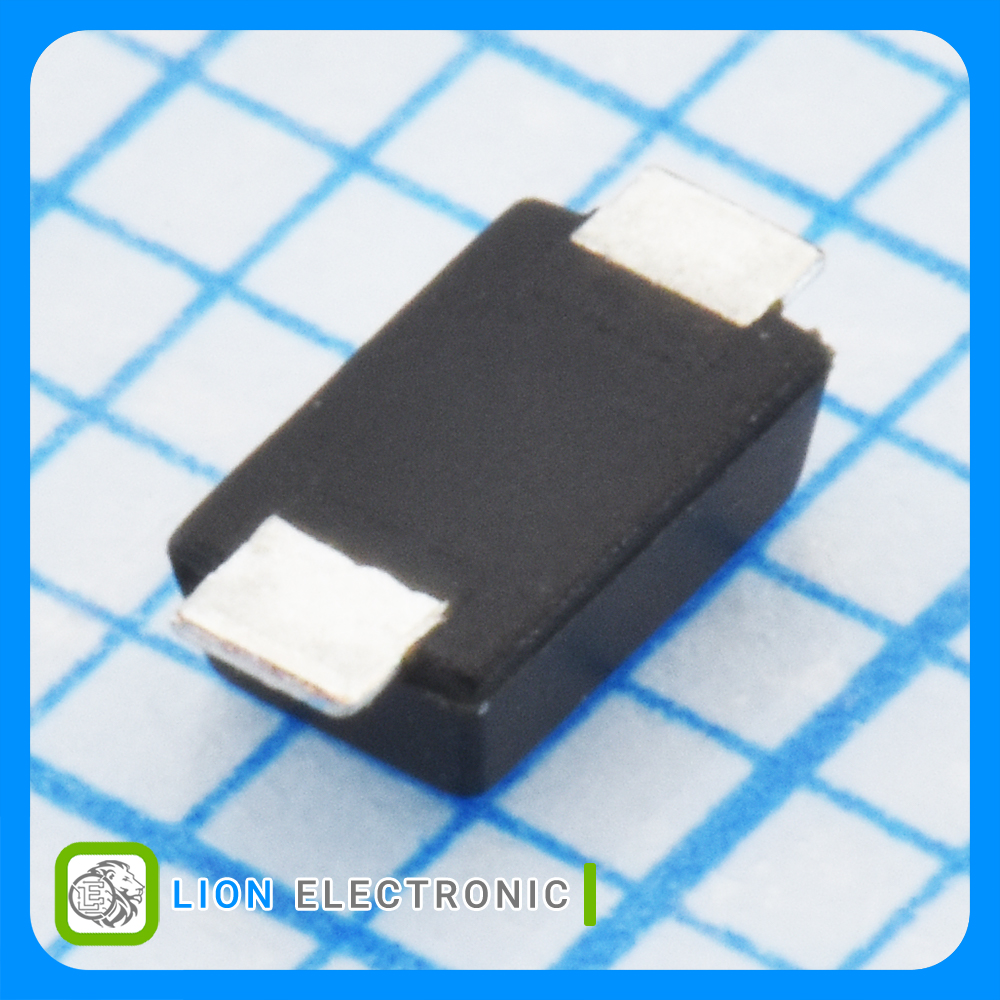

Fast Diode 2A, 1000V with 500ns Recovery Time and SOD-123FL Package
معرفی
دیود فست 1000 ولت 2 آمپر زمان بازیابی 500 نانوثانیه با پکیج SOD-123FL
Fast Diode 2A, 1000V with 500ns Recovery Time and SOD-123FL Package
Specifications
- Configuration: Single
- Recovery Time: 500ns
- Vr - Reverse Voltage: 1kV
- If - Forward Current: 2A
- Max Surge Current: 50A
- Vf - Forward Voltage: 1.3V
- Ir - Reverse Current: 5uA
- Mounting Style: SMD/SMT
- Package/Case: SOD-123FL
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود RS2MW
دیود RS2MW
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
5uA
Ir - Reverse Current
SMD/SMT
Mounting Style
50A
Max Surge Current
1kV
Vr - Reverse Voltage
500ns
Recovery Time
+150C
Maximum Operating Temperature
Single
Configuration
2A
If - Forward Current
Fast Recovery Rectifiers
Type
1.3V
Vf - Forward Voltage
SOD-123F
Package-Case
