دیود فست 1000 ولت 1 آمپر زمان بازیابی 500 نانوثانیه با پکیج DO-41

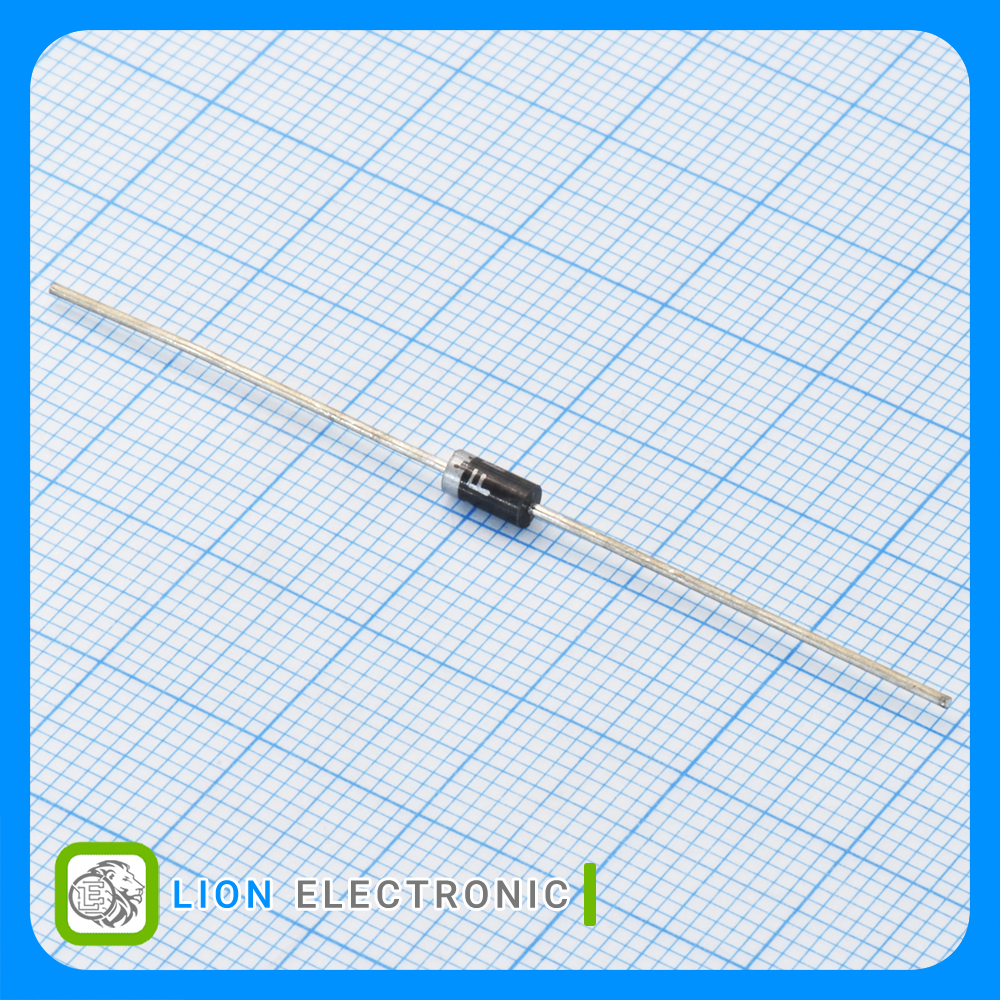

Fast Diode 1000V, 1A with 500ns Recovery Time and DO-41 Package
Specifications
- Configuration: Single
- Recovery Time: 500ns
- Vr - Reverse Voltage: 1kV
- If - Forward Current: 1A
- Max Surge Current: 30A
- Vf - Forward Voltage: 1.3V
- Ir - Reverse Current: 5uA
- Mounting Style: Through Hole
- Package/Case: DO-41
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Box
مشخصات دیود فست FR107
دیود فست FR107
Part Number
-65C
Minimum Operating Temperature
Box
Packaging
30A
Max Surge Current
5uA
Ir - Reverse Current
Through Hole
Mounting Style
1kV
Vr - Reverse Voltage
500ns
Recovery Time
+150C
Maximum Operating Temperature
Single
Configuration
1A
If - Forward Current
Fast Recovery Rectifiers
Type
1.3V
Vf - Forward Voltage
DO-41
Package-Case
