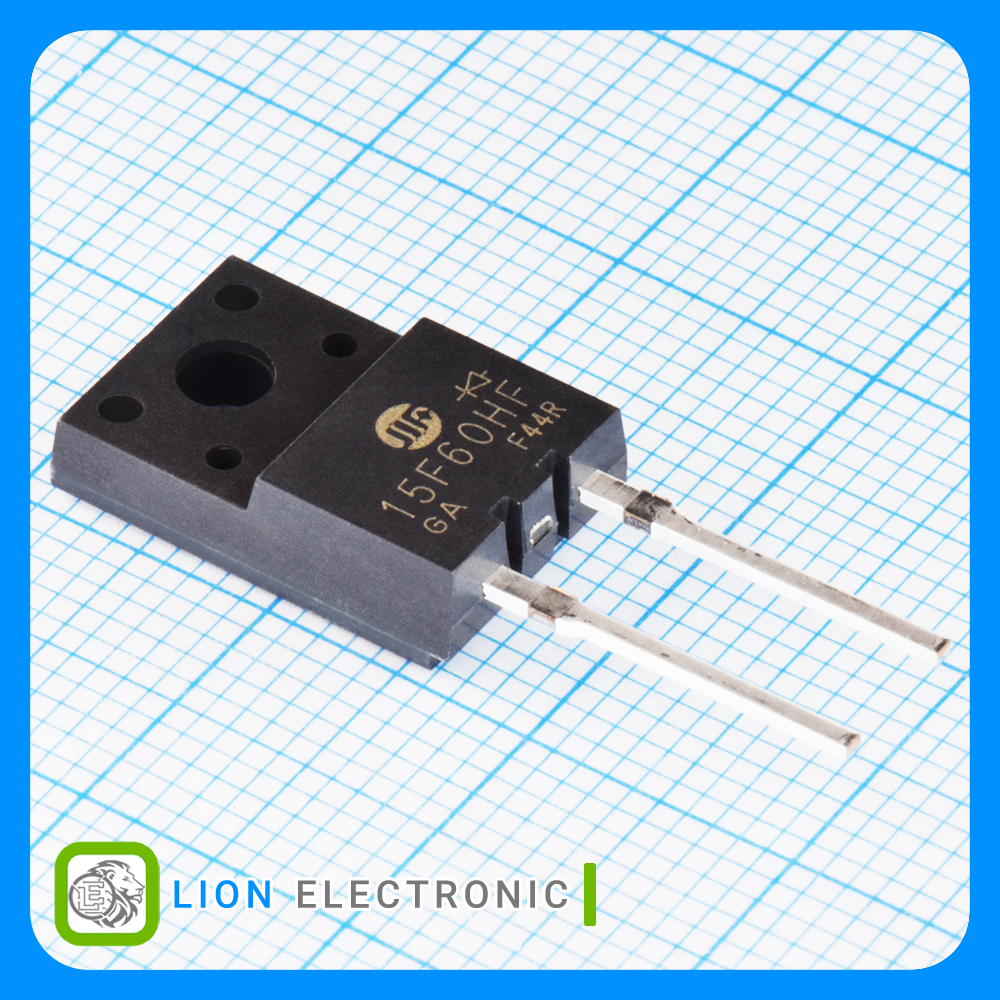

15F60HF
15F60HF
Part Number
2380
Lion Part
Datasheet
Sino Microelectronics Manufacture
دیود فست 600 ولت 15 آمپر زمان بازیابی 45 نانوثانیه با پکیج TO-220HF2L

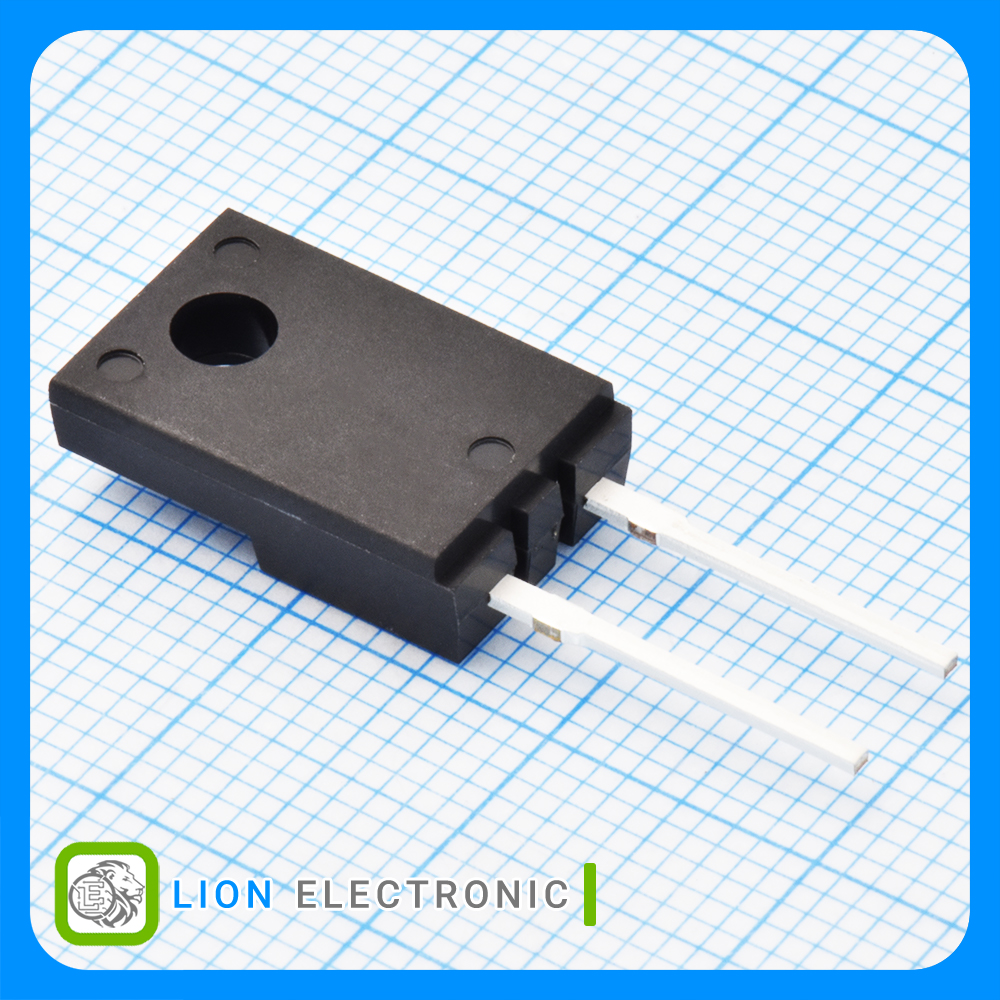

Fast Diode 600V, 15A with 45ns Recovery Time and TO-220HF2L Package
معرفی
دیود فست 600 ولت 15 آمپر زمان بازیابی 45 نانوثانیه با پکیج TO-220HF2L
Fast Diode 600V, 15A with 45ns Recovery Time and TO-220HF2L Package
Specifications
- Configuration: Single
- Recovery Time: 45ns
- Vr - Reverse Voltage: 600V
- If - Forward Current: 15A
- Max Surge Current: 150A
- Vf - Forward Voltage: 1.8V
- Ir - Reverse Current: 50uA
- Mounting Style: Through Hole
- Package/Case: TO-220HF2L
- Minimum Operating Temperature: -50C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات 15F60HF
15F60HF
Part Number
-50C
Minimum Operating Temperature
Tube
Packaging
45ns
Recovery Time
Through Hole
Mounting Style
600V
Vr - Reverse Voltage
50uA
Ir - Reverse Current
+150C
Maximum Operating Temperature
150A
Max Surge Current
Single
Configuration
Fast Recovery Rectifiers
Type
15A
If - Forward Current
1.8V
Vf - Forward Voltage
TO-220HF2L
Package-Case
