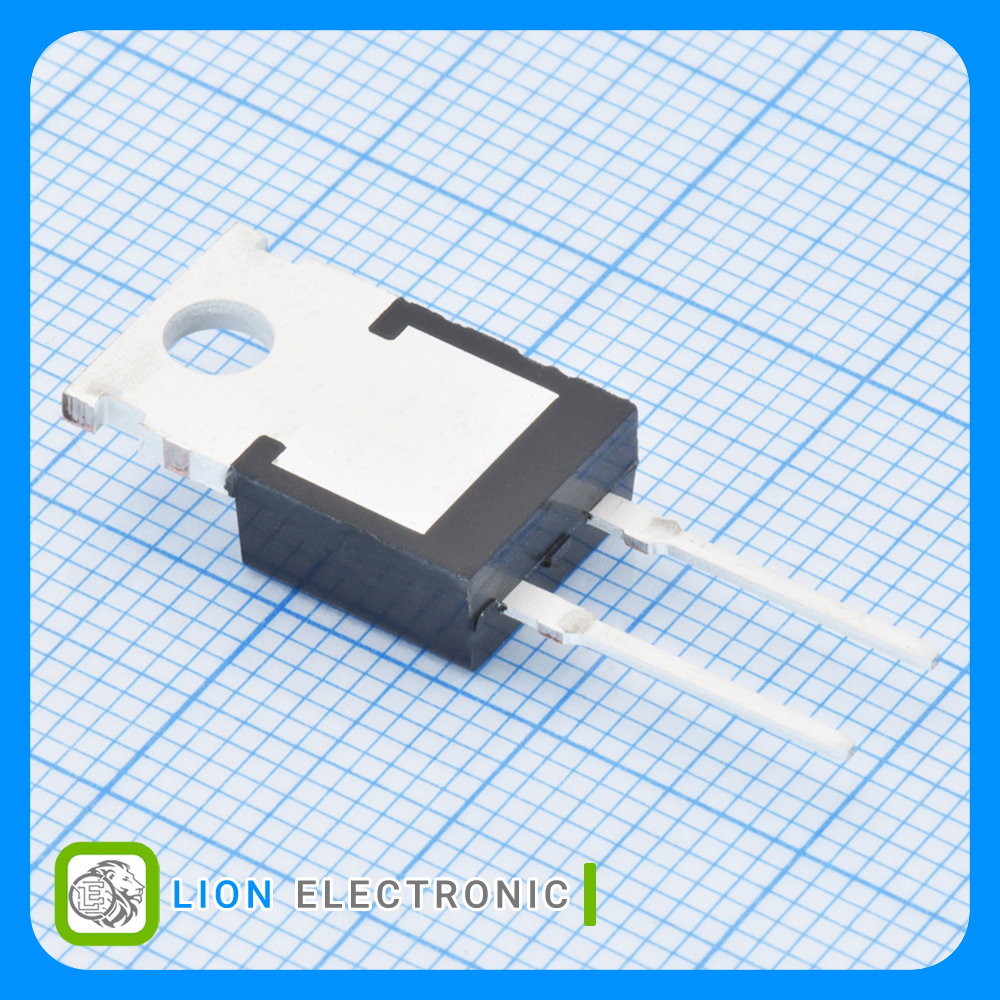

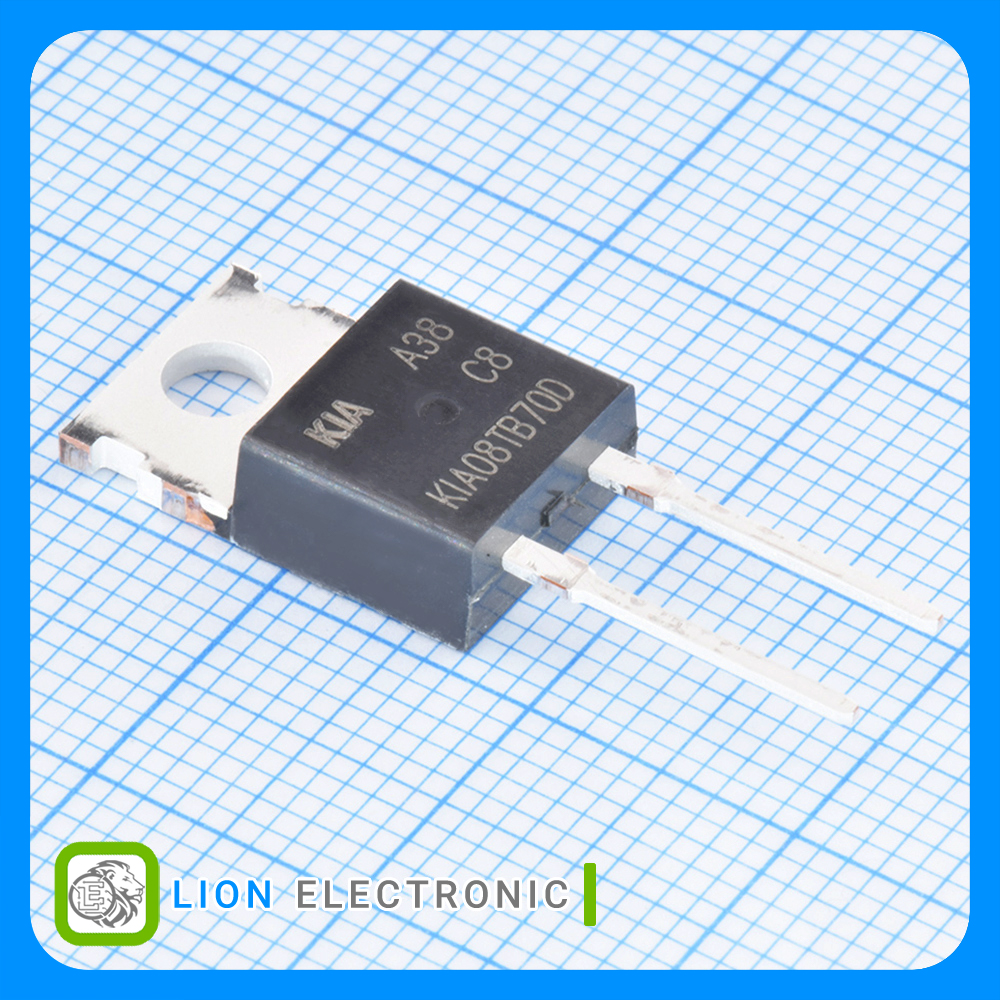

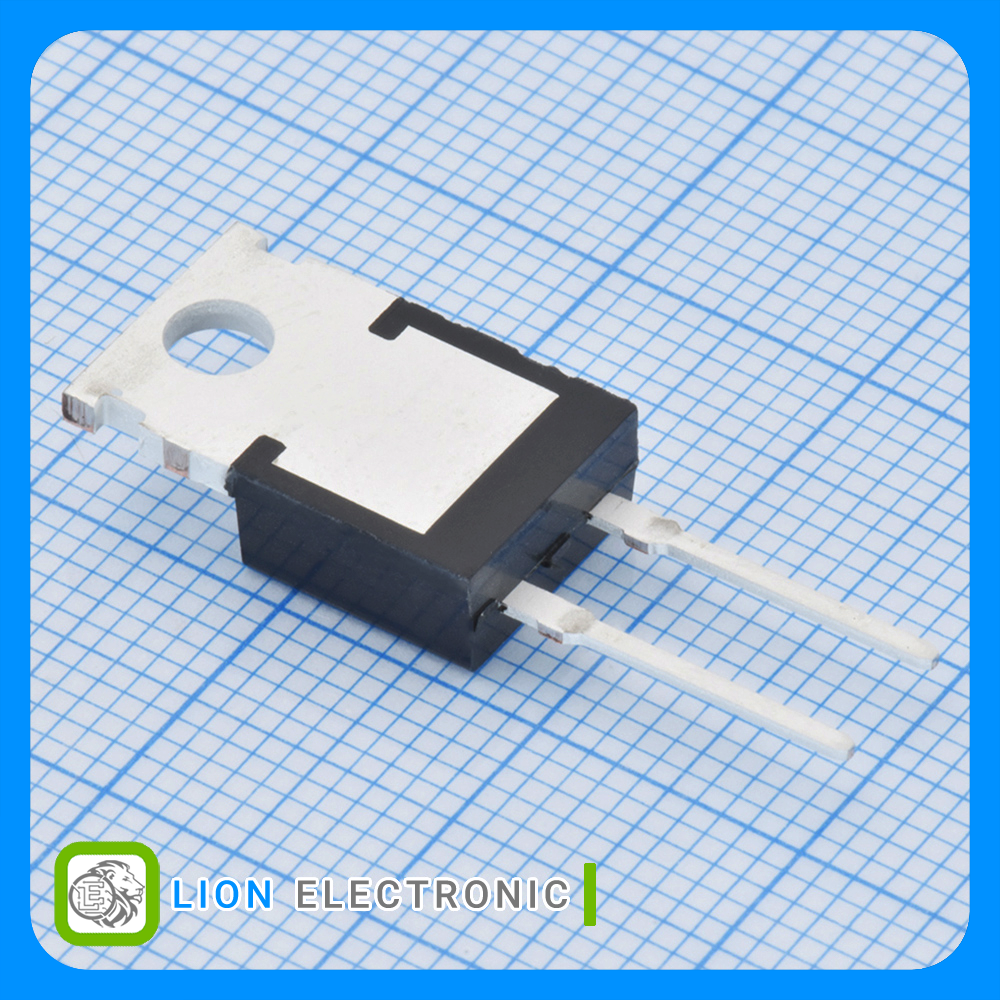

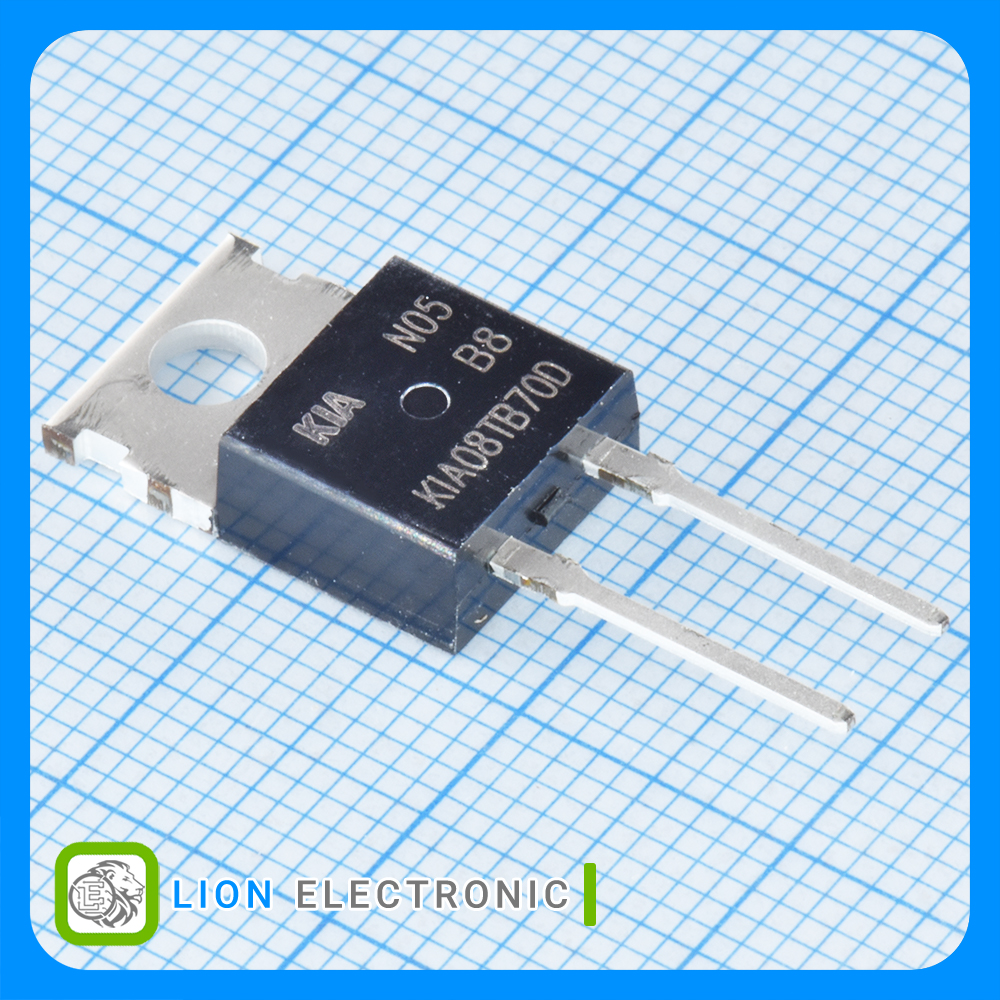

KIA08TB70DP
KIA08TB70DP
Part Number
2382
Lion Part
Datasheet
KIA Semicon Tech Manufacture
دیود فست 700 ولت 8 آمپر زمان بازیابی 30 نانوثانیه با پکیج TO-220-3
Fast Diode 700V, 8A with 30ns Recovery Time and TO-220-3 Package
معرفی
دیود فست 700 ولت 8 آمپر زمان بازیابی 30 نانوثانیه با پکیج TO-220-3
Fast Diode 700V, 8A with 30ns Recovery Time and TO-220-3 Package
Specifications
- Configuration: Single
- Recovery Time: 30ns
- Vr - Reverse Voltage: 700V
- If - Forward Current: 8A
- Max Surge Current: 100A
- Vf - Forward Voltage: 2.6V
- Ir - Reverse Current: 25uA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات دیود فست KIA08TB70DP
دیود فست KIA08TB70DP
Part Number
-65C
Minimum Operating Temperature
30ns
Recovery Time
Tube
Packaging
Through Hole
Mounting Style
25uA
Ir - Reverse Current
700V
Vr - Reverse Voltage
100A
Max Surge Current
+175C
Maximum Operating Temperature
Single
Configuration
Fast Recovery Rectifiers
Type
8A
If - Forward Current
2.6V
Vf - Forward Voltage
TO-220
Package-Case
