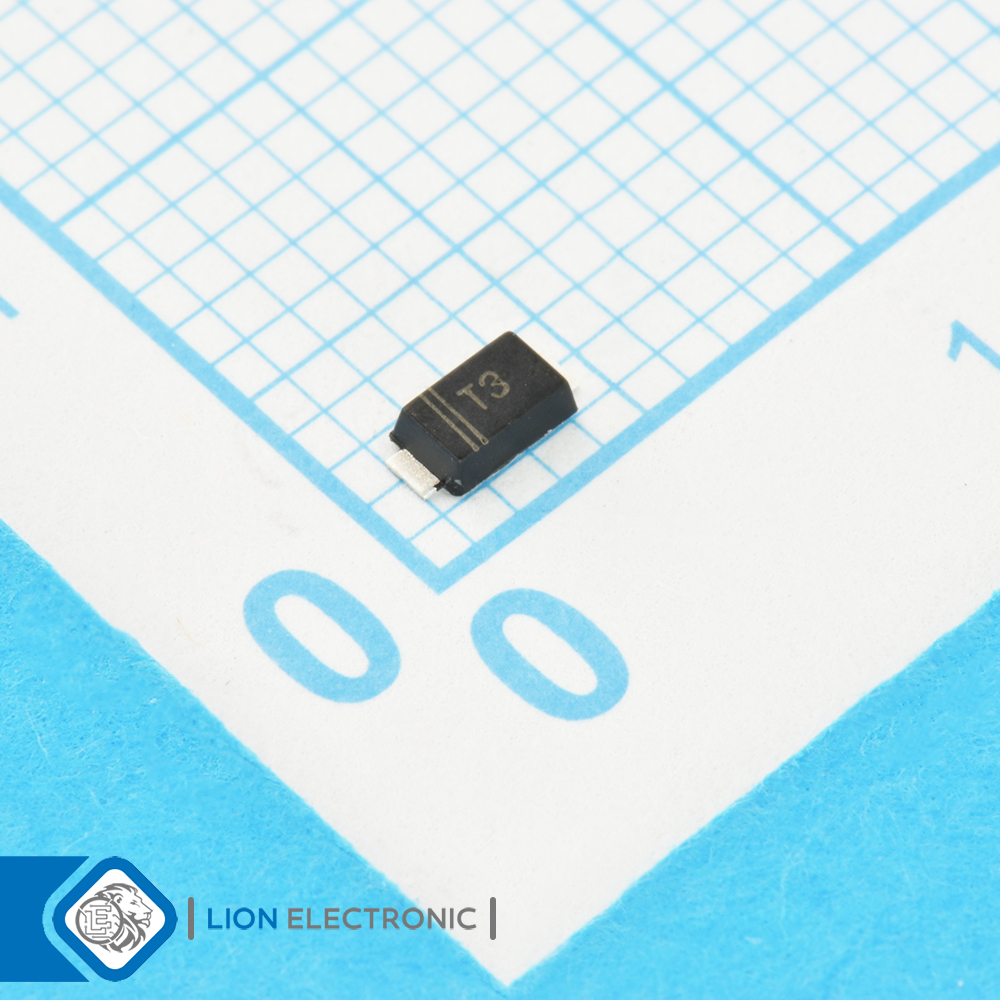

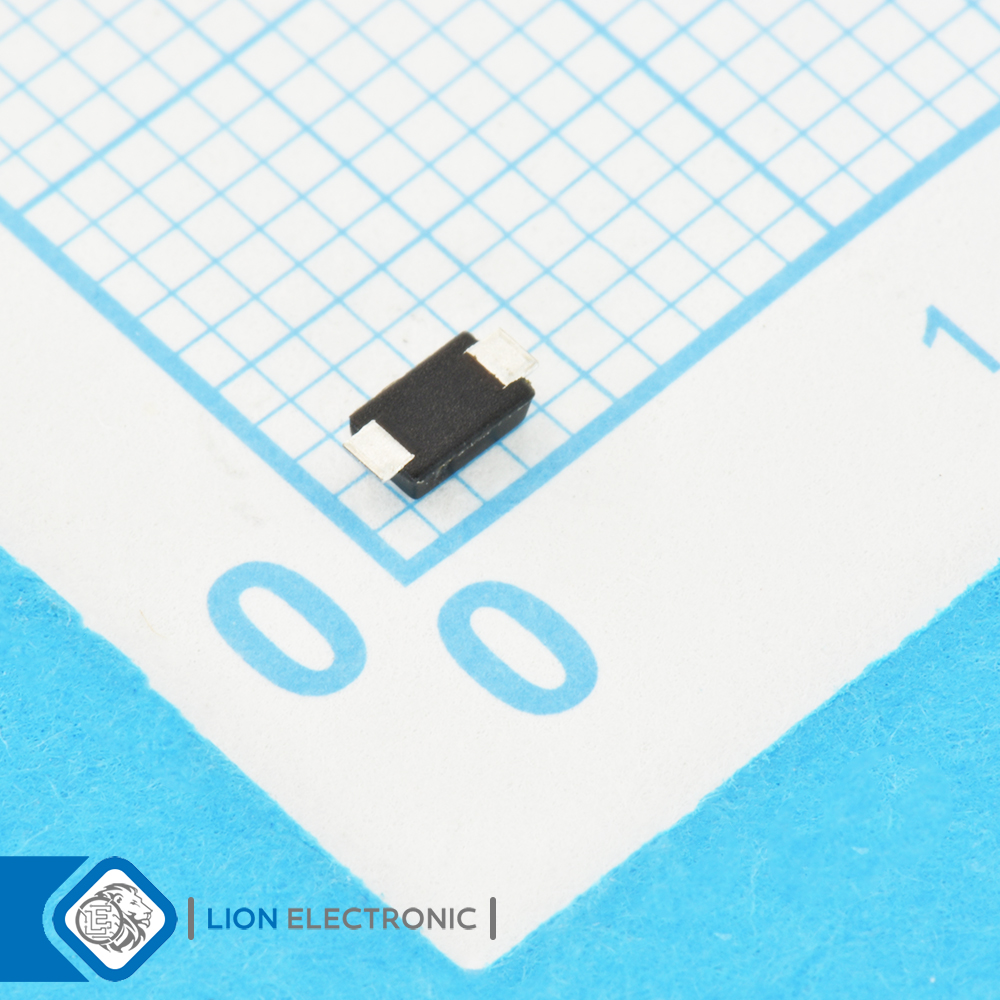

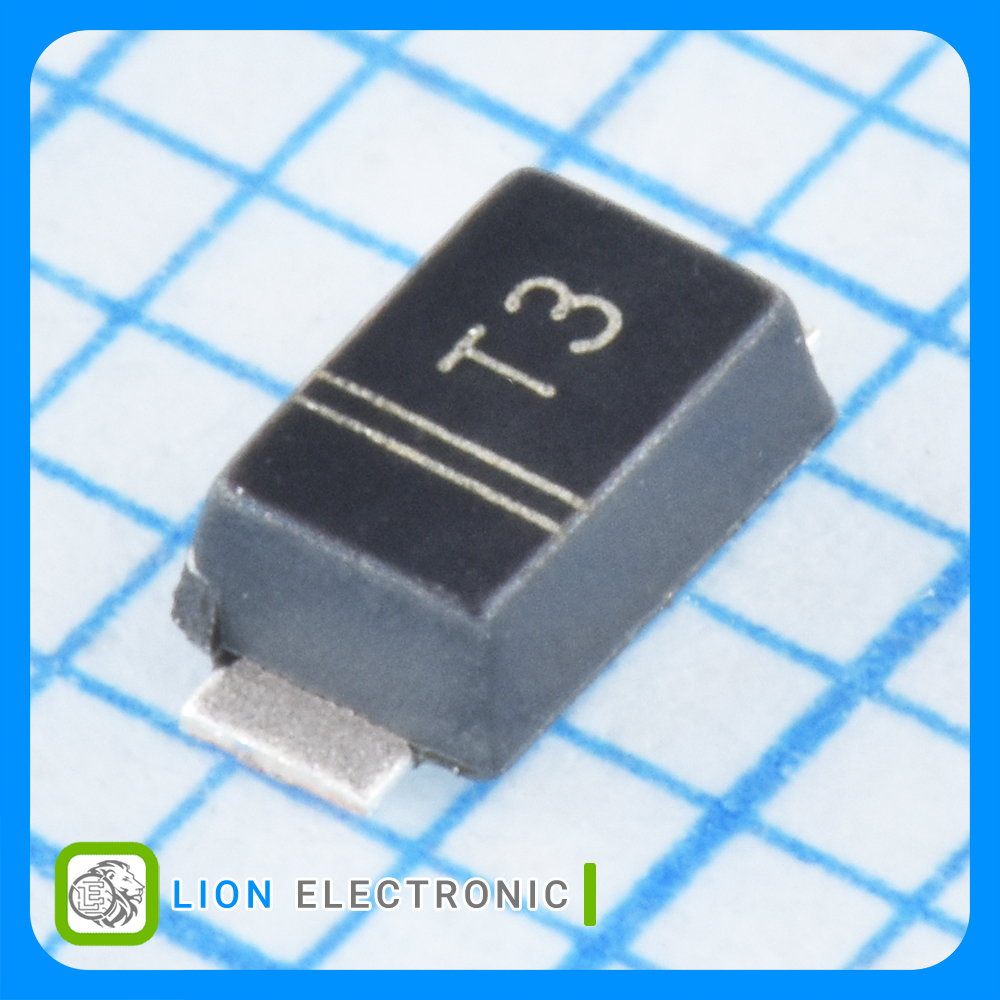

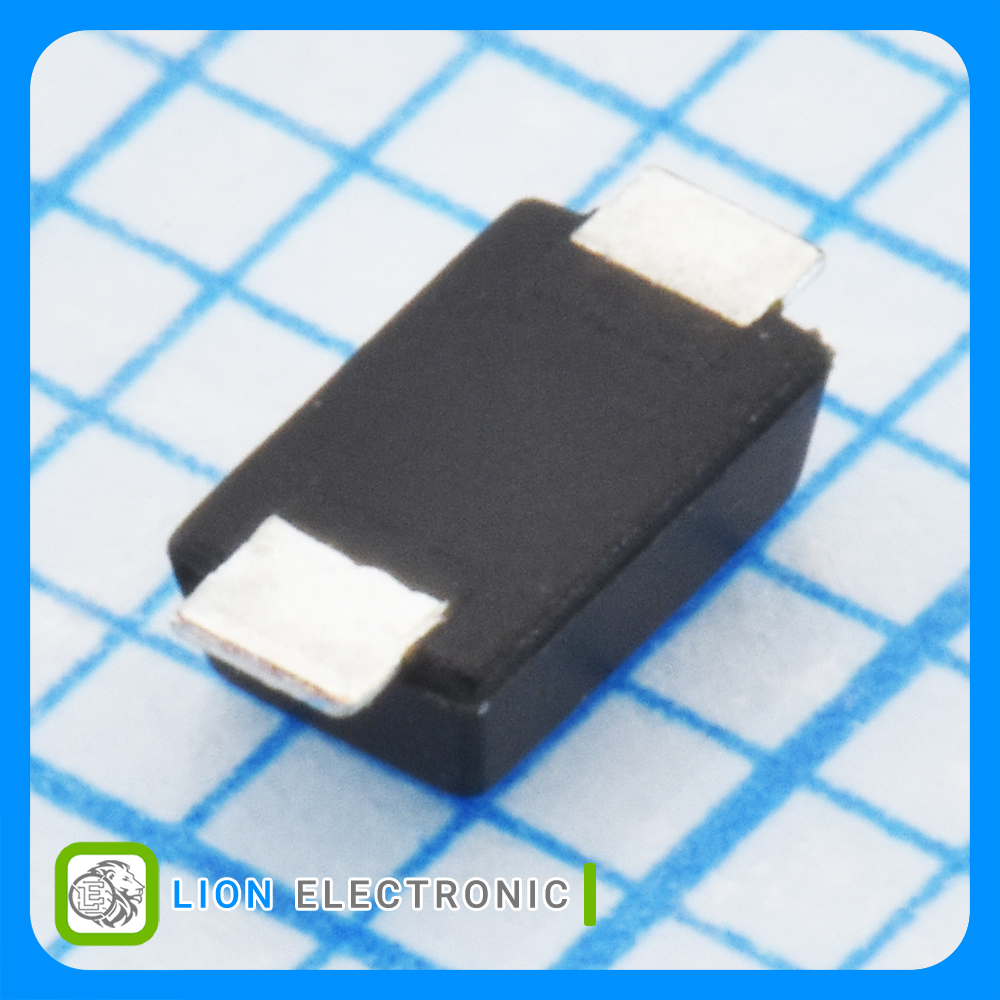

BAV21WL
BAV21WL
Part Number
2407
Lion Part
Datasheet
Jingdao Microelectronics Manufacture
دیود فست 250 ولت 250 میلیآمپر زمان بازیابی 50 نانوثانیه با پکیج SOD-123FL
Fast Diode 250V, 250mA with 50ns Recovery Time and SOD-123FL Package
معرفی
دیود فست 250 ولت 250 میلیآمپر زمان بازیابی 50 نانوثانیه با پکیج SOD-123FL
Fast Diode 250V, 250mA with 50ns Recovery Time and SOD-123FL Package
Specifications
- Configuration: Single
- Recovery Time: 50ns
- Vr - Reverse Voltage: 250V
- If - Forward Current: 250mA
- Max Surge Current: 1A
- Vf - Forward Voltage: 1V
- Ir - Reverse Current: 100nA
- Mounting Style: SMD/SMT
- Package/Case: SOD-123FL
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

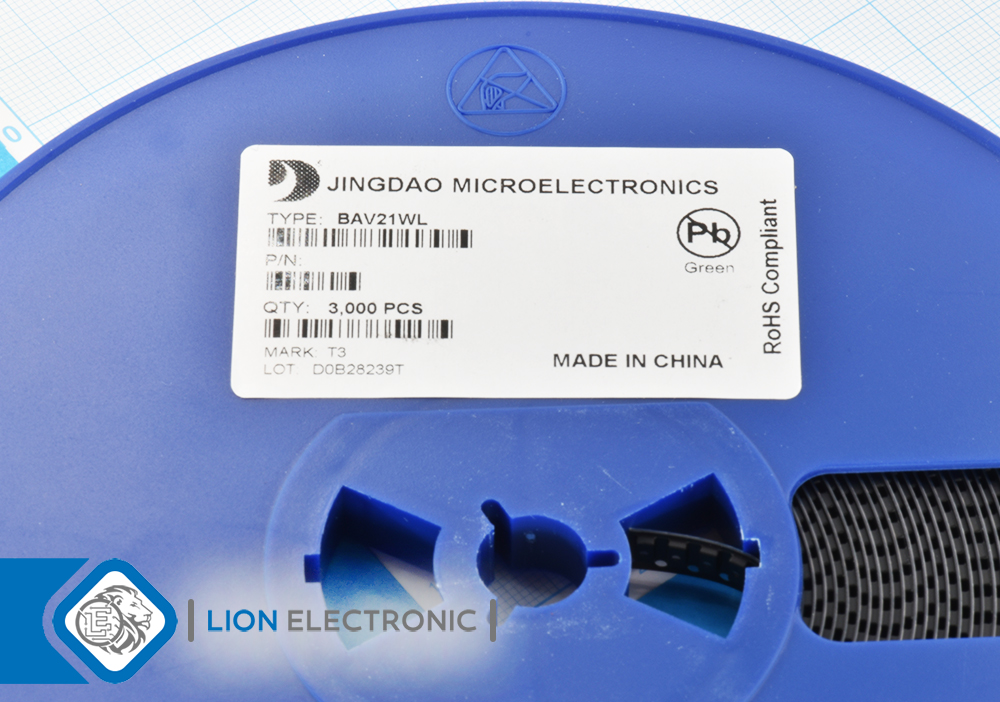

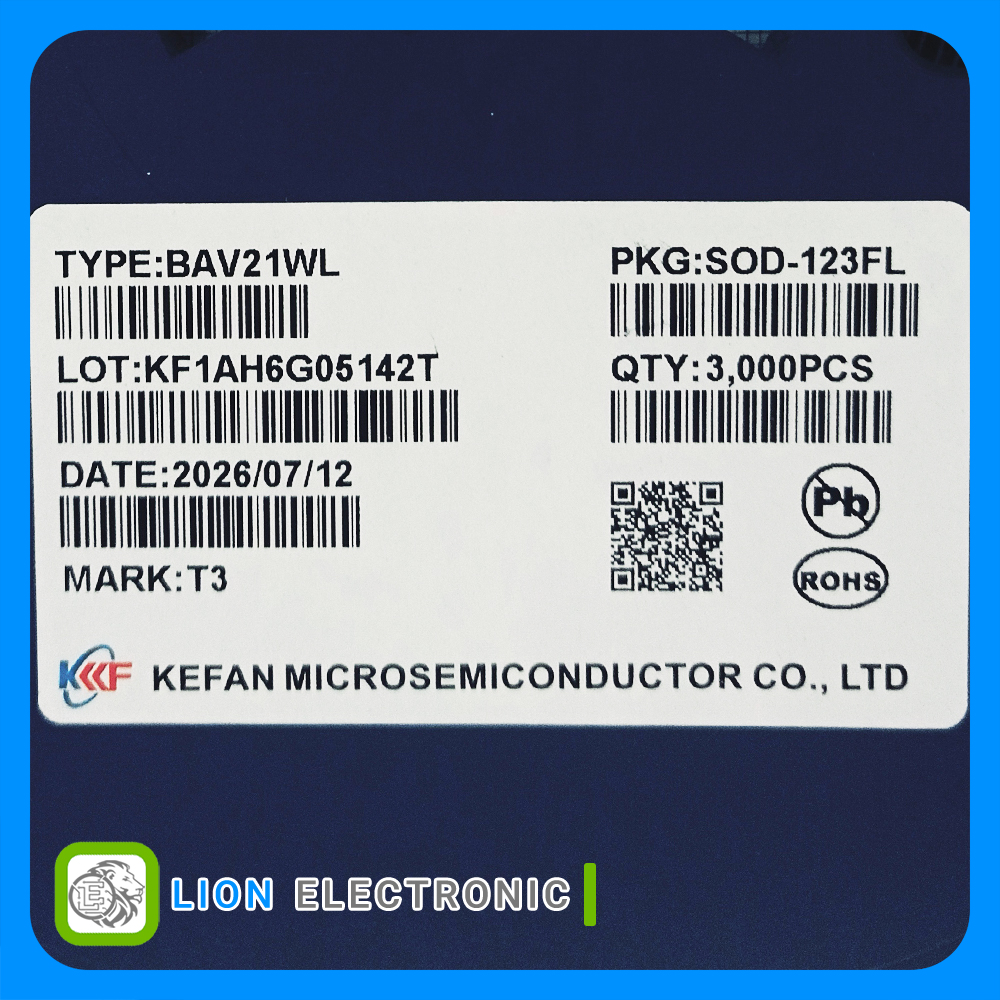

- Packaging: Reel
مشخصات BAV21WL
BAV21WL
Part Number
1A
Max Surge Current
100nA
Ir - Reverse Current
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
50ns
Recovery Time
250V
Vr - Reverse Voltage
+150C
Maximum Operating Temperature
250mA
If - Forward Current
Single
Configuration
Fast Recovery Rectifiers
Type
1V
Vf - Forward Voltage
SOD-123F
Package-Case
