HCNW3120-500E
HCNW3120-500E
Part Number
2485
Lion Part
Datasheet
Avago Technologies Manufacture
گیت درایور ایزوله 2.5 آمپر تک کاناله با ایزولاسیون 5 کیلوولت RMS با پکیج SMD-8 Gull Wing
Isolated Gate Driver 2.5A, 5kVrms Isolation with SMD-8 Gull Wing Package
معرفی
گیت درایور ایزوله 2.5 آمپر تک کاناله با ایزولاسیون 5 کیلوولت RMS با پکیج SMD-8 Gull Wing
Isolated Gate Driver 2.5A, 5kVrms Isolation with SMD-8 Gull Wing Package
Specifications
- Type: Optically Isolated Gate Driver
- Number of Channels: 1
- Rise Time: 100ns
- Fall Time: 100ns
- Propagation Delay - Max: 500ns
- Peak Output Current: 2.5A
- If - Forward Current: 16mA
- Isolation Voltage: 5kVrms
- Mounting Style: SMD/SMT
- Package/Case: SMD-8 Gull Wing
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +100C
- Packaging: Reel
مشخصات گیت درایور ایزوله HCNW3120-500E

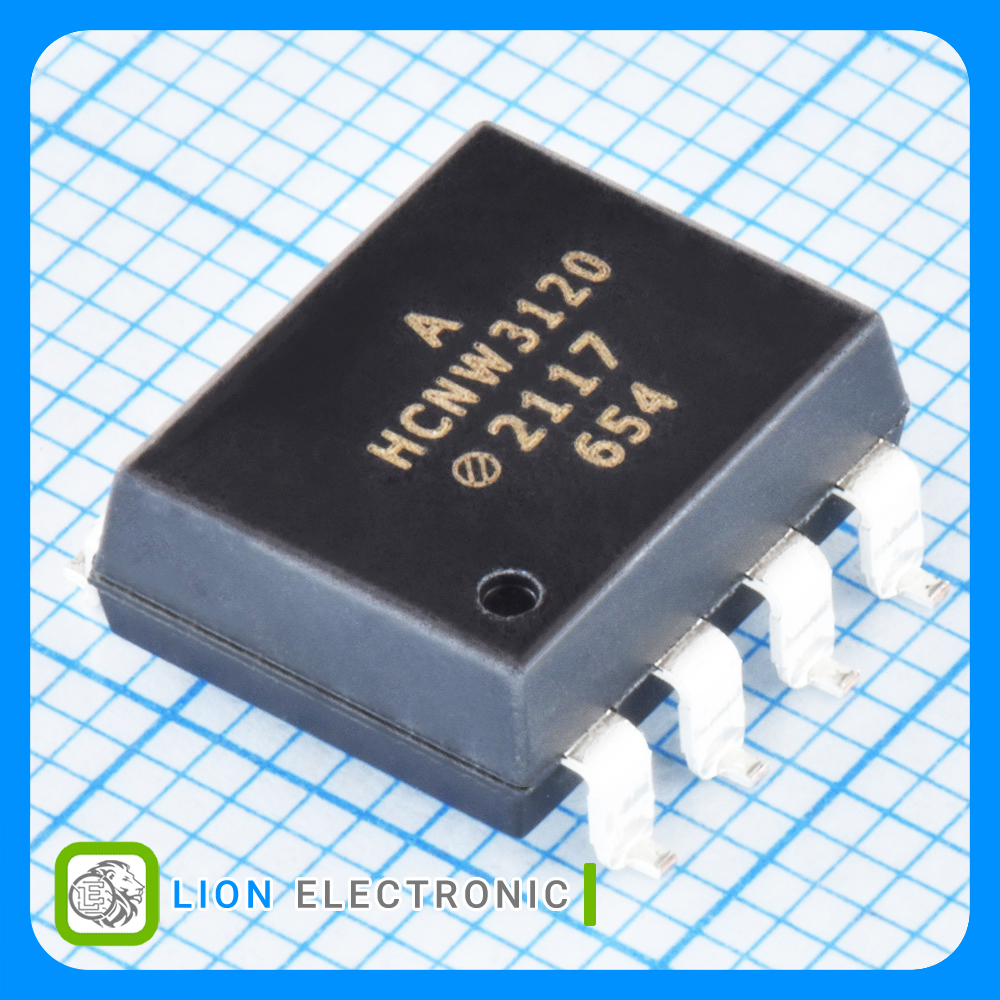

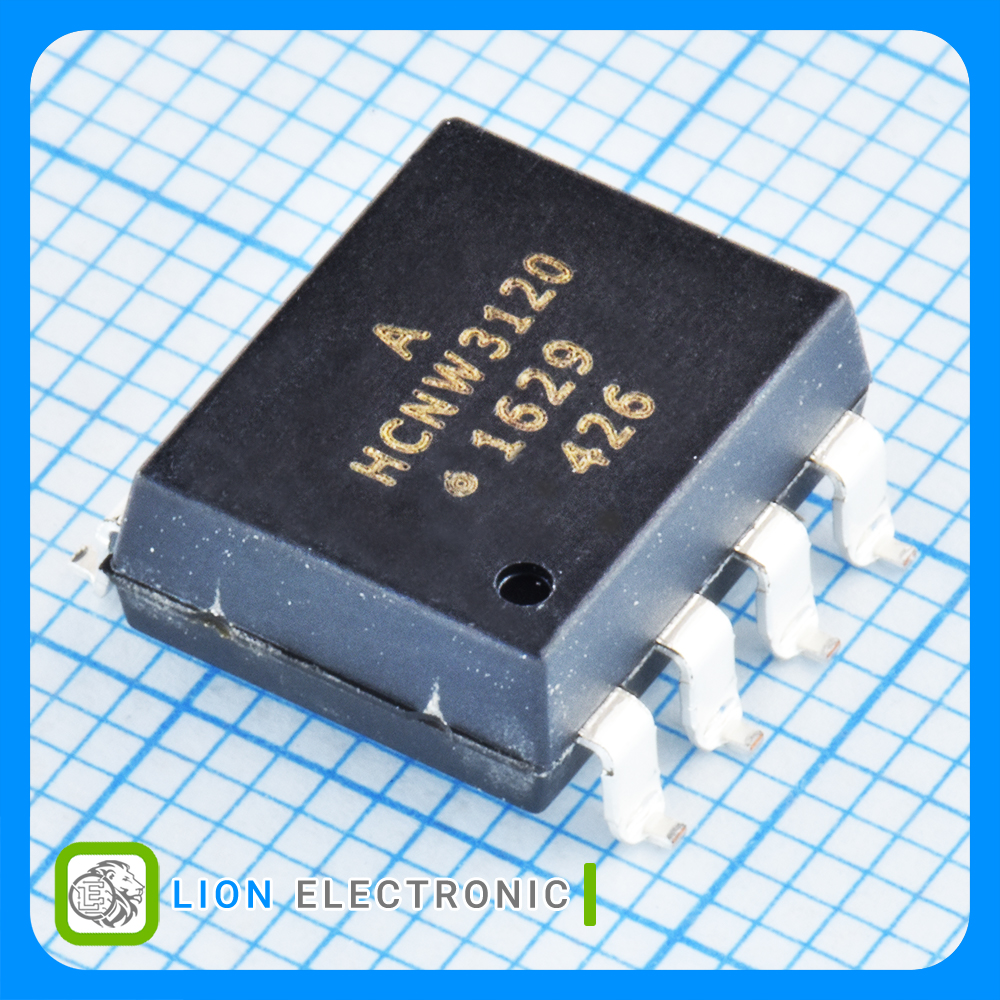

گیت درایور ایزوله HCNW3120-500E
Part Number
1
Number of Channels
2.5A
Peak Output Current
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
16mA
If - Forward Current
5kVrms
Isolation Voltage
+100C
Maximum Operating Temperature
Open Collector
Output Type
100ns
Rise Time
500ns
Propagation Delay - Max
Logic Output Optocouplers
Product Type
100ns
Fall Time
Optically Isolated Gate Driver
Type
SMD-8 Gull Wing
Package-Case
