FMG26S
FMG26S
Part Number
2685
Lion Part
Datasheet
Sanken Electric Manufacture
دیود فست 600 ولت 6 آمپر زمان بازیابی 100 نانوثانیه با پکیج TO-220-3

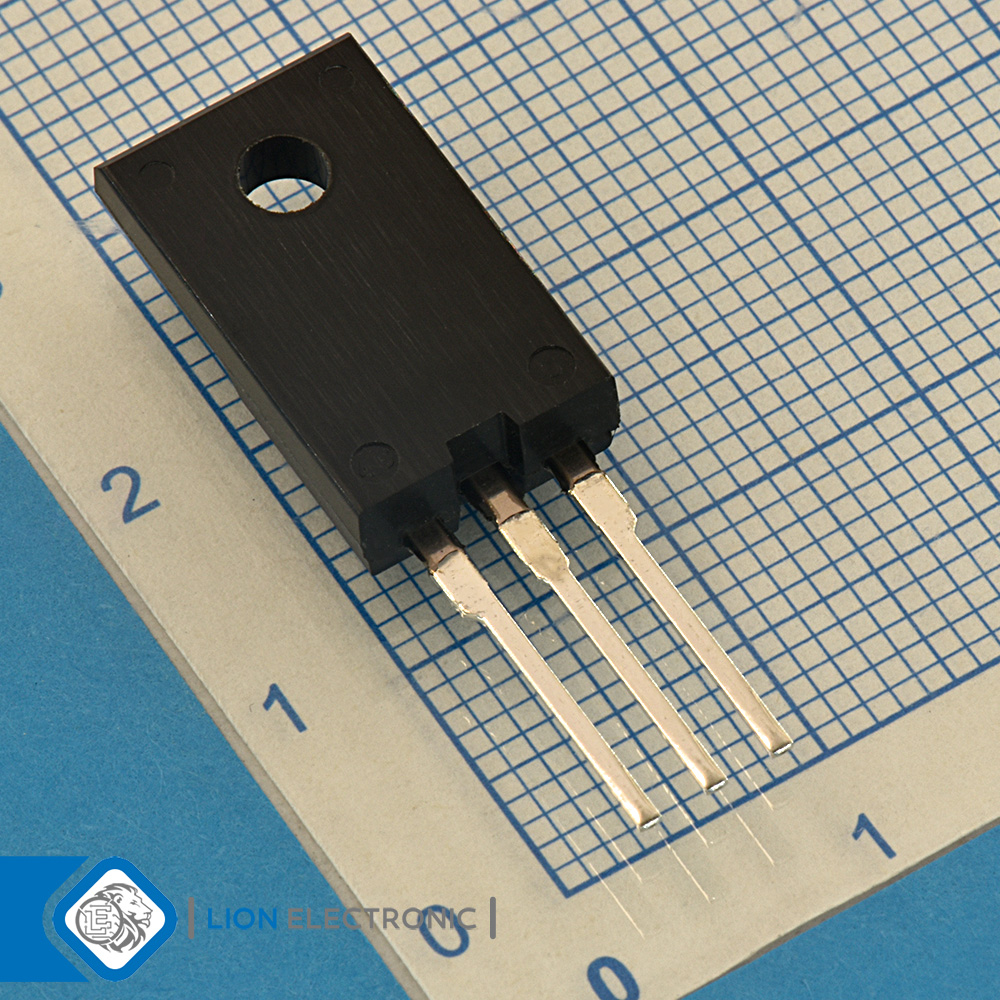

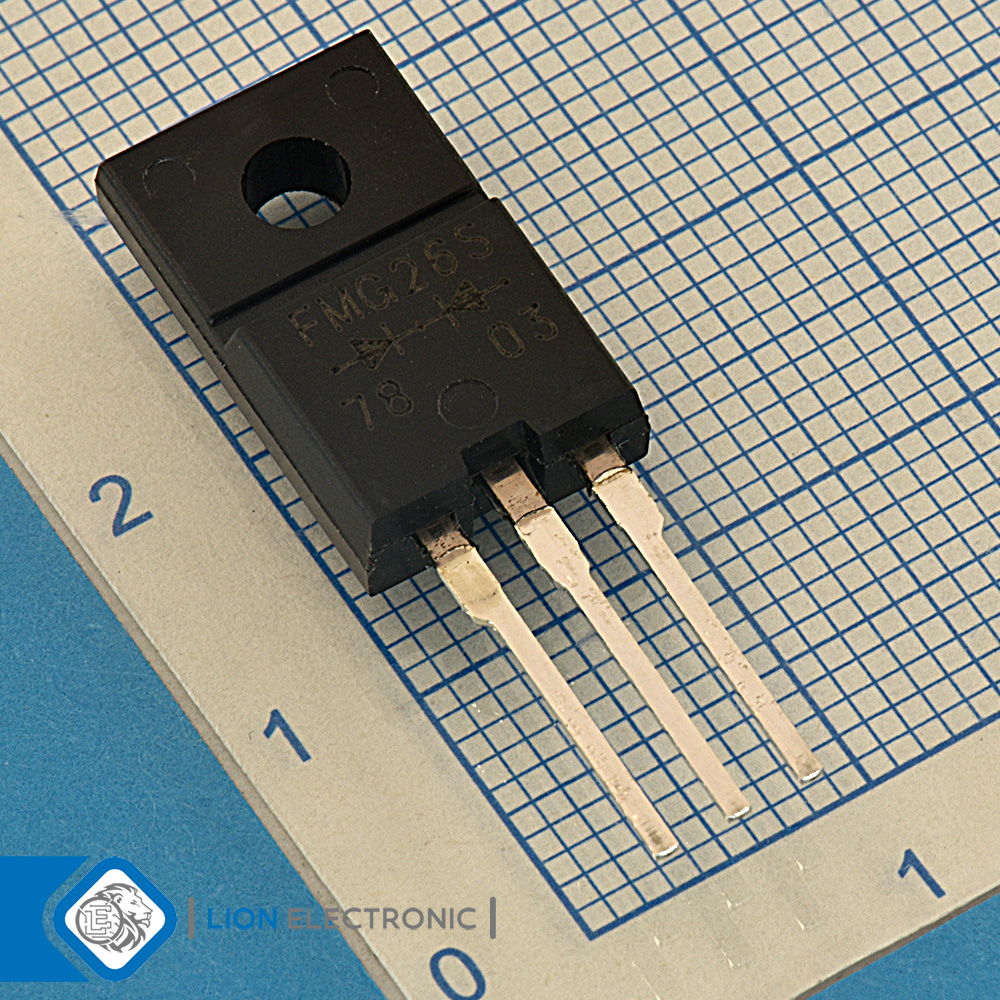

Fast Diode 600V, 6A with 100ns Recovery Time and TO-220-3 Package
معرفی
دیود فست 600 ولت 6 آمپر زمان بازیابی 100 نانوثانیه با پکیج TO-220-3
Fast Diode 600V, 6A with 100ns Recovery Time and TO-220-3 Package
Specifications
- Configuration: Dual Common Cathode
- Recovery Time: 100ns
- Vr - Reverse Voltage: 600V
- If - Forward Current: 6A
- Max Surge Current: 50A
- Vf - Forward Voltage: 2.2V
- Ir - Reverse Current: 500uA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات دیود دوبل کامان کاتد FMG26S
دیود دوبل کامان کاتد FMG26S
Part Number
-40C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
50A
Max Surge Current
600V
Vr - Reverse Voltage
100ns
Recovery Time
Dual Common Cathode
Configuration
+150C
Maximum Operating Temperature
500uA
Ir - Reverse Current
6A
If - Forward Current
2.2V
Vf - Forward Voltage
TO-220
Package-Case
