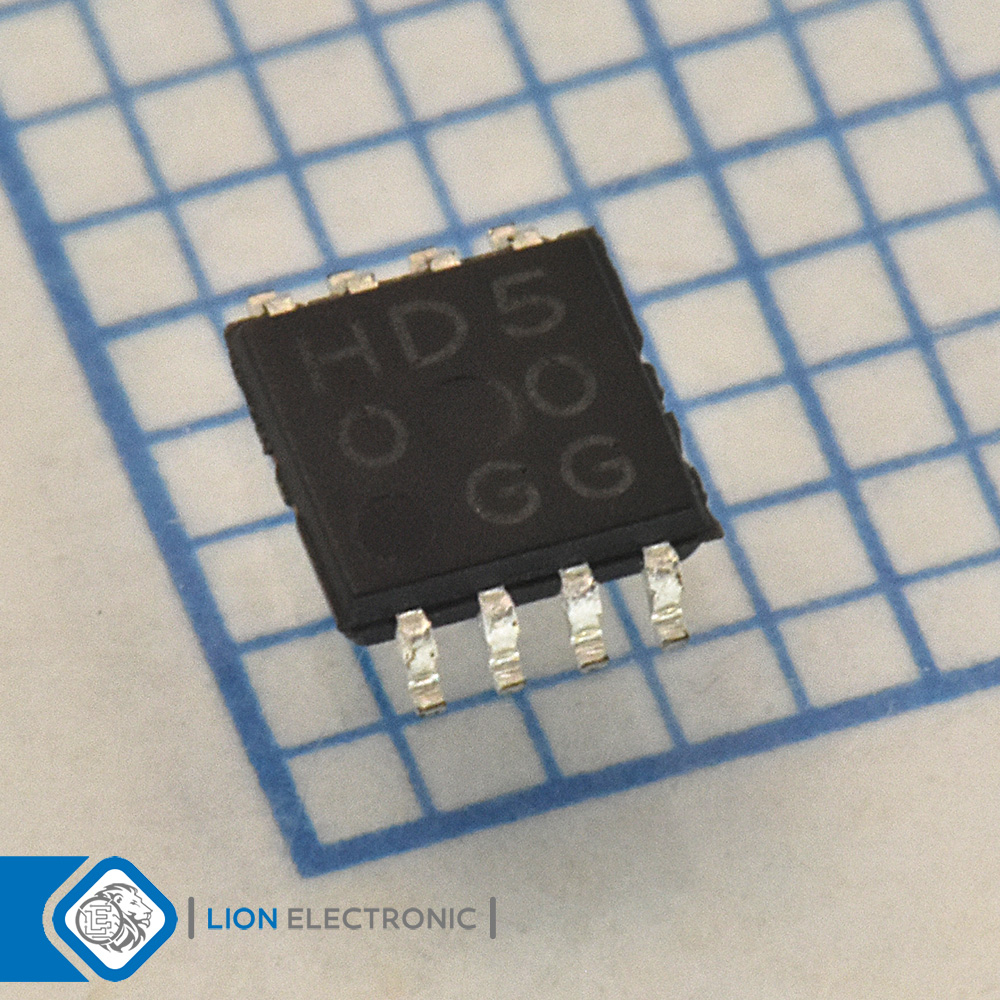

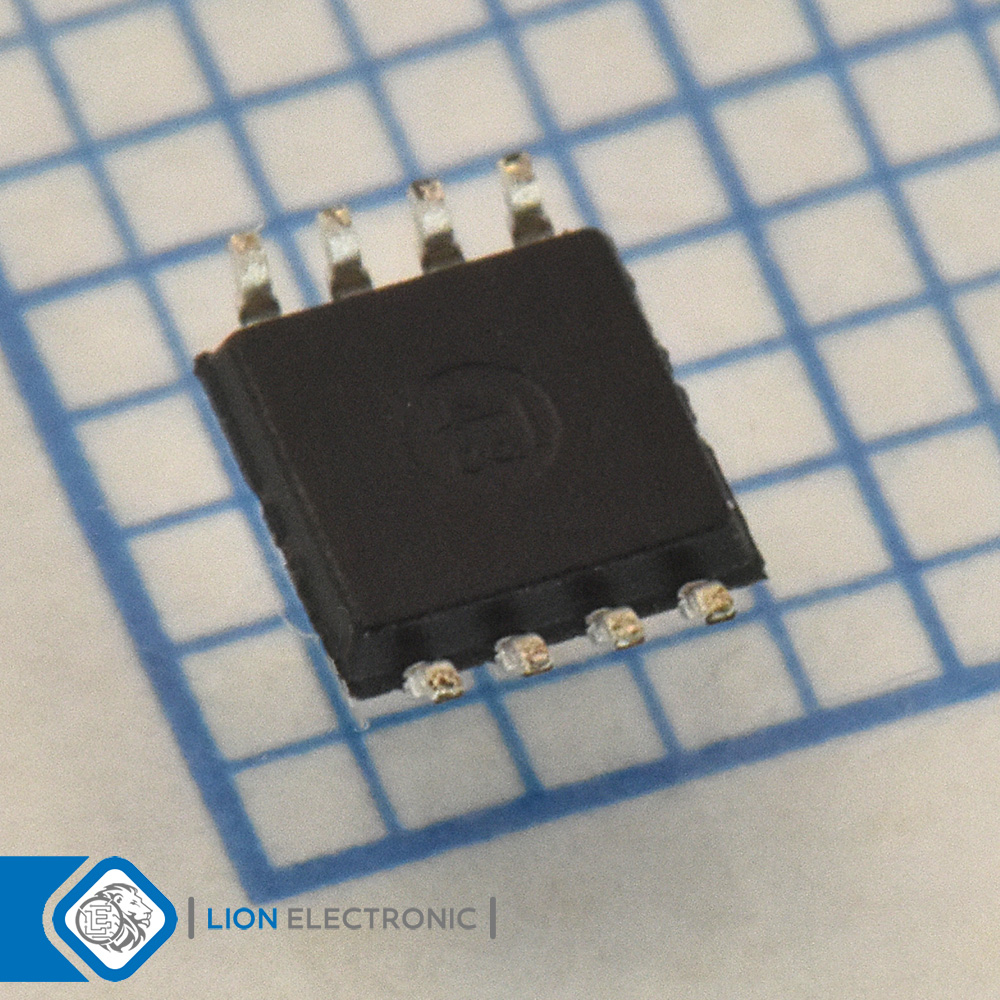

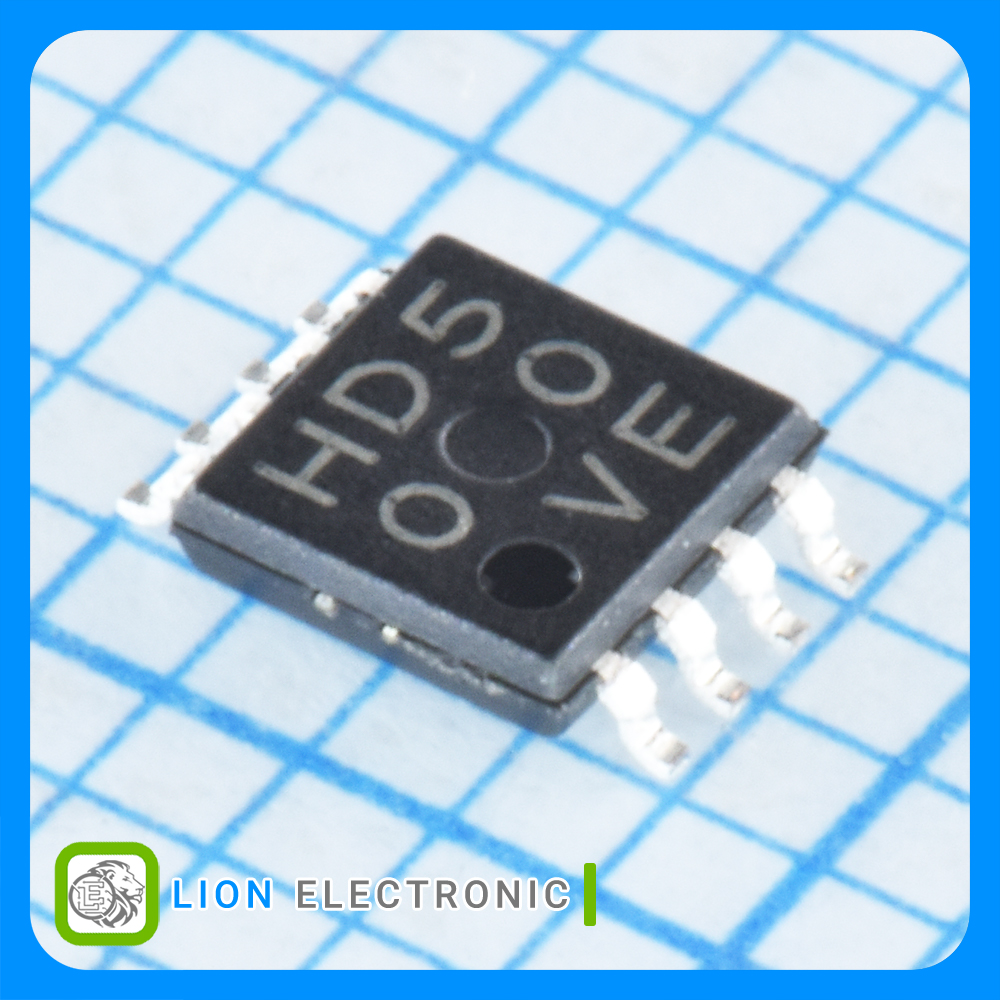

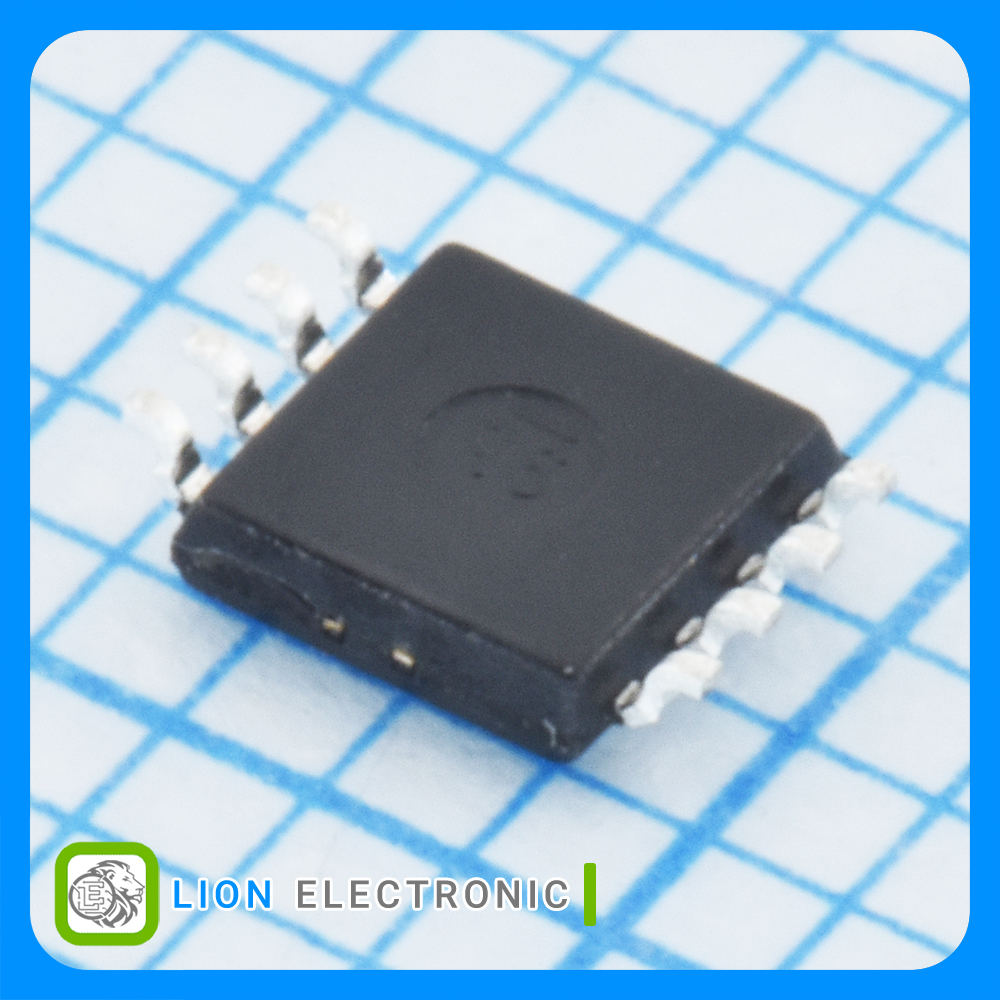

BD1HD500FVM-C
BD1HD500FVM-C
Part Number
2715
Lion Part
Datasheet
ROHM Semiconductor Manufacture
پاور سوئیچ هوشمند سمت بالا تک‌کاناله 18 ولت 800 میلی‌آمپر، دارای مدار حفاظت اضافه‌جریان داخلی، مدار خاموشی حرارتی (TSD) و تشخیص بار باز، با پکیج MSOP-8
Automotive Smart Power Switch High Side 1-Channel 18V, 800mA, has built-in Overcurrent Protection Circuit, Thermal Shut Down (TSD) Circuit, Open Load Detection, with MSOP-8 Package
معرفی
پاور سوئیچ هوشمند سمت بالا تک‌کاناله 18 ولت 800 میلی‌آمپر، دارای مدار حفاظت اضافه‌جریان داخلی، مدار خاموشی حرارتی (TSD) و تشخیص بار باز، با پکیج MSOP-8
Automotive Smart Power Switch High Side 1-Channel 18V, 800mA, has built-in Overcurrent Protection Circuit, Thermal Shut Down (TSD) Circuit, Open Load Detection, with MSOP-8 Package
Specifications
- Type: High Side
- Interface Type: Parallel
- Number of Channels: 1
- Output Voltage: 18V
- Output Current: 800mA
- Current Limit: 1.45A
- Rds On - Drain - Source Resistance: 500mΩ
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 4 - 18V
- Package/Case: MSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
مشخصات BD1HD500FVM-C
BD1HD500FVM-C
Part Number
--- 1.45A
Current Limit
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
25us
On Time - Max
25us
Off Time - Max
3V3 , 5V
Input Voltage
+150C
Maximum Operating Temperature
High Side
Type
800mA
Output Current
Parallel
Interface Type
4 - 18V
Operating Supply Voltage
500mΩ
Rds On - Drain - Source Resistance
MSOP-8
Package-Case
18V
Output Voltage
