TOSHIBA
معرفی
دیود فست 80 ولت 100 میلیآمپر زمان بازیابی 4 نانوثانیه با پکیج SC-70-3
Fast Diode 80V, 100mA with 4ns Recovery Time and SC-70-3 Package
Specifications
- Configuration: Dual
- Recovery Time: 4ns
- Vr - Reverse Voltage: 80V
- If - Forward Current: 100mA
- Max Surge Current: 2A
- Vf - Forward Voltage: 900mV
- Ir - Reverse Current: 500nA
- Mounting Style: SMD/SMT
- Package/Case: SC-70-3
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات دیود 1SS302TE85LF

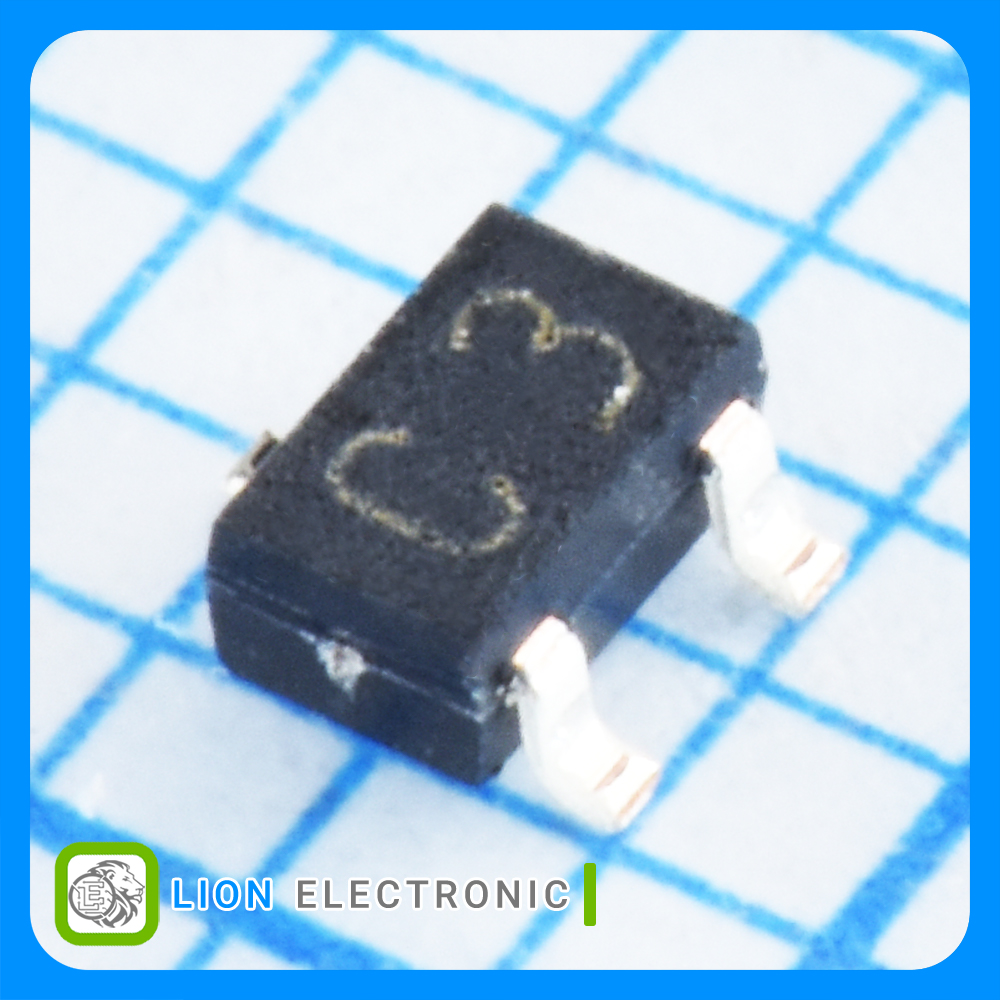

دیود 1SS302TE85LF
Part Number
2A
Max Surge Current
4ns
Recovery Time
-55C
Minimum Operating Temperature
500nA
Ir - Reverse Current
Reel
Packaging
80V
Vr - Reverse Voltage
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
Dual
Configuration
100mA
If - Forward Current
900mV
Vf - Forward Voltage
SC-70
Package-Case
