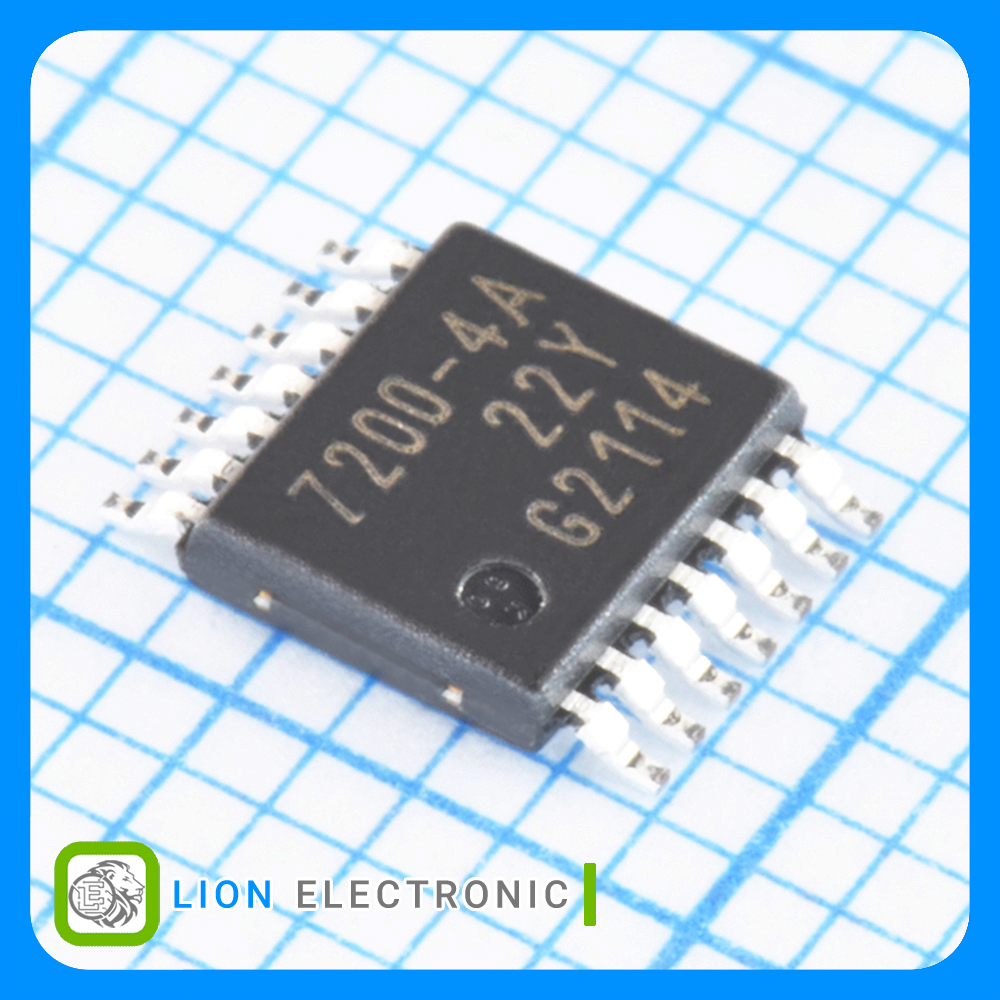

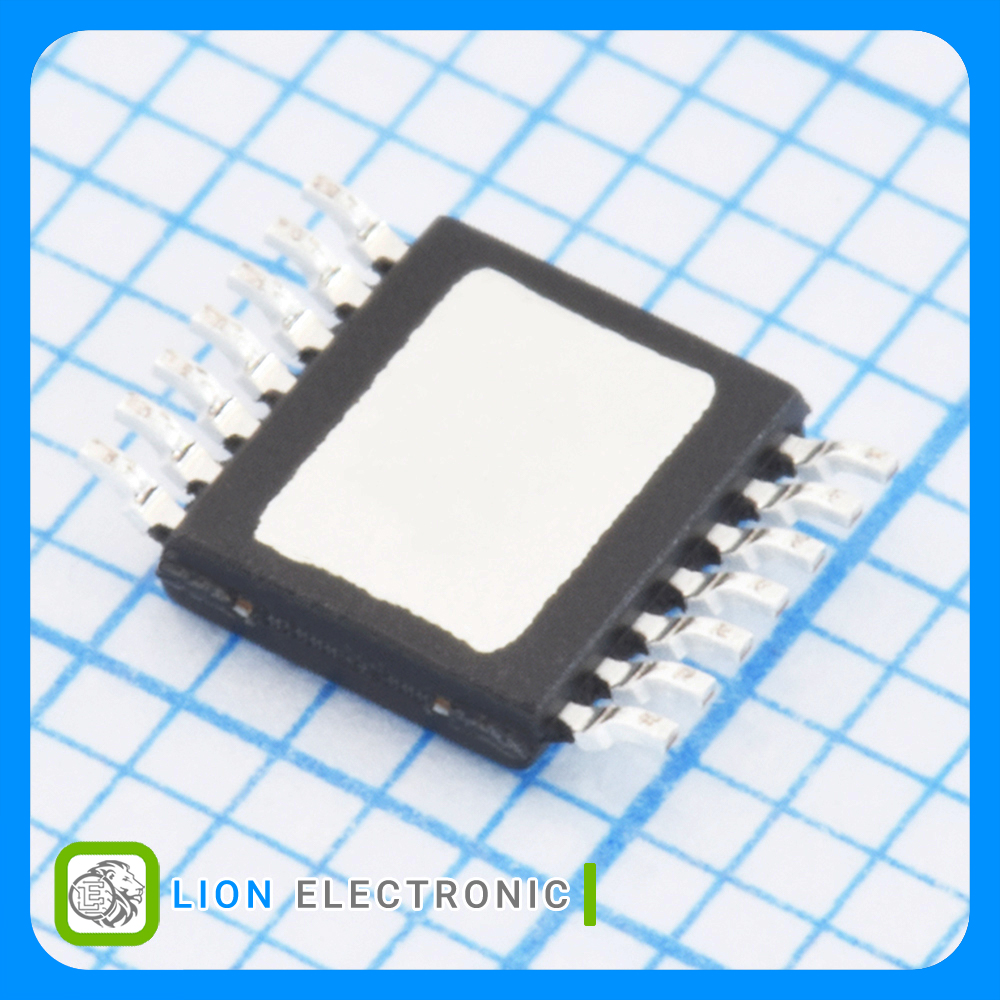

BTS7200-4EPA
BTS7200-4EPA
Part Number
2824
Lion Part
Datasheet
Infineon Technologies Manufacture
پاور سوئیچ هوشمند سمت بالا 4 کاناله 6 تا 18 ولت 1 آمپر با پکیج PG-TSDSO-14
Smart High-Side Power Switch 4-Channel 6 - 18V, 1A with Protection Functions and Diagnosis, PG-TSDSO-14 Package
معرفی
پاور سوئیچ هوشمند سمت بالا 4 کاناله 6 تا 18 ولت 1 آمپر با پکیج PG-TSDSO-14
Smart High-Side Power Switch 4-Channel 6 - 18V, 1A with Protection Functions and Diagnosis, PG-TSDSO-14 Package
Specifications
- Type: High Side
- Interface Type: Digital
- Number of Channels: 4
- Output Voltage: 6 - 18V
- Output Current: 1A
- Current Limit: 2A
- Rds On - Drain - Source Resistance: 66.5mΩ
- Input Voltage: 3 - 28V
- Operating Supply Voltage: 6 - 28V
- Package/Case: PG-TSDSO-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
مشخصات پاور سوئیچ BTS7200-4EPA
پاور سوئیچ BTS7200-4EPA
Part Number
Reel
Packaging
4
Number of Channels
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
120mΩ
On Resistance - Max
3 - 28V
Input Voltage
110us
On Time - Max
+150C
Maximum Operating Temperature
2A
Current Limit
100us
Off Time - Max
High Side
Type
1A
Output Current
Digital
Interface Type
66.5mΩ
Rds On - Drain - Source Resistance
6 - 18V
Output Voltage
6 - 28V
Operating Supply Voltage
TSDSO-14
Package-Case
