DLW31SN222SQ2L
DLW31SN222SQ2L
Part Number
2840
Lion Part
Datasheet
Murata Manufacturing Manufacture
چوکفیلتر مد مشترک 1 کاناله، امپدانس 2200 اهم 50 ولت، مقاومت DC برابر 1.2 اهم با پکیج 1206

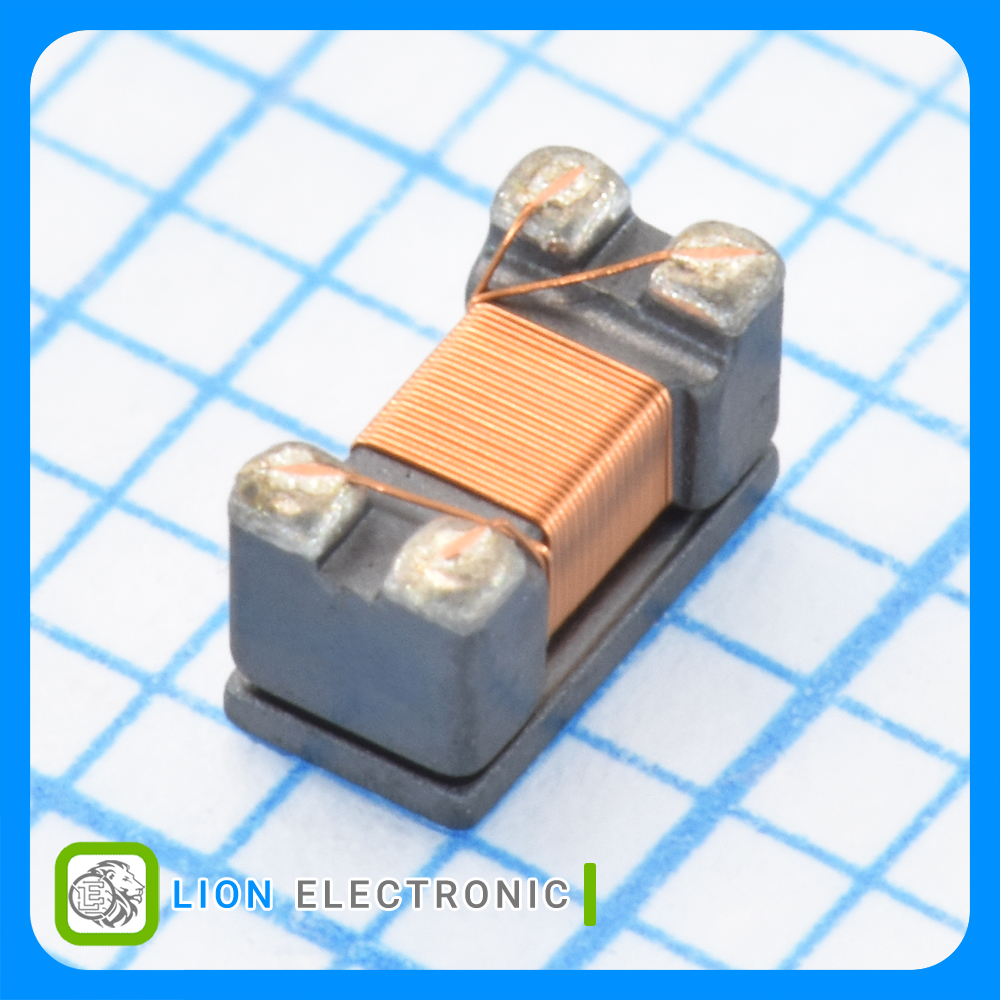

Common Mode Chokes / Filters 1 Channel, 2200Ω 50V, 1.2Ω DC Resistance with 1206 Package
معرفی
چوکفیلتر مد مشترک 1 کاناله، امپدانس 2200 اهم 50 ولت، مقاومت DC برابر 1.2 اهم با پکیج 1206
Common Mode Chokes / Filters 1 Channel, 2200Ω 50V, 1.2Ω DC Resistance with 1206 Package
Specifications
- Product: Common Mode Chokes
- Number of Channels: 1
- Self Resonant Frequency: 100MHz
- Inductance: 3.5µH
- Impedance: 2.2KΩ
- Maximum DC Current: 200mA
- Maximum DC Resistance: 1.2Ω
- Termination style: SMD/SMT
- Mounting Style: PCB Mount
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات فیلتر دوبل DLW31SN222SQ2L
فیلتر دوبل DLW31SN222SQ2L
Part Number
1
Number of Channels
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
100MHz
Self Resonant Frequency
PCB Mount
Mounting Style
+85C
Maximum Operating Temperature
2.2KΩ
Impedance
200mA
Maximum DC Current
Common Mode Chokes
Product
3.5µH
Inductance
1206 (3216 metric)
Package-Case
1.2Ω
Maximum DC Resistance
