DLW31SN601SQ2L
DLW31SN601SQ2L
Part Number
2842
Lion Part
Datasheet
Murata Manufacturing Manufacture
چوکفیلتر مد مشترک 1 کاناله، امپدانس 600 اهم، ولتاژ 50 ولت، مقاومت DC برابر 800 میلیاهم با پکیج 1206

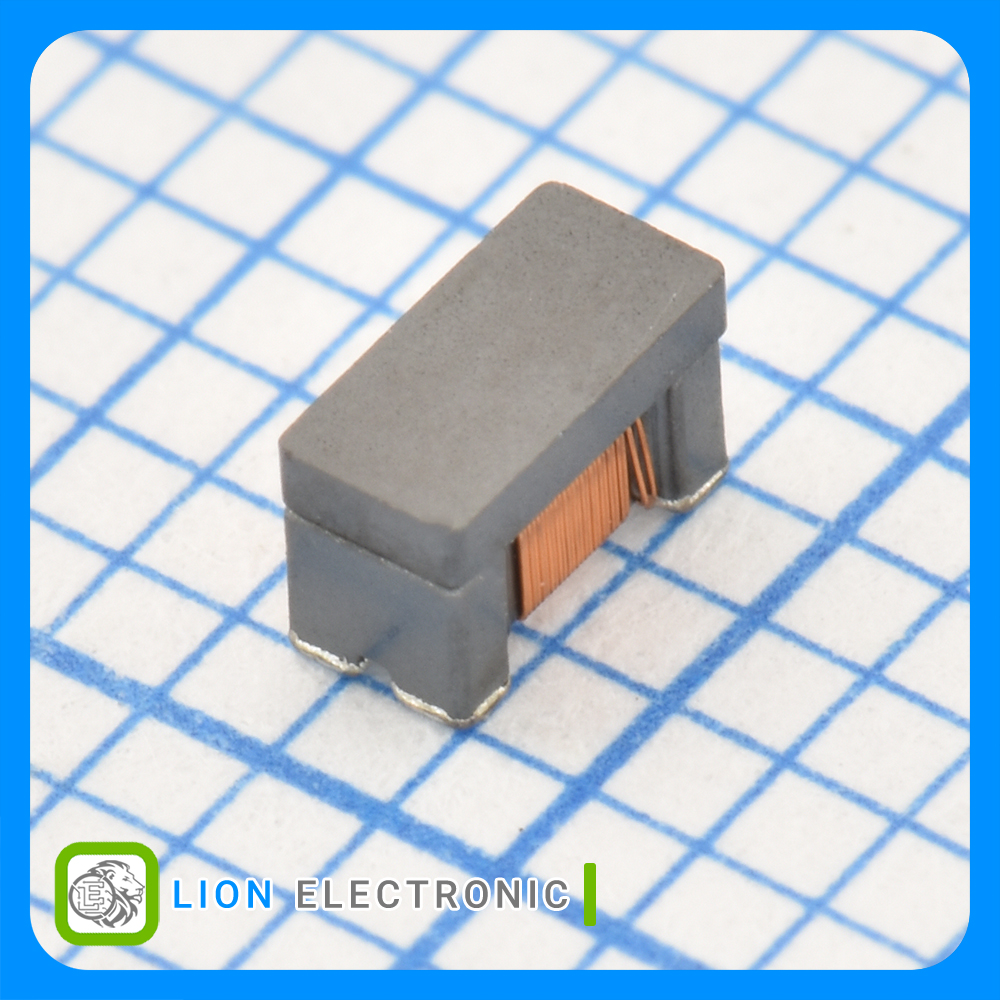

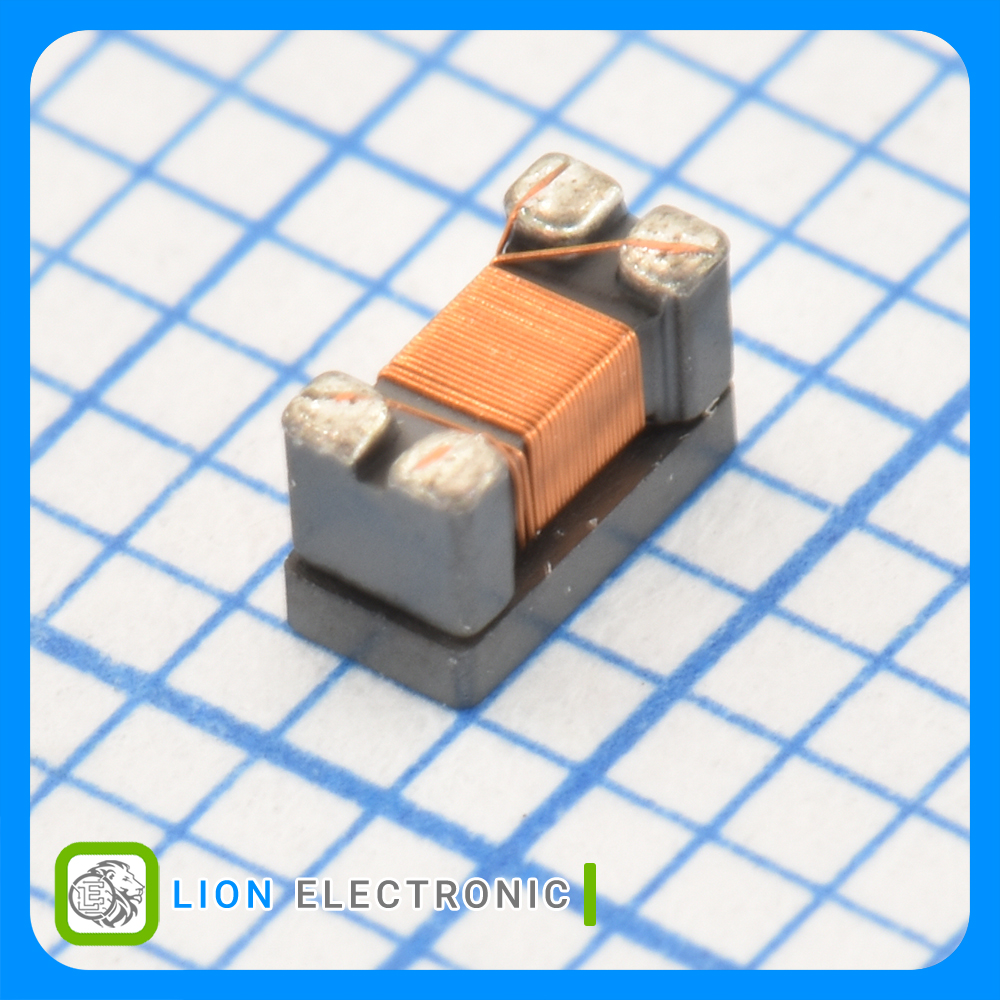

Common Mode Chokes / Filters 1 Channel, 600Ω Impedance, 50V, 800mΩ DC Resistance with 1206 Package
معرفی
چوکفیلتر مد مشترک 1 کاناله، امپدانس 600 اهم، ولتاژ 50 ولت، مقاومت DC برابر 800 میلیاهم با پکیج 1206
Common Mode Chokes / Filters 1 Channel, 600Ω Impedance, 50V, 800mΩ DC Resistance with 1206 Package
Specifications
- Product: Common Mode Chokes
- Number of Channels: 1
- Self Resonant Frequency: 30MHz
- Inductance: 0.95µH
- Impedance: 600Ω
- Maximum DC Current: 260mA
- Maximum DC Resistance: 800mΩ
- Termination style: SMD/SMT
- Mounting Style: PCB Mount
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات فیلتر دوبل DLW31SN601SQ2L
فیلتر دوبل DLW31SN601SQ2L
Part Number
1
Number of Channels
30MHz
Self Resonant Frequency
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
+85C
Maximum Operating Temperature
600Ω
Impedance
0.95µH
Inductance
Common Mode Chokes
Product
260mA
Maximum DC Current
1206 (3216 metric)
Package-Case
800mΩ
Maximum DC Resistance
