DLW31SN261SQ2L
DLW31SN261SQ2L
Part Number
2843
Lion Part
Datasheet
Murata Manufacturing Manufacture
چوکفیلتر مد مشترک 1 کاناله، امپدانس 260 اهم، ولتاژ 50 ولت، مقاومت DC برابر 50 میلیاهم با پکیج 1206

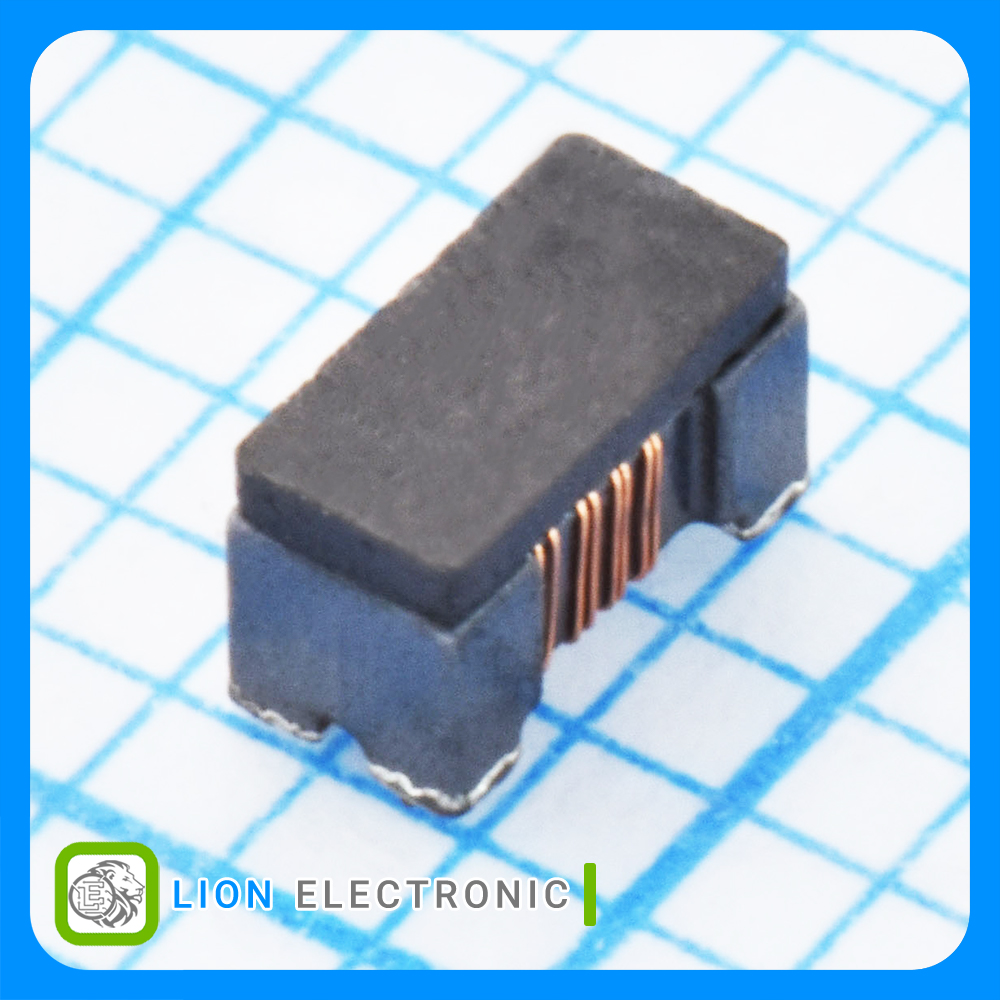

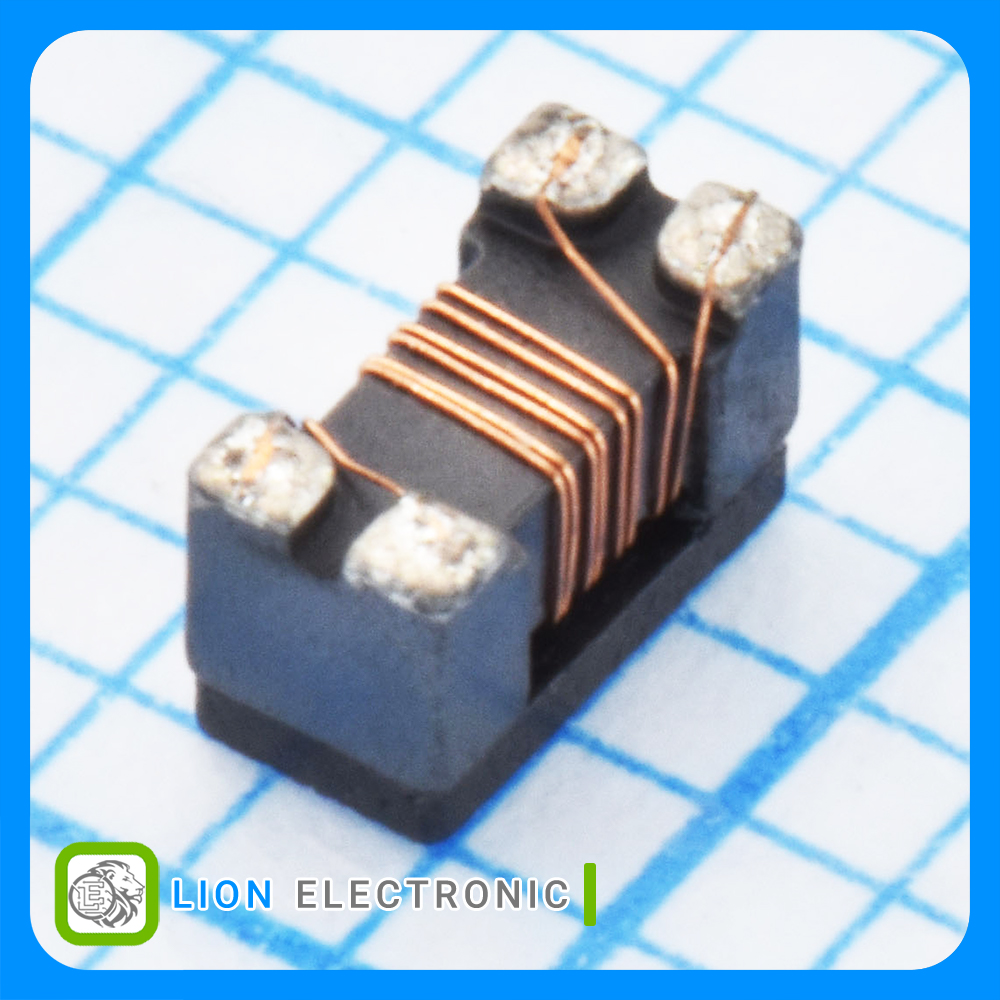

Common Mode Chokes / Filters 1 Channel, 260Ω Impedance, 50V, 50mΩ DC Resistance with 1206 Package
معرفی
چوکفیلتر مد مشترک 1 کاناله، امپدانس 260 اهم، ولتاژ 50 ولت، مقاومت DC برابر 50 میلیاهم با پکیج 1206
Common Mode Chokes / Filters 1 Channel, 260Ω Impedance, 50V, 50mΩ DC Resistance with 1206 Package
Specifications
- Product: Common Mode Chokes
- Number of Channels: 1
- Self Resonant Frequency: 20MHz
- Inductance: 414nH
- Impedance: 260Ω
- Maximum DC Current: 310mA
- Maximum DC Resistance: 50mΩ
- Termination style: SMD/SMT
- Mounting Style: PCB Mount
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات فیلتر دوبل DLW31SN261SQ2L
فیلتر دوبل DLW31SN261SQ2L
Part Number
1
Number of Channels
20MHz
Self Resonant Frequency
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
+85C
Maximum Operating Temperature
414nH
Inductance
260Ω
Impedance
Common Mode Chokes
Product
310mA
Maximum DC Current
50mΩ
Maximum DC Resistance
1206 (3216 metric)
Package-Case
