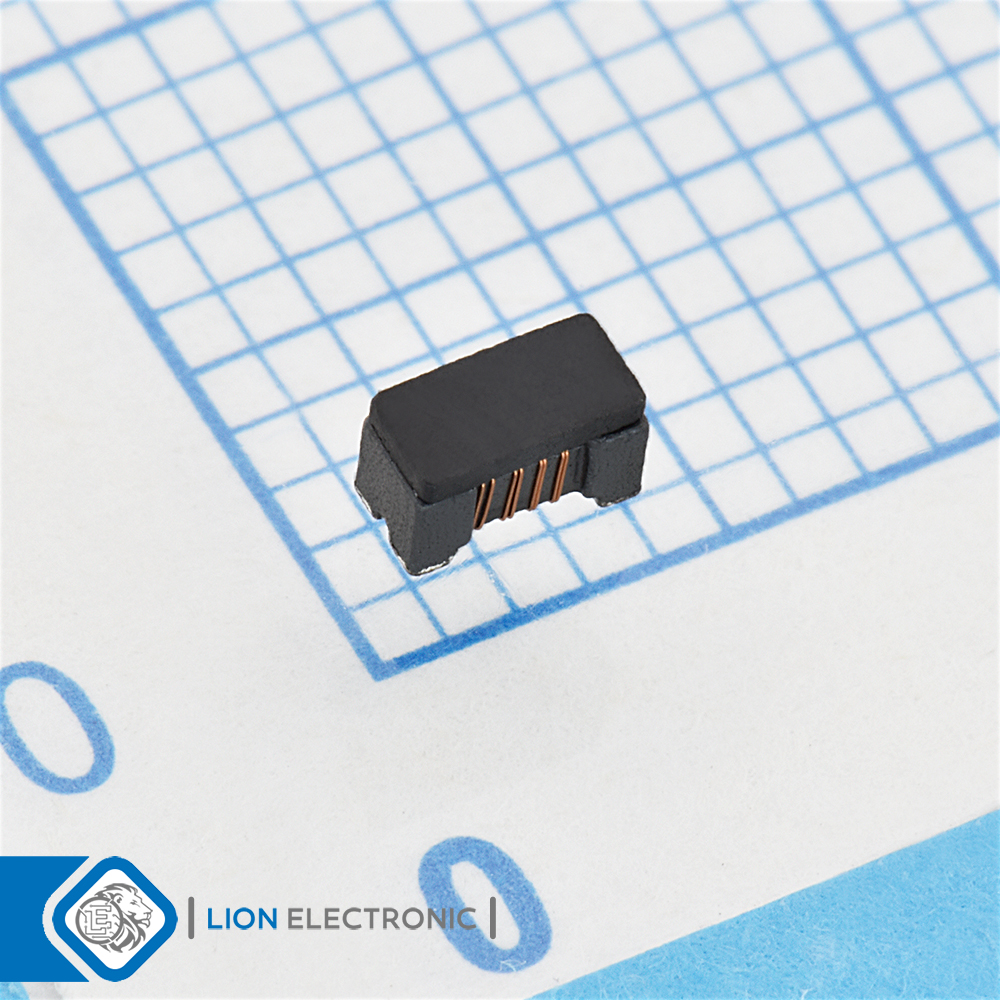

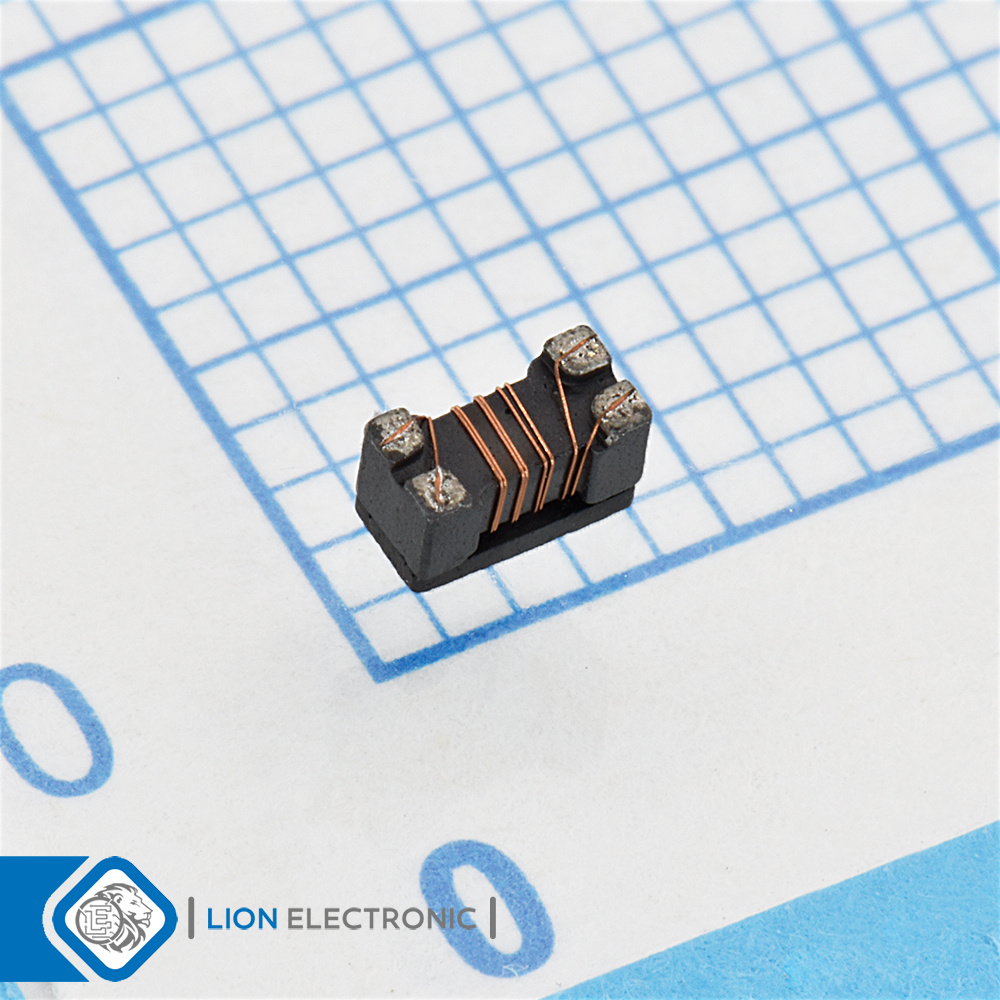

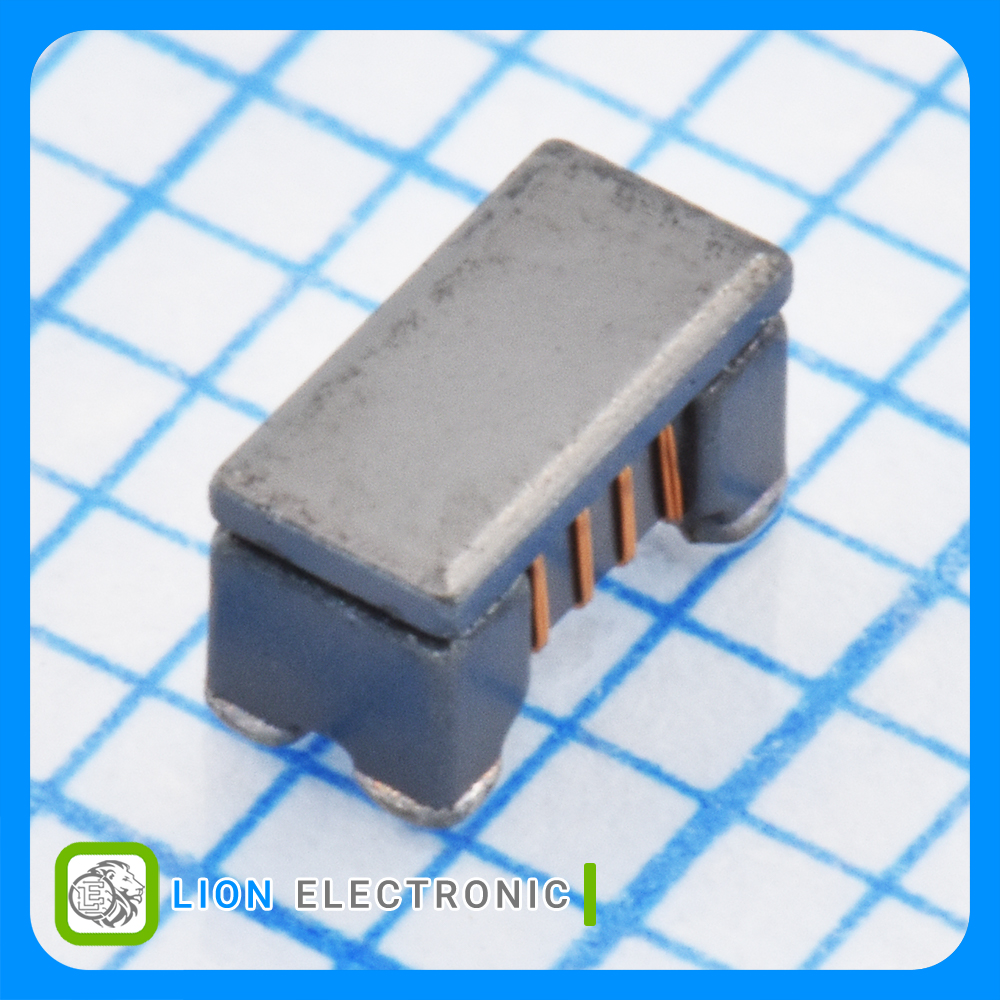

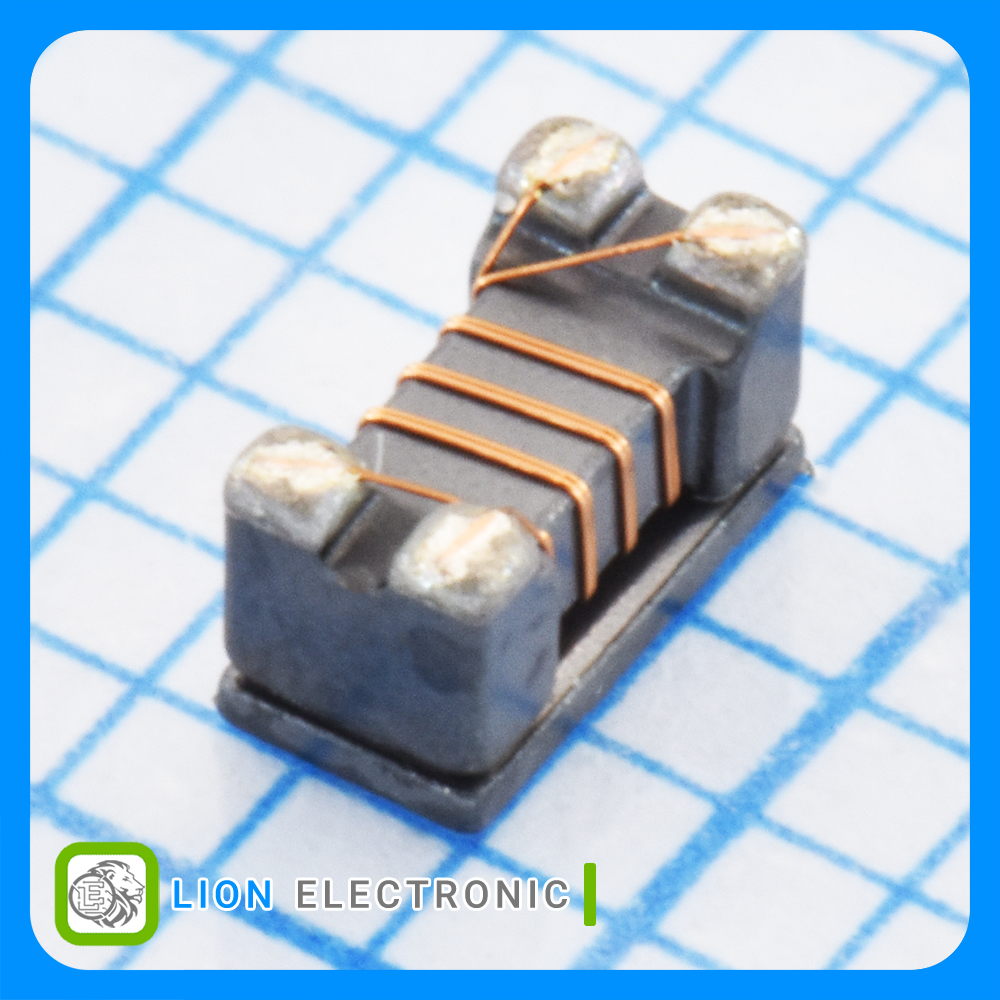

DLW31SN161SQ2L
DLW31SN161SQ2L
Part Number
2844
Lion Part
Datasheet
Murata Manufacturing Manufacture
چوکفیلتر مد مشترک 1 کاناله، امپدانس 160 اهم، ولتاژ 50 ولت، مقاومت DC برابر 400 میلیاهم با پکیج 1206
Common Mode Chokes / Filters 1 Channel, 160Ω Impedance, 50V, 400mΩ DC Resistance with 1206 Package
معرفی
چوکفیلتر مد مشترک 1 کاناله، امپدانس 160 اهم، ولتاژ 50 ولت، مقاومت DC برابر 400 میلیاهم با پکیج 1206
Common Mode Chokes / Filters 1 Channel, 160Ω Impedance, 50V, 400mΩ DC Resistance with 1206 Package
Specifications
- Product: Common Mode Chokes
- Number of Channels: 1
- Self Resonant Frequency: 10MHz
- Inductance: 255nH
- Impedance: 160Ω
- Maximum DC Current: 340mA
- Maximum DC Resistance: 400mΩ
- Termination style: SMD/SMT
- Mounting Style: PCB Mount
- Package/Case: 1206 (3216 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات فیلتر دوبل DLW31SN161SQ2L
فیلتر دوبل DLW31SN161SQ2L
Part Number
1
Number of Channels
10MHz
Self Resonant Frequency
Reel
Packaging
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
160Ω
Impedance
+85C
Maximum Operating Temperature
255nH
Inductance
Common Mode Chokes
Product
340mA
Maximum DC Current
1206 (3216 metric)
Package-Case
400mΩ
Maximum DC Resistance
