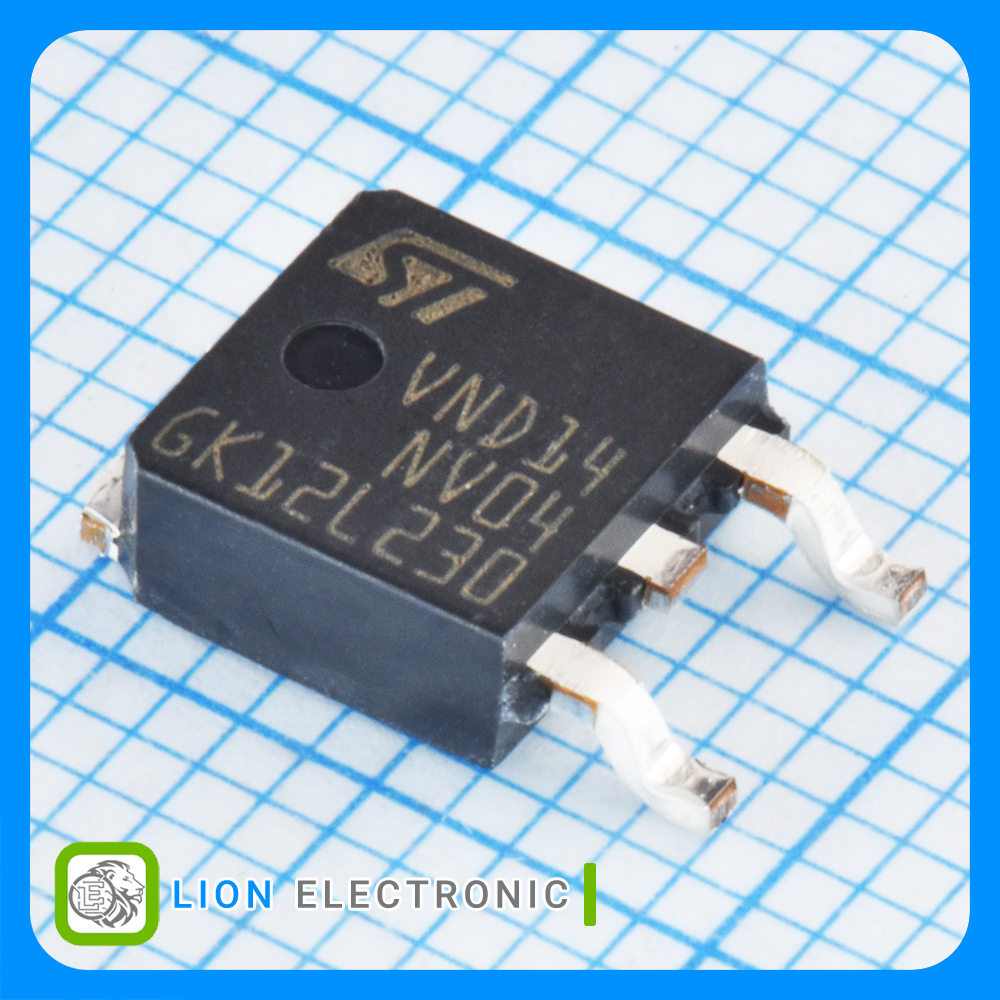

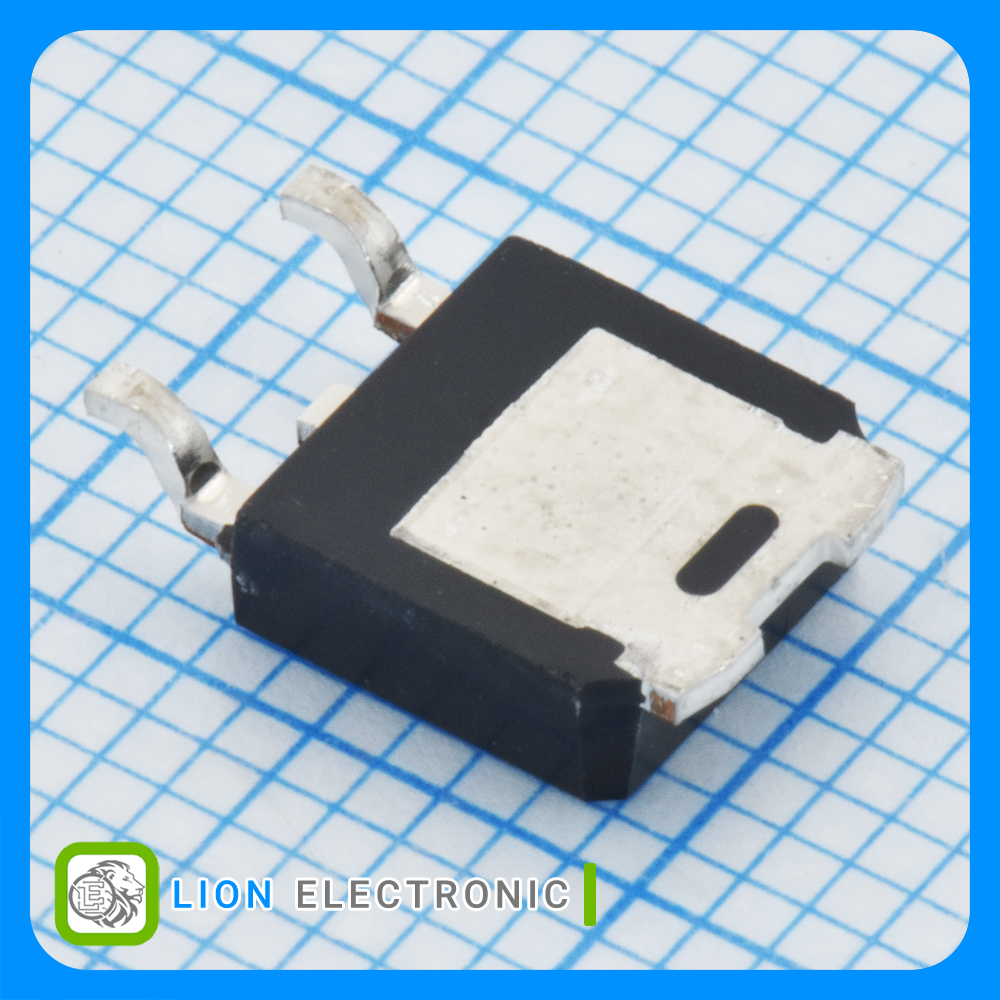

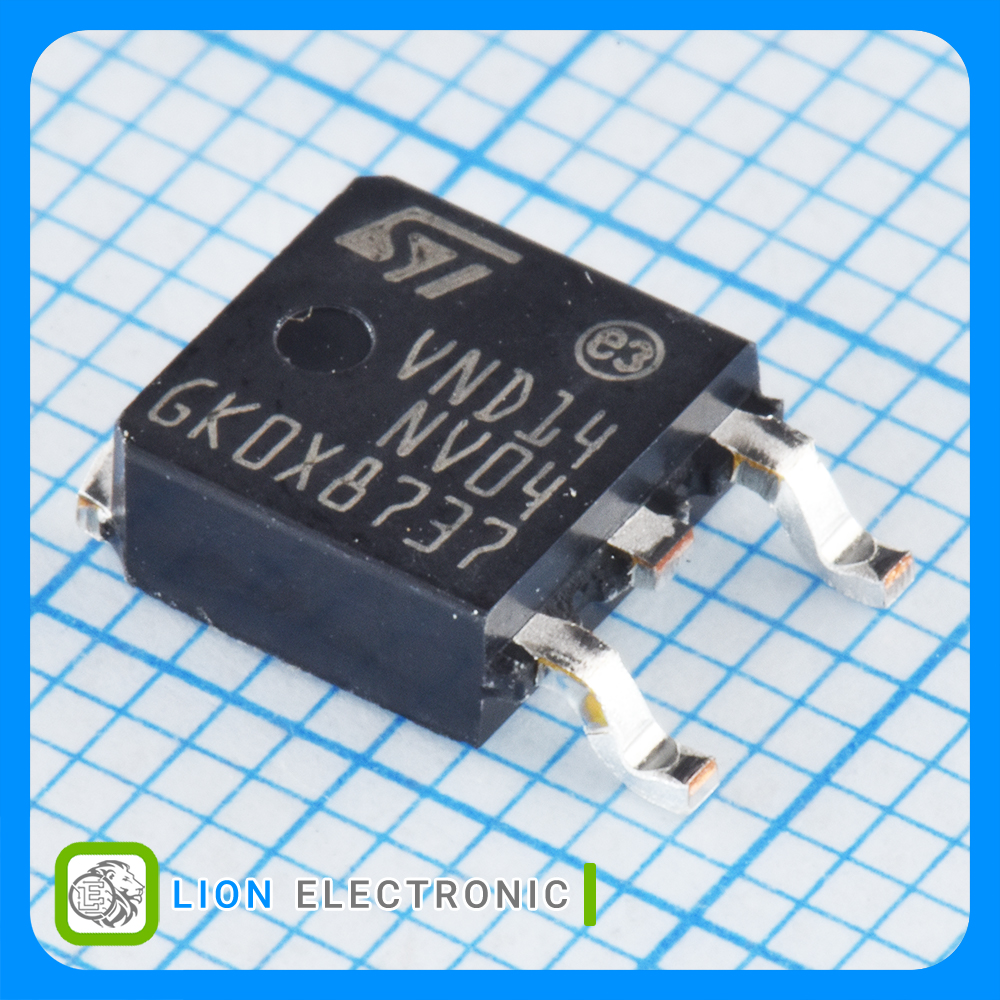

VND14NV04
VND14NV04
Part Number
3120
Lion Part
Datasheet
STMicroelectronics Manufacture
پاور سوئیچ هوشمند سمت پایین 1 کاناله 40 ولت 12 آمپر با پکیج DPAK، ماسفت N-Ch محافظتشده کامل
Smart Power Switch Low Side 1-Channel 40V, 12A with DPAK Package, Fully Autoprotected N-Channel MOSFET
معرفی
پاور سوئیچ هوشمند سمت پایین 1 کاناله 40 ولت 12 آمپر با پکیج DPAK، ماسفت N-Ch محافظتشده کامل
Smart Power Switch Low Side 1-Channel 40V, 12A with DPAK Package, Fully Autoprotected N-Channel MOSFET
Specifications
- Type: Low Side
- Interface Type: Parallel
- Number of Channels: 1
- Output Voltage: 40V
- Output Current: 12A
- Rds On - Drain - Source Resistance: 35mΩ
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 40V
- Package/Case: DPAK
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
مشخصات پاور سوییچ VND14NV04

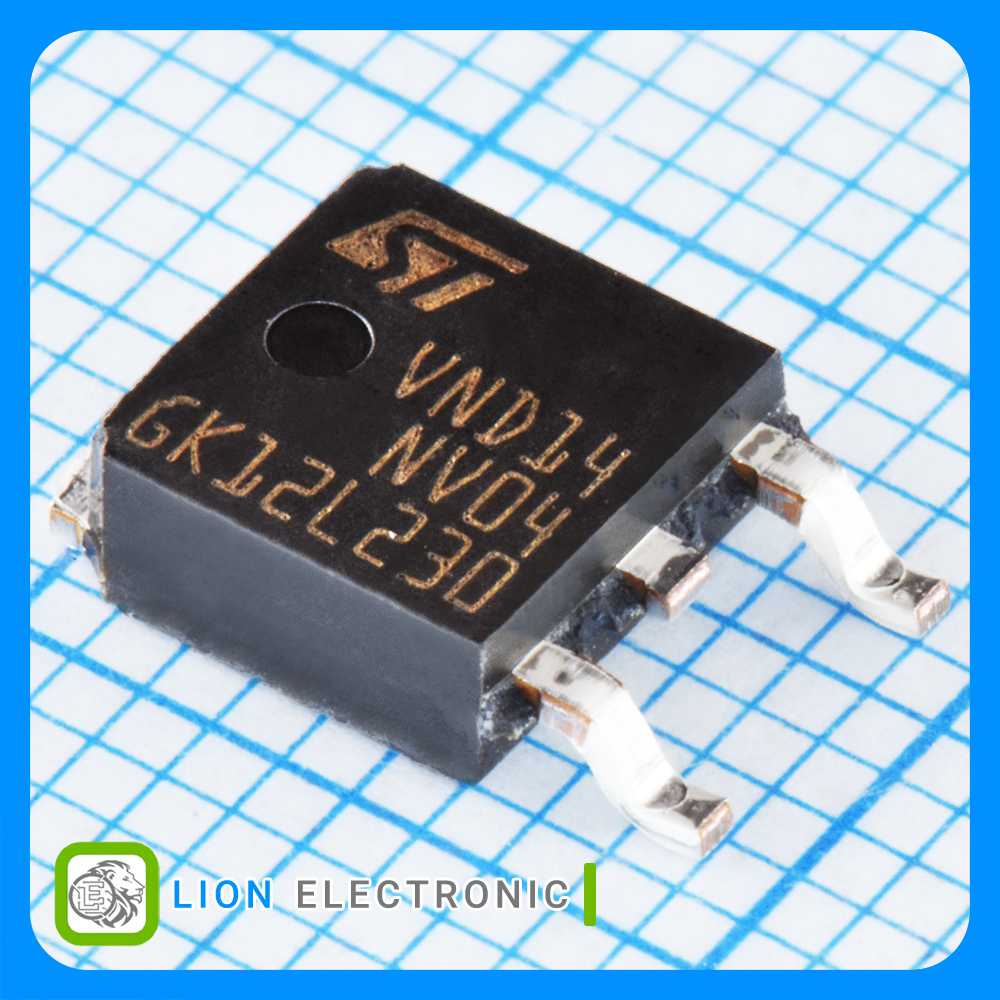

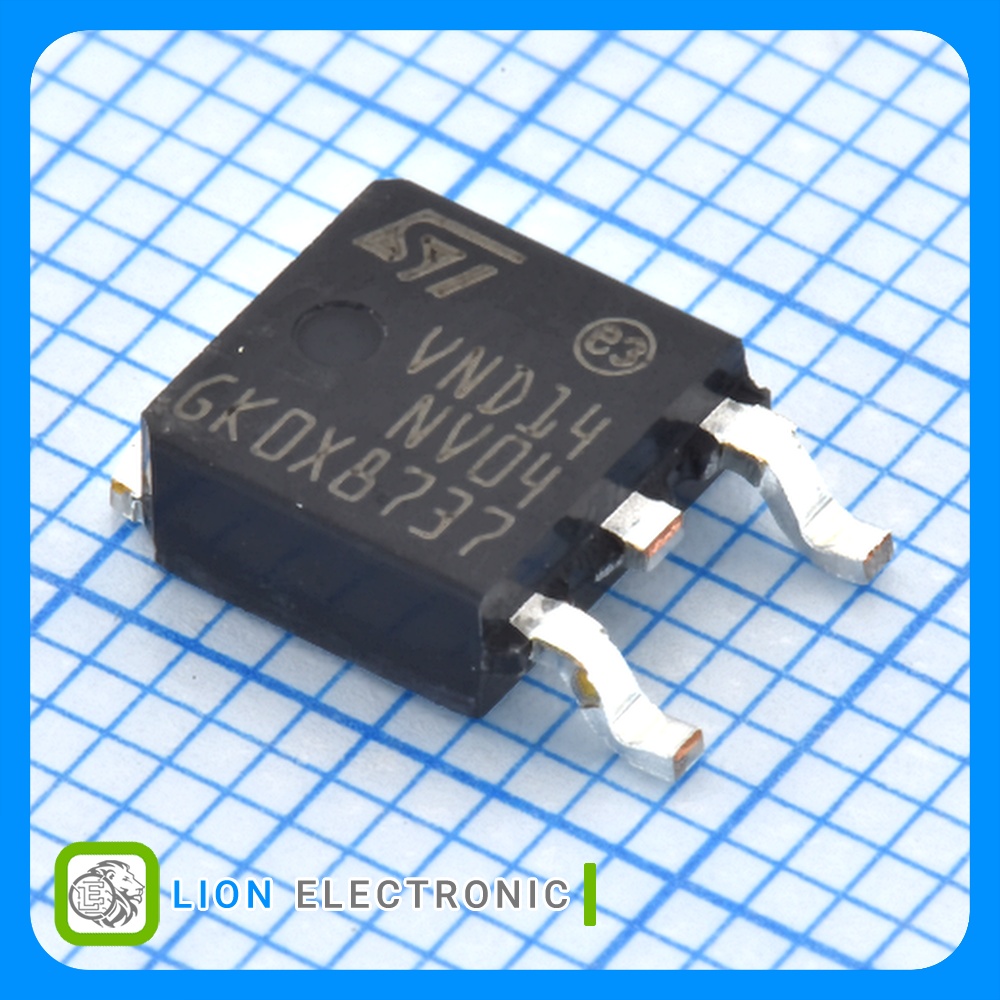

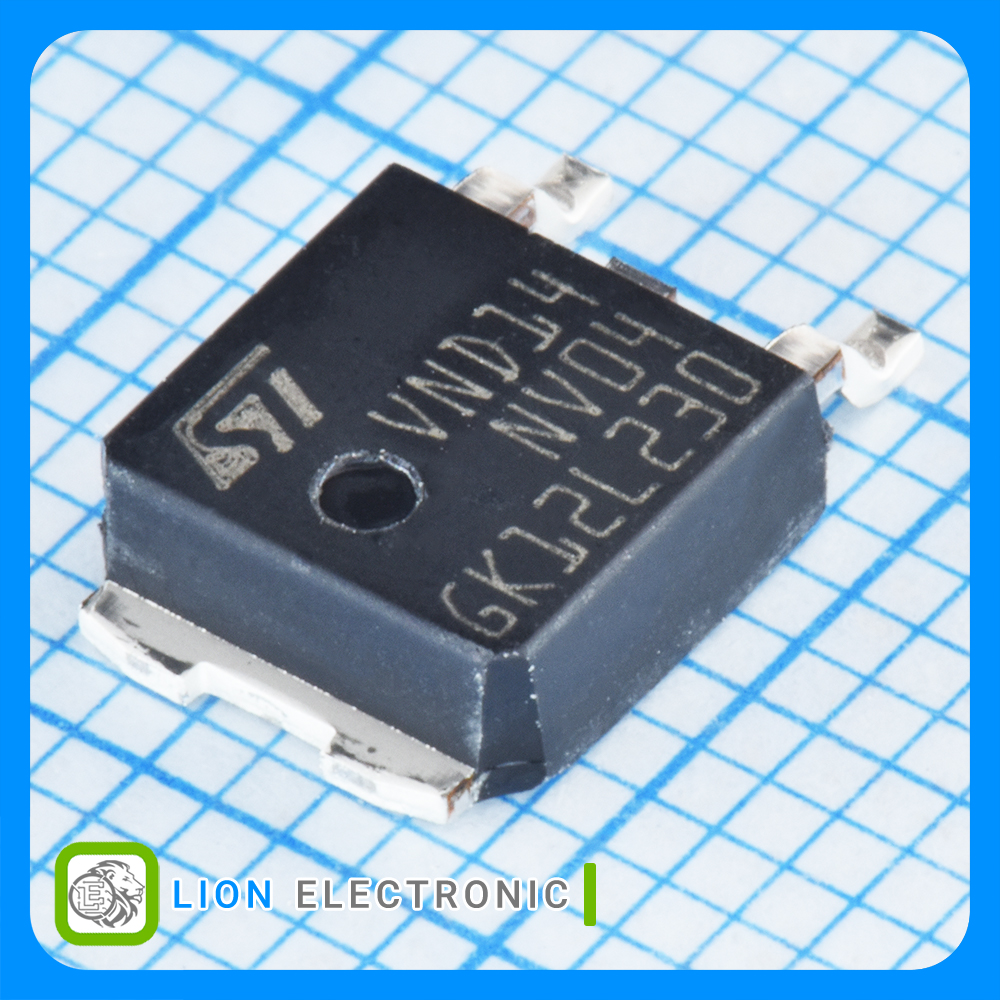

پاور سوییچ VND14NV04
Part Number
1
Number of Drivers
1
Number of Channels
-55C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
3V3 , 5V
Input Voltage
+150C
Maximum Operating Temperature
Single
Configuration
N/A
Current Limit
100uA
Operating Supply Current
N/A
Propagation Delay - Max
150ns
Fall Time
350ns
Rise Time
36V
Supply Voltage - Max
Low Side
Type
Power Switches
Product
35mΩ
Rds On - Drain - Source Resistance
12A
Output Current
DPAK
Package-Case
Parallel
Interface Type
74W
Pd - Power Dissipation
40V
Output Voltage
40V
Operating Supply Voltage
