YFW
معرفی
دیود فست 600 ولت 10 آمپر زمان بازیابی 35 نانوثانیه با پکیج TO-220F-AC
Fast Diode 600V, 10A with 35ns Recovery Time and TO-220F-AC Package
Specifications
- Configuration: Single
- Recovery Time: 35ns
- Vr - Reverse Voltage: 600V
- If - Forward Current: 10A
- Max Surge Current: 100A
- Vf - Forward Voltage: 1.03V
- Ir - Reverse Current: 50nA
- Mounting Style: Through Hole
- Package/Case: TO-220F-AC
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات دیود فست MUR1060FAC

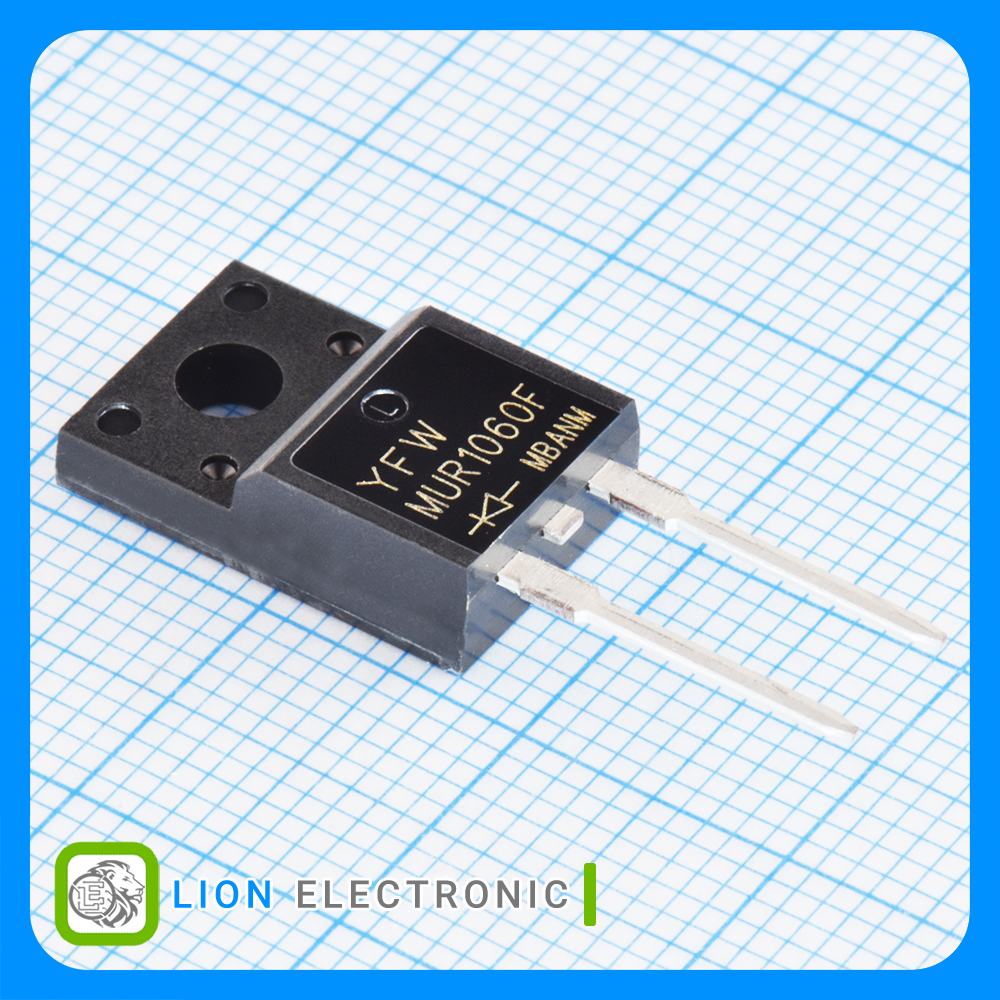

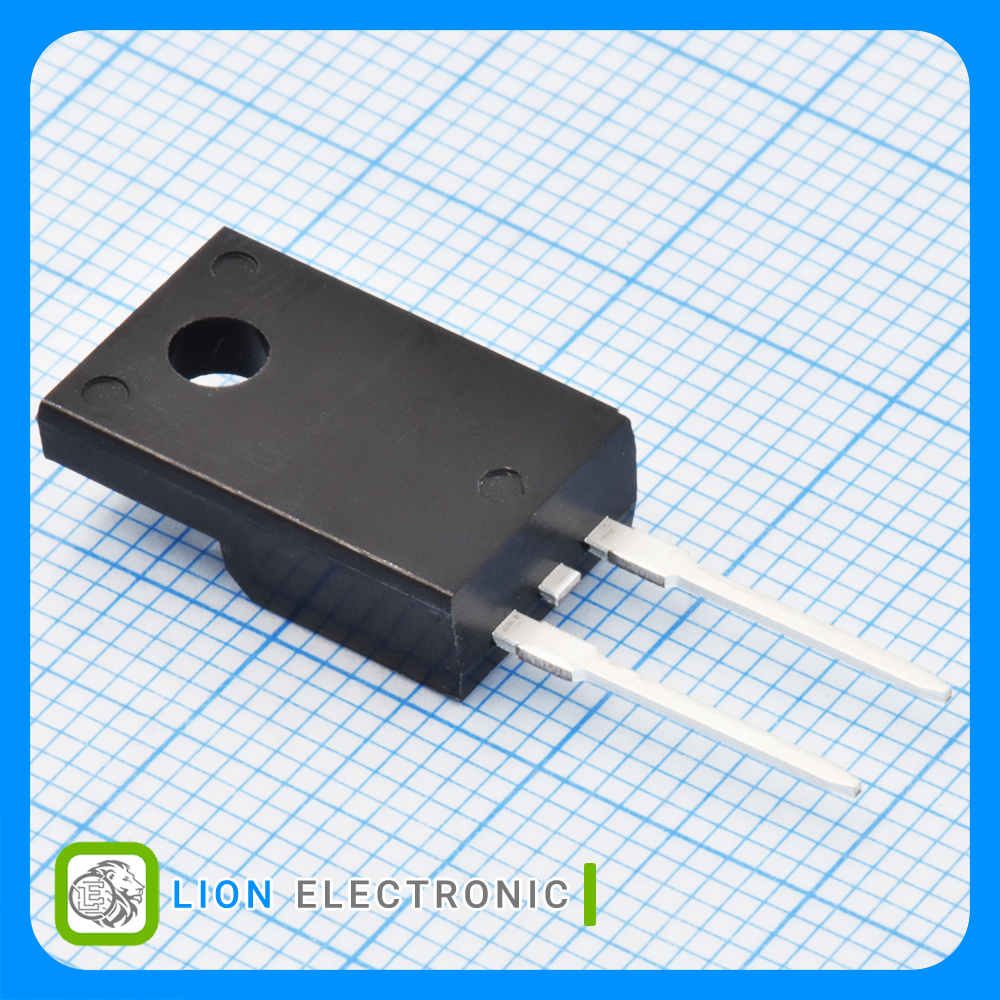

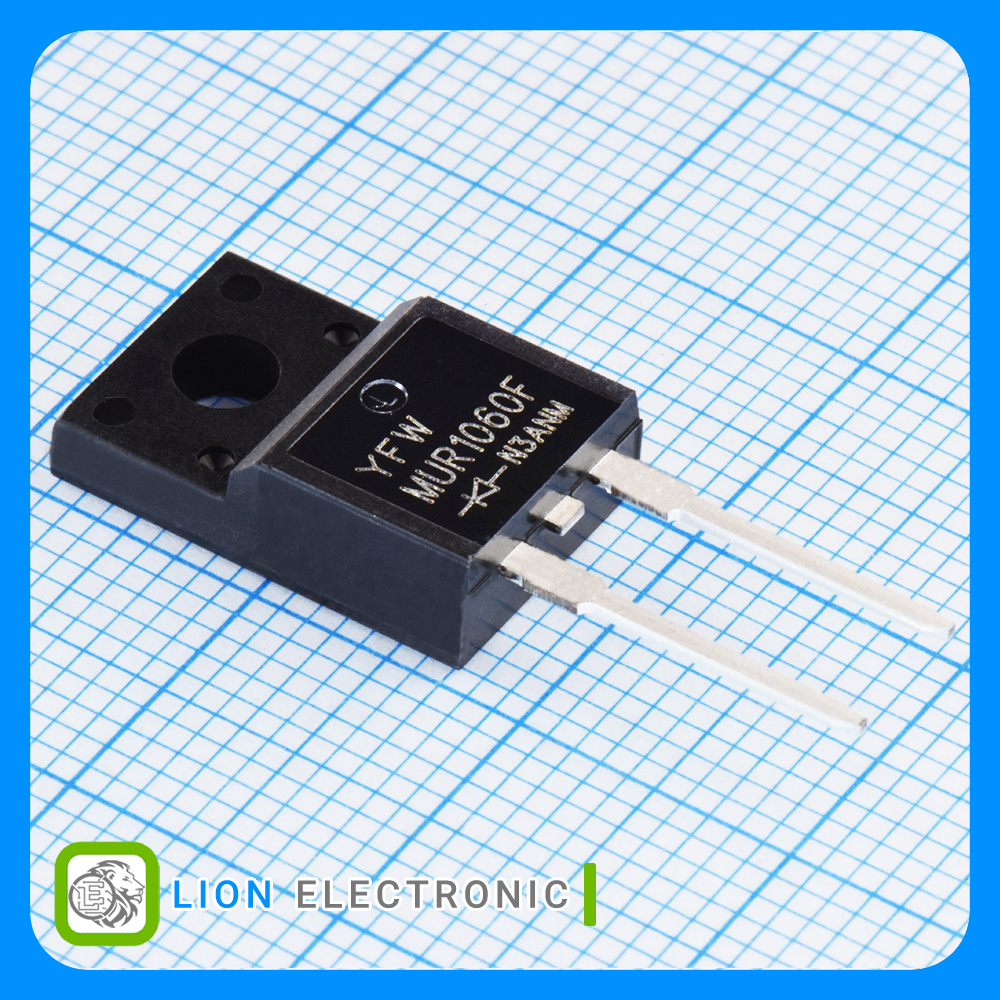

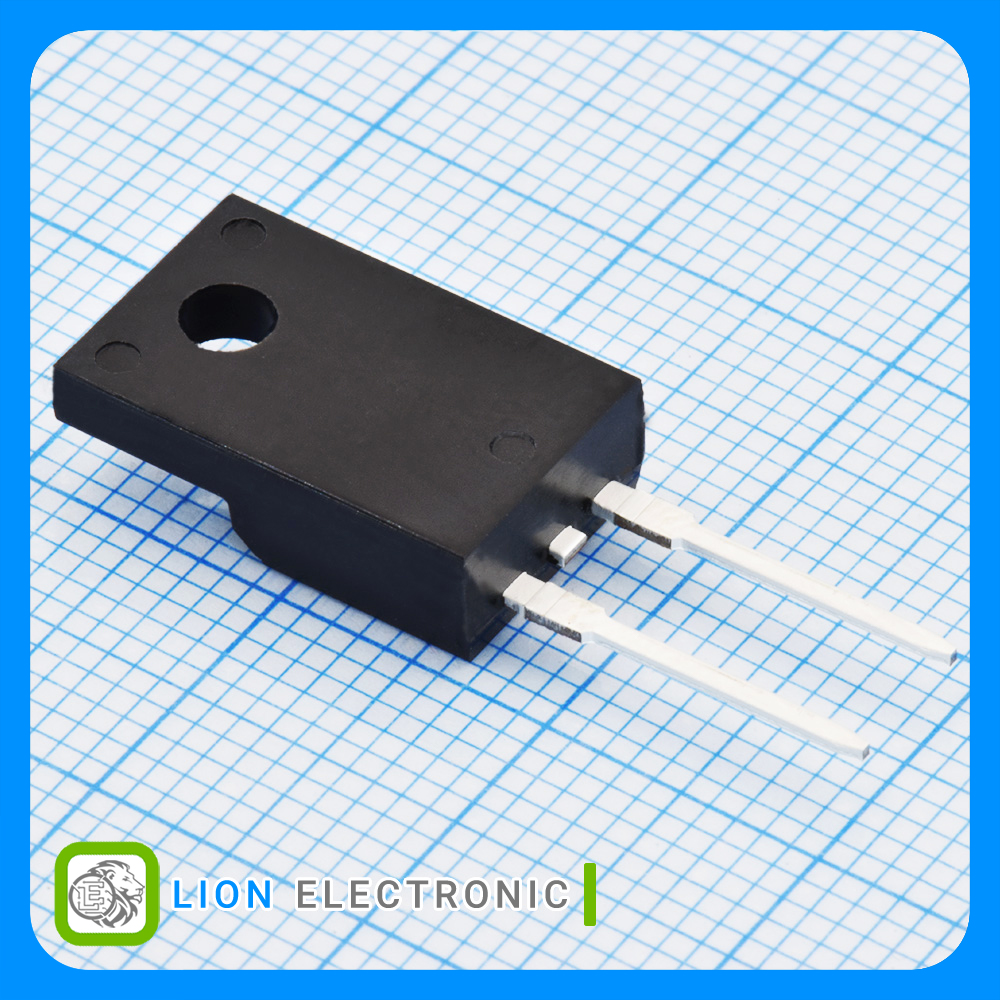

دیود فست MUR1060FAC
Part Number
50nA
Ir - Reverse Current
-40C
Minimum Operating Temperature
35ns
Recovery Time
Tube
Packaging
Through Hole
Mounting Style
600V
Vr - Reverse Voltage
100A
Max Surge Current
+150C
Maximum Operating Temperature
Single
Configuration
1.03V
Vf - Forward Voltage
10A
If - Forward Current
TO-220
Package-Case
