STTH112U
STTH112U
Part Number
3484
Lion Part
Datasheet
STMicroelectronics Manufacture
دیود فست 1200 ولت (1.2 کیلوولت) 1 آمپر با زمان بازیابی 75 نانوثانیه و پکیج SMB

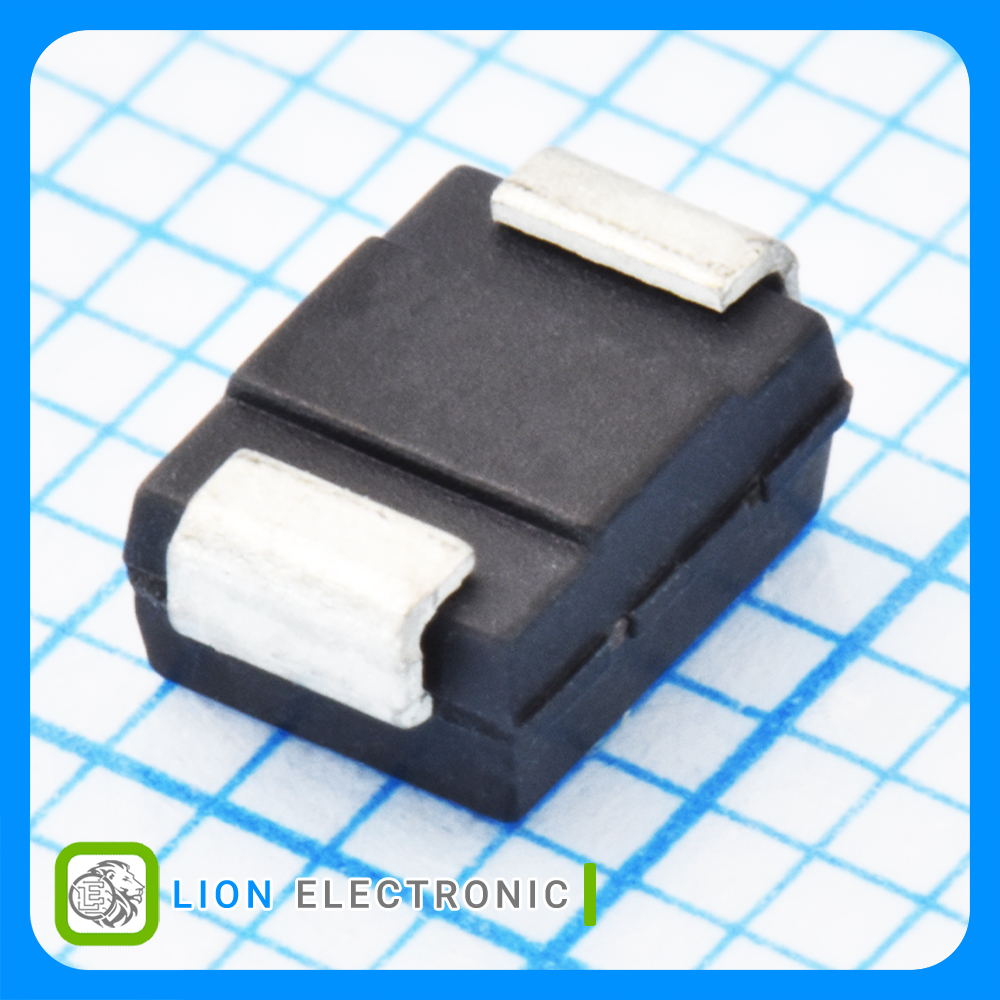

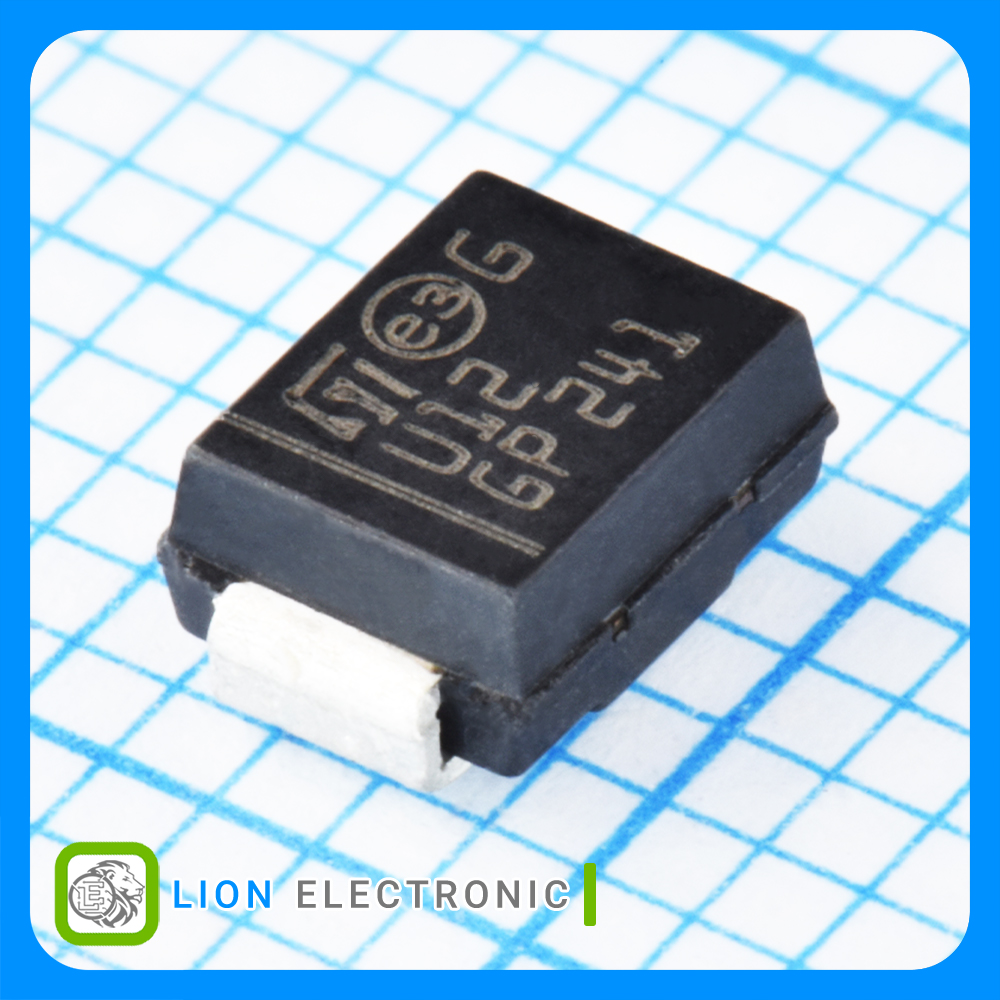

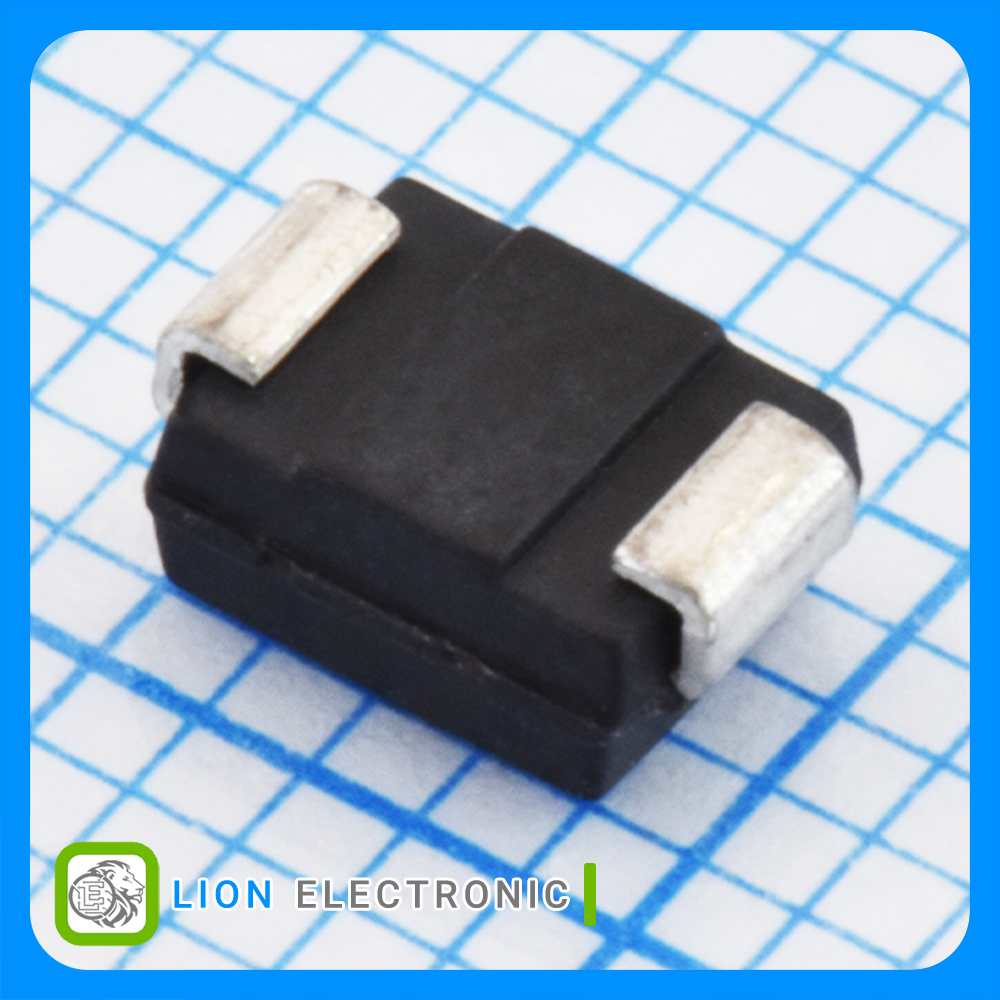

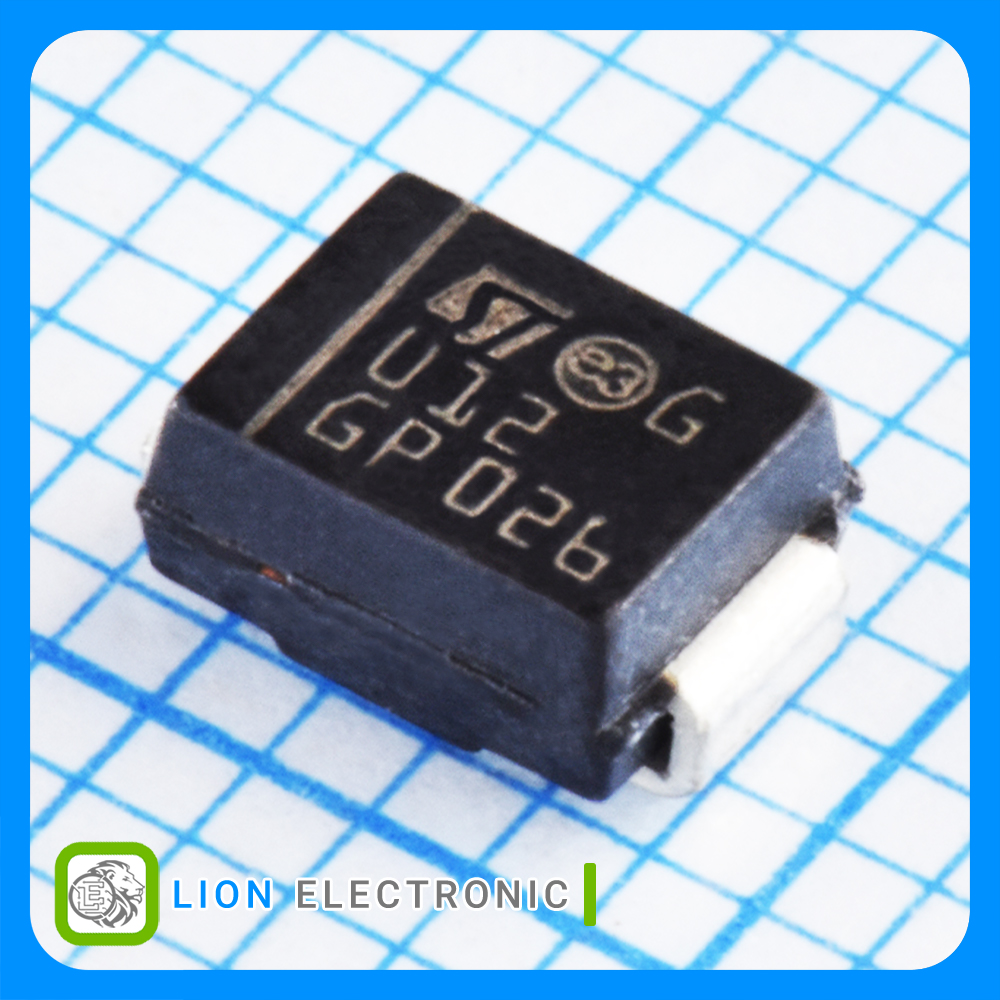

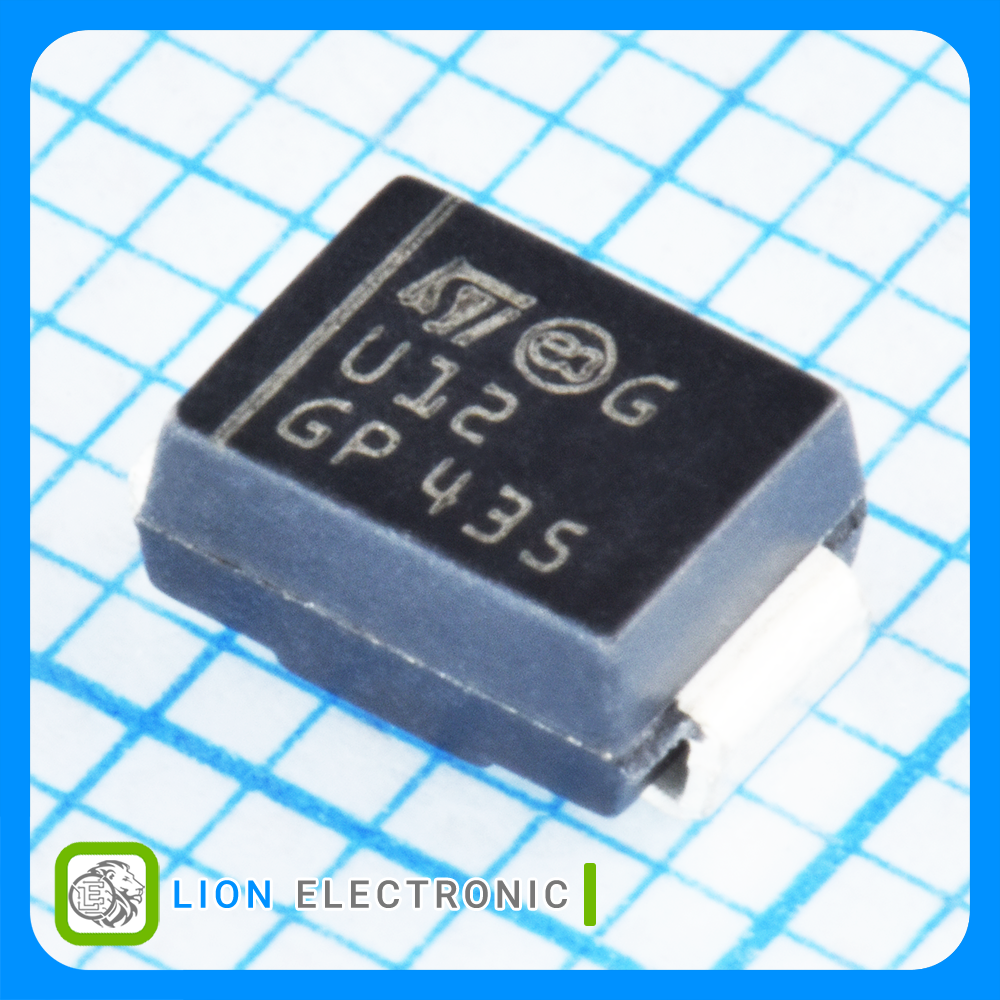

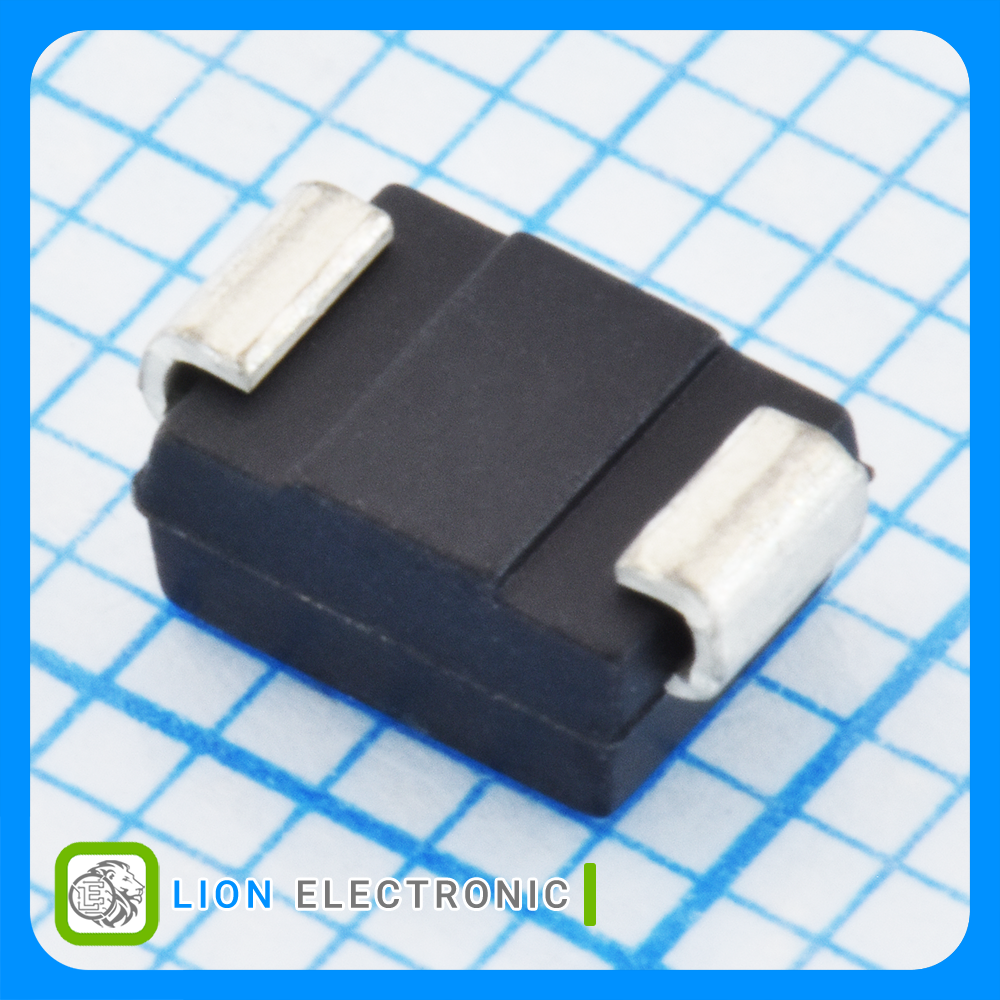

Fast Diode 1200V (1.2kV), 1A with 75ns Recovery Time and SMB Package
معرفی
دیود فست 1200 ولت (1.2 کیلوولت) 1 آمپر با زمان بازیابی 75 نانوثانیه و پکیج SMB
Fast Diode 1200V (1.2kV), 1A with 75ns Recovery Time and SMB Package
Specifications
- Configuration: Single
- Recovery Time: 75ns
- Vr - Reverse Voltage: 1.2kV
- If - Forward Current: 1A
- Max Surge Current: 18A
- Vf - Forward Voltage: 1.9V
- Ir - Reverse Current: 5uA
- Mounting Style: SMD/SMT
- Package/Case: SMB
- Minimum Operating Temperature: -50C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات دیود اولترا فست STTH112U
دیود اولترا فست STTH112U
Part Number
-50C
Minimum Operating Temperature
18A
Max Surge Current
Reel
Packaging
1.2kV
Peak Reverse Voltage
5uA
Ir - Reverse Current
SMD/SMT
Mounting Style
75ns
Recovery Time
1.2kV
Vr - Reverse Voltage
+175C
Maximum Operating Temperature
Single
Configuration
1A
If - Forward Current
Fast Recovery Rectifiers
Type
1.9V
Vf - Forward Voltage
