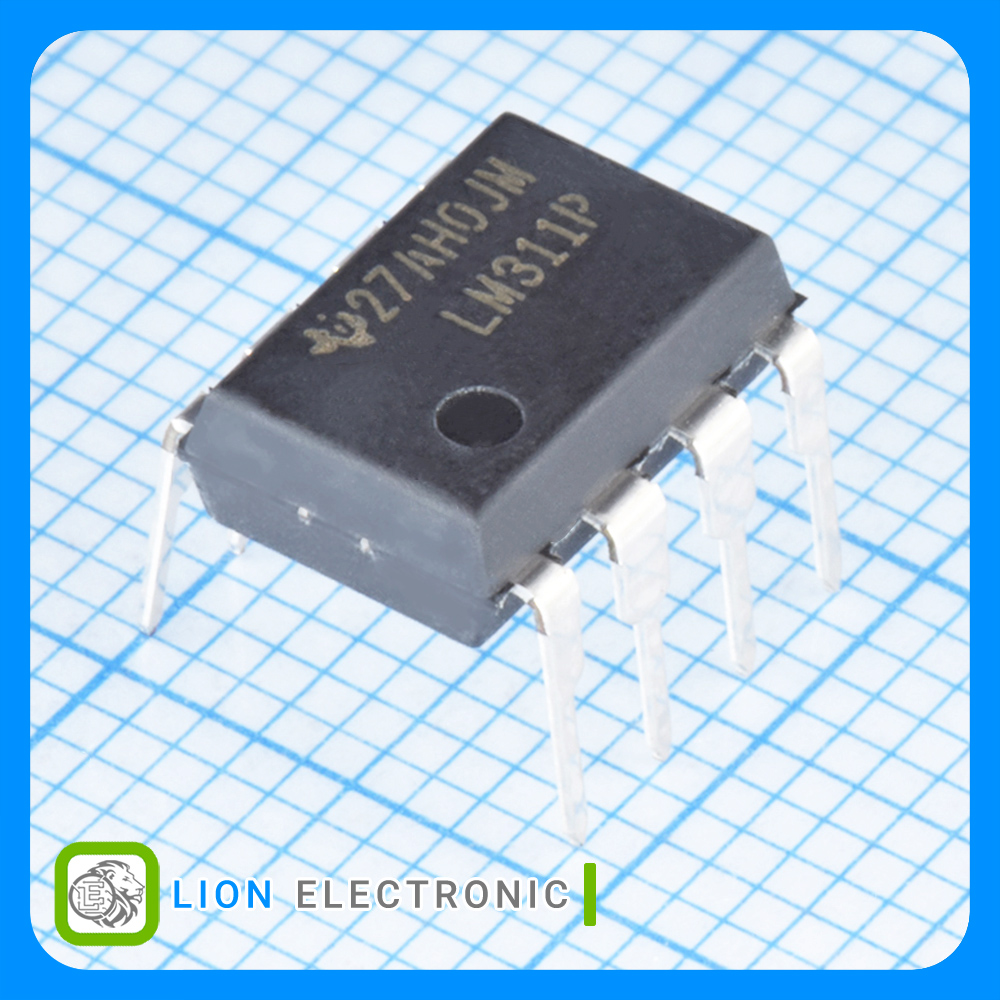

LM311P
LM311P
Part Number
381
Lion Part
Datasheet
Texas Instruments Manufacture
مقایسهکننده آنالوگ 1 کاناله تفاضلی آفست 7.5 میلیولت جریان بایاس 250 نانوآمپر با پکیج PDIP-8
Analog Comparator 1 Channel Differential 7.5mV 250nA with PDIP-8 Package
معرفی
مقایسهکننده آنالوگ 1 کاناله تفاضلی آفست 7.5 میلیولت جریان بایاس 250 نانوآمپر با پکیج PDIP-8
Analog Comparator 1 Channel Differential 7.5mV 250nA with PDIP-8 Package
Specifications
- Number of Channels: 1
- Comparator Type: Differential
- Response Time: 115ns
- Output Current per Channel: 50mA
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 7.5mV
- Output Type: Open Collector, Open Drain
- Supply Voltage - Min: 3.5V
- Supply Voltage - Max: 30V
- Operating Supply Current: 7.5mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات مقایسه کننده آنالوگ LM311P
مقایسه کننده آنالوگ LM311P
Part Number
1
Number of Channels
Differential
Comparator Type
115ns
Response Time
+70C
Maximum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
Open Collector, Open Drain
Output Type
50mA
Output Current per Channel
3.5V
Supply Voltage - Min
250nA
Ib - Input Bias Current
7.5mV
Vos - Input Offset Voltage
30V
Supply Voltage - Max
DIP-8
Package-Case
7.5mA
Operating Supply Current
