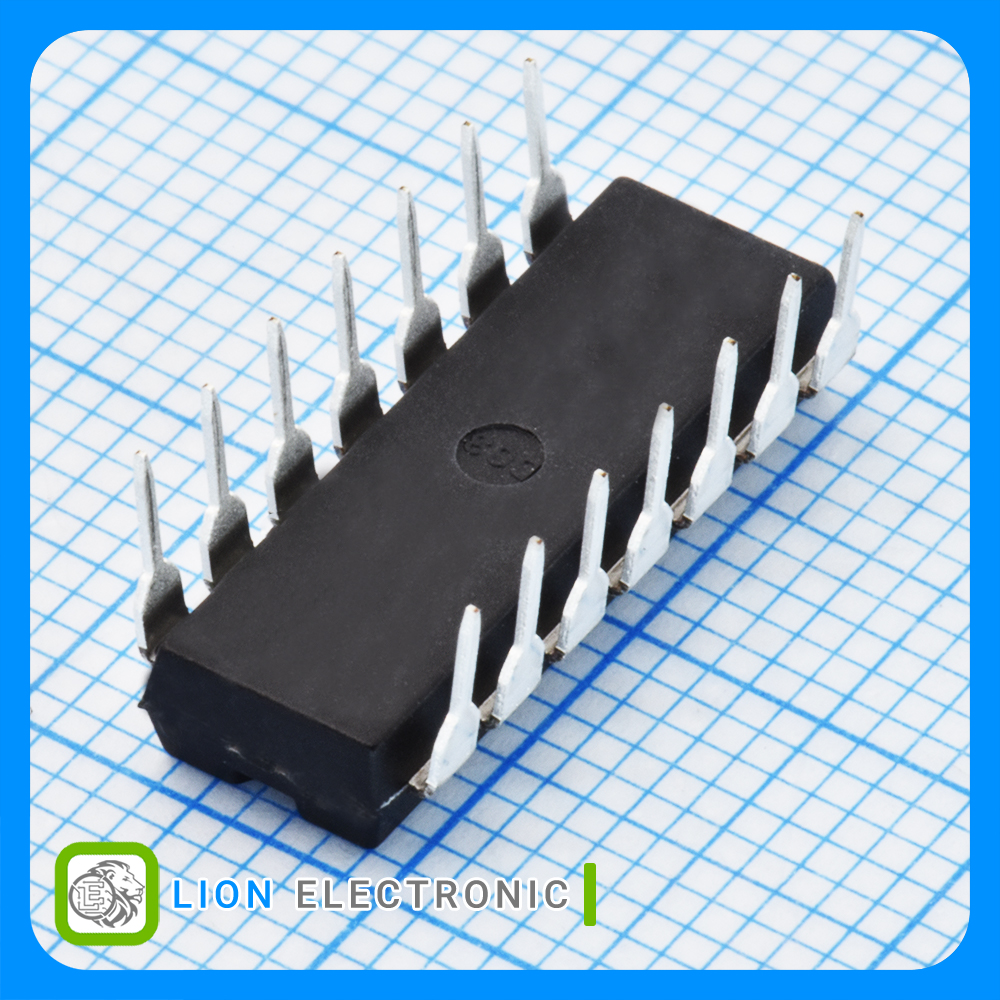

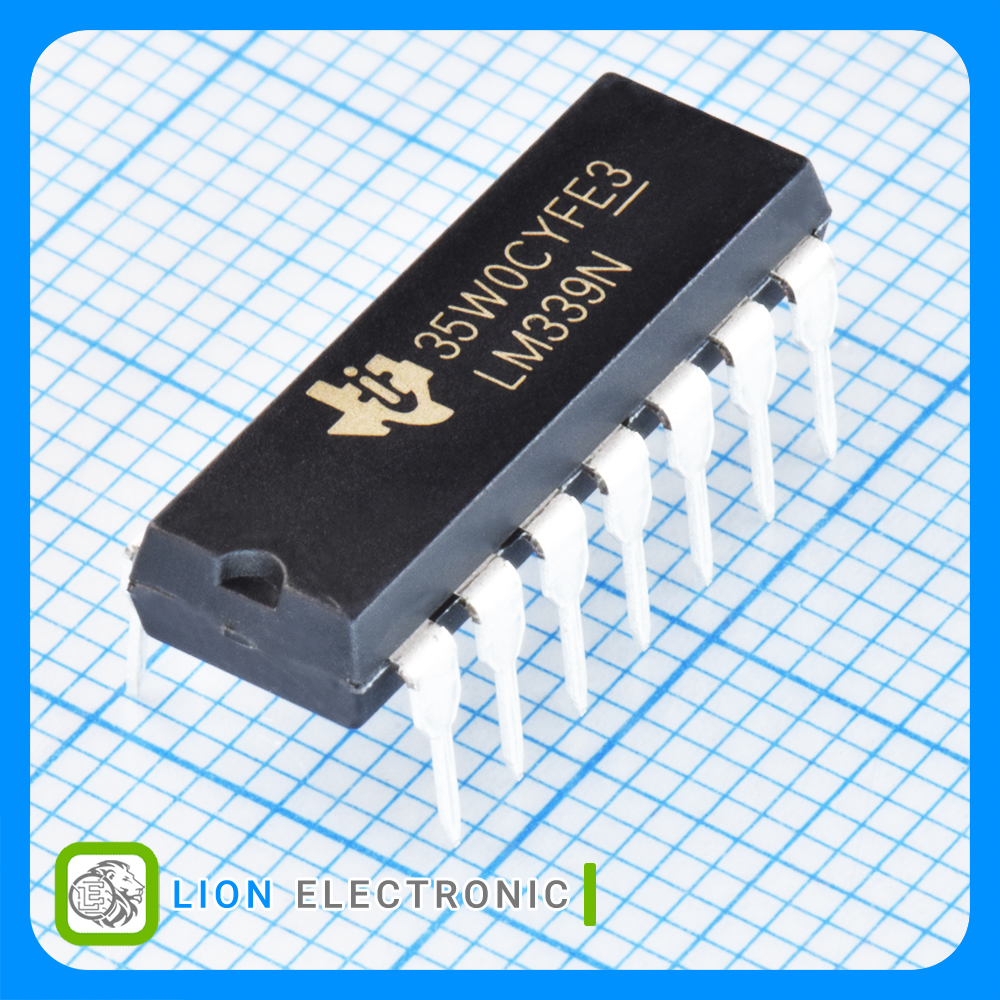

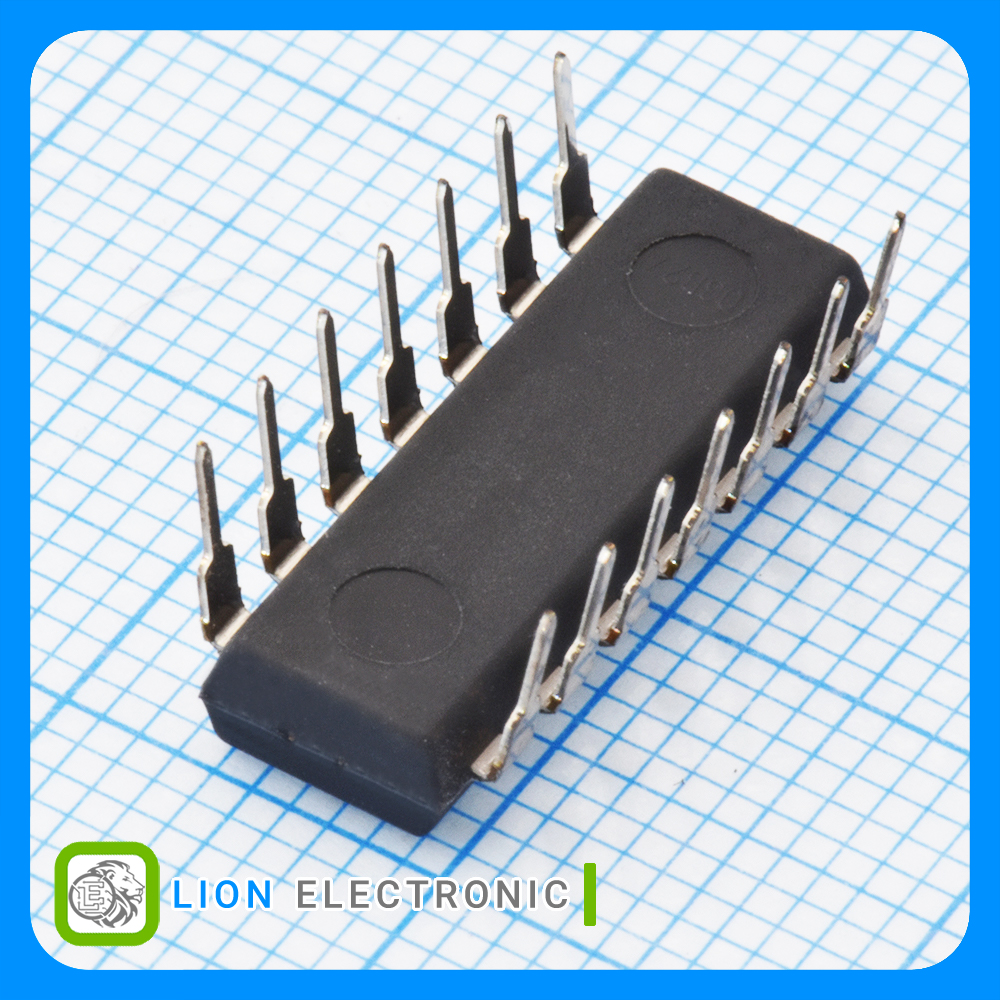

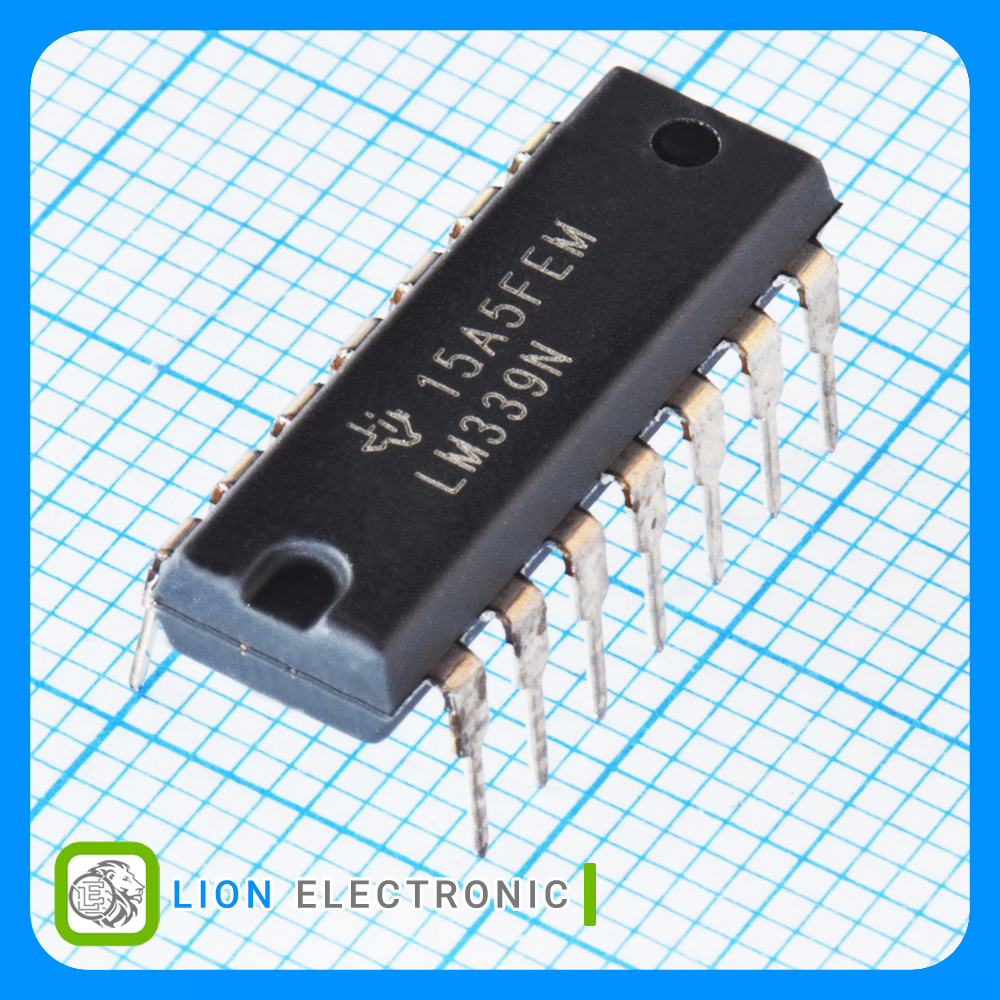

LM339N
LM339N
Part Number
384
Lion Part
Datasheet
Texas Instruments Manufacture
مقایسهکننده آنالوگ 4 کاناله تفاضلی آفست 5 میلیولت جریان بایاس 250 نانوآمپر با پکیج PDIP-14
Analog Comparator 4 Channel Differential 5mV 250nA with PDIP-14 Package
معرفی
مقایسهکننده آنالوگ 4 کاناله تفاضلی آفست 5 میلیولت جریان بایاس 250 نانوآمپر با پکیج PDIP-14
Analog Comparator 4 Channel Differential 5mV 250nA with PDIP-14 Package
Specifications
- Number of Channels: 4
- Comparator Type: Differential
- Response Time: 1.3us
- Output Current per Channel: 6mA
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 5mV
- Output Type: Open Collector
- Supply Voltage - Min: 2V
- Supply Voltage - Max: 30V
- Operating Supply Current: 2mA
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات مقایسه کننده آنالوگ LM339N

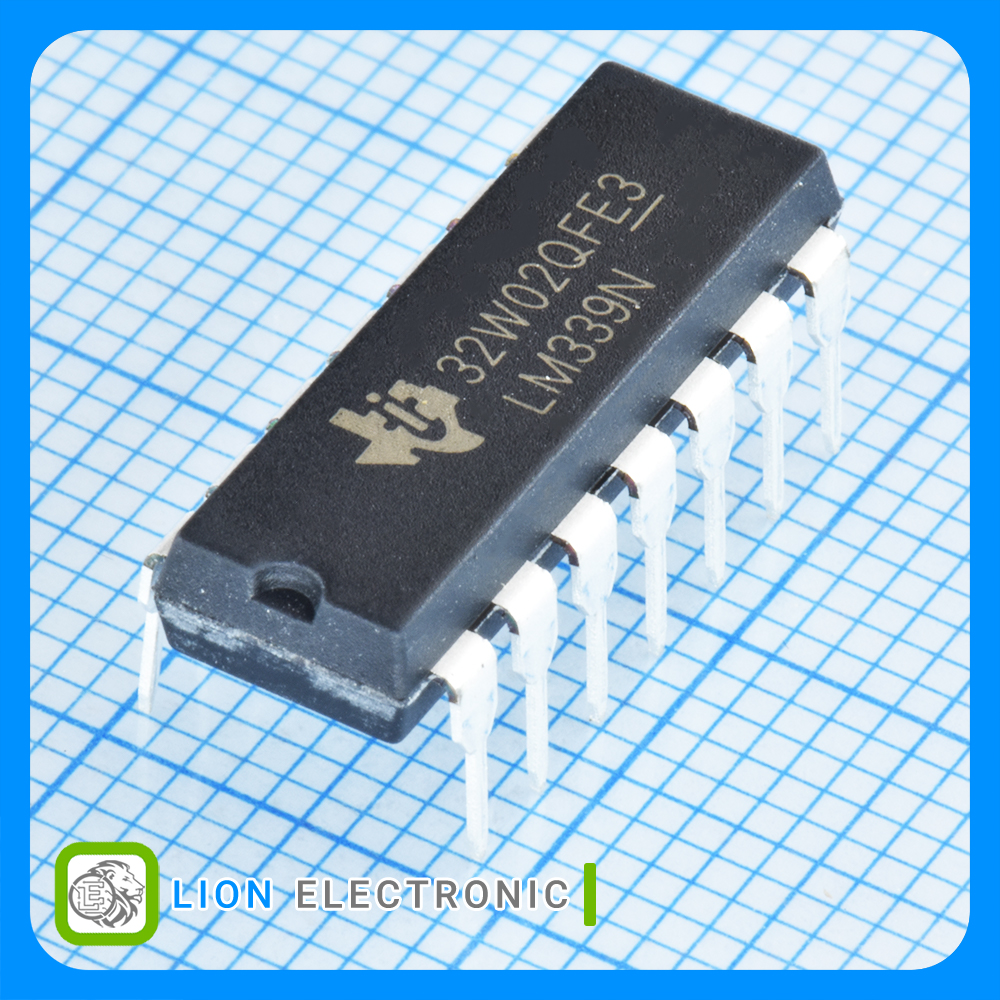

مقایسه کننده آنالوگ LM339N
Part Number
Differential
Comparator Type
+70C
Maximum Operating Temperature
4
Number of Channels
6mA
Output Current per Channel
Tube
Packaging
1.3us
Response Time
Through Hole
Mounting Style
0C
Minimum Operating Temperature
Open Collector
Output Type
2V
Supply Voltage - Min
5mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
30V
Supply Voltage - Max
DIP-14
Package-Case
2mA
Operating Supply Current
