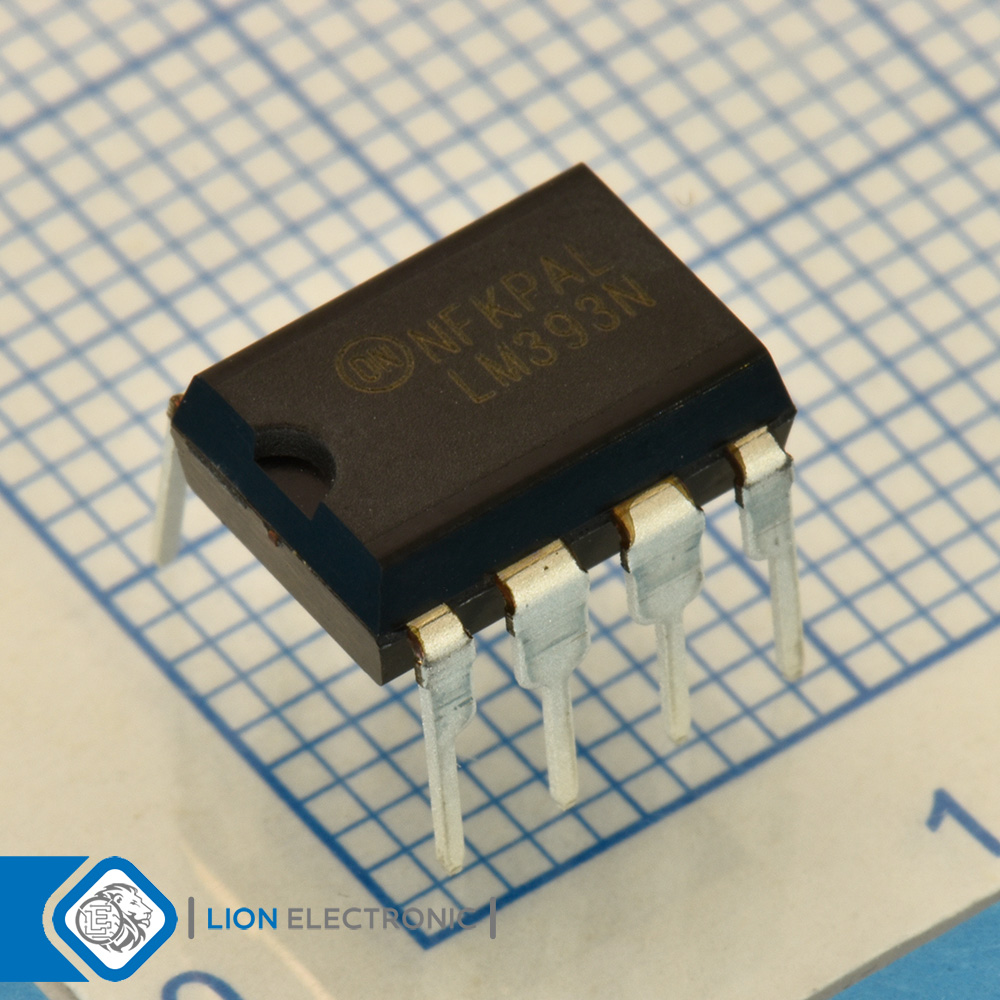

LM393N
LM393N
Part Number
386
Lion Part
Datasheet
ON Semiconductor Manufacture
مقایسهکننده آنالوگ 2 کاناله همهمنظوره آفست 5 میلیولت جریان بایاس 250 نانوآمپر با پکیج PDIP-8
Analog Comparator 2 Channel General Purpose 5mV 250nA with PDIP-8 Package
معرفی
مقایسهکننده آنالوگ 2 کاناله همهمنظوره آفست 5 میلیولت جریان بایاس 250 نانوآمپر با پکیج PDIP-8
Analog Comparator 2 Channel General Purpose 5mV 250nA with PDIP-8 Package
Specifications
- Number of Channels: 2
- Comparator Type: General Purpose
- Response Time: 1.3us
- Output Current per Channel: 18mA
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 5mV
- Output Type: Open Collector
- Supply Voltage - Min: 2V
- Supply Voltage - Max: 36V
- Operating Supply Current: 2mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات مقایسه کننده آنالوگ LM393N
مقایسه کننده آنالوگ LM393N
Part Number
2
Number of Channels
General Purpose
Comparator Type
+70C
Maximum Operating Temperature
Tube
Packaging
1.3us
Response Time
Through Hole
Mounting Style
18mA
Output Current per Channel
0C
Minimum Operating Temperature
Open Collector
Output Type
2V
Supply Voltage - Min
5mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
36V
Supply Voltage - Max
DIP-8
Package-Case
2mA
Operating Supply Current
