UMW
معرفی
مقایسهکننده آنالوگ 2 کاناله همهمنظوره آفست 5 میلیولت با پکیج SOIC-8
Analog Comparator Dual General Purpose 5mV 250nA with SOIC-8 Package
Specifications
- Number of Channels: 2
- Comparator Type: General Purpose
- Response Time: 1.3us
- Output Current per Channel: 20mA
- Output Type: Open Collector
- Supply Voltage - Min: 2V
- Ib - Input Bias Current: 25nA
- Vos - Input Offset Voltage: 5mV
- Supply Voltage - Max: 30V
- Operating Supply Current: 400uA
- Package/Case: SOIC-8
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات مقایسه کننده آنالوگ LM2903DR

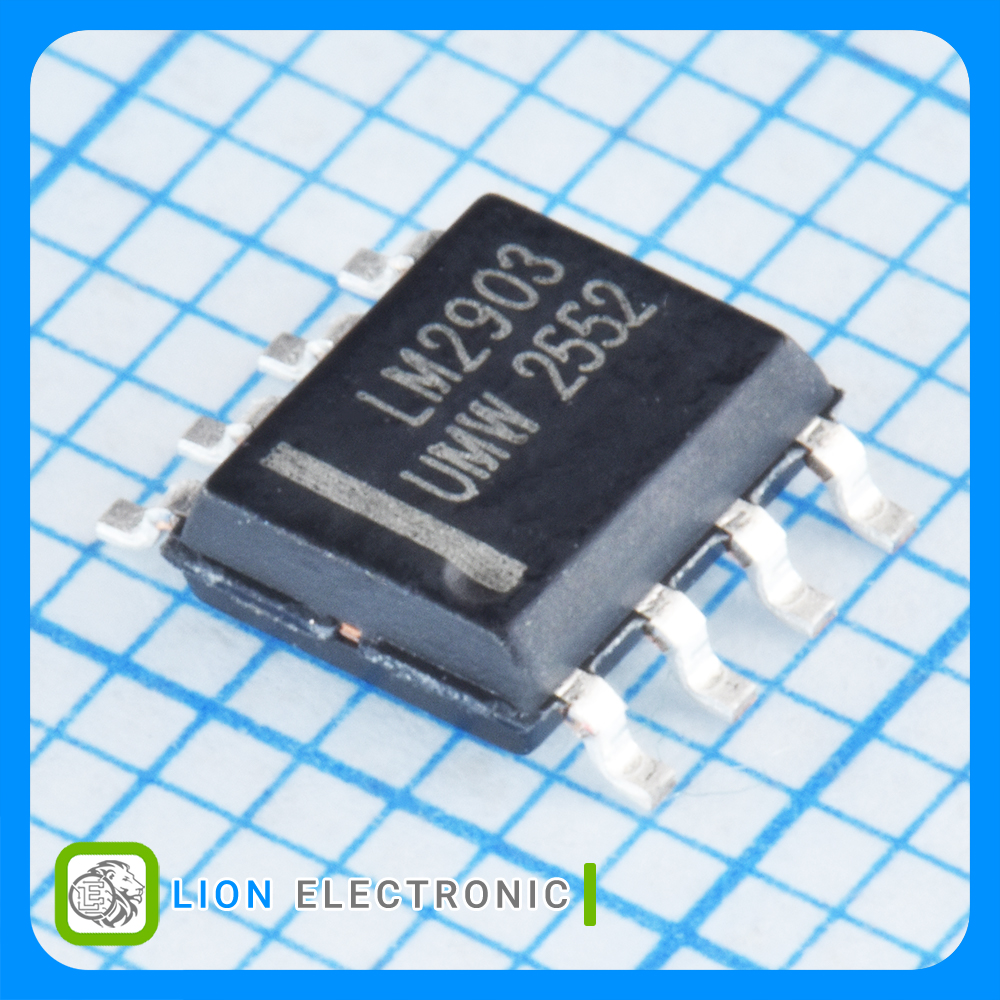

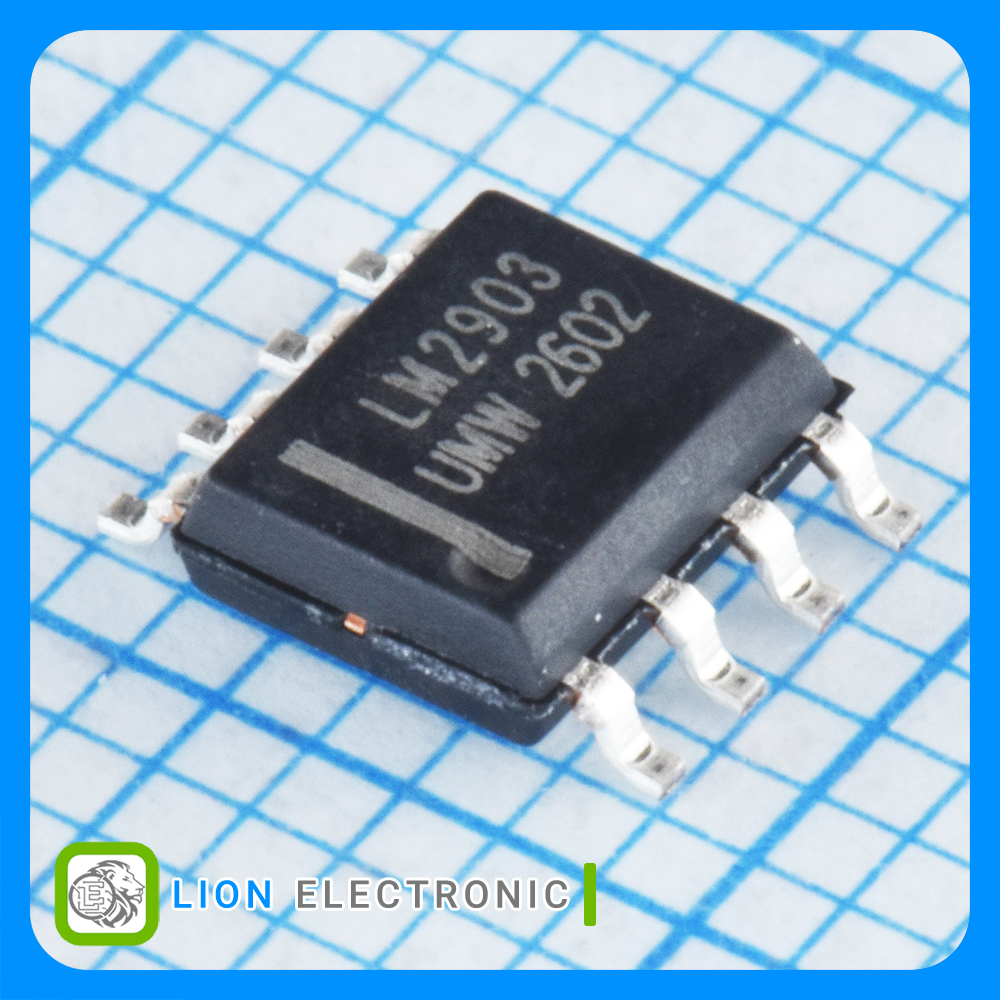

مقایسه کننده آنالوگ LM2903DR
Part Number
General Purpose
Comparator Type
2
Number of Channels
+70C
Maximum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
1.3us
Response Time
0C
Minimum Operating Temperature
20mA
Output Current per Channel
Open Collector
Output Type
2V
Supply Voltage - Min
25nA
Ib - Input Bias Current
5mV
Vos - Input Offset Voltage
30V
Supply Voltage - Max
400uA
Operating Supply Current
SOIC-8
Package-Case
