MYIR Tech

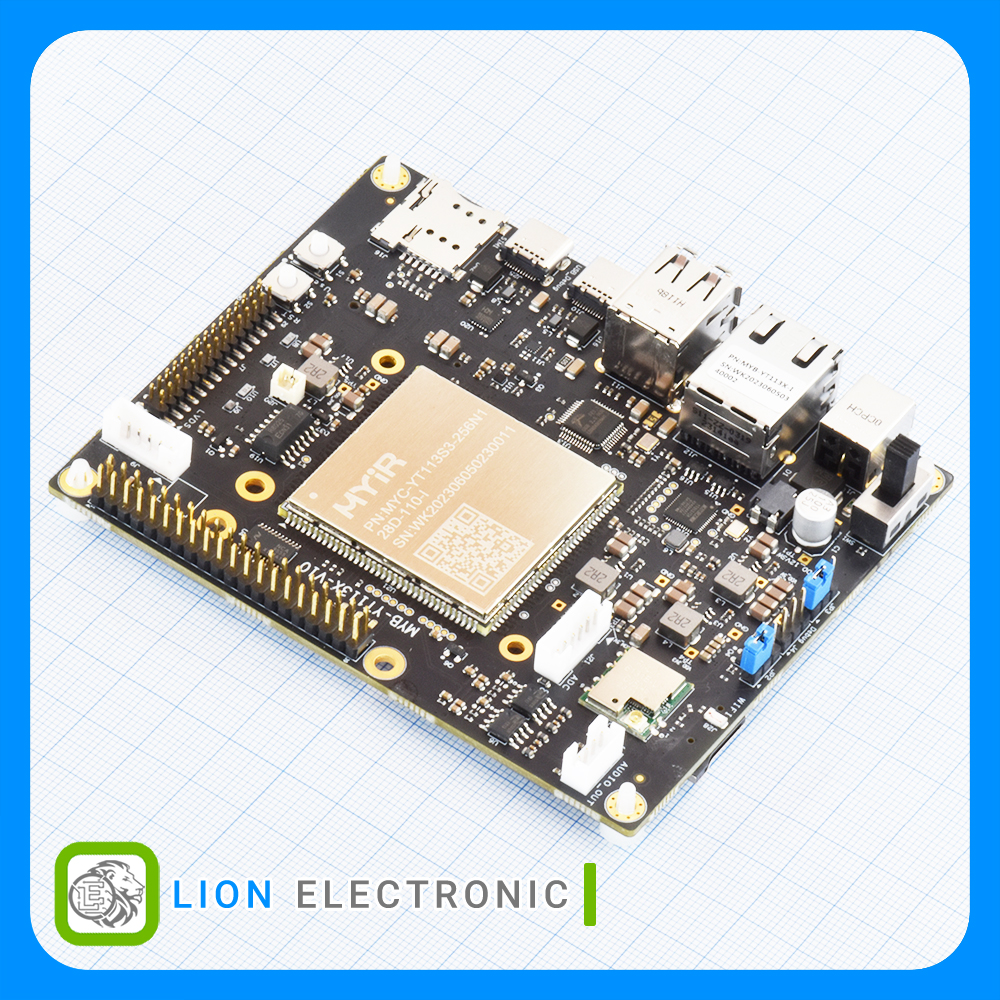

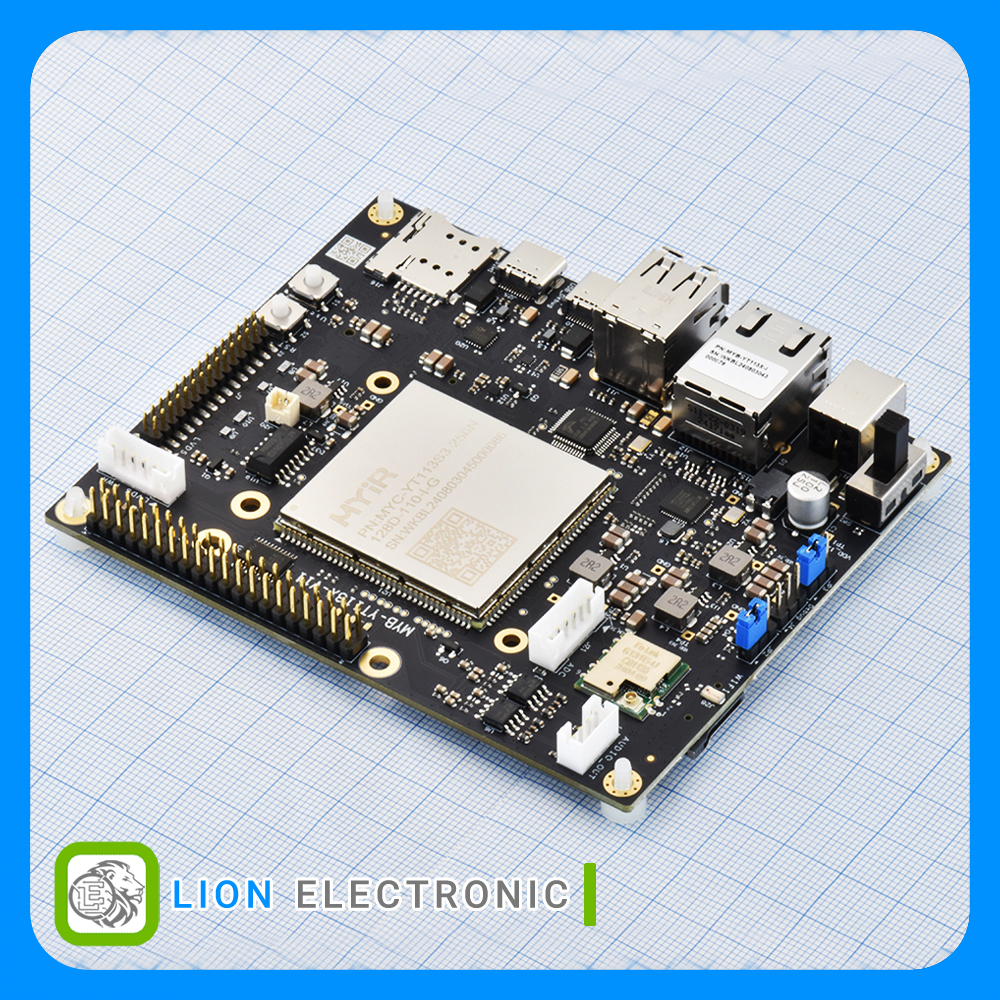

The MYD-YT113X Development Board consists of a compact CPU Module MYD-YT113S3 and a base board to provide a complete evaluation platform for ALLWINNER T113-S3 processors which features dual-core Arm Cortex-A7 operating at up to 1.2GHz, with built-in 128MB DDR3, single-core HiFi4 DSP and Video CODEC Engine, targeting applications such as HMI, industrial automation, display and control terminals
Peripherals and Signals Routed to Pins
1.0mm pitch 140-pin Stamp Hole Expansion Interface
1 x RGMII/RMII 2 x USB2.0
6 x UART
2 x CAN
4 x TWI
2 x SPI
1 x GPADC and 4 x TRADC
1 x MIPI DSI
1 x Single-channel LVDS and 1 x Dual-channel LVDS or 24-bit RGB (supports up to 1080p@60fps)
1x RGB
1 x Parallel CSI
2 x I2S
Up to 59 GPIOs
