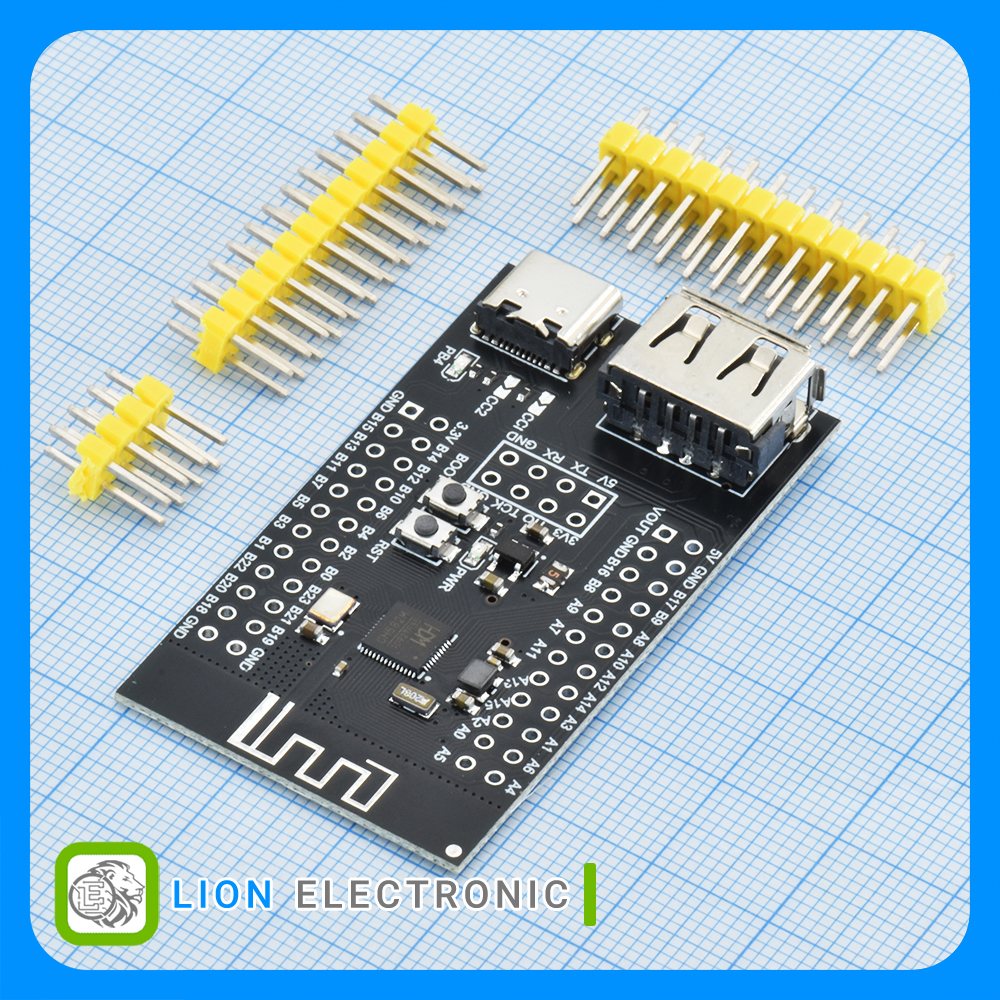

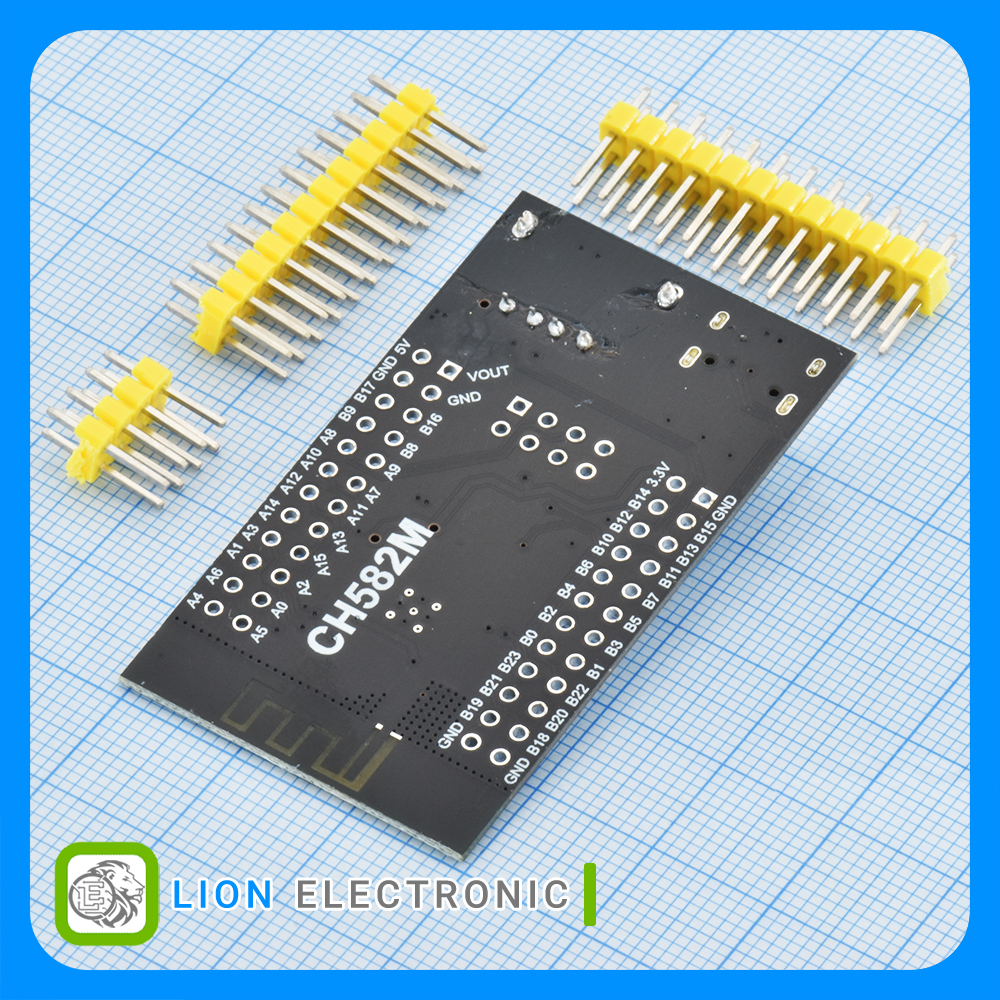

CH582M Development Board

The CH582M MCU Development Board is a high-performance and compact platform designed for developers working on IoT, BLE, and embedded applications. Powered by the WCH RISC-V4A 32-bit processor, this board supports BLE 5.3 and features a built-in 2.4GHz RF transceiver for wireless communication. It comes with 44kB of Flash memory, 32KB of SRAM, and multiple I/O interfaces, including UARTs, SPIs, PWMs, and GPIOs. Its low power consumption and integrated features like an AES-128 encryption unit, temperature sensor, and RTC make it ideal for applications like wearables, industrial control, and smart devices.

• Processor: 32-bit WCH RISC-V4A with RV32IMAC instruction set

• Memory: 32KB SRAM, 448kB Flash with ICP, ISP, IAP, and OTA support

• Wireless: BLE 5.3 with programmable +7dBm power and -98dBm sensitivity

• Interfaces: 4 UARTs, 2 SPIs, 1 IIC, 12-channel PWM, and 40 GPIOs (4 support 5V input)

• Analog: 14-channel 12-bit ADC, 14-channel touch key

• Built-in Features: Temperature sensor, RTC (timing and trigger modes), AES-128 encryption

• USB: Dual USB 2.0 full-speed Host/Device

• Power Supply: Minimum voltage 1.7V

• Package: QFN48
