به زودی
موجودی محصول
تعداد
قیمت
42,052,500 ریال
در صورت کمبود موجودی، می توانید محصول را به لیست استعلام سفارشات خارجی اضافه کنید تا توسط کارشناسان بررسی و نتیجه اعلام شود.

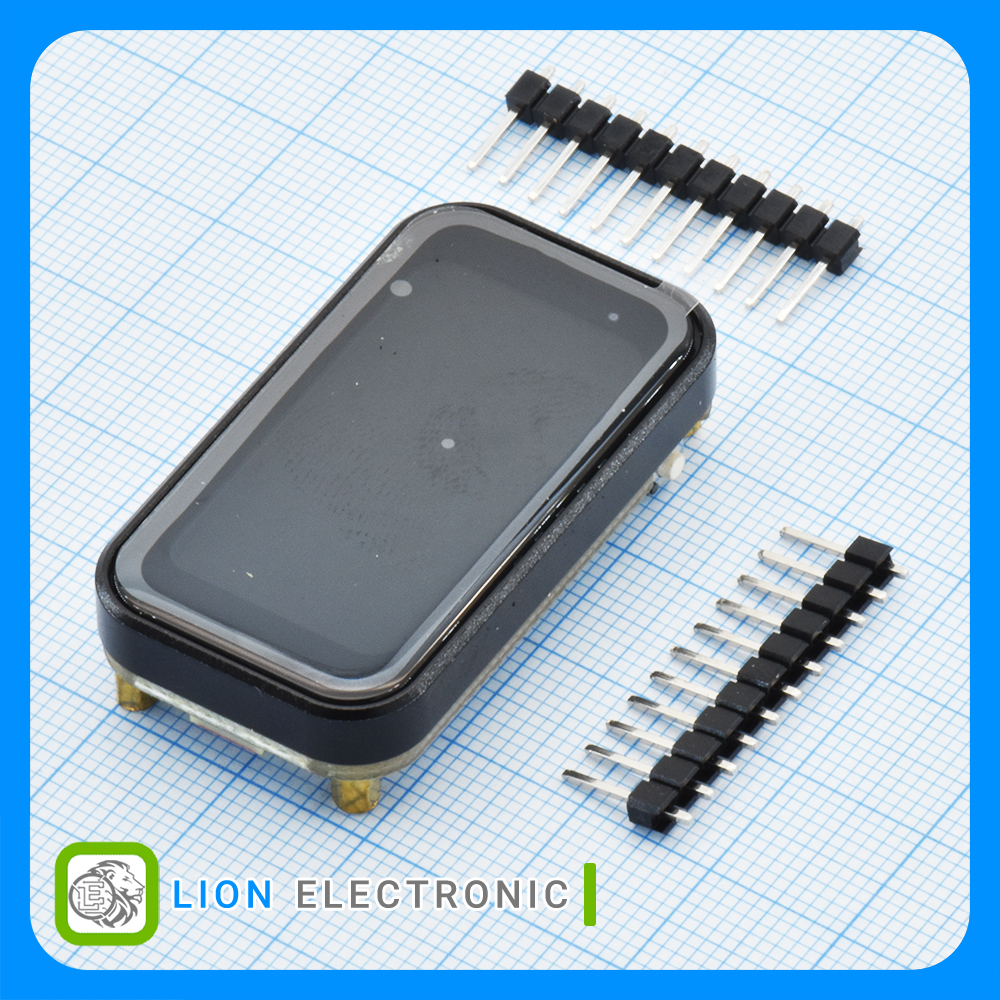

ESP32-C6 1.47inch Touch Display
ESP32-C6 1.47inch Touch Display
Part Number
6725
Lion Part
Datasheet
Waveshare Manufacture
برد توسعه مبتنی بر ESP32-C6 دارای نمایشگر مستطیلی 1.47 اینچ
ESP32-C6 1.47inch Touch Display Development Board , 172×320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor
معرفی

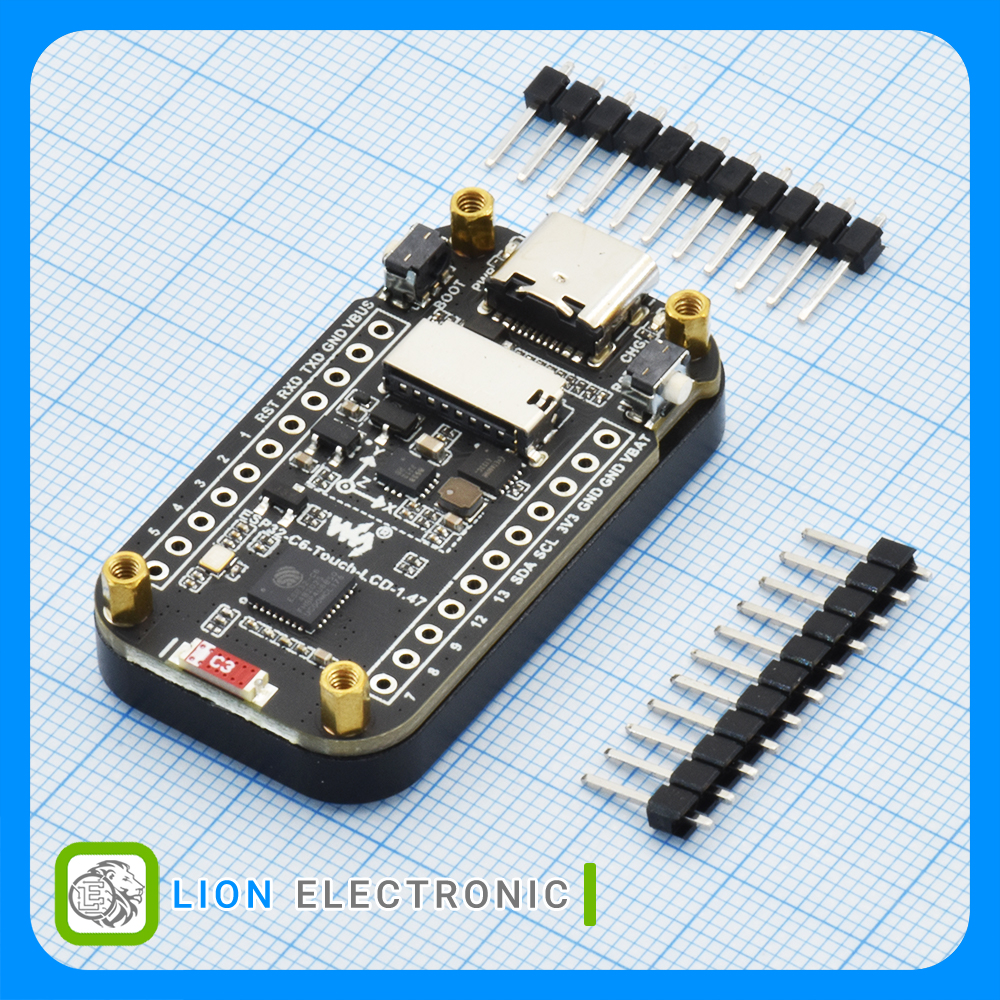

ESP32-C6-Touch-LCD-1.47 uses ESP32-C6FH8 chip with 2.4GHz WiFi 6 and Bluetooth BLE 5 support, integrates 8MB Flash, Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications.
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
- Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash
- Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
- Adapting multiple IO interfaces, supports full-speed USB standard
- Onboard TF card slot for external TF card storage of pictures or files
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
مشخصات ESP32-C6 1.47inch Touch Display
ESP32-C6 1.47inch Touch Display
Part Number
N/A
Maximum RAM Capacity
Espressif
Processor Brand
RISC-V
Processor Type
N/A
Cache Memory
N/A
Installed RAM
Development Board
Product Type
N/A
Minimum Operating Temperature
N/A
Maximum Operating Temperature
ESP32-C6
Chipsets
160MHz
Frequency
24.55mm x 44.5mm
Dimensions
درج شده در توضیحات محصول
Interface Type
5V
Operating Supply Voltage
