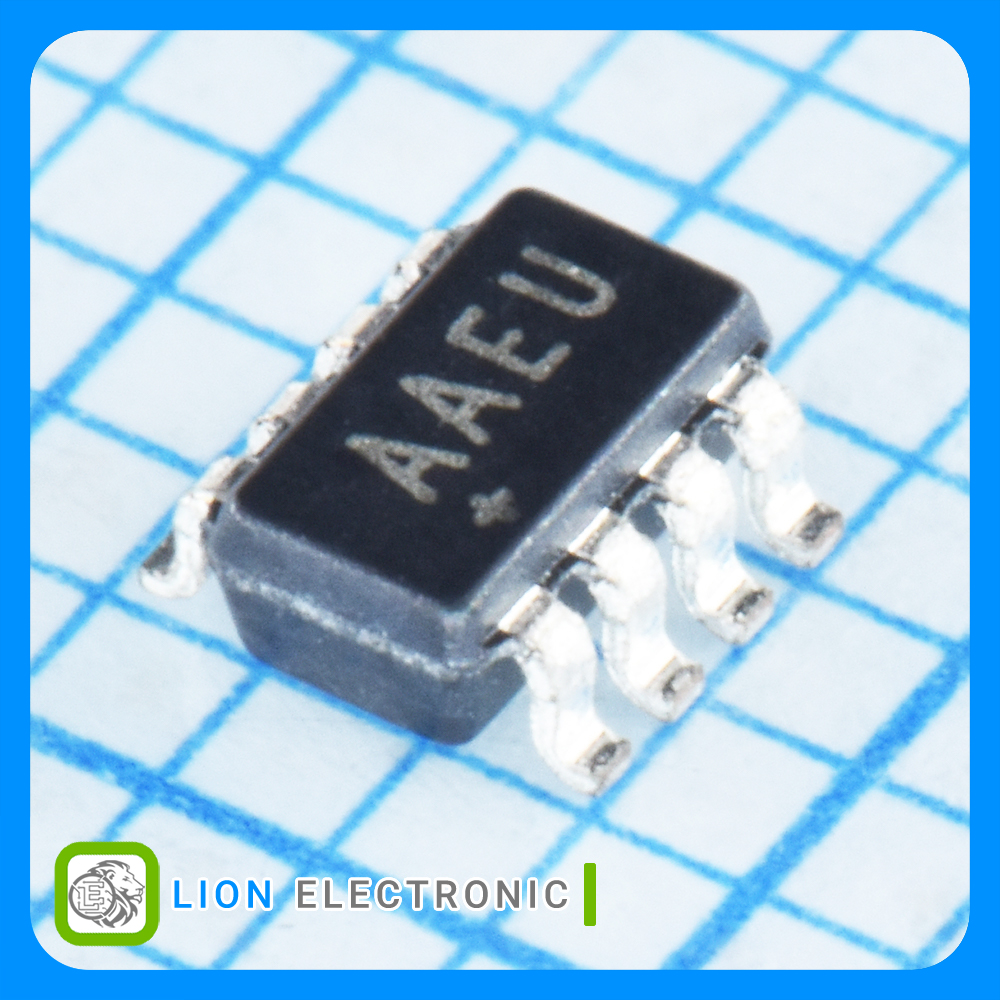

MAX9203EKA+T
MAX9203EKA+T
Part Number
4297
Lion Part
Datasheet
Maxim Integrated Manufacture
مقایسهکننده آنالوگ 1 کاناله همهمنظوره سریع با لچ آفست 4 میلیولت جریان بایاس 5 میکروآمپر با پکیج SOT-23-8
Analog Comparator 1 Channel General Purpose Fast with Latch 4mV 5uA with SOT-23-8 Package
معرفی
مقایسهکننده آنالوگ 1 کاناله همهمنظوره سریع با لچ آفست 4 میلیولت جریان بایاس 5 میکروآمپر با پکیج SOT-23-8
Analog Comparator 1 Channel General Purpose Fast with Latch 4mV 5uA with SOT-23-8 Package
Specifications
- Number of Channels: 1
- Comparator Type: General Purpose with Latch
- Response Time: 7ns
- Output Current per Channel: 8mA
- Ib - Input Bias Current: 5uA
- Vos - Input Offset Voltage: 4mV
- Output Type: TTL
- Supply Voltage - Min: 4.75V
- Supply Voltage - Max: 10.5V
- Operating Supply Current: 1.3mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات مقایسه کننده آنالوگ MAX9203EKA+T
مقایسه کننده آنالوگ MAX9203EKA+T
Part Number
1
Number of Channels
General Purpose with Latch
Comparator Type
7ns
Response Time
Reel
Packaging
-40C
Minimum Operating Temperature
8mA
Output Current per Channel
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
10.5V
Supply Voltage - Max
TTL
Output Type
4mV
Vos - Input Offset Voltage
4.75V
Supply Voltage - Min
5uA
Ib - Input Bias Current
1.3mA
Operating Supply Current
SOT-23-8
Package-Case
