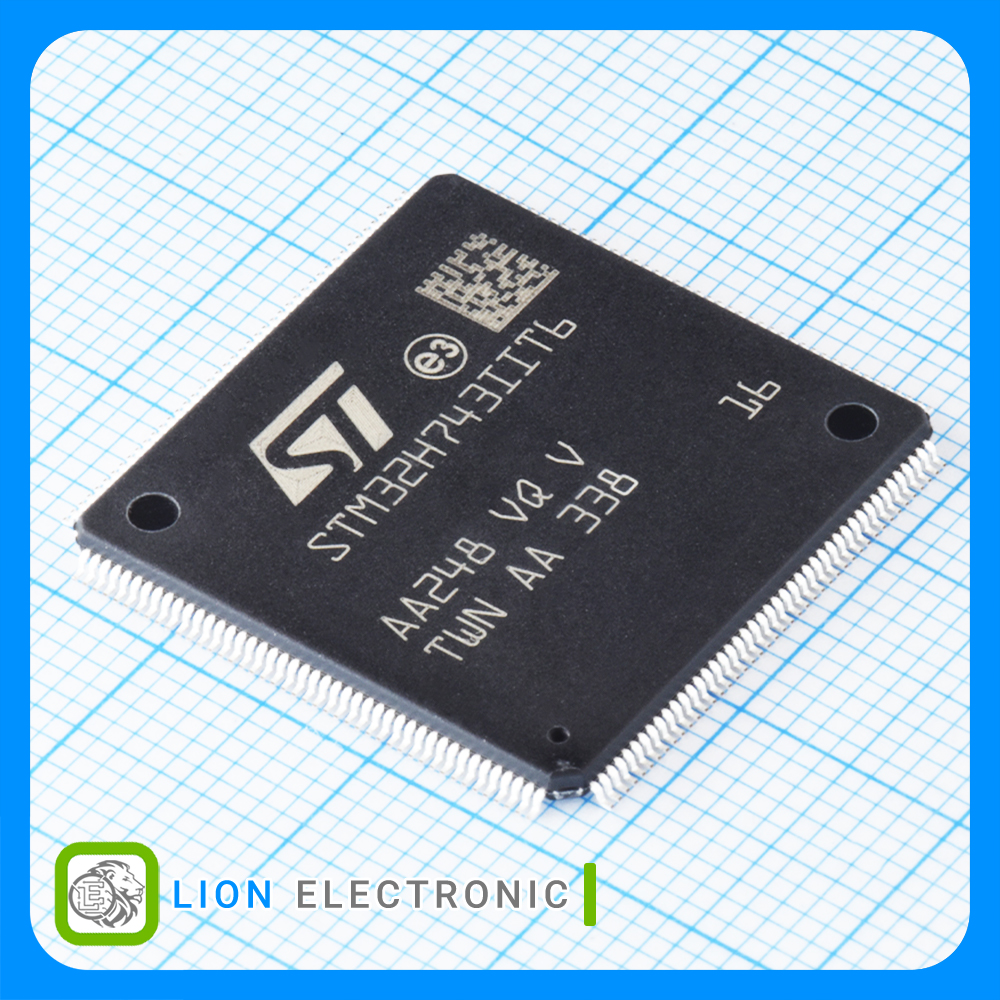

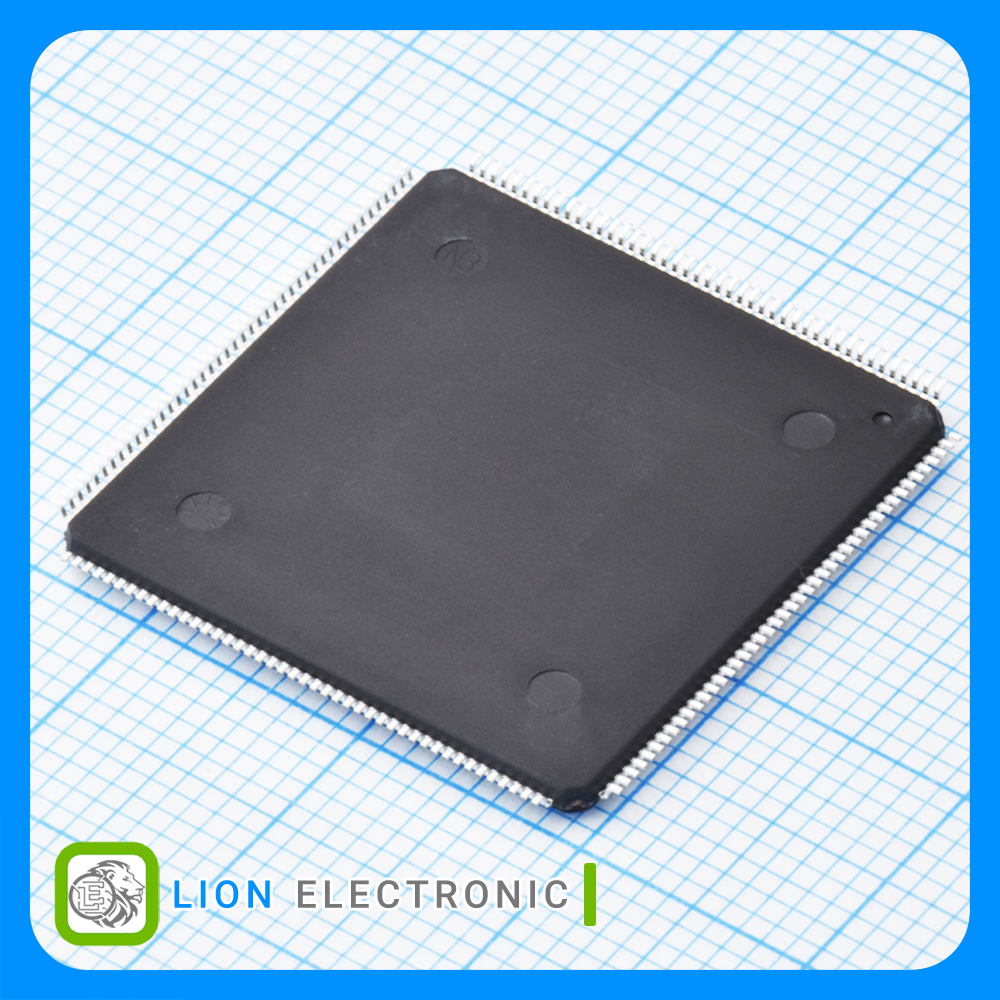

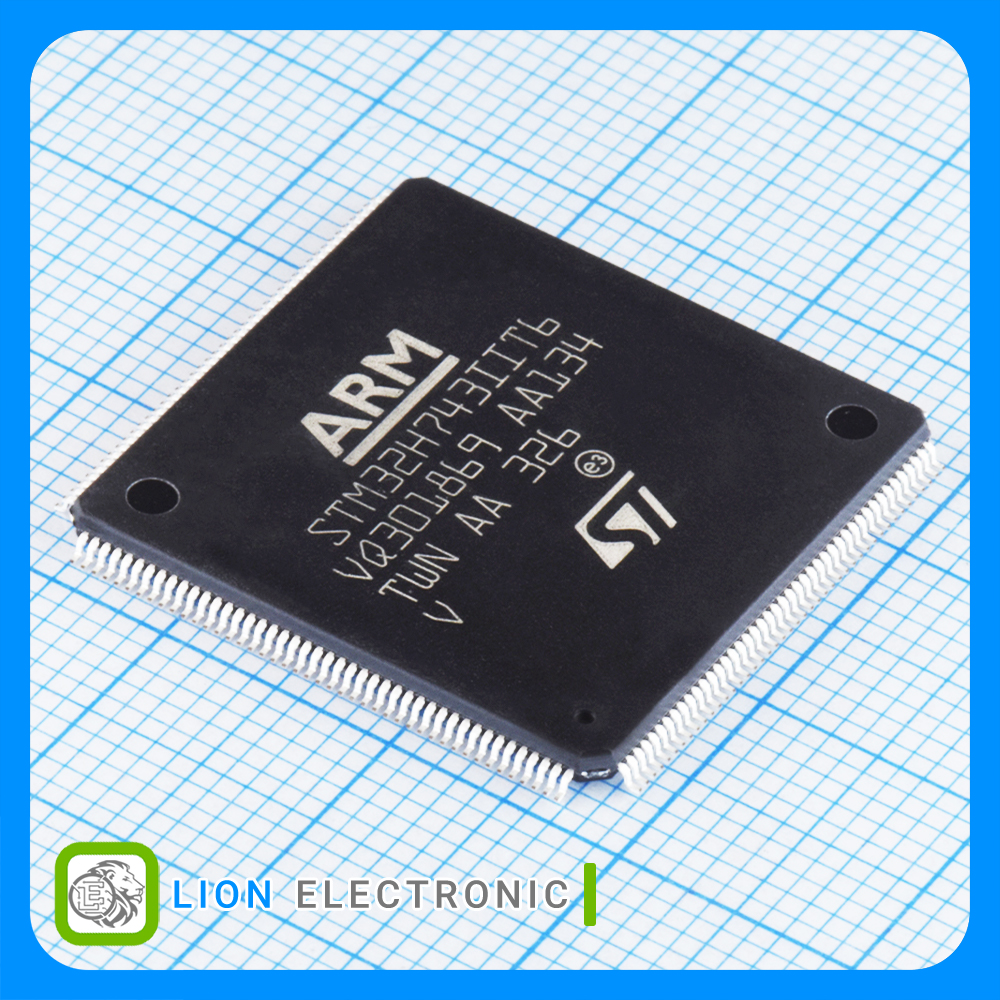

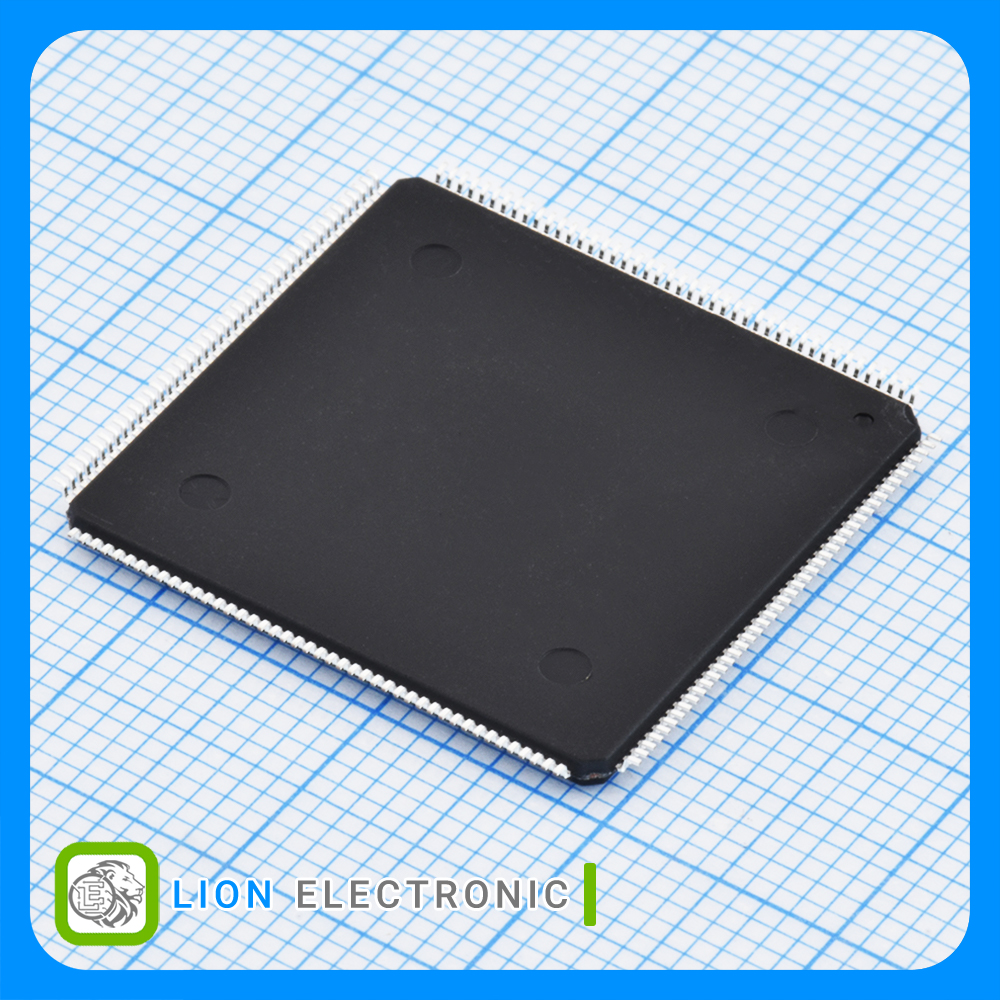

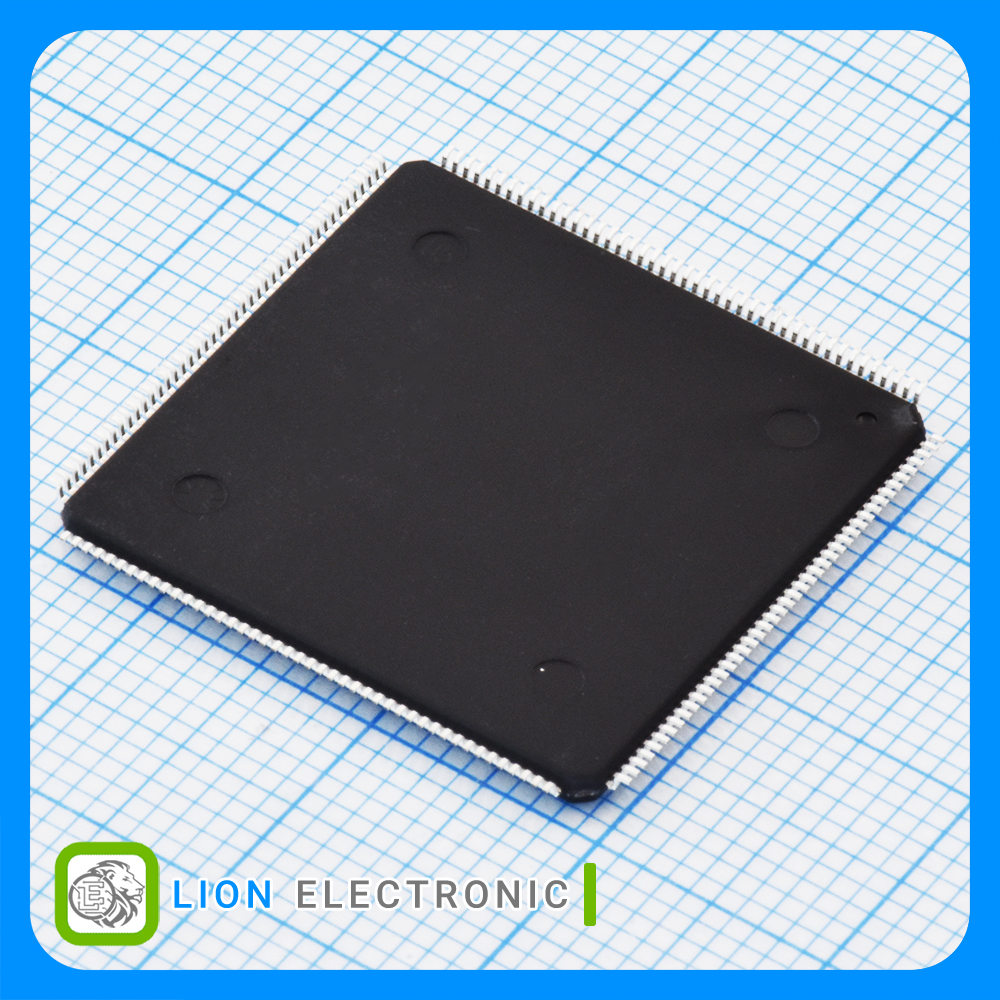

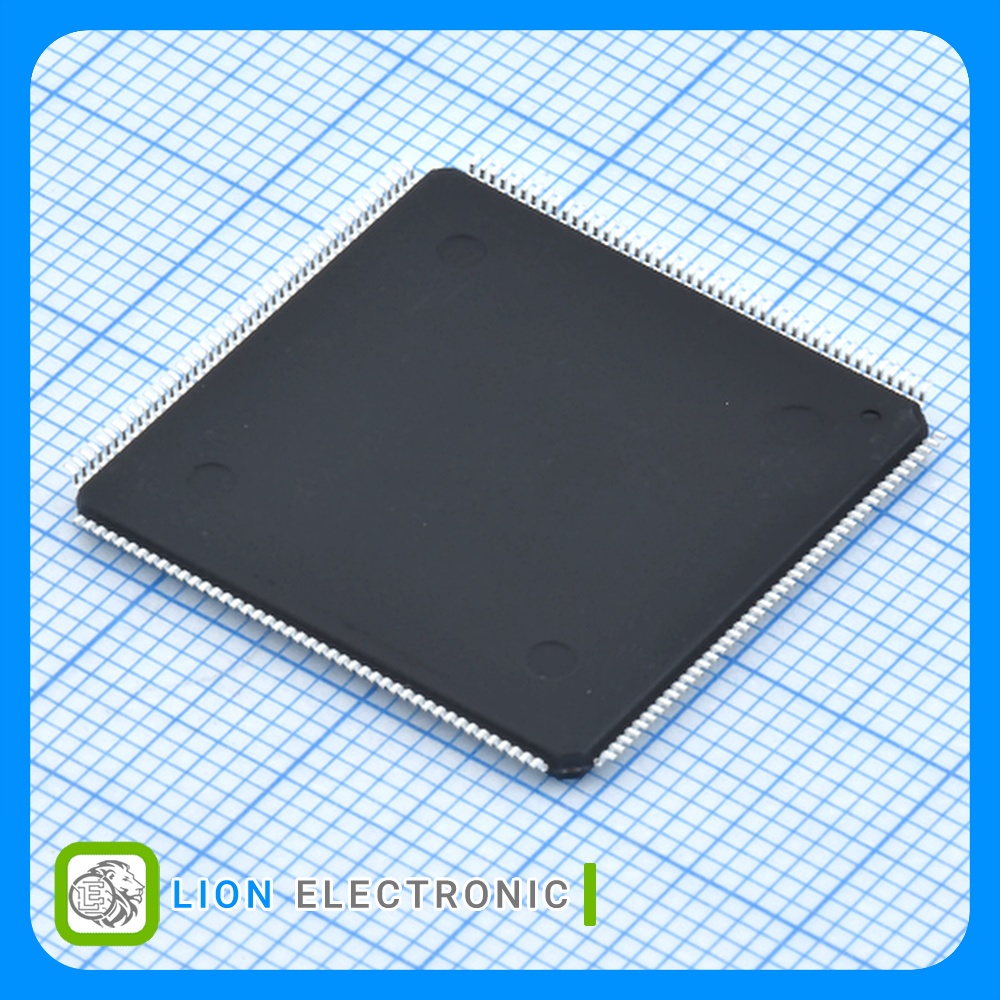

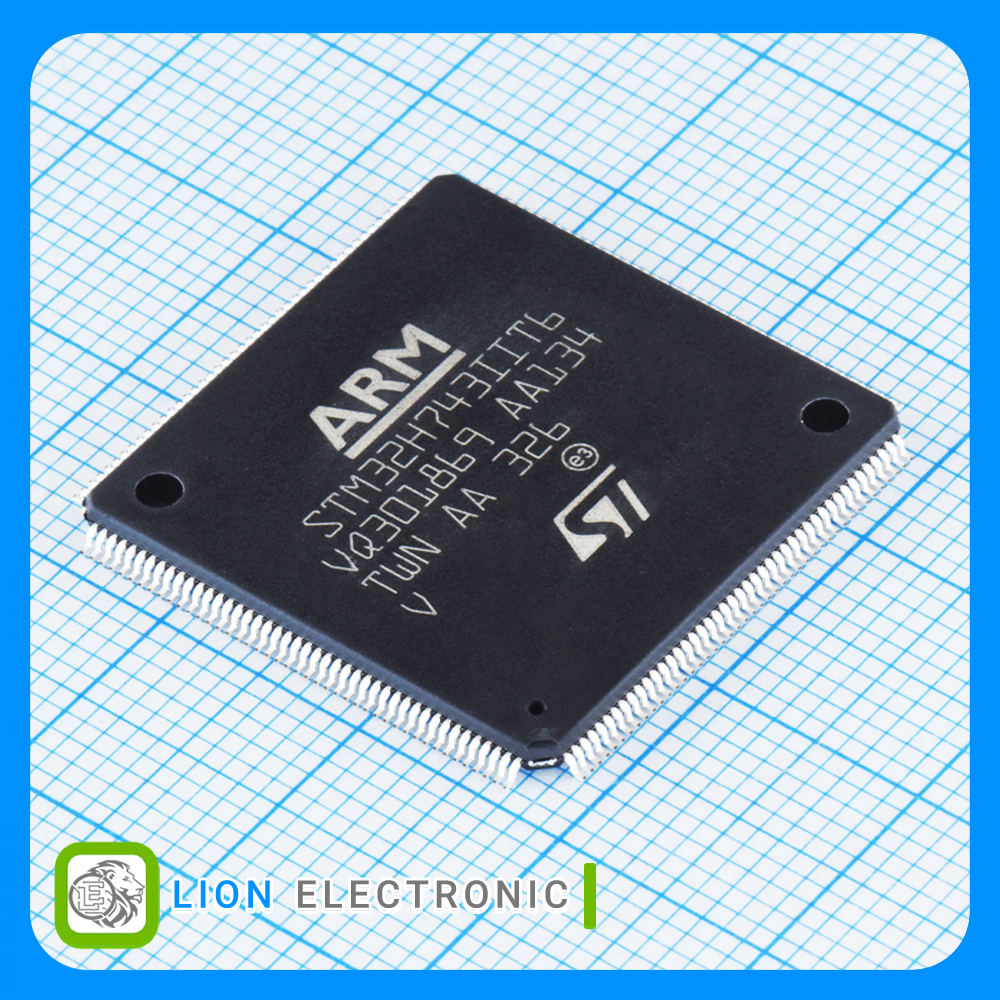

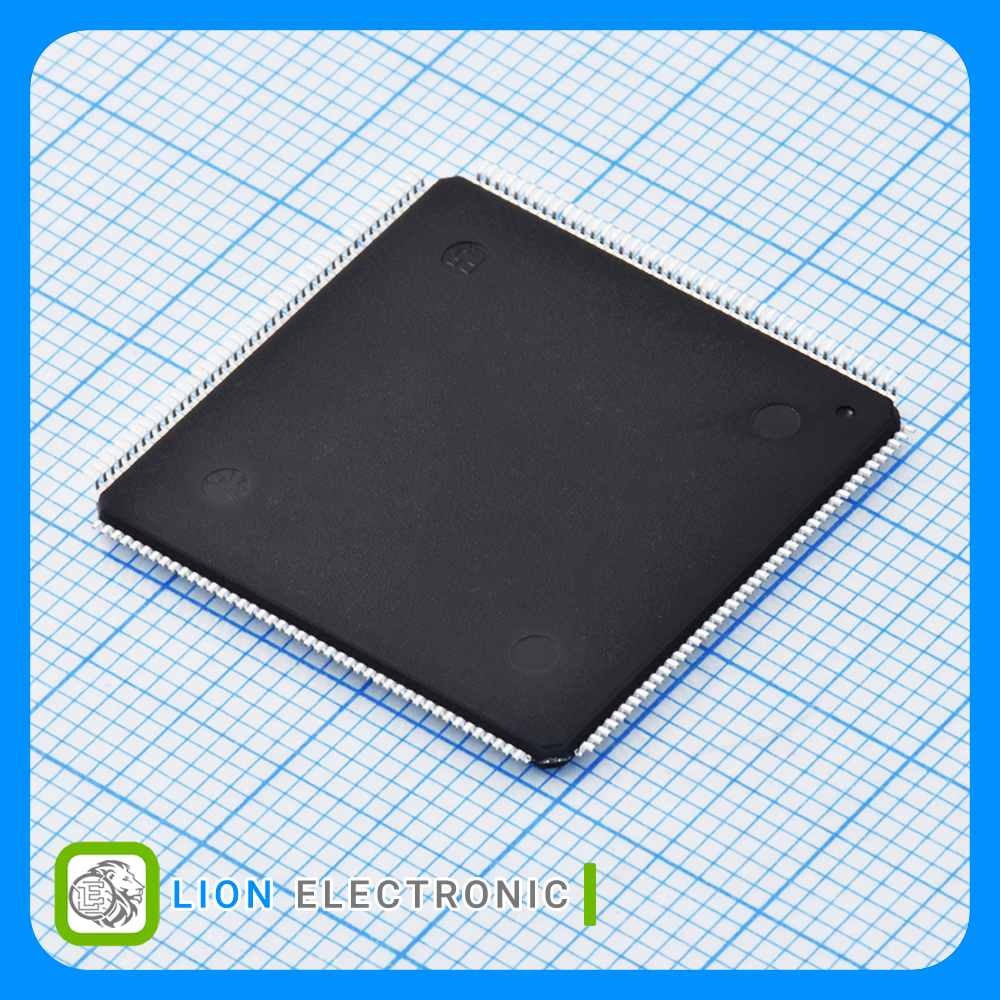

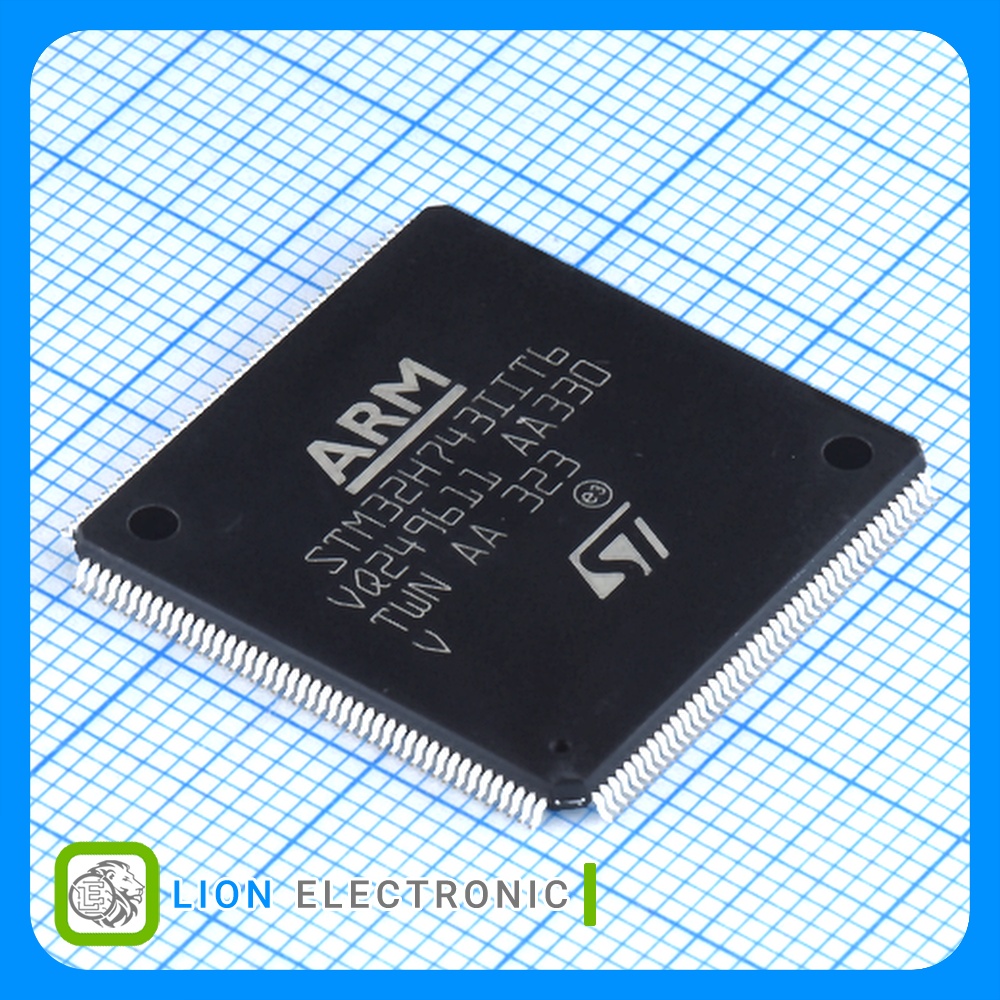

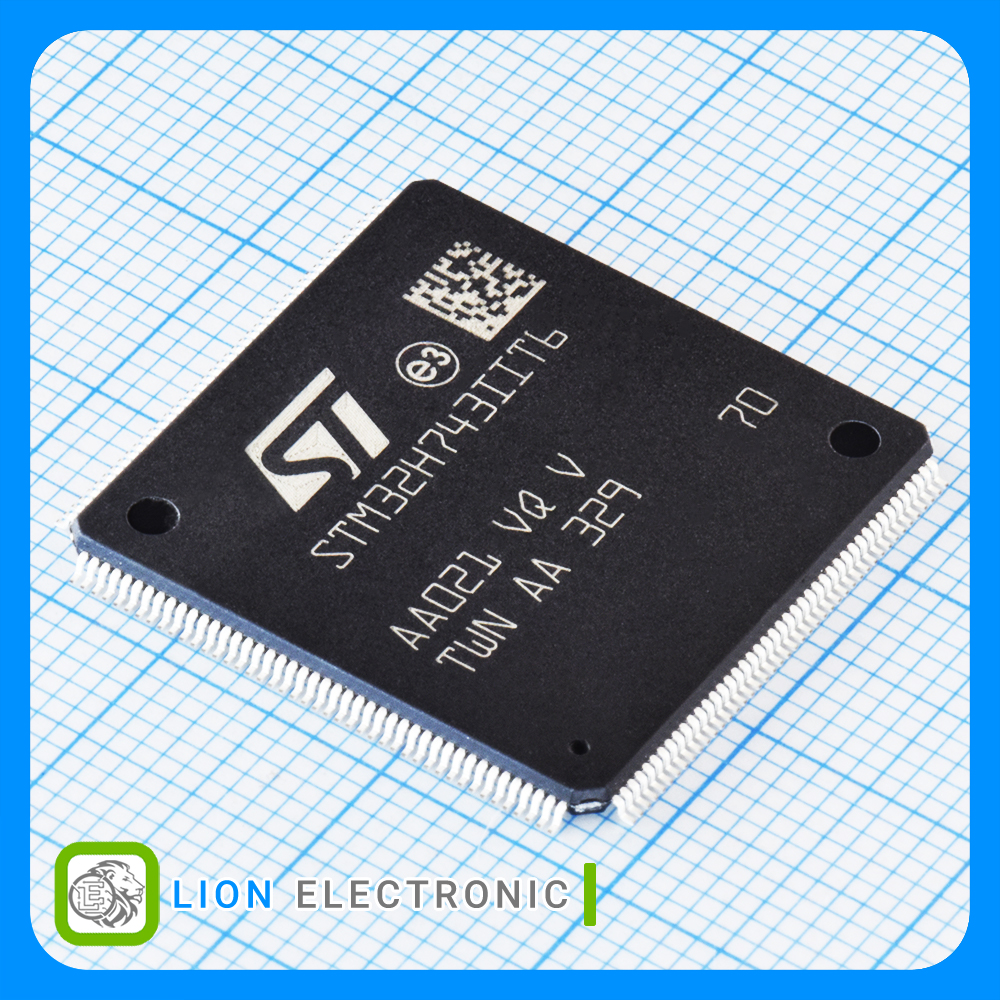

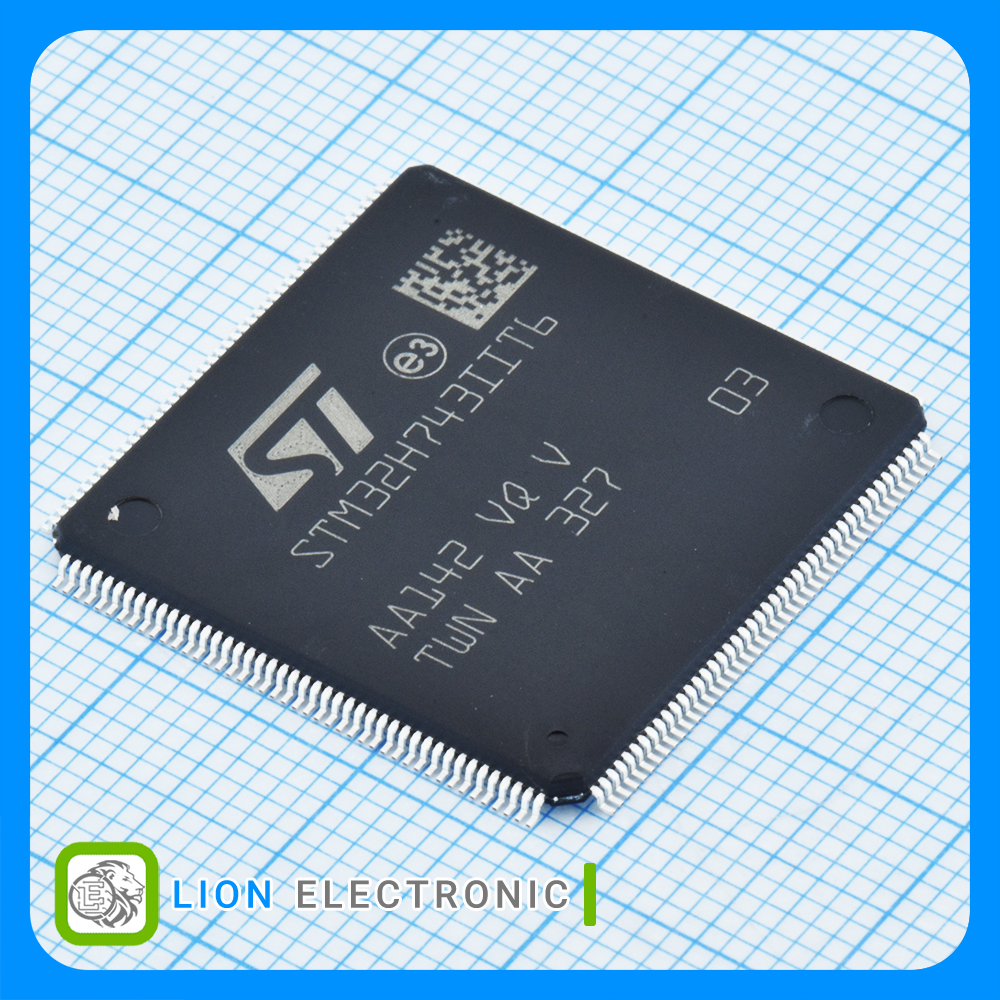

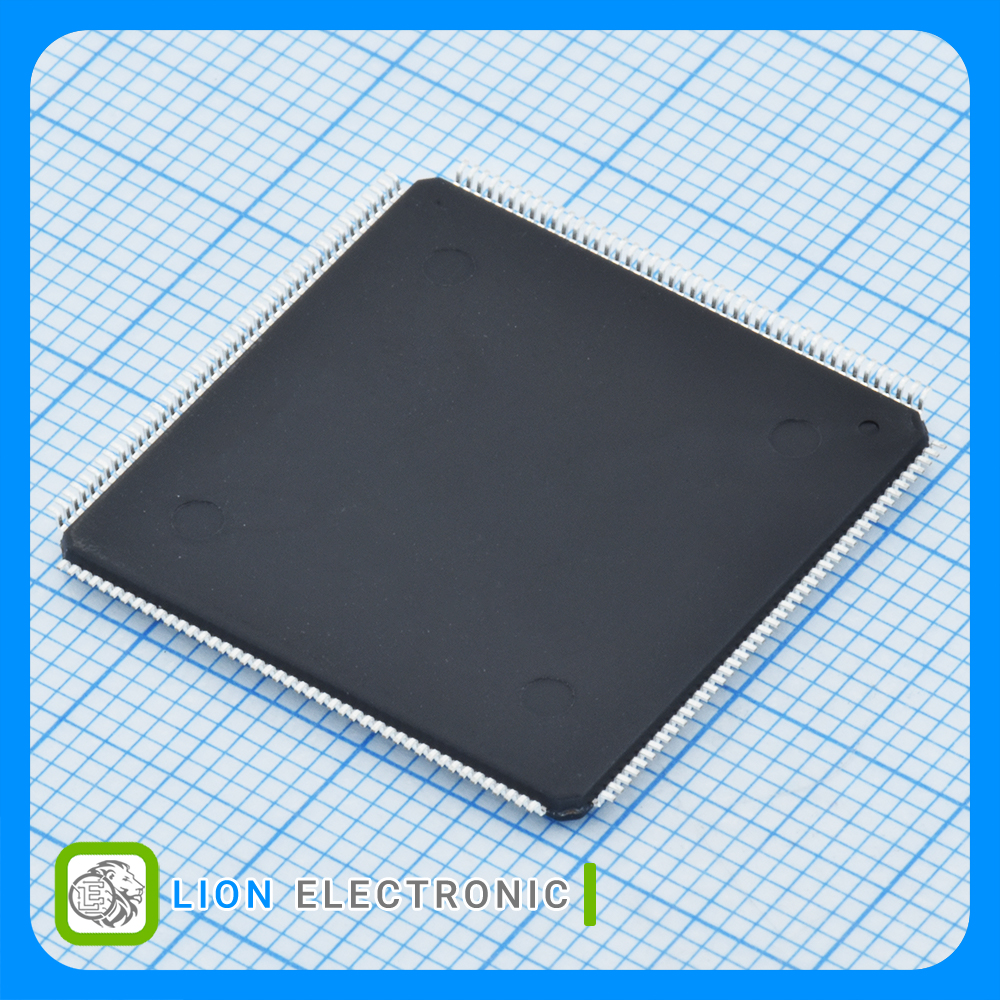

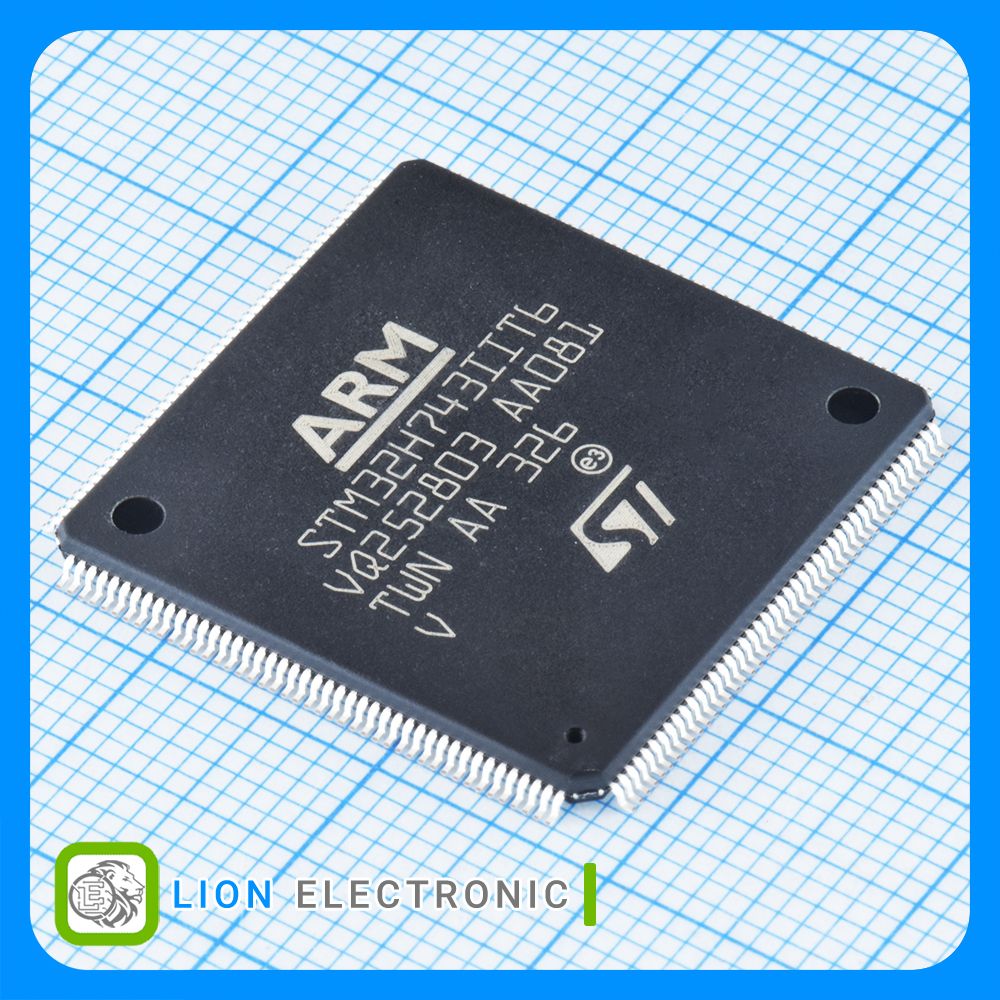

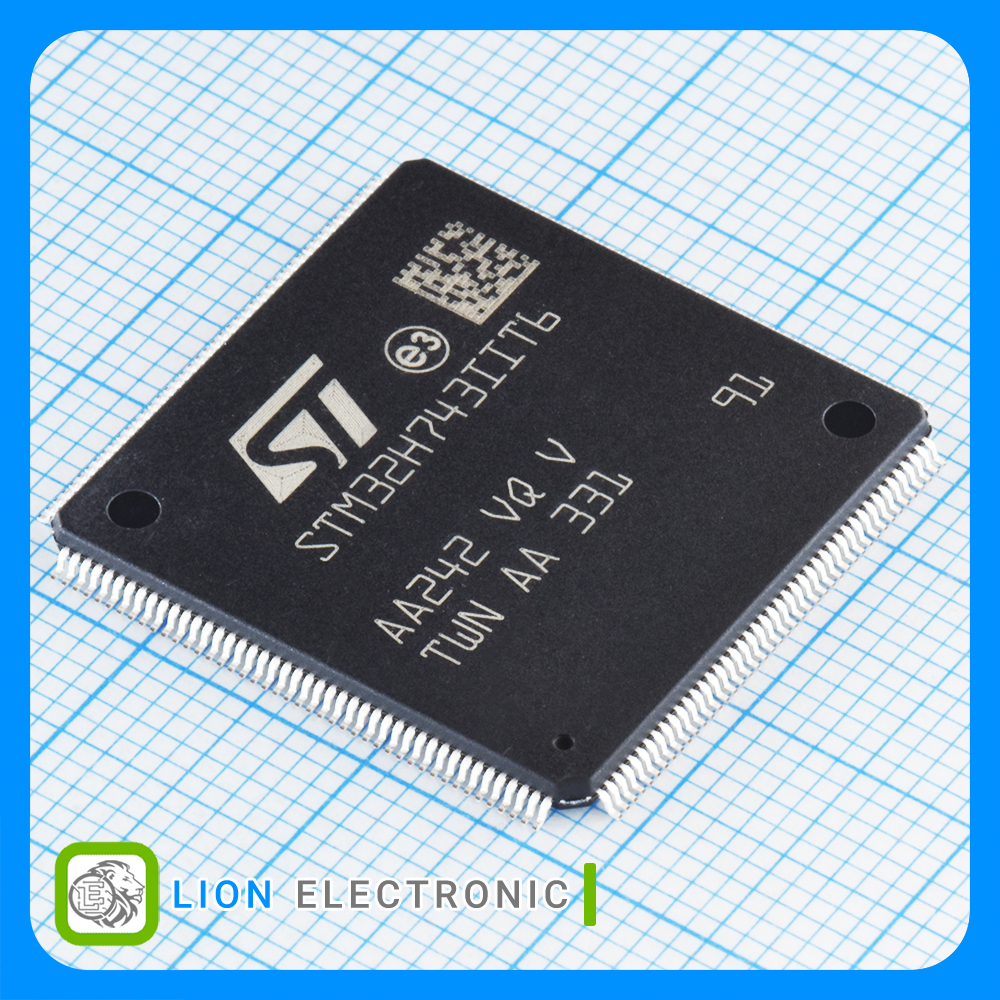

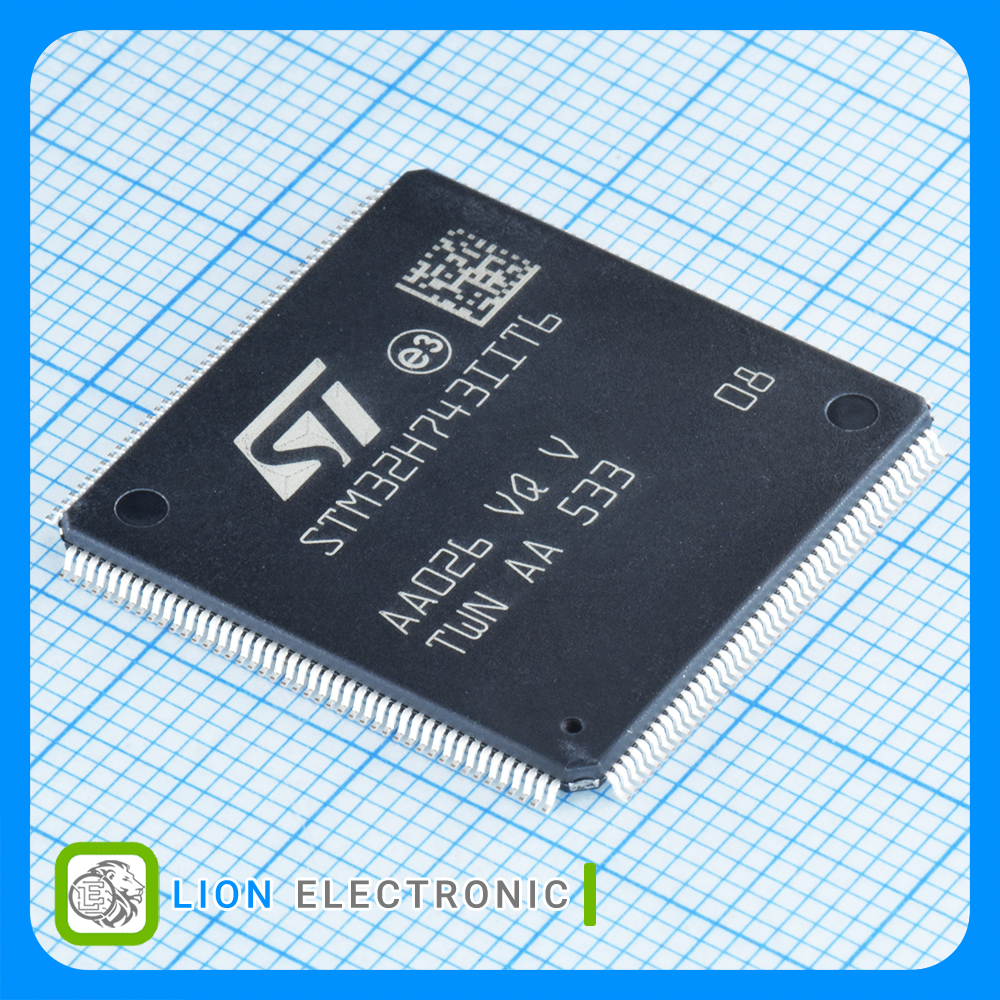

میکروکنترلر STM32H743IIT6

Part Number
STM32H743IIT6
Lion Part
4376
Description

میکروکنترلر آرم با 2 مگابایت فلش، 1مگابایت رم و پکیج LQFP-176

 High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 2MBytes of Flash memory, 1MB RAM, 480 MHz CPU

موجودی محصول
54
Full Tray: 40

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 6,574,155 ریال
10 6,445,250 ریال
80 6,367,907 ریال
معرفی

the devices offer three ADCs, two DACs, two ultra-low power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator (RNG). The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.



Standard peripherals

– Four I2Cs

– Four USARTs, four UARTs and one LPUART

– Six SPIs, three I2Ss in Half-duplex mode. To achieve audio class accuracy, the

I2S peripherals can be clocked by a dedicated internal audio PLL or by an external clock to allow synchronization.

– Four SAI serial audio interfaces

– One SPDIFRX interface

– One SWPMI (Single Wire Protocol Master Interface)

– Management Data Input/Output (MDIO) slaves

– Two SDMMC interfaces

– A USB OTG full-speed and a USB OTG high-speed interface with full-speed capability (with the ULPI)

– One FDCAN plus one TT-FDCAN interface

– An Ethernet interface

– Chrom-ART Accelerator

– HDMI-CEC



Advanced peripherals including

– A flexible memory control (FMC) interface

– A Quad-SPI Flash memory interface

– A camera interface for CMOS sensors

– An LCD-TFT display controller

– A JPEG hardware compressor/decompressor

مشخصات میکروکنترلر STM32H743IIT6

  • Part Number
    میکروکنترلر STM32H743IIT6
  • Data Bus Width
    32bit
  • Minimum Operating Temperature
    -40C
  • Packaging
    Tray
  • Mounting Style
    SMD/SMT
  • ADC Resolution
    3 x 16bit
  • Core
    ARM Cortex M7
  • Maximum Operating Temperature
    +85C
  • Operating Supply Voltage
    1.62 - 3.6V
  • Program Memory Size
    2MB
  • Maximum Clock Frequency
    480MHz
  • Data RAM Size
    1MB
  • Number of I-Os
    140
  • Interface Type
    درج شده در توضیحات محصول
  • Package-Case
    LQFP-176
