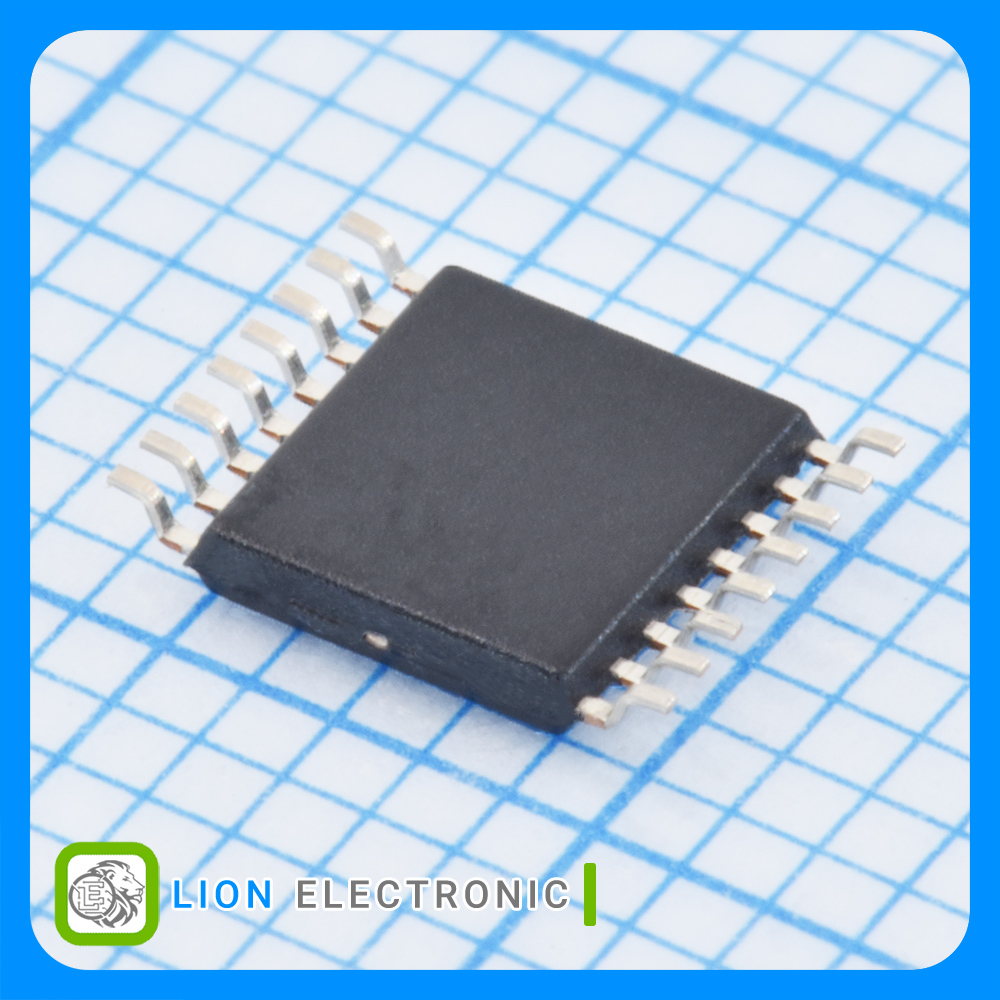

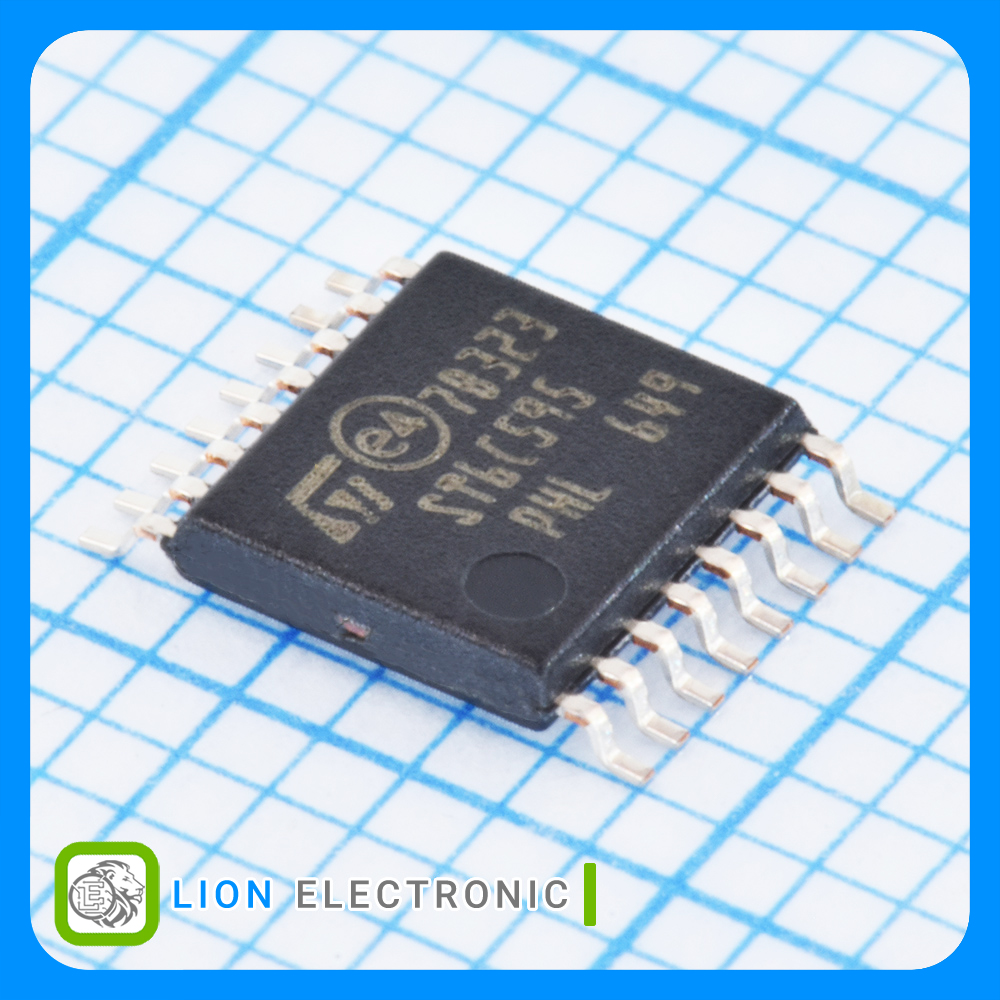

STPIC6C595TTR
STPIC6C595TTR
Part Number
4382
Lion Part
Datasheet
STMicroelectronics Manufacture
پاور سوئیچ هوشمند سمت پایین 8 کاناله 33 ولت 100 میلیآمپر شیفت رجیستر 8 بیتی با پکیج TSSOP-16
Smart Power Switch Low Side 8-Channel 33V, 100mA, 8Bit Counter Shift Register with TSSOP-16 Package
معرفی
پاور سوئیچ هوشمند سمت پایین 8 کاناله 33 ولت 100 میلیآمپر شیفت رجیستر 8 بیتی با پکیج TSSOP-16
Smart Power Switch Low Side 8-Channel 33V, 100mA, 8Bit Counter Shift Register with TSSOP-16 Package
Specifications
- Type: Low Side
- Interface Type: SPI
- Number of Channels: 8
- Output Voltage: 33V
- Output Current: 100mA
- Current Limit: 250mA
- Rds On - Drain - Source Resistance: 4Ω
- Input Voltage: 3V3 , 5V
- Operating Supply Voltage: 7V
- Package/Case: TSSOP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات STPIC6C595TTR
STPIC6C595TTR
Part Number
1
Number of Input Lines
250mA
Current Limit
Reel
Packaging
-40C
Minimum Operating Temperature
9
Number of Output Lines
SMD/SMT
Mounting Style
8
Number of Channels
STPIC
Logic Family
+125C
Maximum Operating Temperature
3V3 , 5V
Input Voltage
5.5V
Supply Voltage - Max
Shift Register
Logic Type
100mA
Output Current
4.5V
Supply Voltage - Min
Low Side
Type
SPI
Interface Type
4Ω
Rds On - Drain - Source Resistance
33V
Output Voltage
7V
Operating Supply Voltage
TSSOP-16
Package-Case
