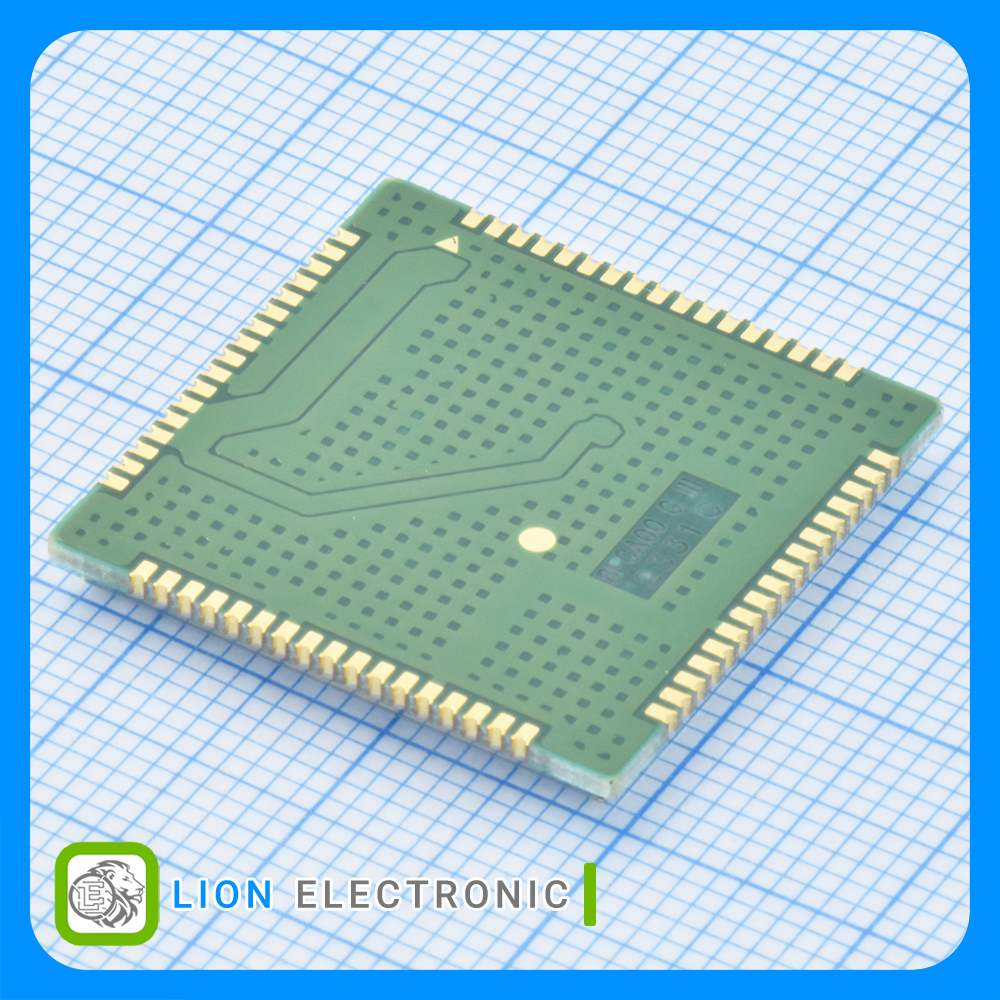

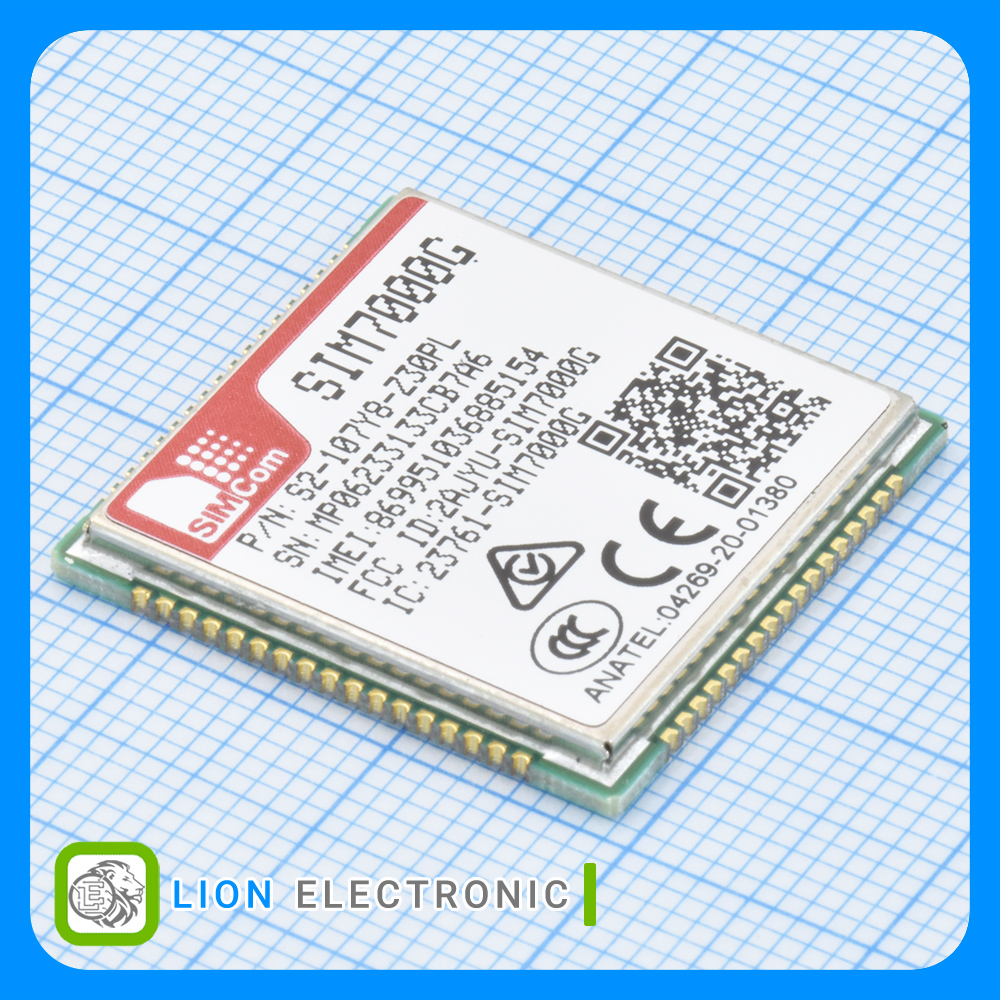

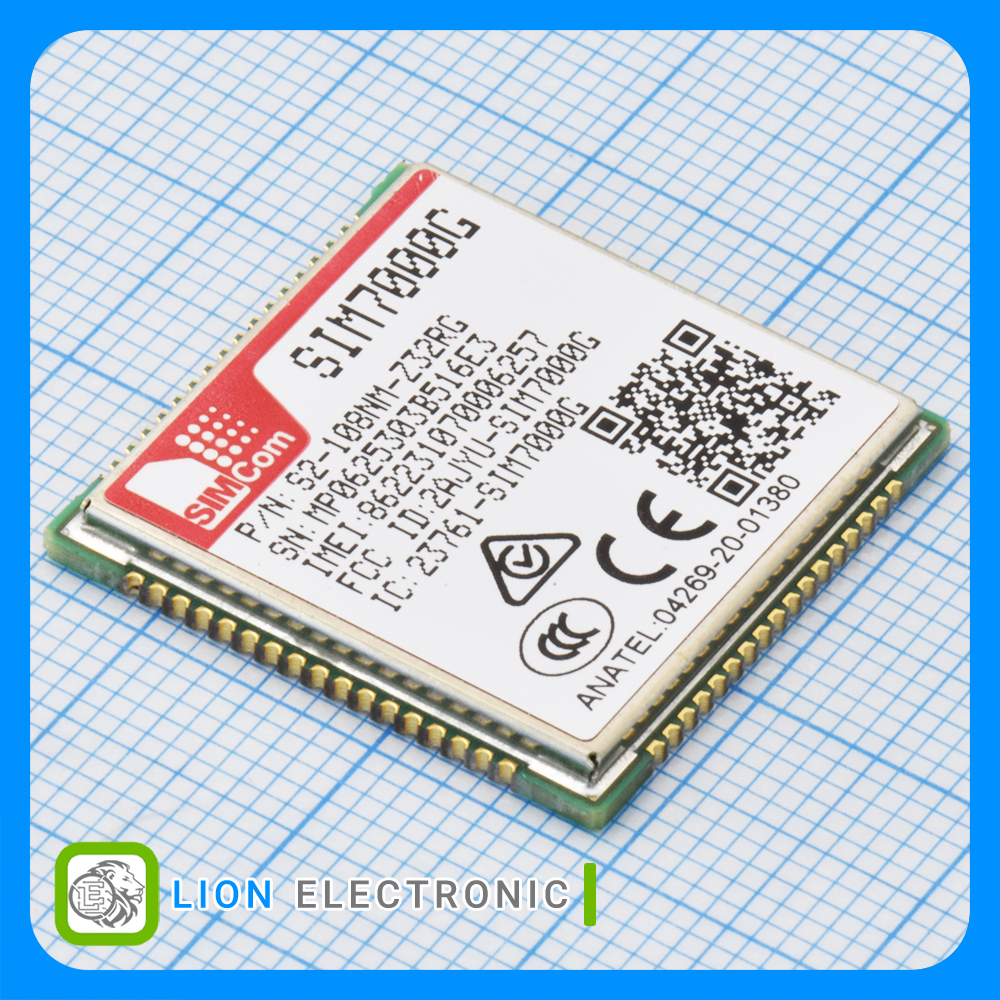

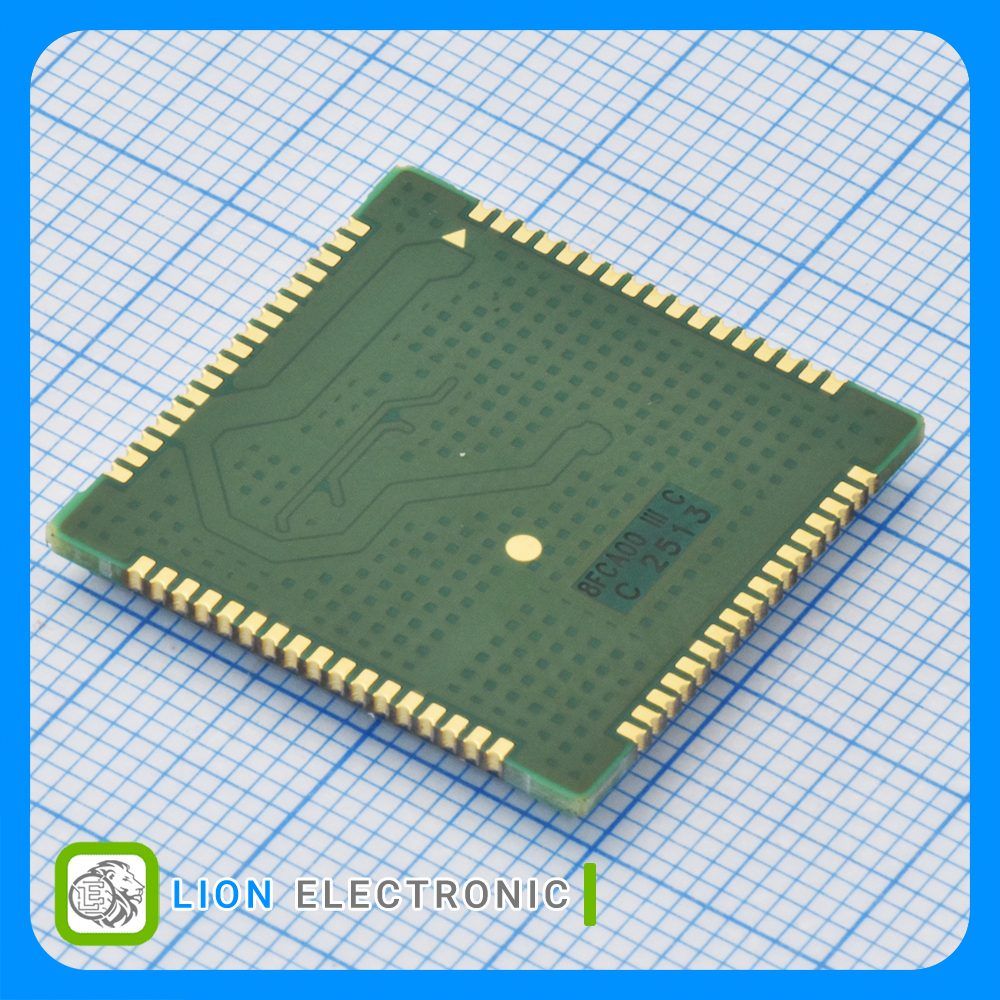

SIM7000G
SIM7000G
Part Number
4436
Lion Part
Datasheet
SIMCom Manufacture
ماژول مخابراتی LTE-FDD/TDD چندباند جهانی و GPRS/EDGE چهارباند با فرکانس 850/900/1800/1900 مگاهرتز با تغذیه 3 تا 4.3 ولت و رابط ADC, GPIO, I2C, PCM, UART, USB از نوع LCC
Communication Module with 850/900/1800/1900MHz Frequency, 3 - 4.3V Supply with ADC, GPIO, I2C, PCM, UART, USB Interface, Global-Band LTE-FDD TDD-LTE and QuadBand GPRS/EDGE Module Solution in LCC Type
معرفی
ماژول مخابراتی LTE-FDD/TDD چندباند جهانی و GPRS/EDGE چهارباند با فرکانس 850/900/1800/1900 مگاهرتز با تغذیه 3 تا 4.3 ولت و رابط ADC, GPIO, I2C, PCM, UART, USB از نوع LCC
Communication Module with 850/900/1800/1900MHz Frequency, 3 - 4.3V Supply with ADC, GPIO, I2C, PCM, UART, USB Interface, Global-Band LTE-FDD TDD-LTE and QuadBand GPRS/EDGE Module Solution in LCC Type
Specifications
- Interface Type: ADC, GPIO, I2C, PCM, UART, USB
- Number of Channels: 4
- Frequency: 850/900/1800/1900MHz
- Acquisition Sensitivity: -162dBm
- Time To First Fix - Cold Start: 35s
- Operating Supply Voltage: 3 - 4.3V
- Operating Supply Current: Max 2A
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات ماژول(GSM) SIM7000G
ماژول(GSM) SIM7000G
Part Number
N/A
Horizontal Position Accuracy
-162dBm
Acquisition Sensitivity
35s
Time To First Fix - Cold Start
4
Number of Channels
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
ADC, GPIO, I2C, PCM, UART, USB
Interface Type
850/900/1800/1900MHz
Frequency
3 - 4.3V
Operating Supply Voltage
Max 2A
Operating Supply Current
